Disassembly (LX470)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Lexus SC 430, 2002 Lexus RX 300, 2002 Lexus LX 470, 2002 Lexus LS 430, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

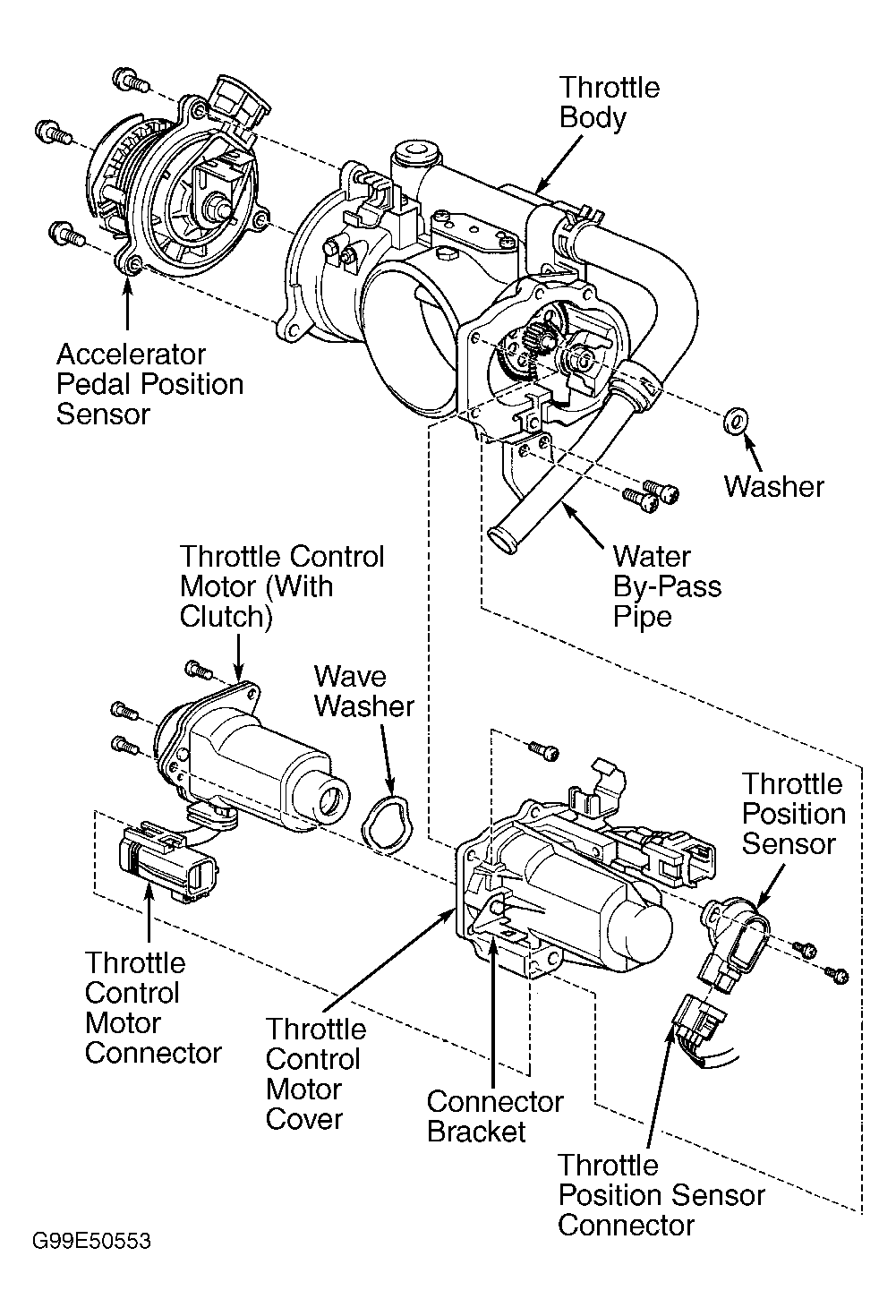

- If necessary to remove Throttle Position (TP) sensor, remove TP sensor retaining screws and TP sensor from throttle body. See Fig 1.
- If necessary to remove throttle control motor, ensure TP sensor is removed from throttle body. Disconnect throttle control motor electrical connector from connector bracket. See Fig 1.
- Remove throttle control motor cover-to-throttle body retaining screws from outside of throttle control motor cover. Remove throttle control motor cover with throttle control motor from throttle body.
- Remove throttle control motor-to-throttle control motor cover screws from inside of throttle control motor cover. Remove throttle control motor and wave washer from throttle control motor cover.
- If necessary to remove accelerator pedal position sensor, remove retaining screws and accelerator pedal position sensor from throttle body. See Fig 1.
