Installation (GS300, IS300, GS430, LS430, RX300 & SC430)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Lexus SC 430, 2002 Lexus RX 300, 2002 Lexus LX 470, 2002 Lexus LS 430, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten fuel tank vent tube set plate bolts to specification. See TORQUE SPECIFICATIONS . Check for fuel leaks.

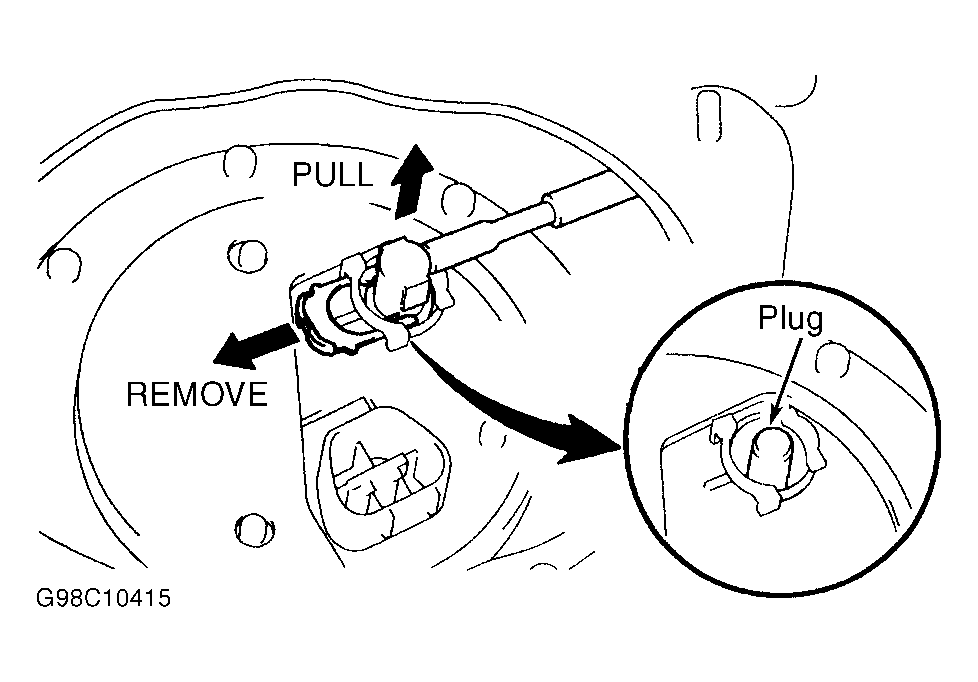

Fig 1: Disconnecting Fuel Line At Fuel Pump (GS300, IS300, GS430, LS430, RX300 & SC430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

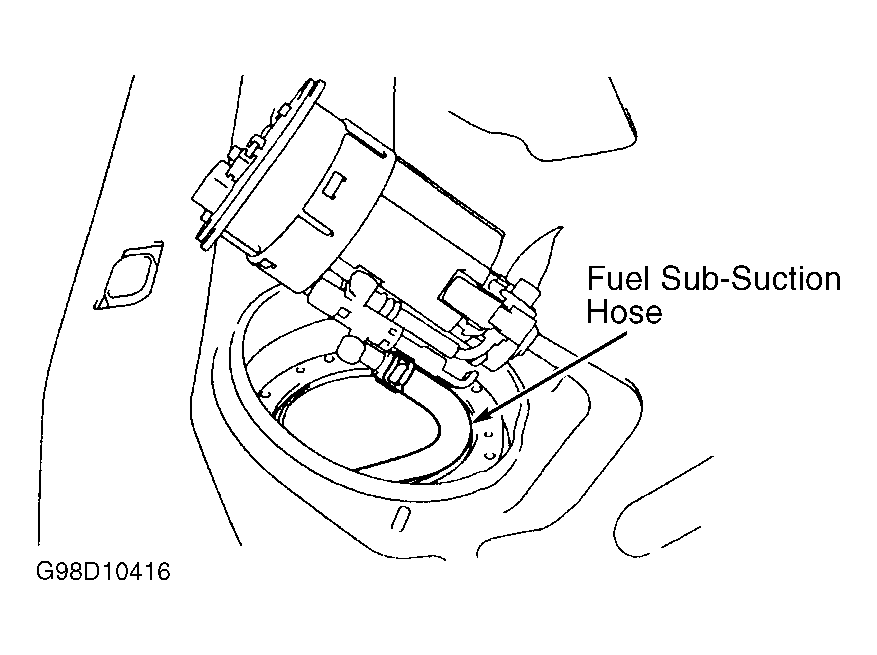

Fig 2: Identifying Sub-Suction Hose (GS300, IS300, GS430, LS430, RX300 & SC430)

Fig 3: Exploded View Of Fuel Pump Assembly (GS300 & GS430 Shown; IS300, LS430, RX300 & SC430 Are Similar)
