Removal & Installation (ES300, GS300, IS300, GS430, LS430, RX300, SC430)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Lexus SC 430, 2002 Lexus RX 300, 2002 Lexus LX 470, 2002 Lexus LS 430, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

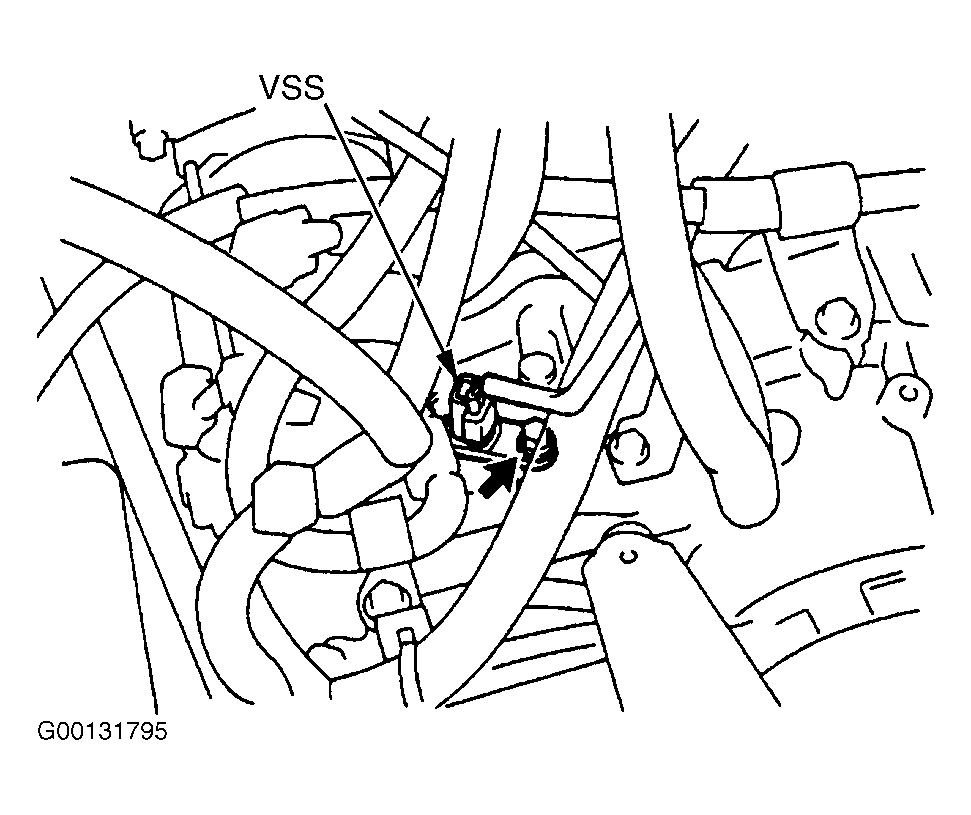

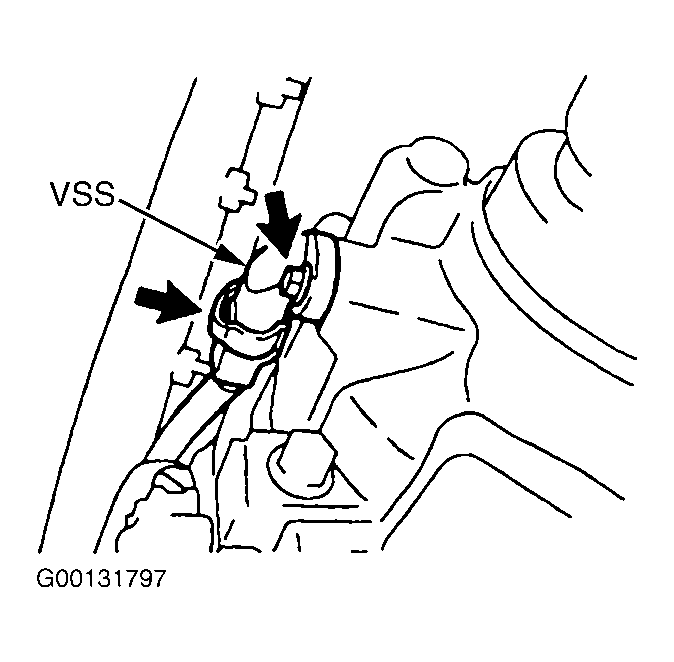

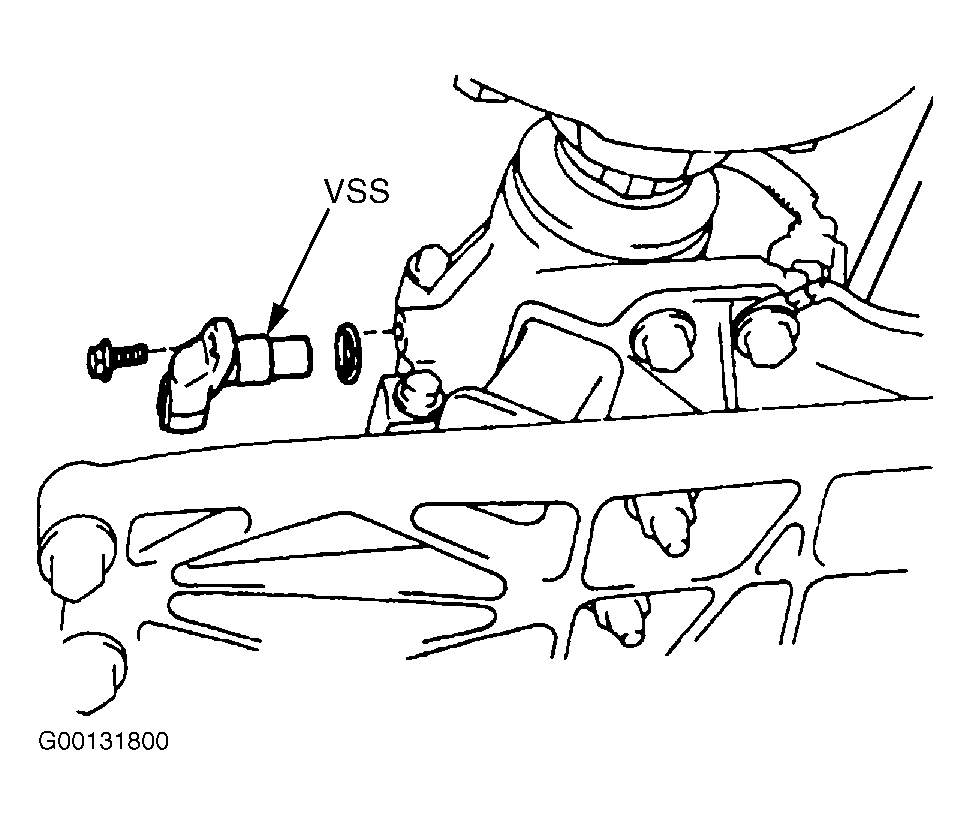

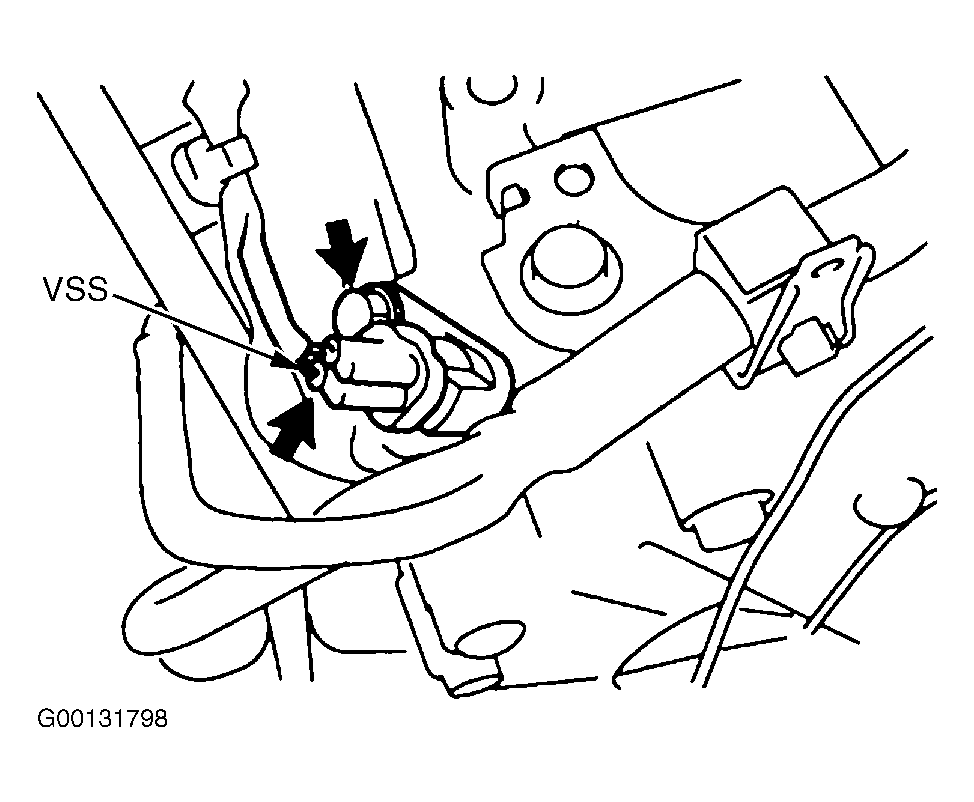

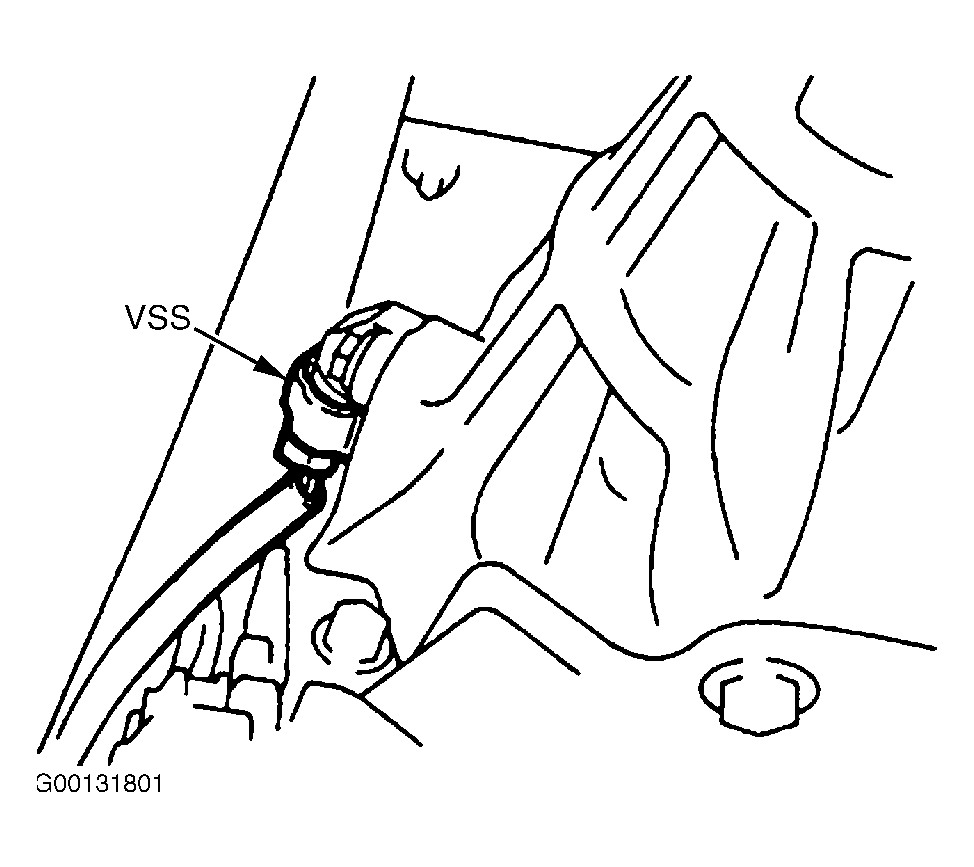

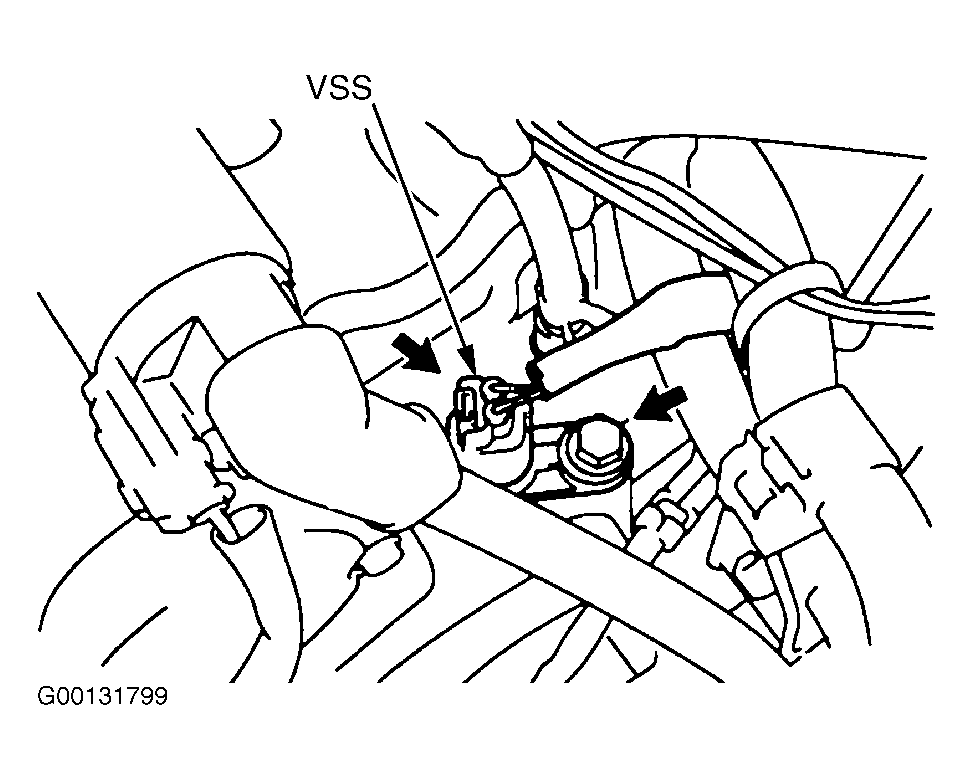

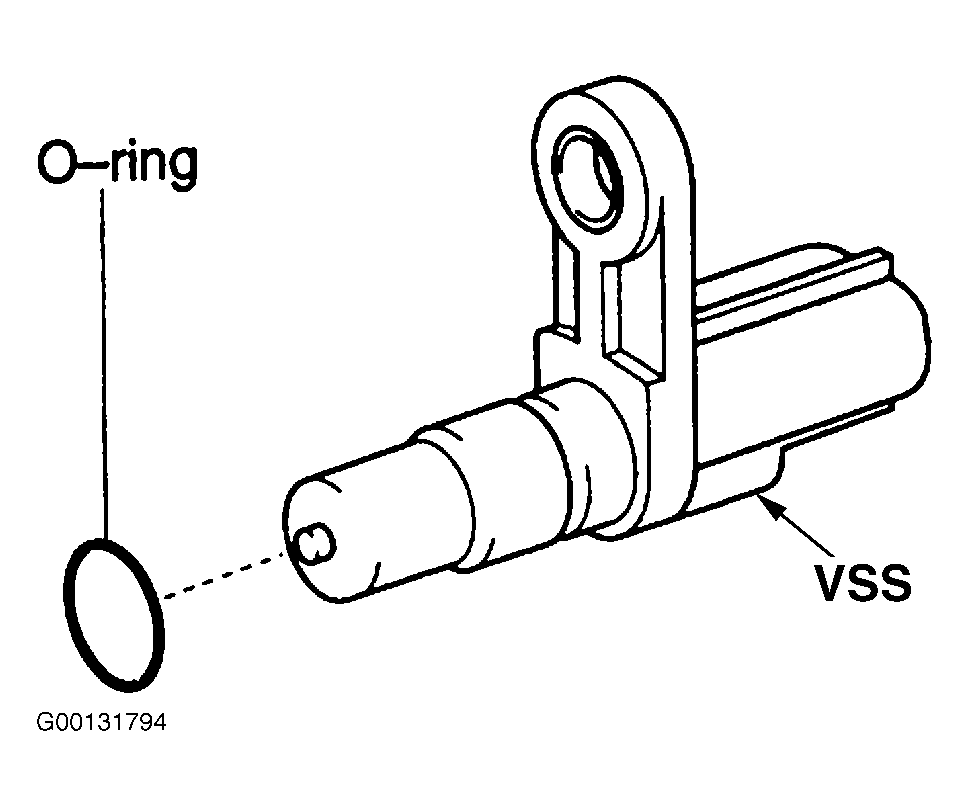

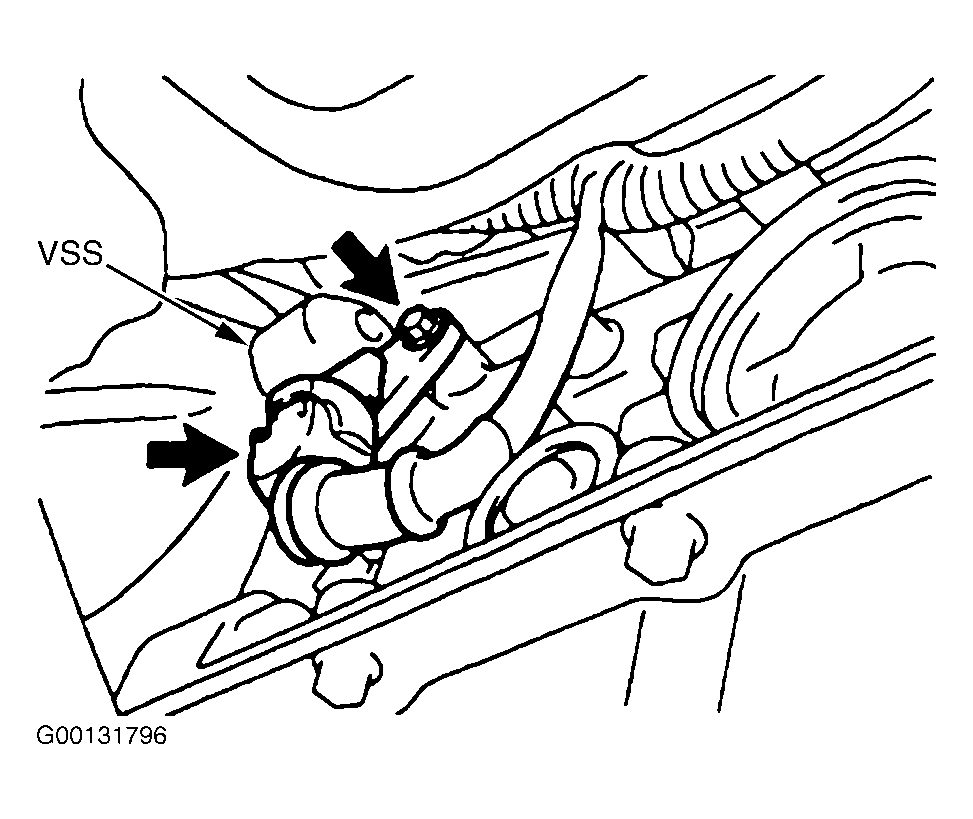

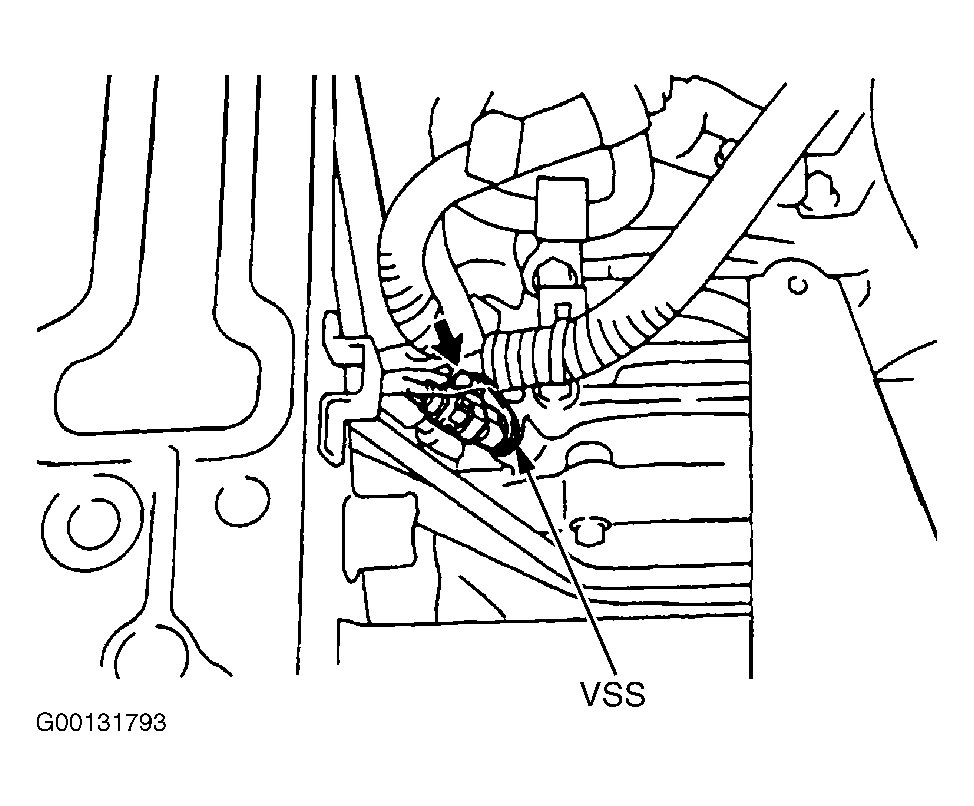

Vehicle Speed Sensor (VSS) is located on transmission. Disconnect VSS connector. Remove retaining bolt and VSS from transmission. See Fig 1-Fig 9 . Remove "O" ring from VSS. To install, reverse removal procedure using NEW "O" ring. Coat "O" ring with ATF before installing on VSS. Tighten VSS retaining bolt to specification. See TORQUE SPECIFICATIONS .
