Replacement (ES300)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Lexus SC 430, 2002 Lexus RX 300, 2002 Lexus LX 470, 2002 Lexus LS 430, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE (See  FUEL SYSTEM (3MZ-FE)  )
  2. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
  3. REMOVE REAR SEAT CUSHION ASSY (See  REAR SEAT  )
  4. REMOVE REAR FLOOR SERVICE HOLE COVER
  5. REMOVE FUEL SUCTION W/PUMP & GAUGE TUBE ASSY (See  Removal (ES300)  )
  6. DRAIN FUEL
  7. REMOVE FLOOR PANEL BRACE REAR (in needed)
  8. REMOVE EXHAUST PIPE ASSY CENTER
  9. DISCONNECT PARKING BRAKE CABLE ASSY NO.2
  10. DISCONNECT PARKING BRAKE CABLE ASSY NO.3
  11. REMOVE FUEL TANK PROTECTOR LOWER CENTER (See  FUEL TANK ASSY (3MZ-FE)  )
  12. REMOVE FUEL TANK ASSY (See  FUEL TANK ASSY (3MZ-FE)  )
  13. REMOVE CHARCOAL CANISTER ASSY
    1. Disconnect the VSV connector.
    2. Remove the 2 wire harness clamps.
    3. Disconnect the fuel hose No. 1.

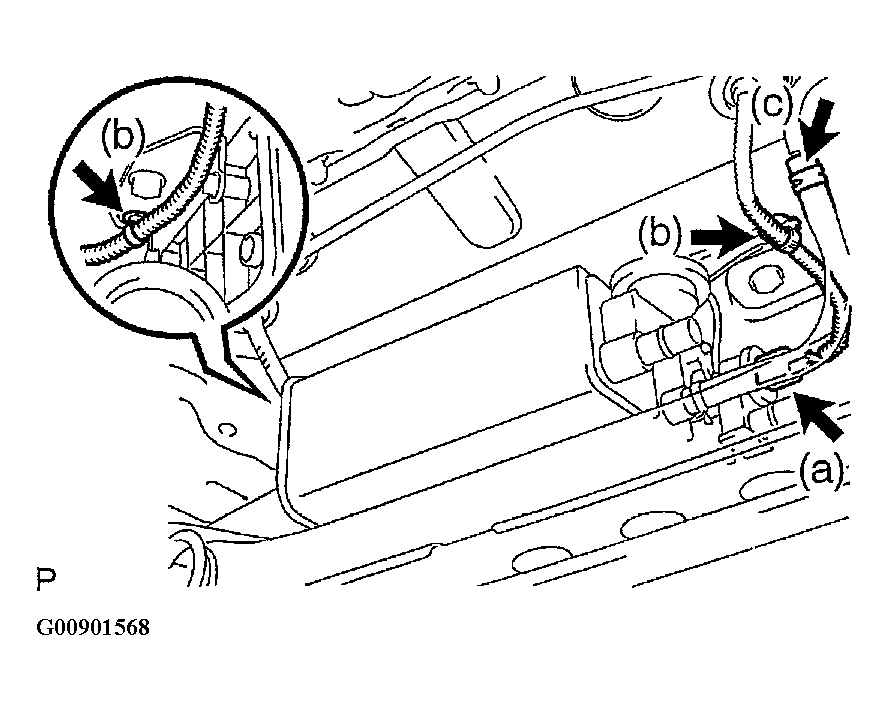

      Fig 1: Removing Charcoal Canister Assy
      G00901568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the fuel tank vent hose.
      1. Deeply push the quick connector to release the lock pin.
      2. Pinch portion A.
      3. Pull out the fuel tank vent hose.

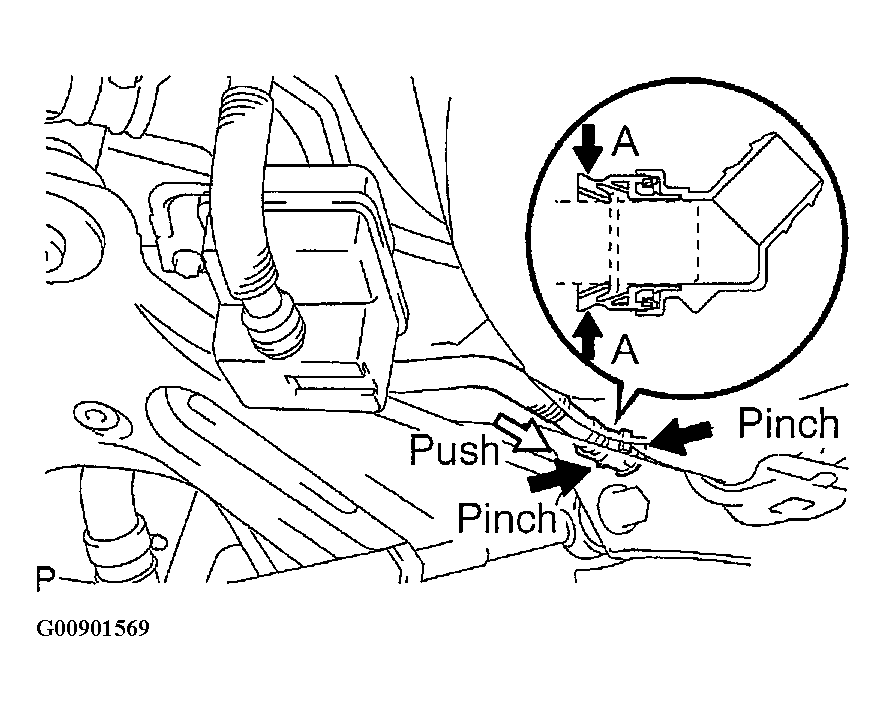

        Fig 2: Disconnecting Fuel Tank Vent Hose
        G00901569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts.
    6. Unfasten the claw, then remove the charcoal canister.

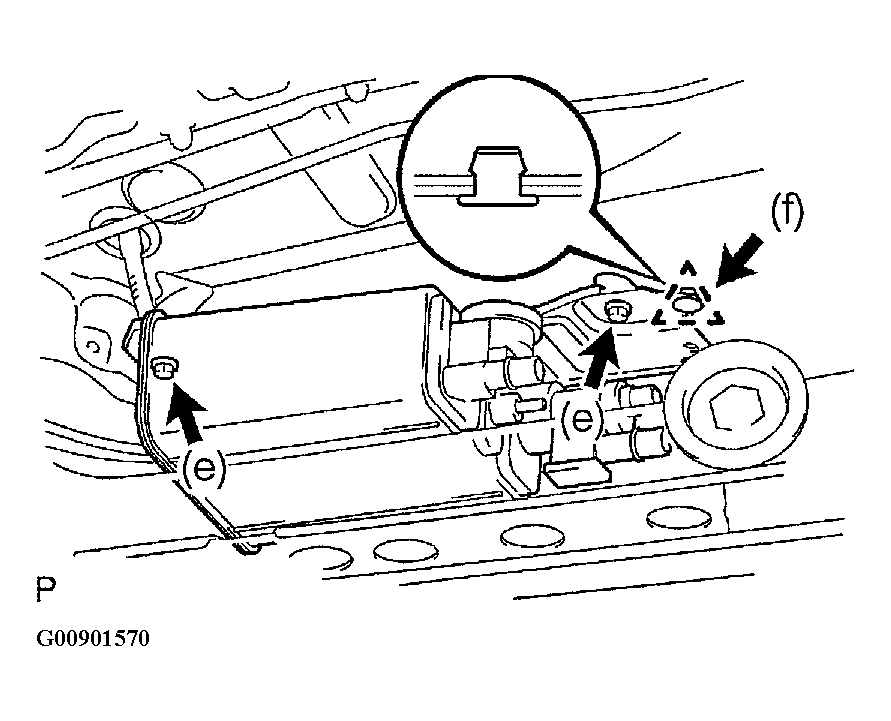

      Fig 3: Removing Bolts
      G00901570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FUEL EMISSION TUBE FUEL HOSE
    1. Remove the fuel emission tube fuel hose.

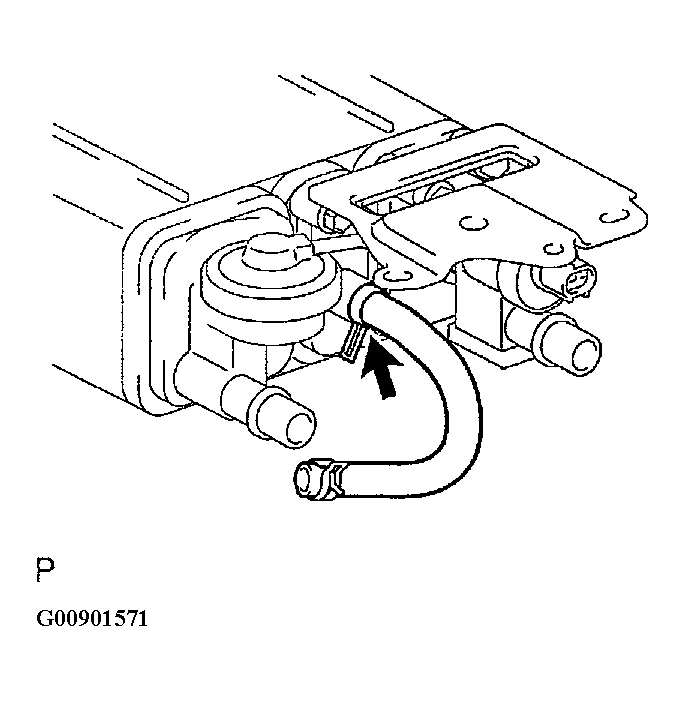

      Fig 4: Removing Fuel Emission Tube Fuel Hose
      G00901571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FUEL EMISSION TUBE FUEL HOSE
  16. INSTALL CHARCOAL CANISTER ASSY
    1. Install the charcoal canister with the 2 bolts.

      Torque: 40 N.m (400 kgf.cm, 29 ft.bl)

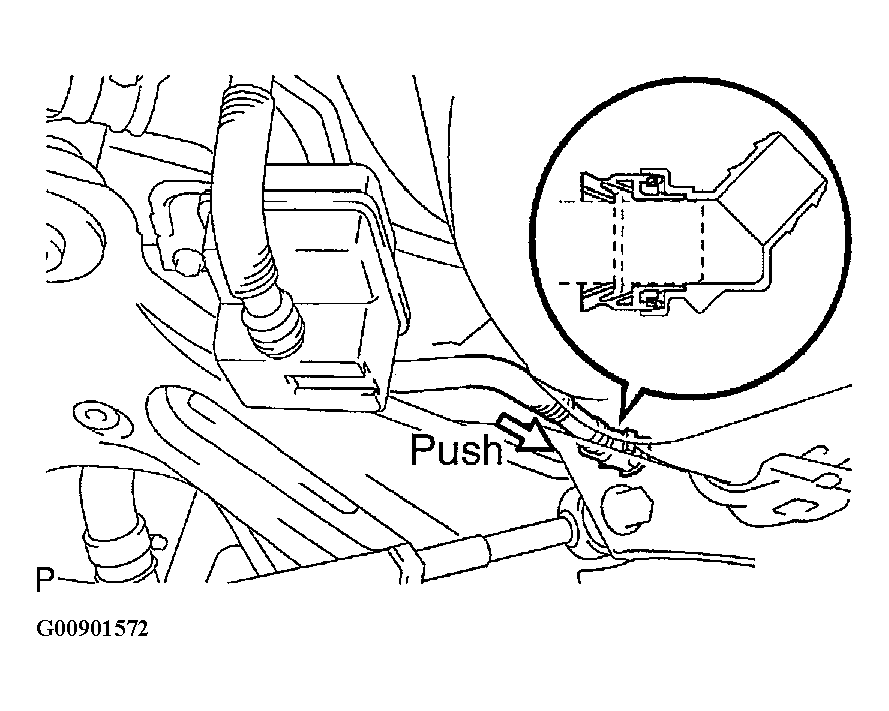

      Fig 5: Installing Charcoal Canister Assy
      G00901572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel tank vent hose.
      1. Push in the quick connector to the pipe until the quick connector makes a "click" sound.
        NOTE:
        • Check the connected part for damage or foreign objects.
        • After connecting, check if the quick connector and pipe are securely connected by pulling on them.
    3. Connect the fuel hose No. 1.
    4. Install the 3 wire harness clamps.
    5. Connect the VSV connector.
  17. INSTALL FUEL TANK ASSY (See  FUEL TANK ASSY (3MZ-FE)  )
  18. INSTALL FUEL TANK PROTECTOR LOWER CENTER (See  FUEL TANK ASSY (3MZ-FE)  )
  19. INSTALL PARKING BRAKE CABLE ASSY NO. 3
  20. INSTALL PARKING BRAKE CABLE ASSY NO. 2
  21. INSTALL EXHAUST PIPE ASSY CENTER
  22. INSTALL FUEL SUCTION W/PUMP & GAUGE TUBE ASSY
  23. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)

    Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  24. ADD FUEL
  25. CHECK FOR FUEL LEAKS (See  ON-VEHICLE INSPECTION  )
  26. CHECK FOR EXHAUST GAS LEAKS
  27. INSTALL REAR FLOOR SERVICE HOLE COVER
  28. INSTALL REAR SEAT CUSHION ASSY  . See REAR SEAT .
  29. INSTALL FLOOR PANEL BRACE REAR
