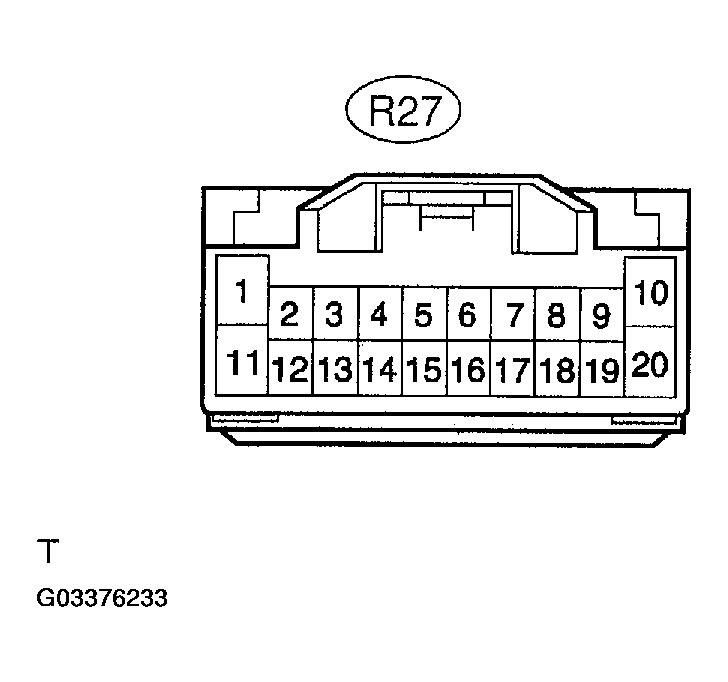

Terminals Of Ecu
WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 VOLTAGE SPECIFICATION
| Symbols (Terminals No.) |
Wiring Color |
Condition |
STD Voltage (V) |
| R27-2 <-> R27-7 (SYSB <-> E) |
V-Y <-> W-B |
Constant |
10 - 14 V |
| R27-6 (MPXT) |
P-L |
Multiplex communication circuit |
- |
| R27-7 <-> Body ground (E <-> Body ground) |
W-B <-> Body-ground |
Constant |
Below 1 V |
