Inspection Procedure

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Check transmission wire.
PREPARATION:

Disconnect the transmission wire connector.

CHECK:

Measure resistance between SLT+ and SLT- of transmission wire.

OK:

Resistance: 5.0 - 5.6 Ω at 20 °C (68°F)

CHECK:

Measure resistance between terminals SLT⁺ and SLT^- of the transmission wire connector and body ground.

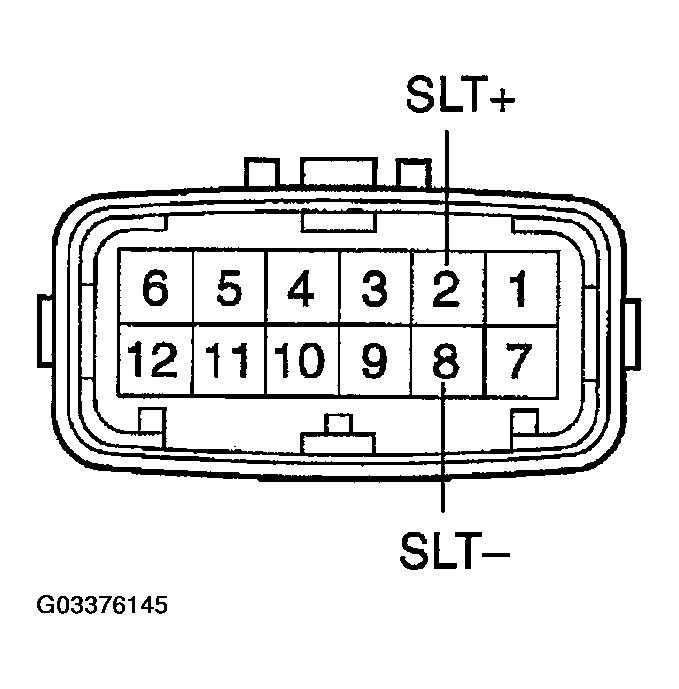

Fig 1: Measuring Resistance Between Terminals SLT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

Resistance: 1 MΩ. or higher
1. NG : Go to step 3 .
2. OK : Go to next step.
Measure resistance between terminals SLT ⁺ and SLT ^- of ECM connector.
PREPARATION:
1. Connect the transmission wire connector.
2. Remove the ECM hood.
3. Disconnect the connector of the ECM.
  CHECK:

  Measure resistance between terminals SLT⁺ and SLT^- of ECM connector.

  OK:

  Resistance: 5.0 - 5.6 Ω at 20 °C (68°F)

  Measure resistance between terminals SLT⁺ and SLT^- of the ECM connector and body ground.

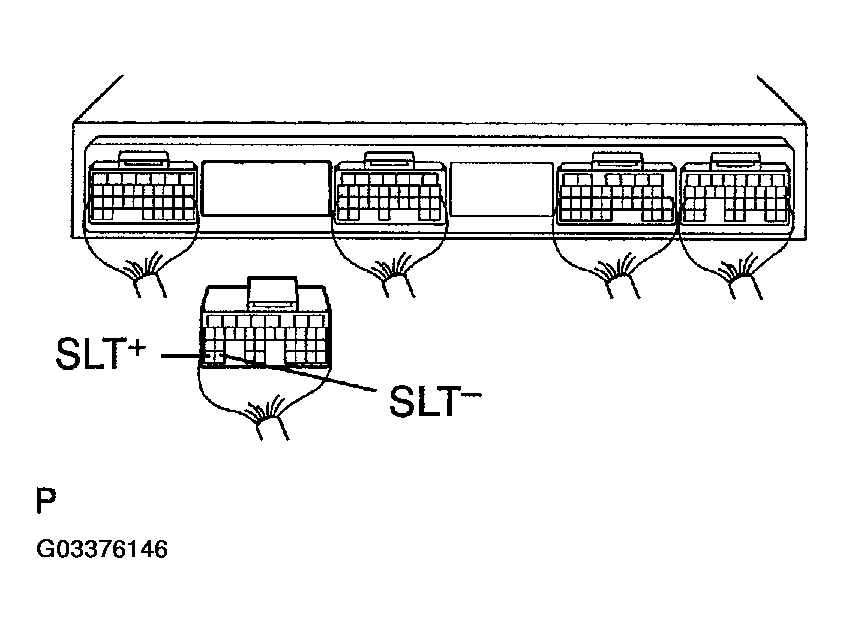

  Fig 2: Measuring Resistance Between Terminals SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK:

  Resistance: 1 MΩ. or higher
1. NG : Repair or replace the harness or connector (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
2. OK : Check and replace the ECM (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
Check shift solenoid valve SLT.
PREPARATION:
1. Jack up the vehicle.
2. Remove the oil pan.
3. Disconnect the solenoid connector.
  Check solenoid resistance:

  CHECK:

  Measure resistance between terminals 1 and 2 of solenoid connector.

  OK:

  Resistance: 5.0 - 5.6 Ω at 20 °C (68°F)

  Check solenoid operation:

  CHECK:

  Connect positive (+) lead with an 8 ~ 10 W bulb to terminal 1 of solenoid connector and negative (-) lead to terminal 2, then check the movement of the valve.

  OK:

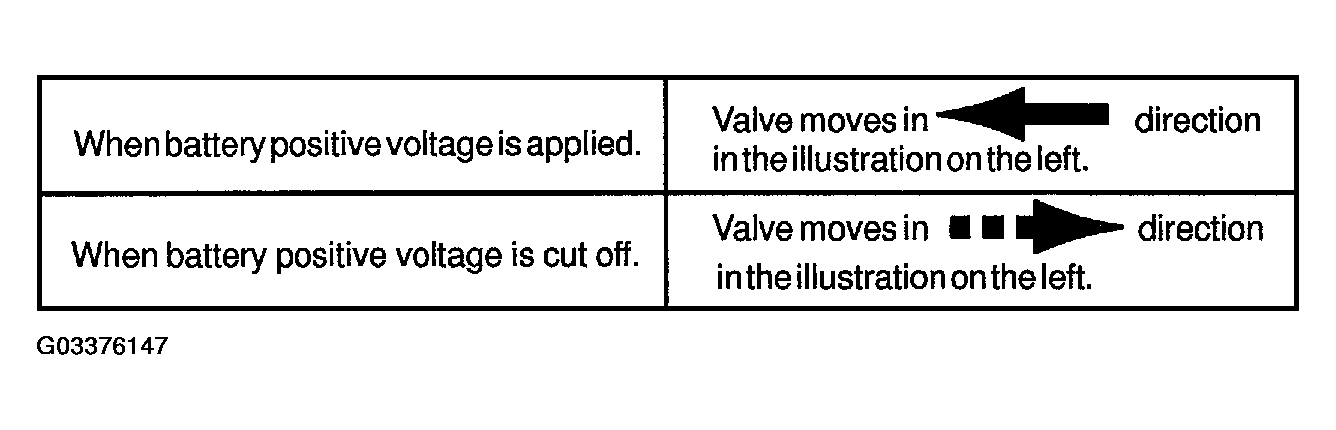

  Fig 3: Locating Valves Moves Arrow
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

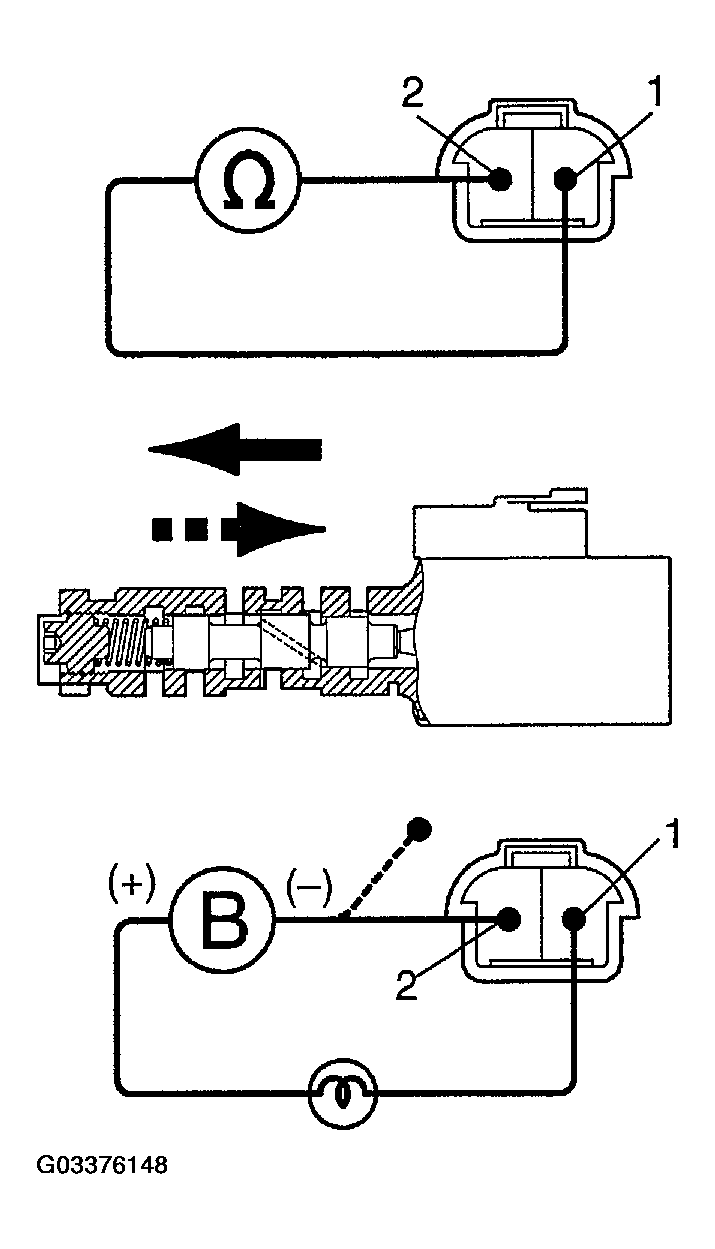

  Fig 4: Measuring Resistance Between Terminals 1 And 2 Of Solenoid Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Replace the shift solenoid valve SLT (See VALVE BODY ASSEMBLY ).
2. OK : Repair or replace the transmission wire (See ATF TEMPERATURE SENSOR ).
