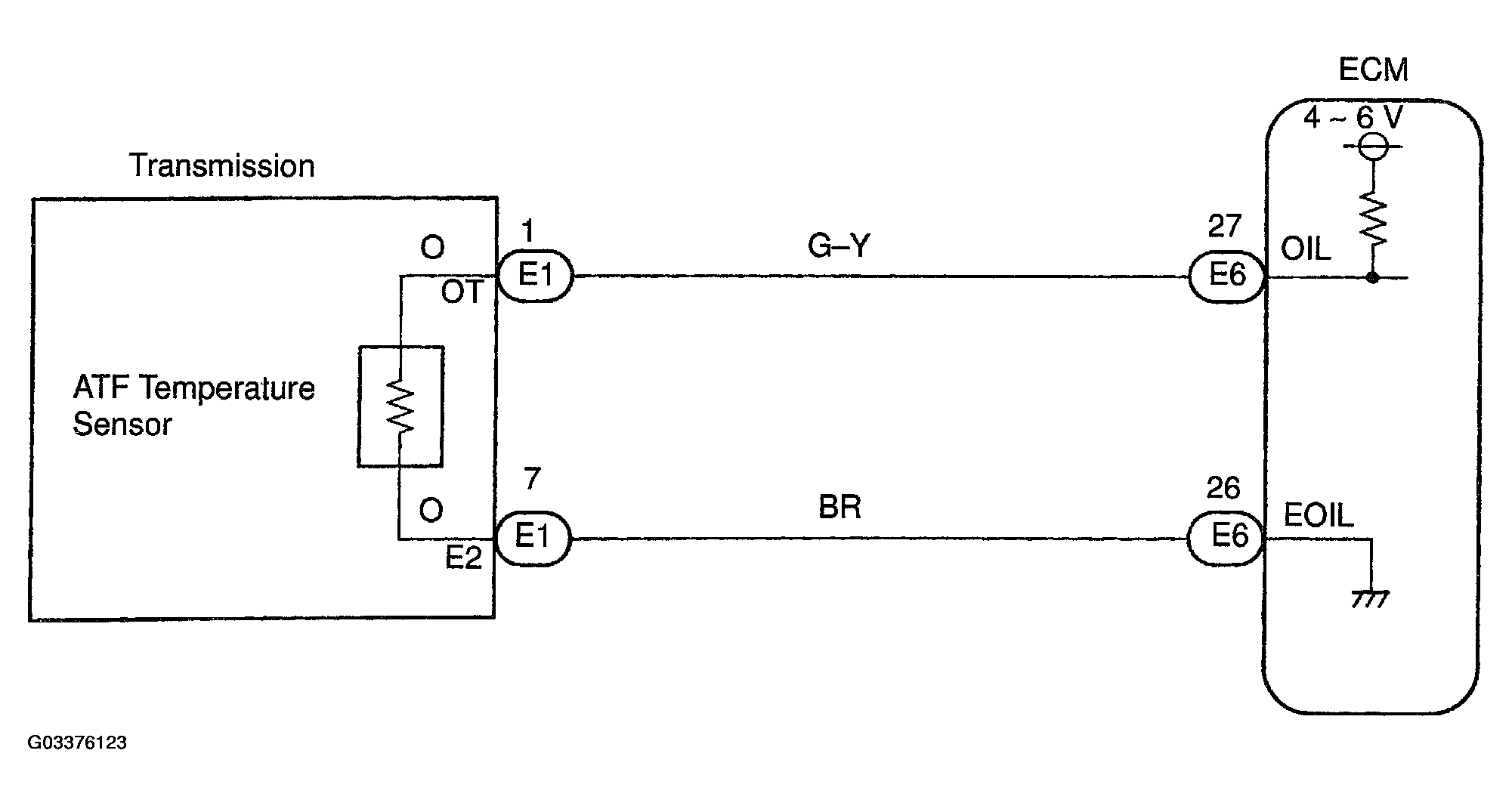

DTC P0710: Transmission Fluid Temperature Sensor "A" Circuit; DTC P0712: Transmission Fluid Temperature Sensor "A" Circuit Low Input; DTC P0713: Transmission Fluid Temperature Sensor "A" Circuit High Input: Wiring Diagram
WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
