Inspection Procedure

PREPARATION:

Remove the vehicle speed sensor from the transmission.

CHECK:

Measure resistance between terminals 1 and 2 of the speed sensor.

OK:

Resistance: 560 - 680 Ω at 20 °C (68 °F)

Reference:

Check vehicle speed sensor's function

CHECK:

Check voltage between terminals 1 and 2 of the vehicle speed sensor when a magnet is put close to front end of the vehicle speed sensor then taken away quickly.

OK:

Voltage is generated intermittently

HINT:

The generated voltage is extremely low.

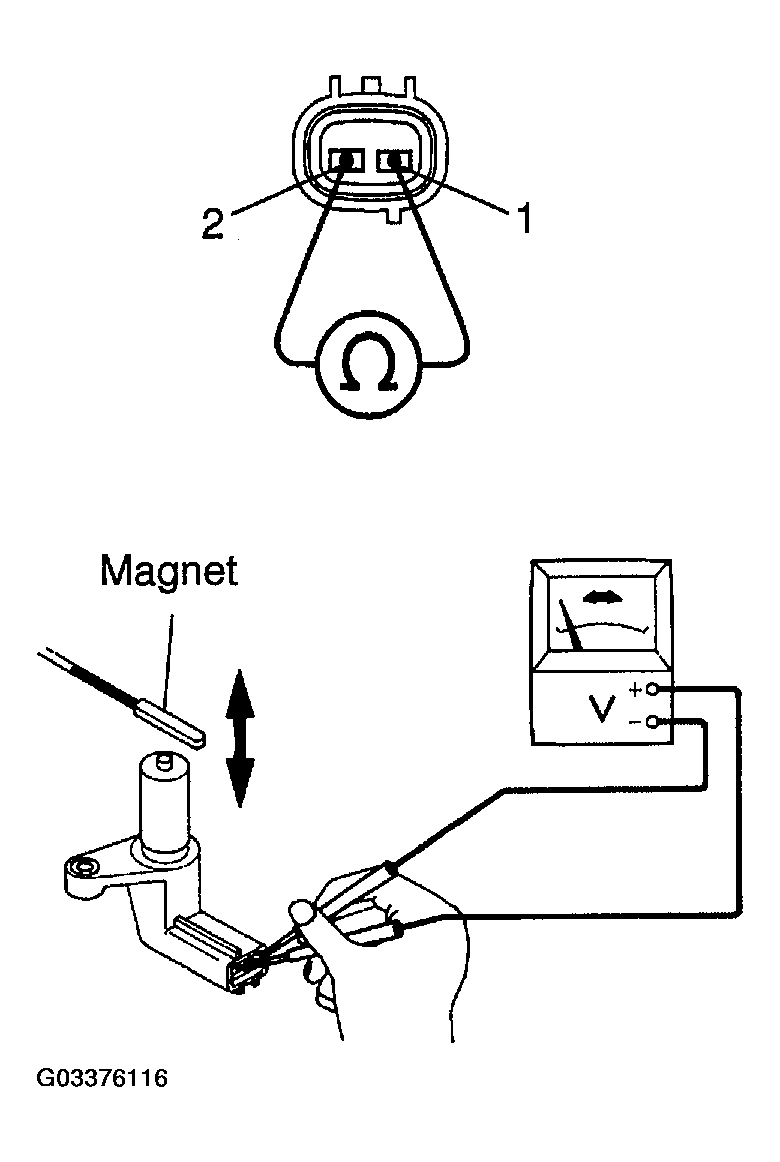

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Speed Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference: INSPECTION USING OSCILLOSCOPE

Refer to the chart for waveform between terminals SP2⁺ and SP2^- When the vehicle speed is approx. 60 km/h (37 mph).

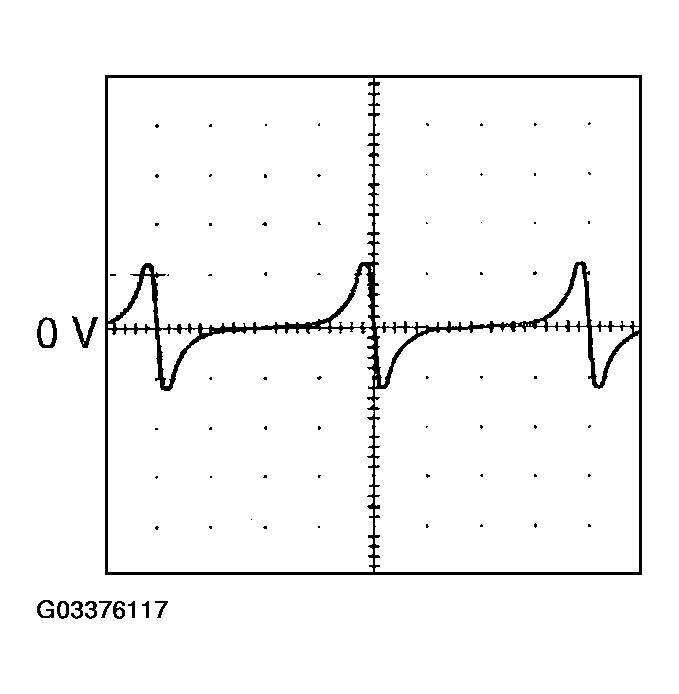

Fig 2: Inspection Oscilloscope Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG : Replace vehicle speed sensor.
2. OK : Go to next step.

PREPARATION:

1. Install the vehicle speed sensor to the transmission.
2. Remove the instrument panel under cover.
3. Disconnect the connector of the ECM.

CHECK:

Check resistance between terminals SP2⁺ and SP2^- of the ECM connector.

OK:

Resistance: 560 - 680 Ω at 20 °C (68 °F)

CHECK:

Measure resistance between terminals SP2⁺ and SP2^- of the ECM connector and body ground.

OK:

Resistance: 1 MΩ or higher

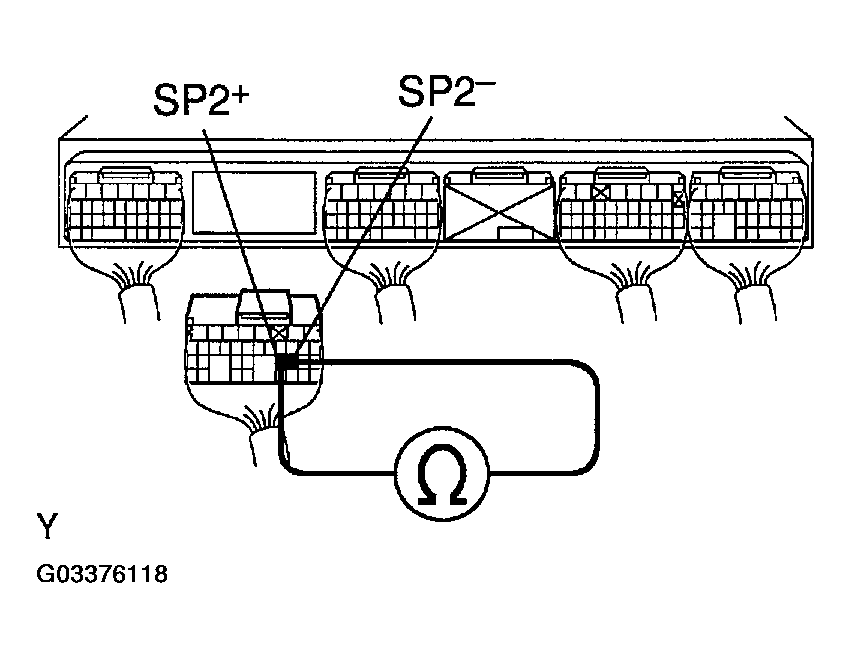

Fig 3: Checking Resistance Between Terminals SP2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK : Check and replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
2. NG : Go to next step.

1. NG : Replace or repair wire harness or connector.
2. OK : Check and repair the transmission (clutch, brake or gear etc.).
