Stereo Component Amplifier ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE FRONT DOOR SCUFF PLATE LH(EXCEPT MARK LEVINSON AMPLIFIER TYPE) (See REPLACEMENT )
REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (EXCEPT MARK LEVINSON AMPLIFIER TYPE) (See REPLACEMENT )
REMOVE INSTRUMENT PANEL SUB-ASSY LOWER(EXCEPT MARK LEVINSON AMPLIFIER TYPE) (See REPLACEMENT )
REMOVE STEREO COMPONENT AMPLIFIER ASSY(EXCEPT MARK LEVINSON AMPLIFIER TYPE)
1. Disconnect the connectors.
2. Remove the 2 nuts and stereo component amplifier assy.

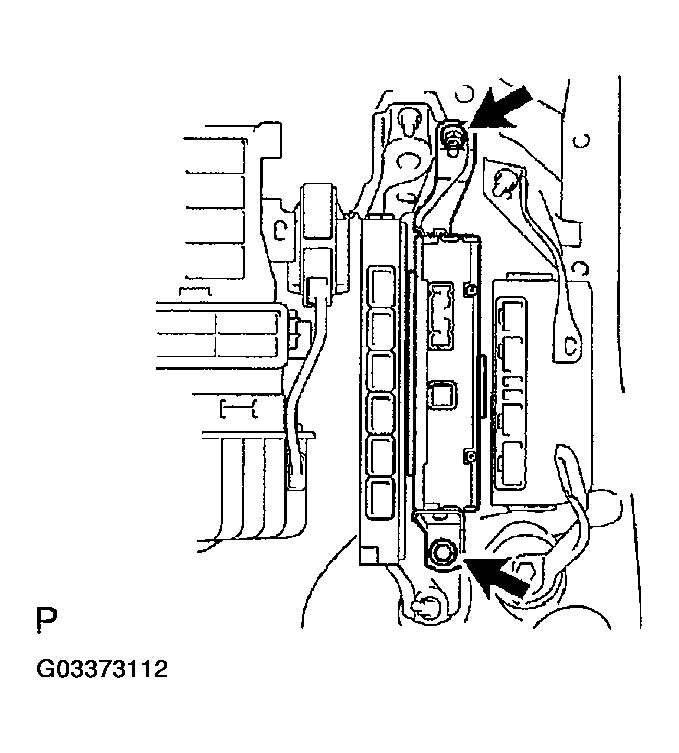

  Fig 1: Removing 2 Nuts And Stereo Component Amplifier Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AMPLIFIER BRACKET NO.1 (EXCEPT MARK LEVINSON AMPLIFIER TYPE
1. Remove the 2 screws and amplifier bracket No.1.

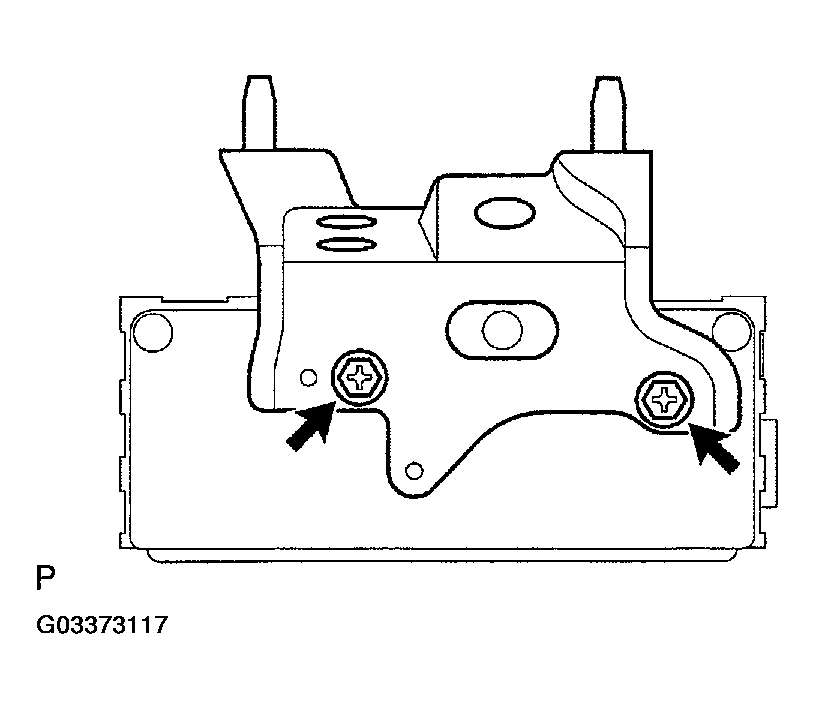

  Fig 2: Removing 2 Screws And Amplifier Bracket No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AMPLIFIER BRACKET NO.2(EXCEPT MARK LEVINSON AMPLIFIER TYPE)
1. Remove the 2 screws and amplifier bracket No.2.

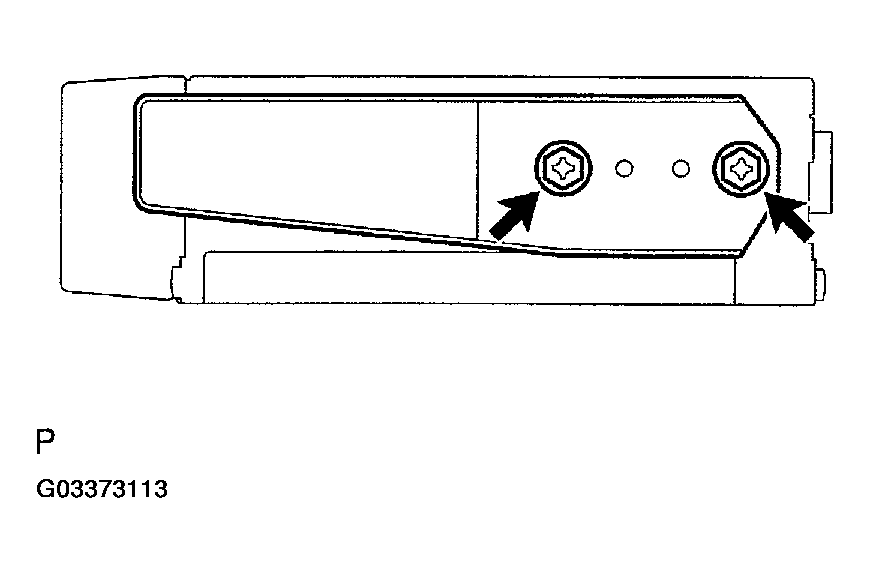

  Fig 3: Removing 2 Screws And Amplifier Bracket No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT FLOOR MAT(MARK LEVINSON AMPLIFIER TYPE)
REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.1 (MARK LEVINSON AMPLIFIER TYPE) (See REPLACEMENT )
REMOVE REAR FLOOR FINISH PLATE(MARK LEVINSON AMPLIFIER TYPE) (See REPLACEMENT )
REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH(MARK LEVINSON AMPLIFIER TYPE) (See REPLACEMENT )
REMOVE STEREO COMPONENT AMPLIFIER ASSY(MARK LEVINSON AMPLIFIER TYPE)
1. Disconnect the connectors.
2. Remove the 3 nuts and stereo component amplifier assy.

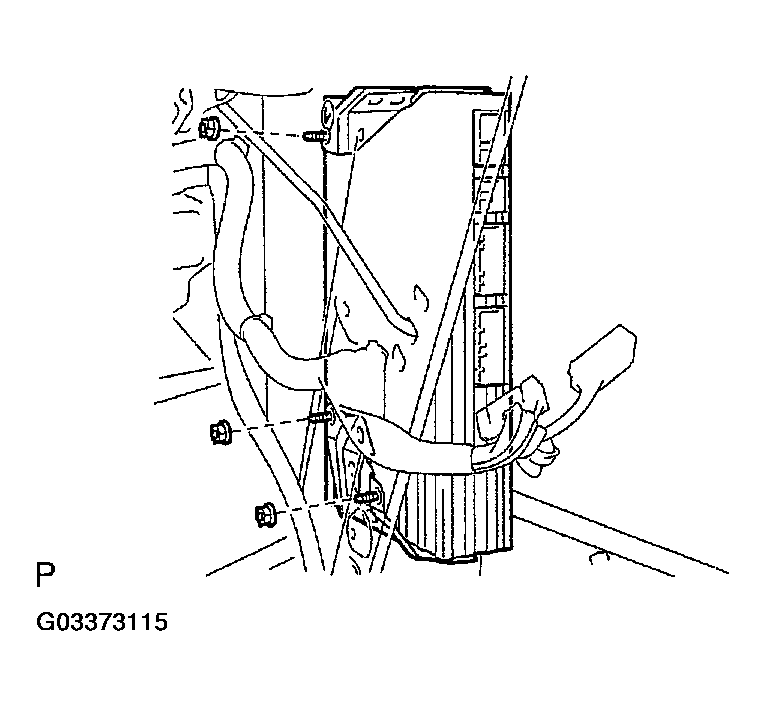

  Fig 4: Removing 3 Nuts And Stereo Component Amplifier Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AMPLIFIER BRACKET NO.1 (MARK LEVINSON AMPLIFIER TYPE)
1. Remove the 2 screws and amplifier bracket No.1.

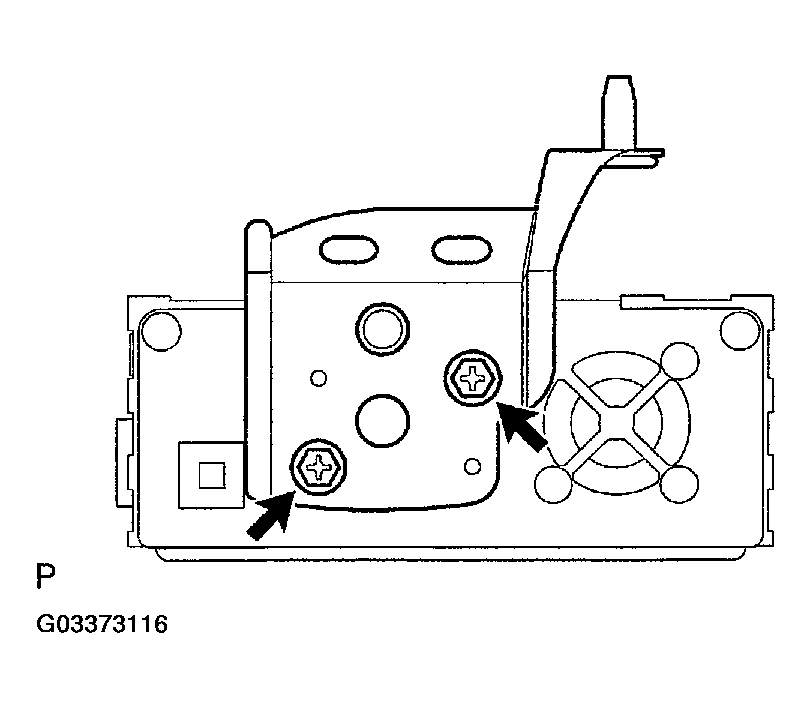

  Fig 5: Removing 2 Screws And Amplifier Bracket No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AMPLIFIER BRACKET NO.2(MARK LEVINSON AMPLIFIER TYPE)
1. Remove the 2 screws and amplifier bracket No.2.

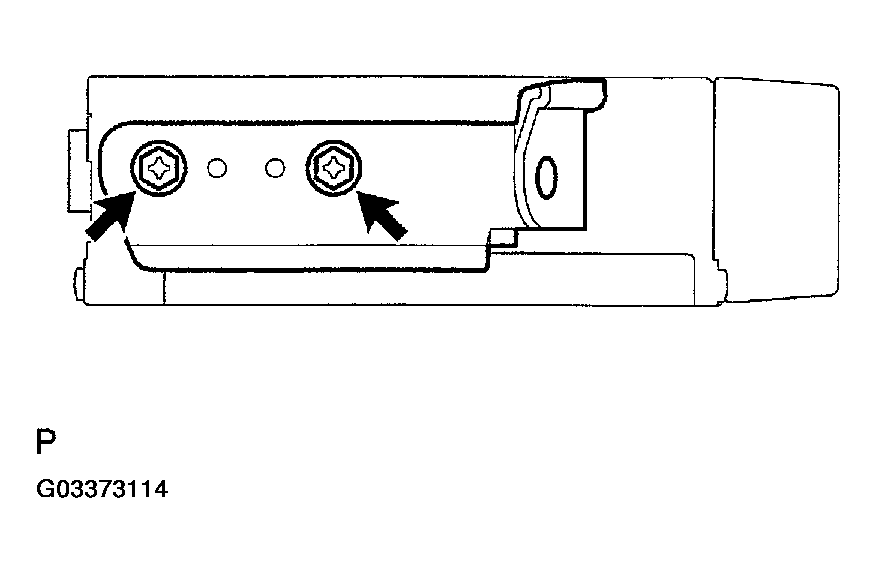

  Fig 6: Removing 2 Screws And Amplifier Bracket No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
