Cigarette Lighter ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE CONSOLE PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE CONSOLE PANEL UPPER REAR (See REPLACEMENT )
REMOVE FRONT ASH RECEPTACLE ASSY
REMOVE CIGARETTE LIGHTER ASSY
1. Turn the socket in the circumference direction as shown the illustration, disengage the claw between the socket and the cigarette lighter indicator lens, and push out the socket to the room side.

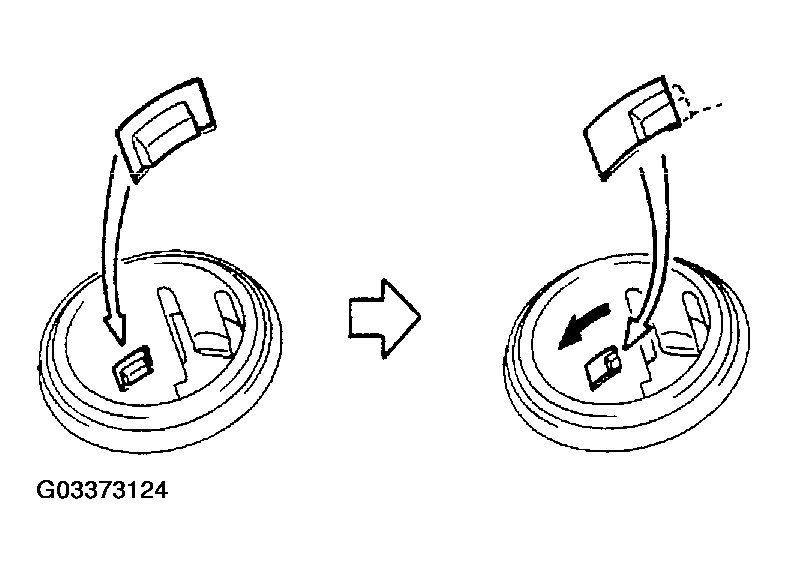

  Fig 1: Turning Socket In Circumference
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and remove the cigarette lighter indicator lens.

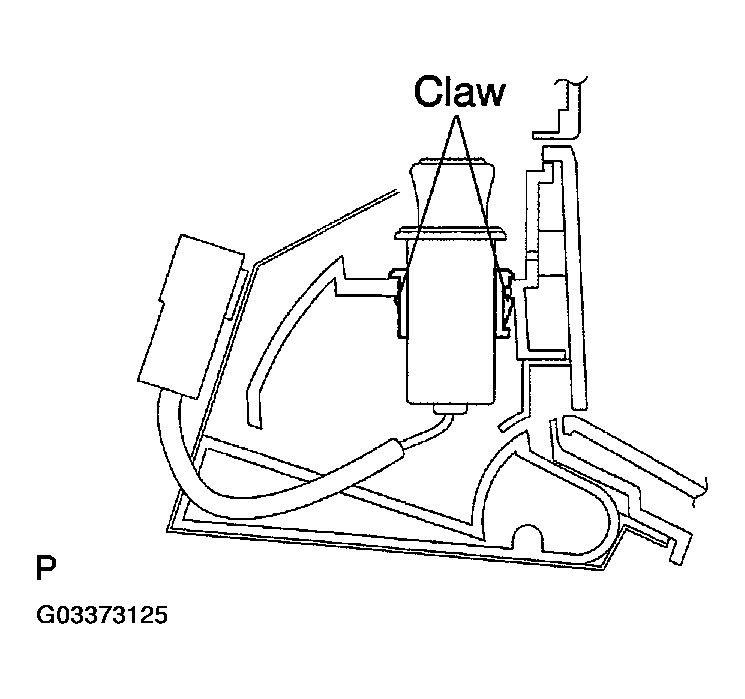

  Fig 2: Removing Claws And Cigarette Lighter Indicator Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the cigarette lighter bulb.
4. Remove the cigarette lighter assy.

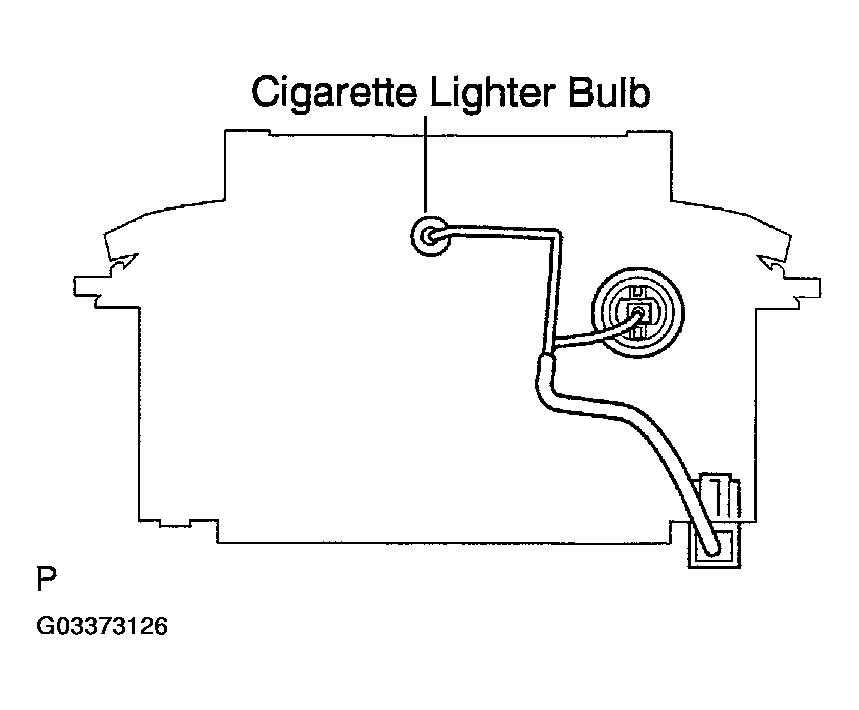

  Fig 3: Removing Cigarette Lighter Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
