Power Point Socket ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
  2. REMOVE CONSOLE PANEL UPPER REAR (See  REPLACEMENT  )
  3. REMOVE CONSOLE BOX CARPET
  4. REMOVE RR CONSOLE BOX (See  REPLACEMENT  )
  5. REMOVE POWER POINT SOCKET ASSY
    1. Remove the clamp.
    2. Turn the socket in the circumference direction as shown the illustration, disengage the claw between the socket and the power point socket cover, and push out the socket to the room side.

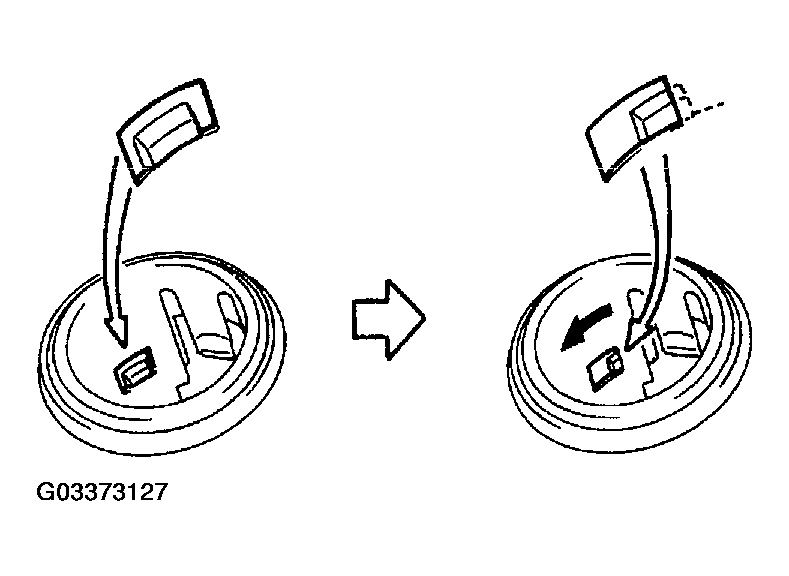

      Fig 1: Turning Socket In Circumference
      G03373127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the socket with the notch on the power point socket cover, remove the power point socket assy to the room side.

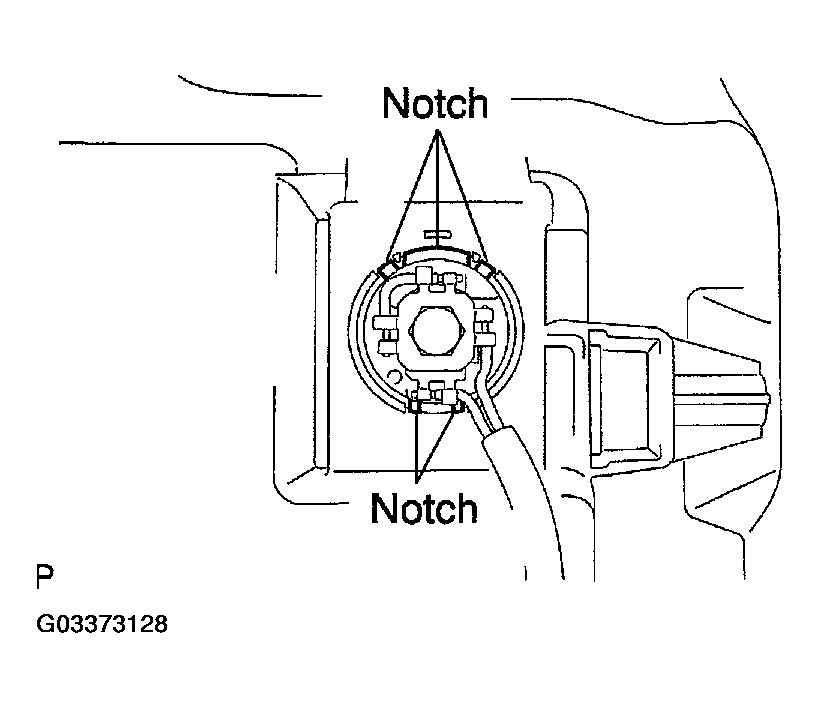

      Fig 2: Aligning Socket With Notch On Power Point Socket Cover
      G03373128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL POWER POINT SOCKET ASSY
    1. Align the socket with the notch on the power point socket cover, push the power point socket assy into as hard as possible and install it.
