Antenna Cord Sub-ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

  1. SHIP MODE SETTING(W/ CD CHANGER) (See  REPLACEMENT   )
  2. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  3. REMOVE FRONT DOOR SCUFF PLATE RH
  4. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (See  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  7. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
  8. REMOVE CONSOLE PANEL UPPER REAR (See  REPLACEMENT  )
  9. REMOVE CONSOLE BOX CARPET
  10. REMOVE RR CONSOLE BOX (See  REPLACEMENT  )
  11. REMOVE INSTRUMENT PANEL FINISH PANEL END LH (See  REPLACEMENT  )
  12. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
  13. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See  REPLACEMENT  )
  14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (W/ LEXUS NAVIGATION SYSTEM) (See  REPLACEMENT  )
  15. REMOVE RADIO RECEIVER PANEL (W/O LEXUS NAVIGATION SYSTEM) (See  REPLACEMENT  )
  16. SHIP MODE CONFIRMATION(W/ CD CHANGER) (See  REPLACEMENT   )
  17. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT RH
  18. REMOVE SEAT TRACK BRACKET COVER INNER FRONT RH
  19. REMOVE FRONT SEAT TRACK COVER RH REAR INNER
  20. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
  21. REMOVE FRONT SEAT ASSY RH (See  OVERHAUL  )
  22. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH
  23. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH
  24. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
  25. REMOVE FRONT SEAT TRACK COVER LH REAR OUTER
  26. REMOVE FRONT SEAT ASSY LH (See  OVERHAUL  )
  27. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  28. REMOVE REAR SEAT BACK ASSY (See  OVERHAUL  )
  29. REMOVE ROOF SIDE GARNISH INNER RH (See )
  30. REMOVE ROOF SIDE GARNISH INNER LH
  31. REMOVE AIR DUCT REAR NO.2 (See )
  32. REMOVE ANTENNA CORD SUB-ASSY
    1. Remove the nut and 2 bolts.
    2. Disconnect the connectors.
    3. Remove the 13 clamps and antenna cord sub-assy.

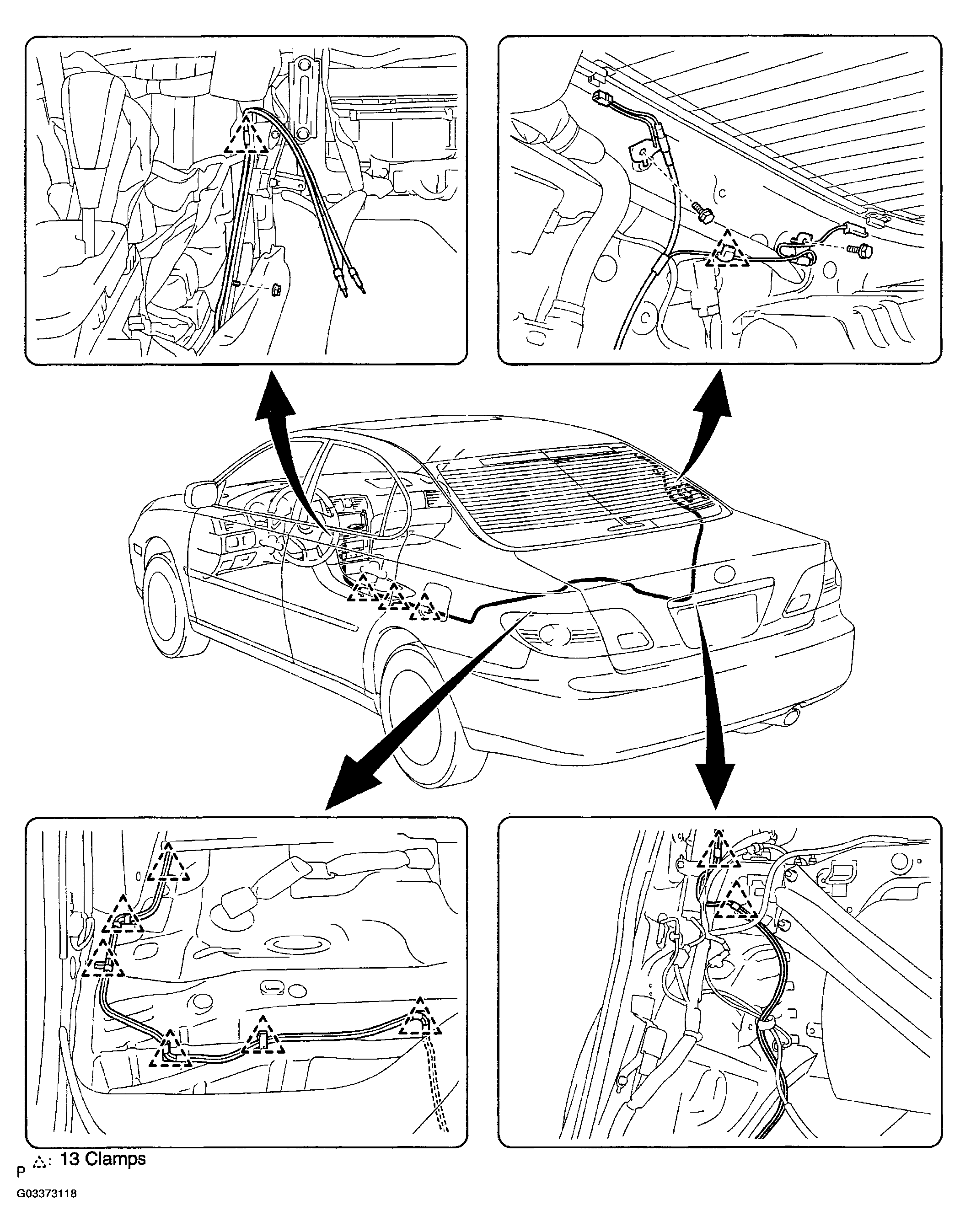

      Fig 1: Removing Clamps And Antenna Cord Sub-Assy
      G03373118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL ROOF SIDE GARNISH INNER RH (See )
  34. INSTALL ROOF SIDE GARNISH INNER LH
  35. INSTALL REAR SEAT BACK ASSY (See  OVERHAUL  )
  36. INSTALL REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  37. INSTALL FRONT SEAT ASSY LH (See  OVERHAUL  )
  38. INSTALL FRONT SEAT ASSY RH (See  OVERHAUL  )
