SLIDING ROOF HOUSING SUB-ASSY (From July, 2003): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

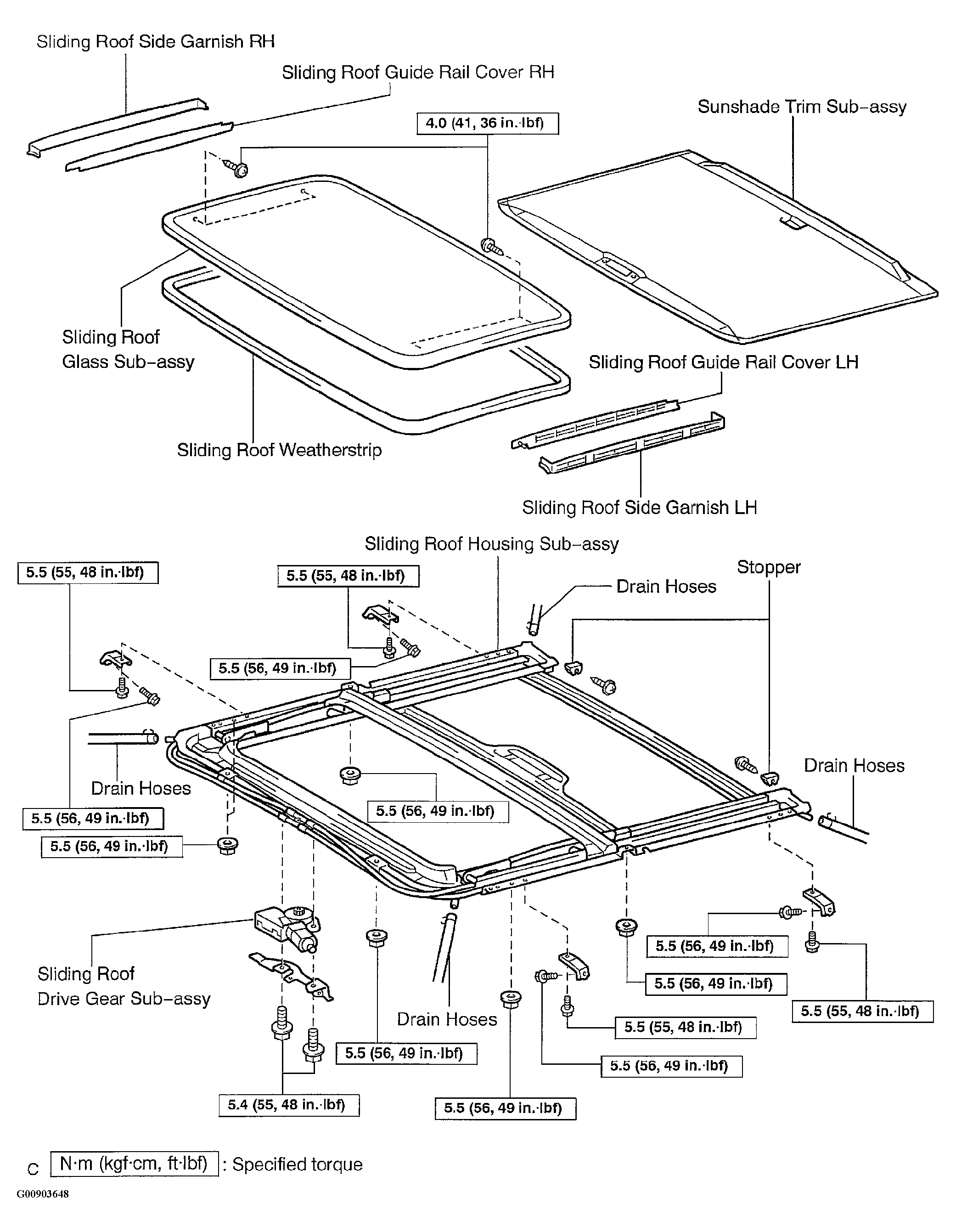

Fig 1: Locating Sliding Roof Housing Sub-Assy (From July, 2003) Components
G00903648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
