On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LUGGAGE OPENER OPERATION
1. Check that the luggage compartment door opens by operating the luggage compartment door opener switch.

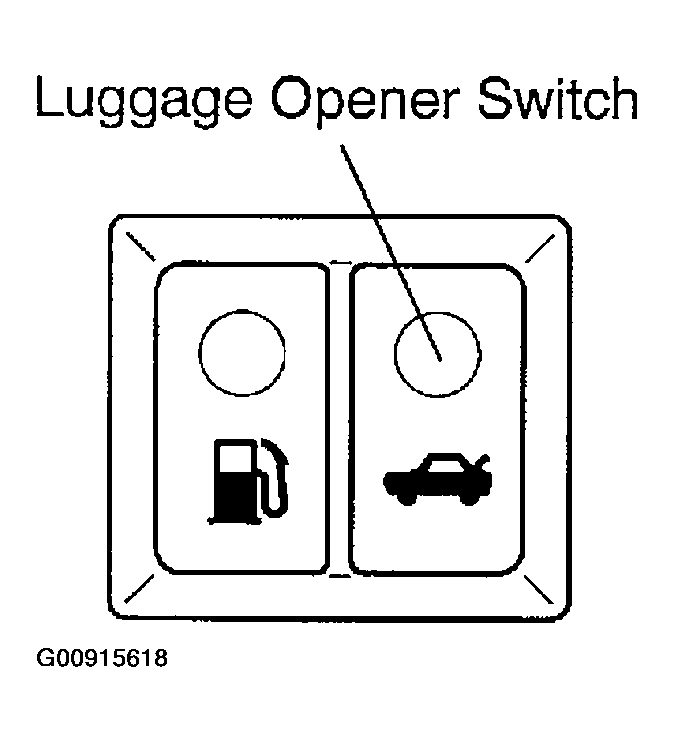

  Fig 1: Checking Luggage Opener Operation (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Operating the luggage compartment door cancel switch, check that the luggage compartment door does not open even if the luggage compartment door opener switch is operated.

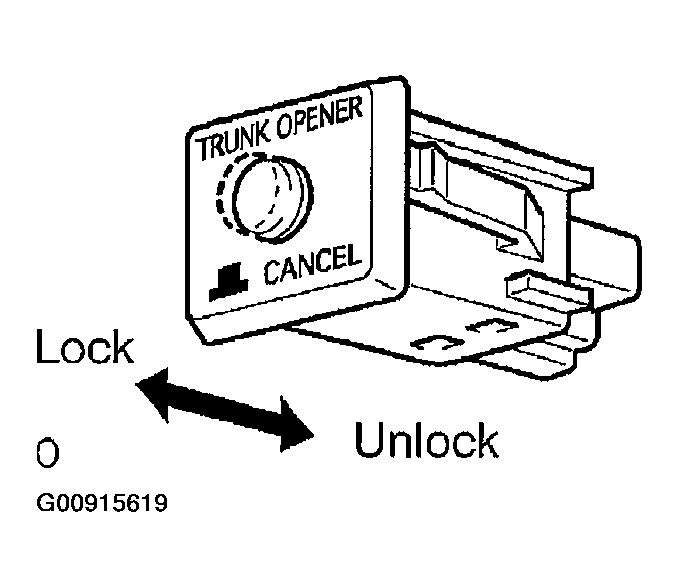

  Fig 2: Checking Luggage Opener Operation (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
