INSTRUMENT PANEL/METER (From July, 2003): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

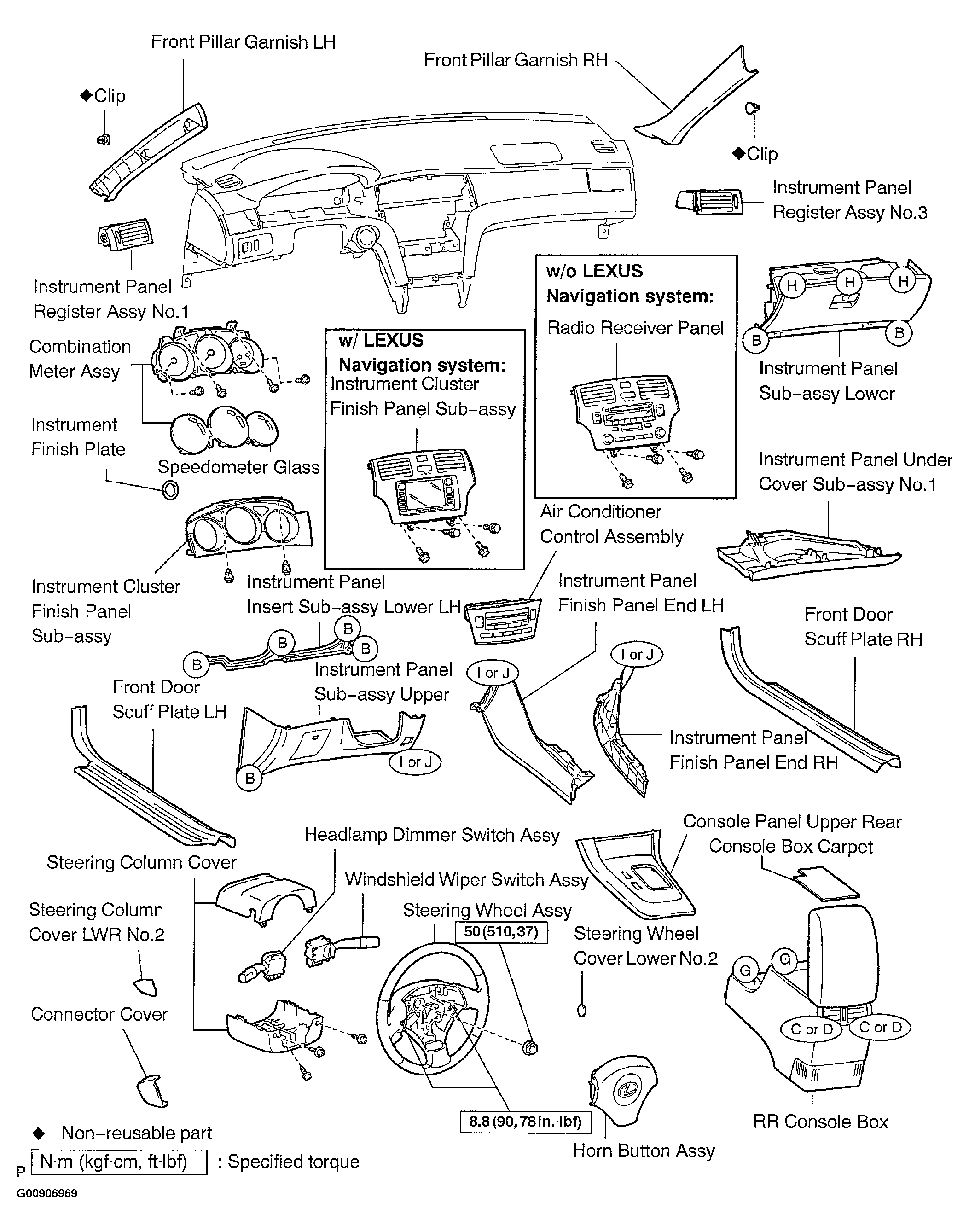

Fig 1: Identifying Instrument Panel/Meter (From July, 2003) Components (1 Of 2)
G00906969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

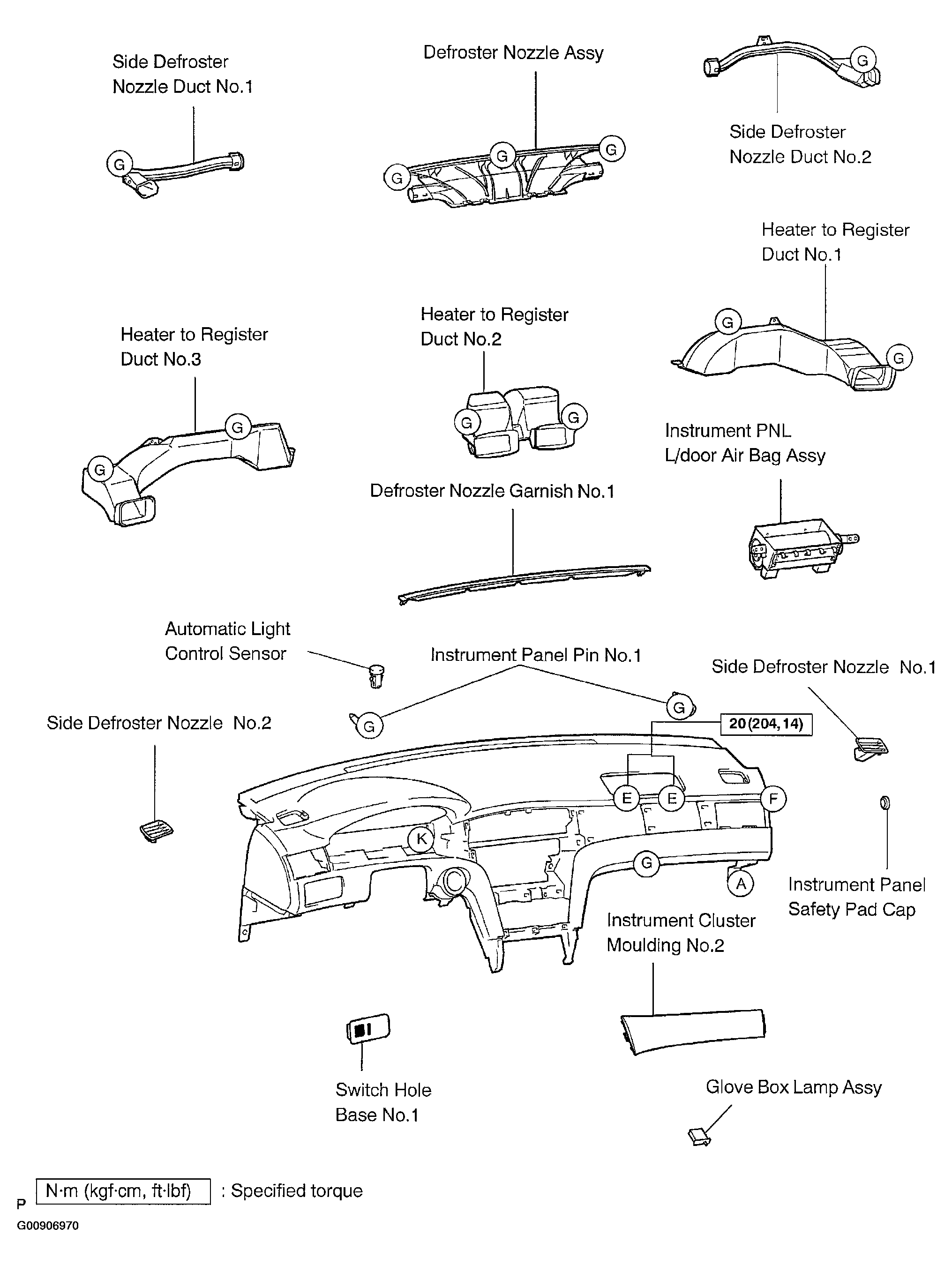

Fig 2: Identifying Instrument Panel/Meter (From July, 2003) Components (2 Of 2)
G00906970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
