V (Cooler Compressor To Crankshaft Pulley) Belt No.1: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330, 2003 Lexus ES 300, and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
1. Loosen the bolt C.
2. Loosen the bolt A.
3. Loosen the bolt B and remove the cooler V belt No. 1.

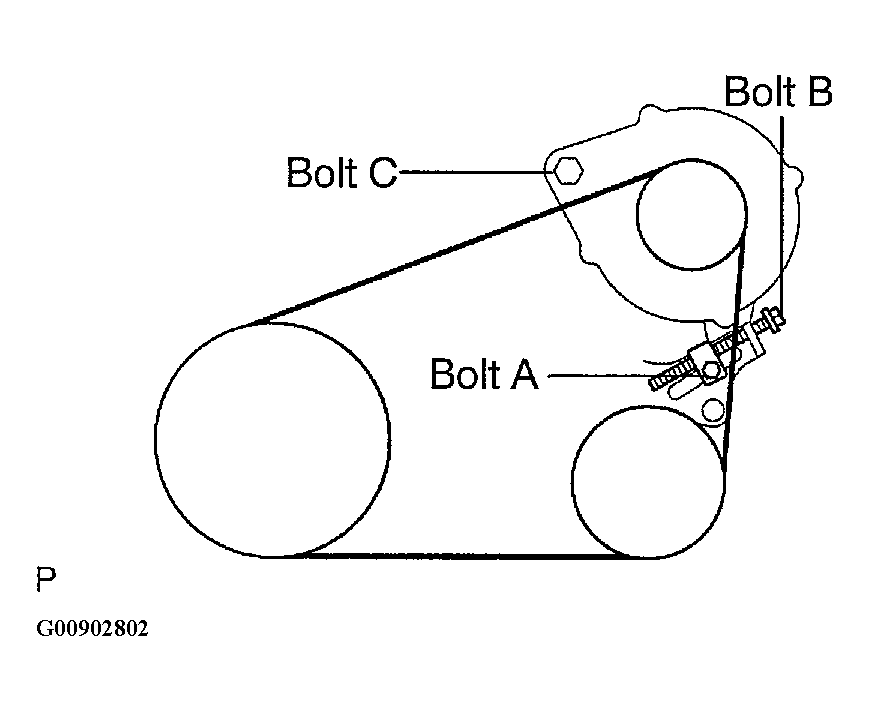

  Fig 1: Removing V (Cooler Compressor To Crankshaft Pulley) Belt No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
1. Temporarily install the cooler V belt No. 1 as illustrated.

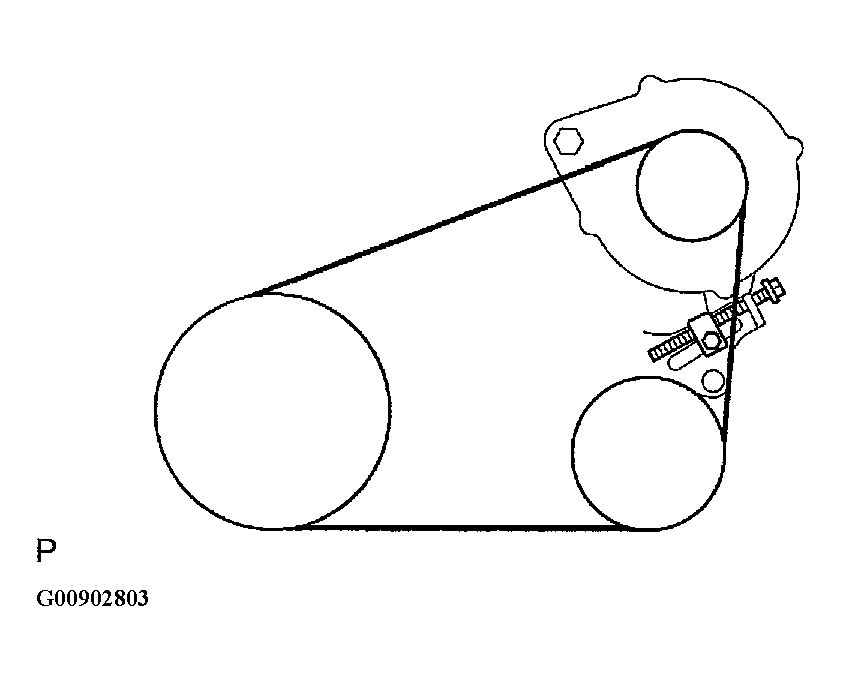

  Fig 2: Installing V (Cooler Compressor To Crankshaft Pulley) Belt No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1

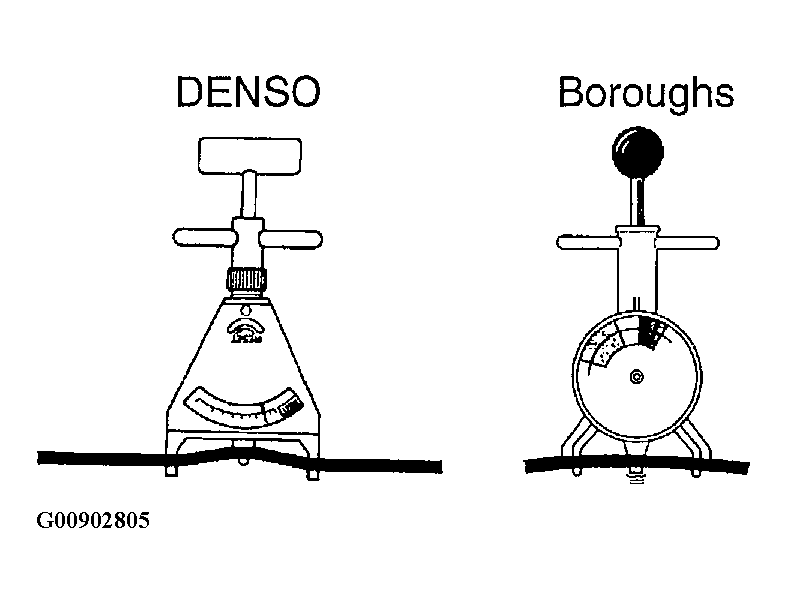

1. Apply drive belt tension by turning the bolt B.
  Drive belt tension:
  - New Belt: 165 +/- 27 lbf
  - Used belt: 88 +/- 22 lbf

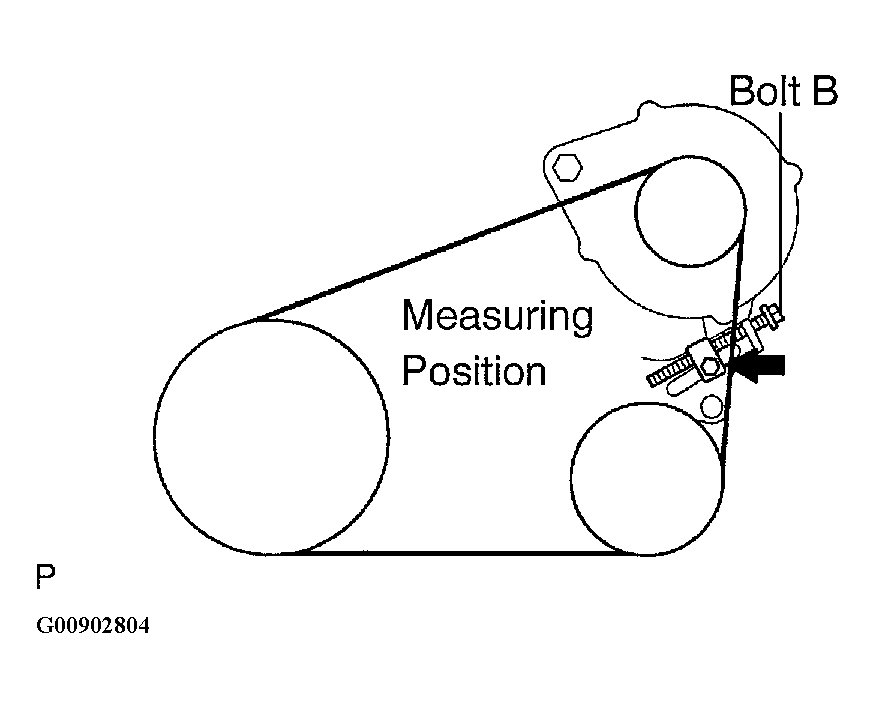

  Fig 3: Applying Drive Belt Tension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - "New belt" refers to a belt which has been used less than 5 minutes on a running engine.
  - "Used belt" refers to a belt which has been used on a running engine for 5 minutes or more.
  - After installing the drive belt, check that it fits properly in the ribbed grooves.

    Fig 4: Checking Drive Belt Fits Properly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Check that the drive belt fits properly in the ribbed grooves.

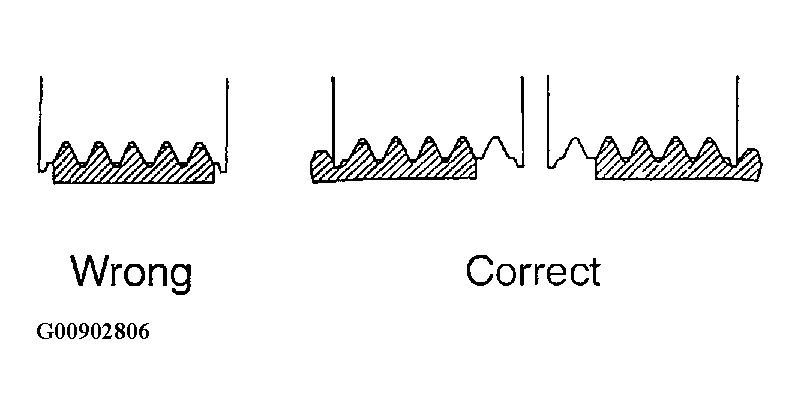

    Fig 5: Checking Drive Belt Fits Properly In Ribbed Grooves
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
1. Tighten the bolt A.
  Torque: 17.5 N.m (178 kgf-cm, 12 ft-lbf)
2. Tighten the bolt C.
  Torque: 58 N.m (591 kgf-cm, 43 ft-lbf)

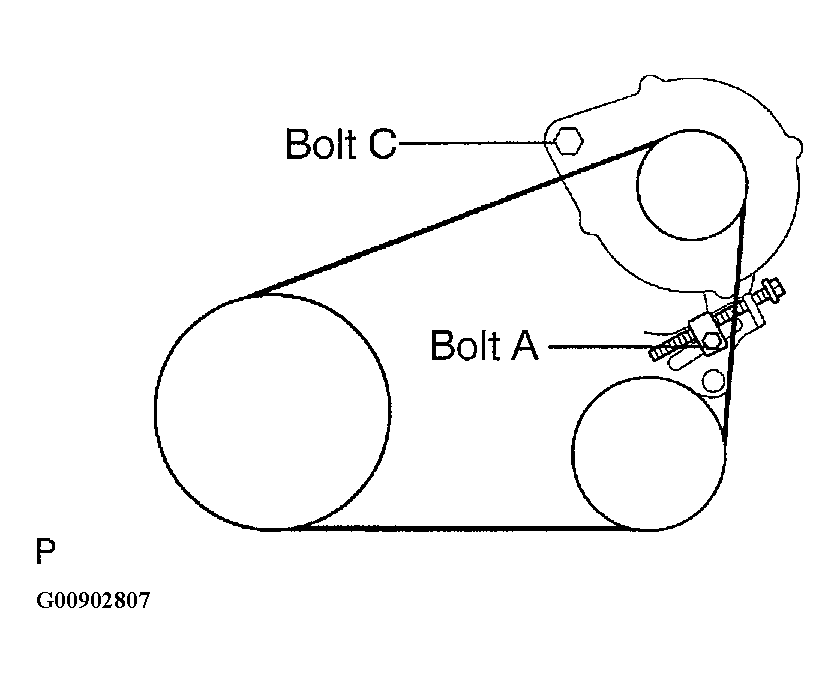

  Fig 6: Tightening V (Cooler Compressor To Crankshaft Pulley) Belt No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
