On-Vehicle Inspection: Notes

WARNING: This page is about a different car, the 2004 Lexus ES 330, 2003 Lexus ES 300, and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT REFRIGERANT VOLUME
1. Observe the sight glass on the cooler refrigerant liquid pipe A.
  Test conditions:
  - Running engine at 1,500 rpm
  - Blower speed control switch at "HI"
  - A/C switch ON
  - Temperature control dial at "MAX.COOL"
  - Fully open the doors

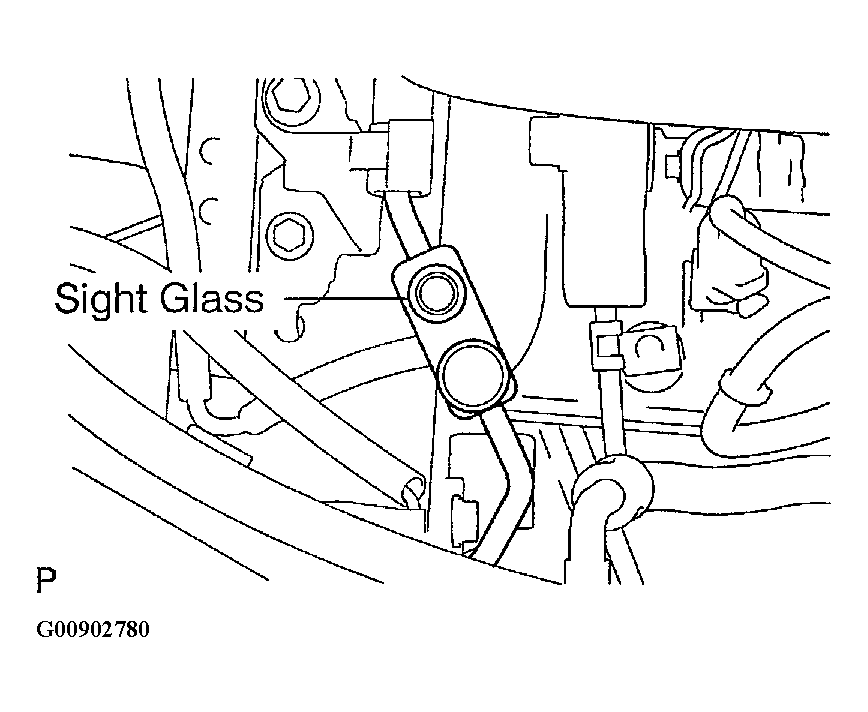

    Fig 1: Observing Sight Glass On Cooler Refrigerant Liquid Pipe A
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

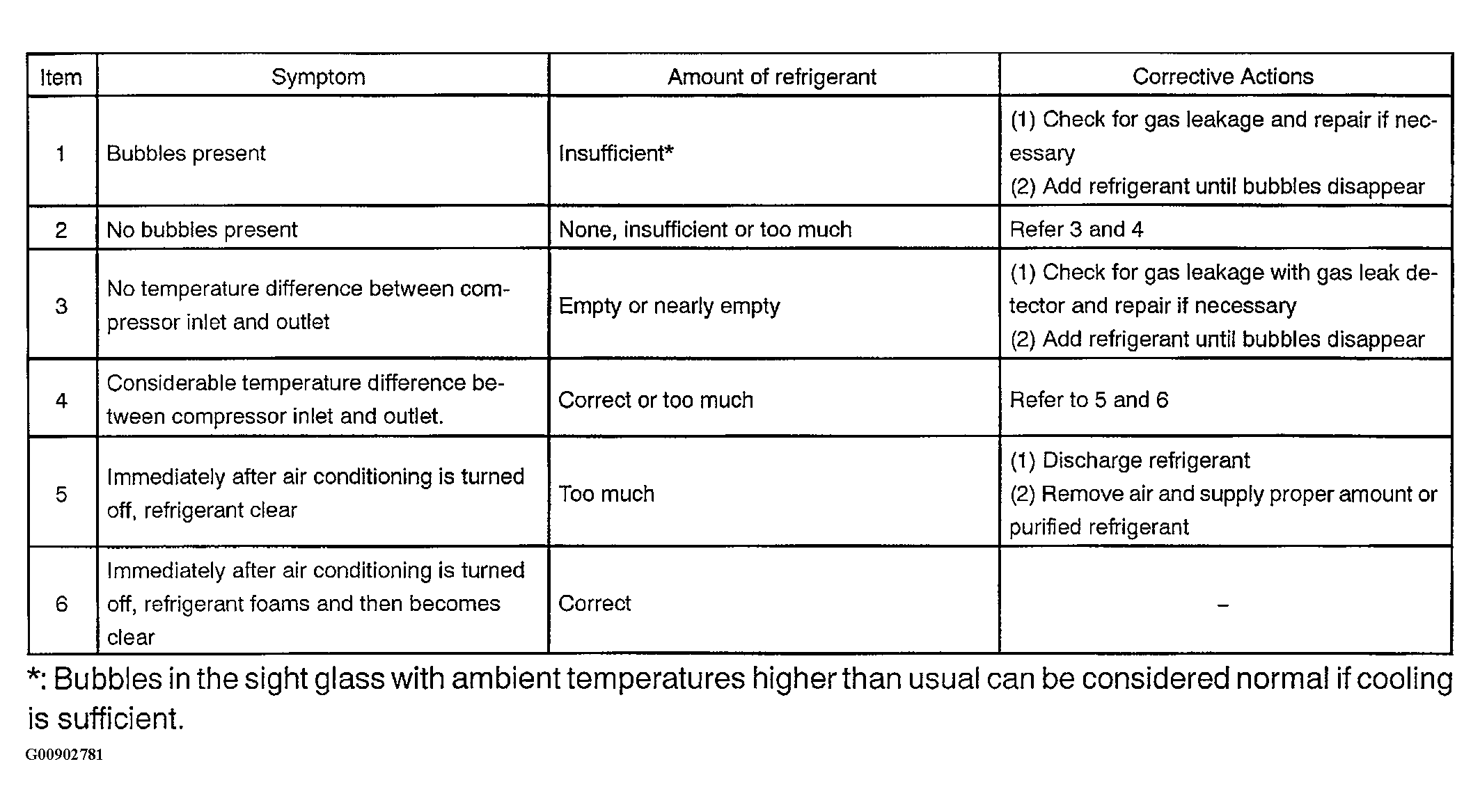

    Fig 2: Refrigerant Volume Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET
1. This is a method in witch the trouble is located by using a manifold gauge set. Read the manifold gauge pressure when the these conditions are established. Test conditions:
  - Temperature at the air inlet with the switch set at RECIRC is 30 - 35 °C (86 - 95 °F)
  - Engine running at 1,500 rpm
  - Blower speed control switch at "HI" position
  - Temperature control dial at "COOL" position
  - A/C switch ON
  - Fully open doors
  1. Normally functioning refrigeration system.
    Gauge reading:
    - Low pressure side: 0.15 - 0.25 MPa (1.5 - 2.5 kgf/cm ² )
    - High pressure side: 1.37 - 1.57 MPa (14-16 kgf/cm ² )

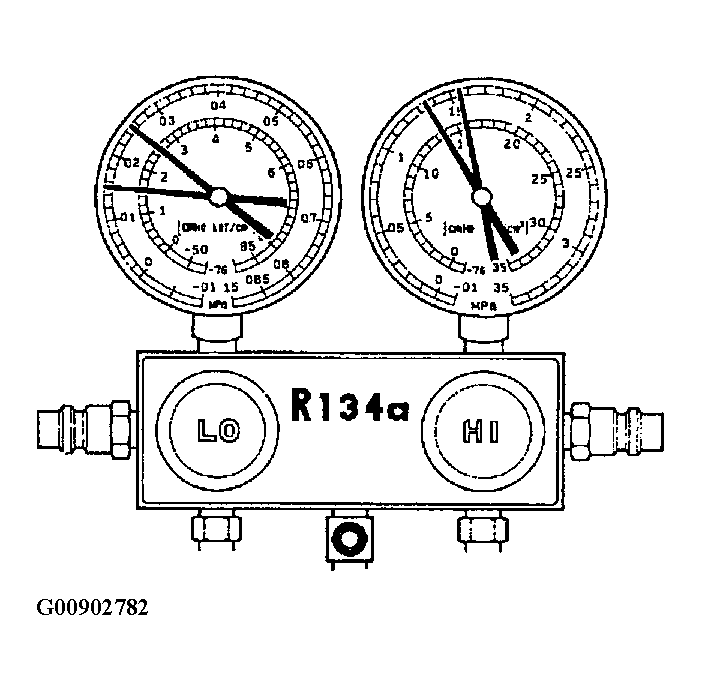

    Fig 3: Inspecting Refrigerant Pressure With Manifold Gauge Set
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

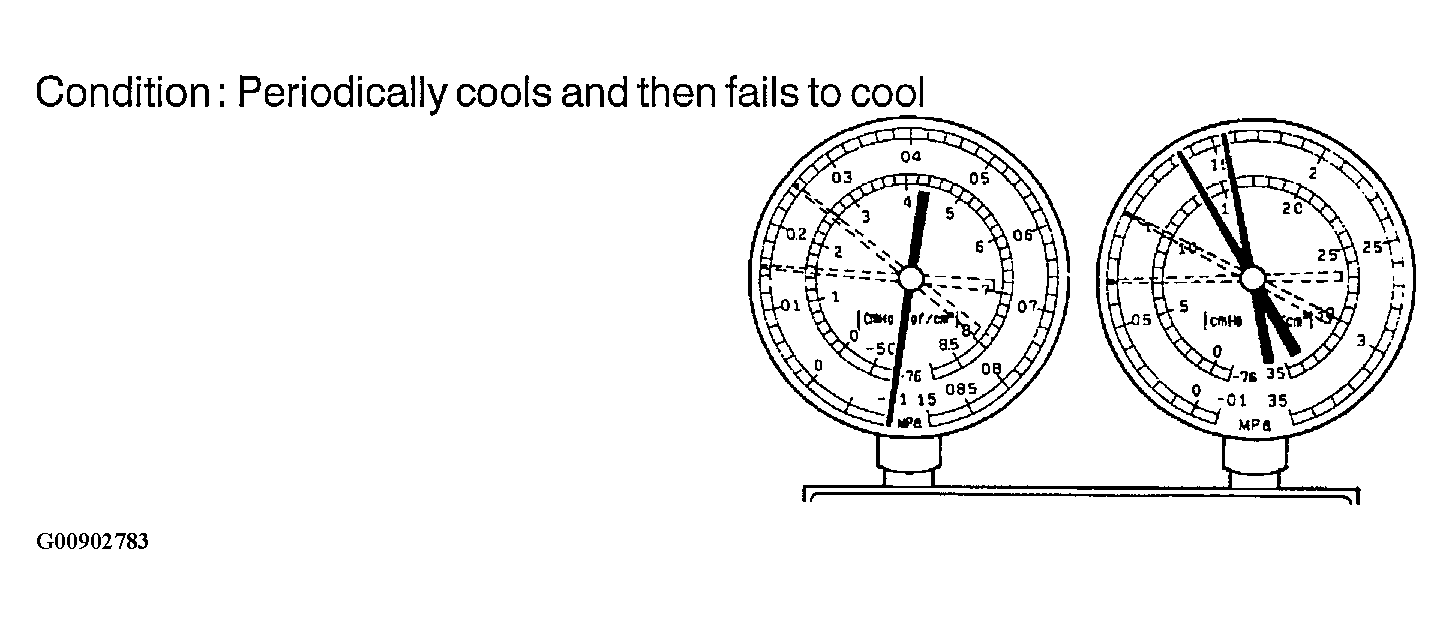

  2. Moisture present in refrigeration system.

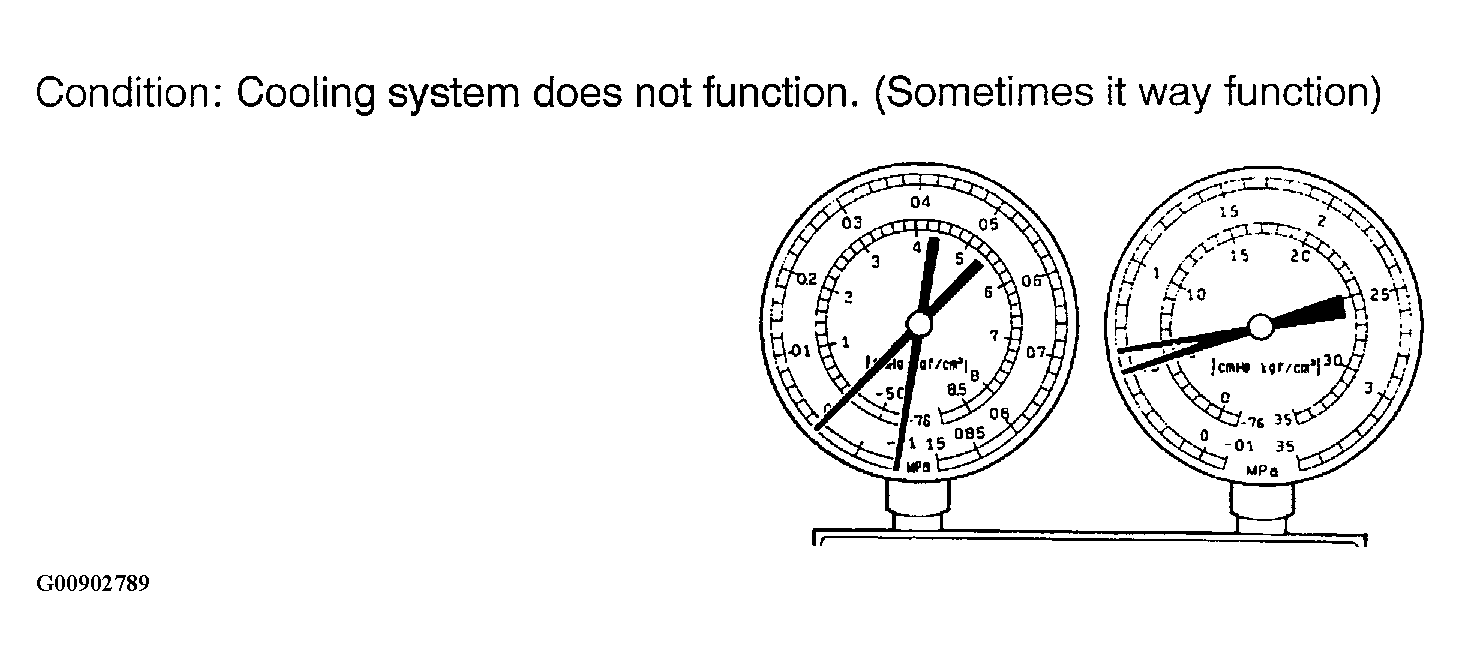

    Fig 4: Moisture Present In Refrigeration System
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

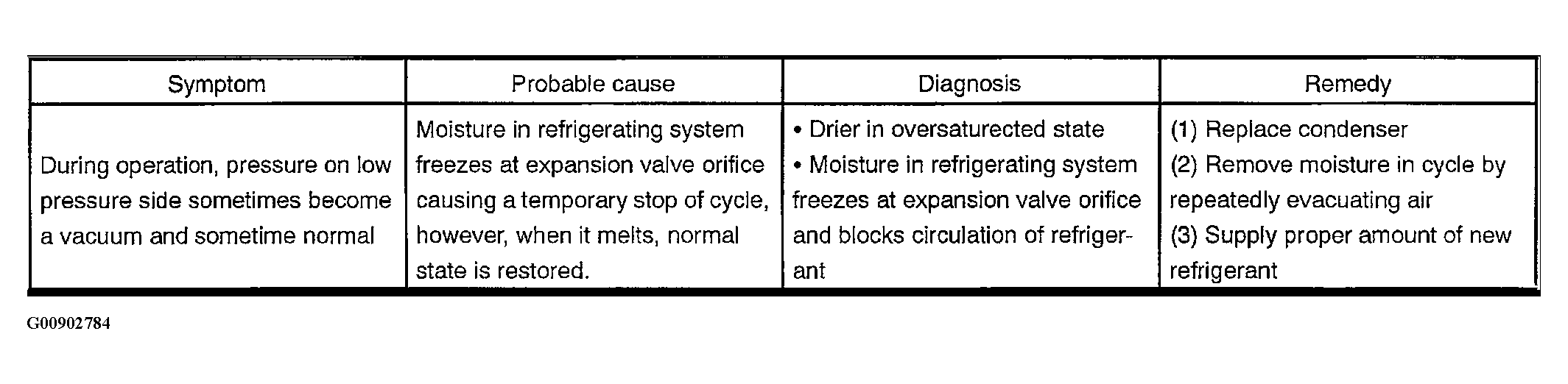

    Fig 5: Moisture Present In Refrigeration System Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

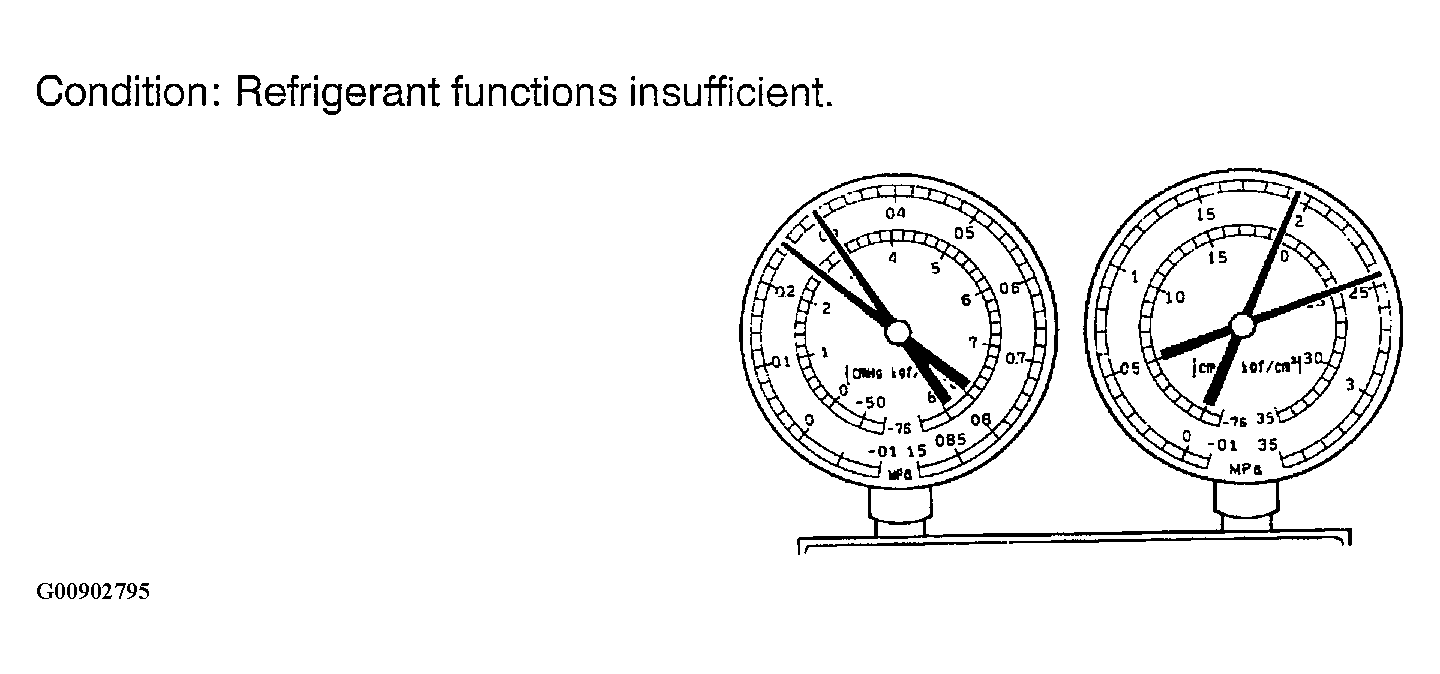

  3. Insufficient cooling

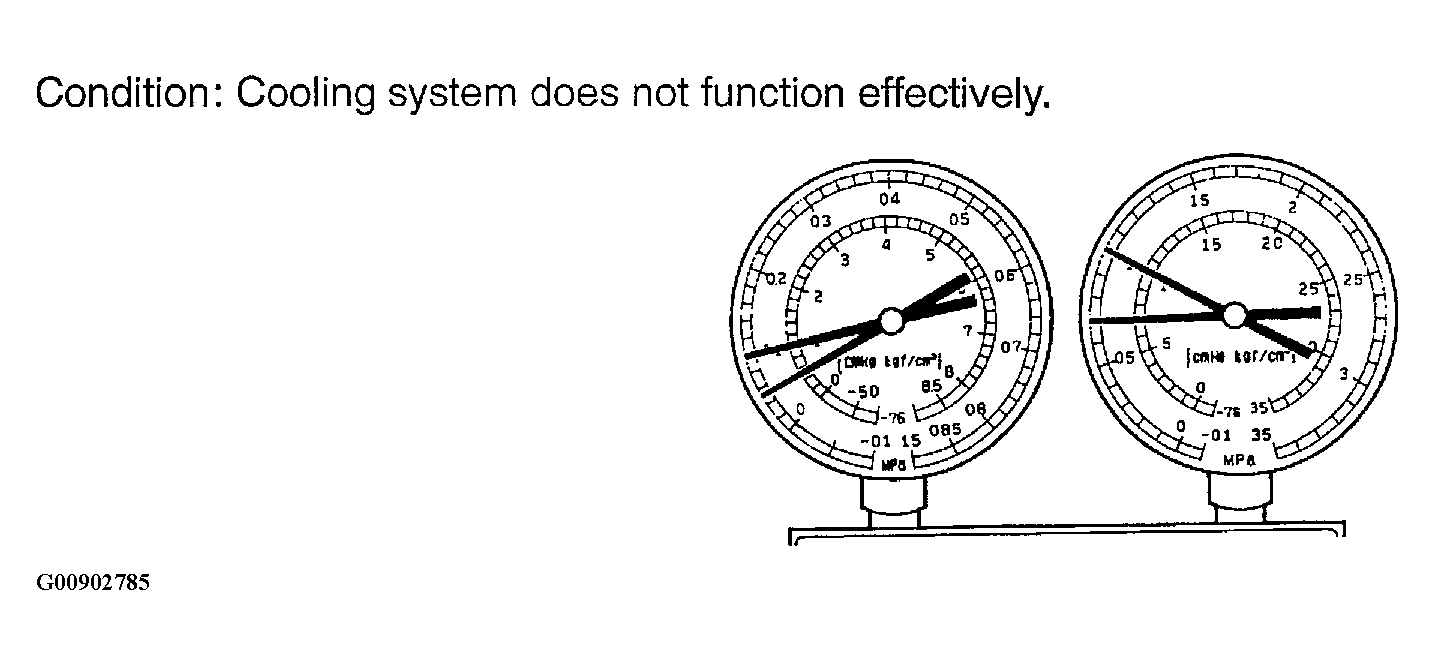

    Fig 6: Insufficient Cooling In Refrigeration System
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

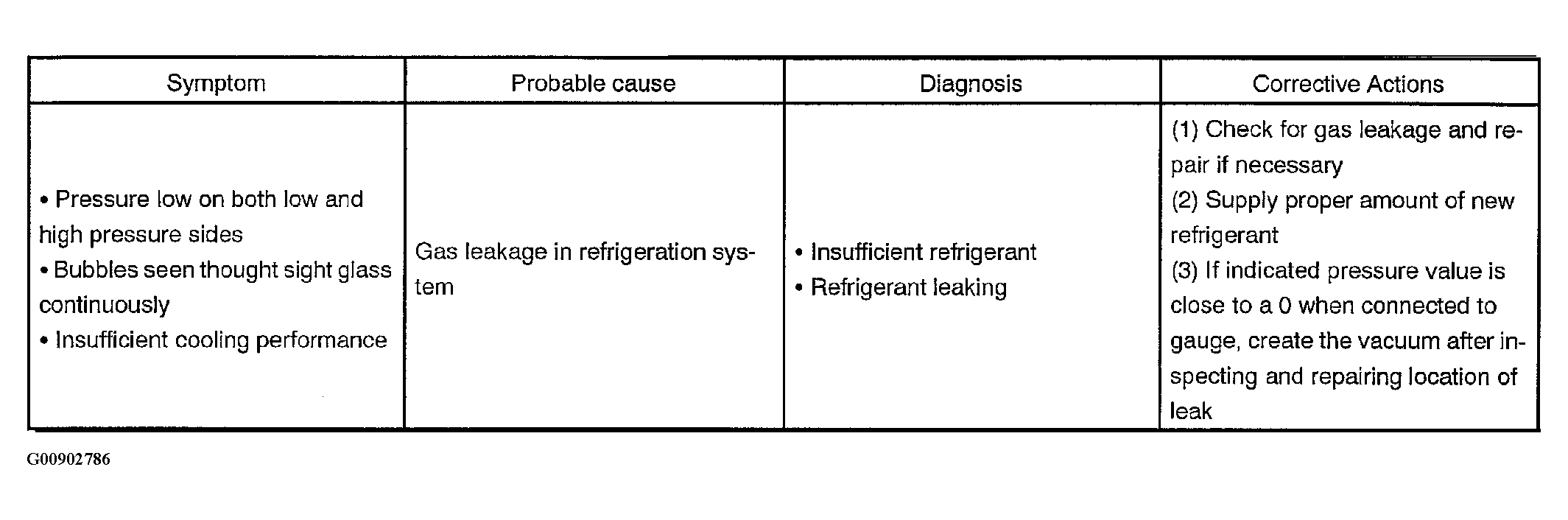

    Fig 7: Insufficient Cooling Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Poor circulation of refrigerant

    Fig 8: Poor Circulation Of Refrigerant
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

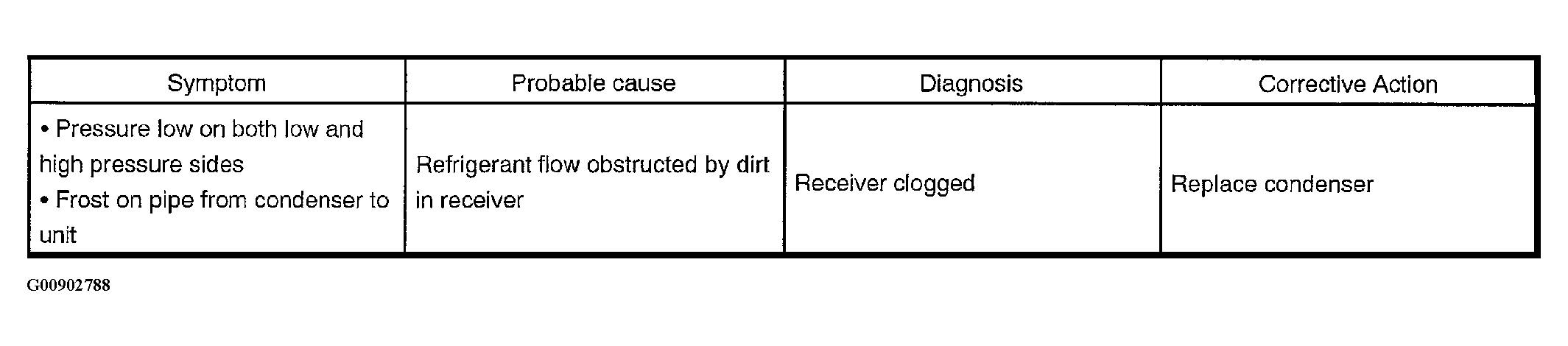

    Fig 9: Poor Circulation Of Refrigerant Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Refrigerant does not circulate

    Fig 10: Refrigerant Does Not Circulate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

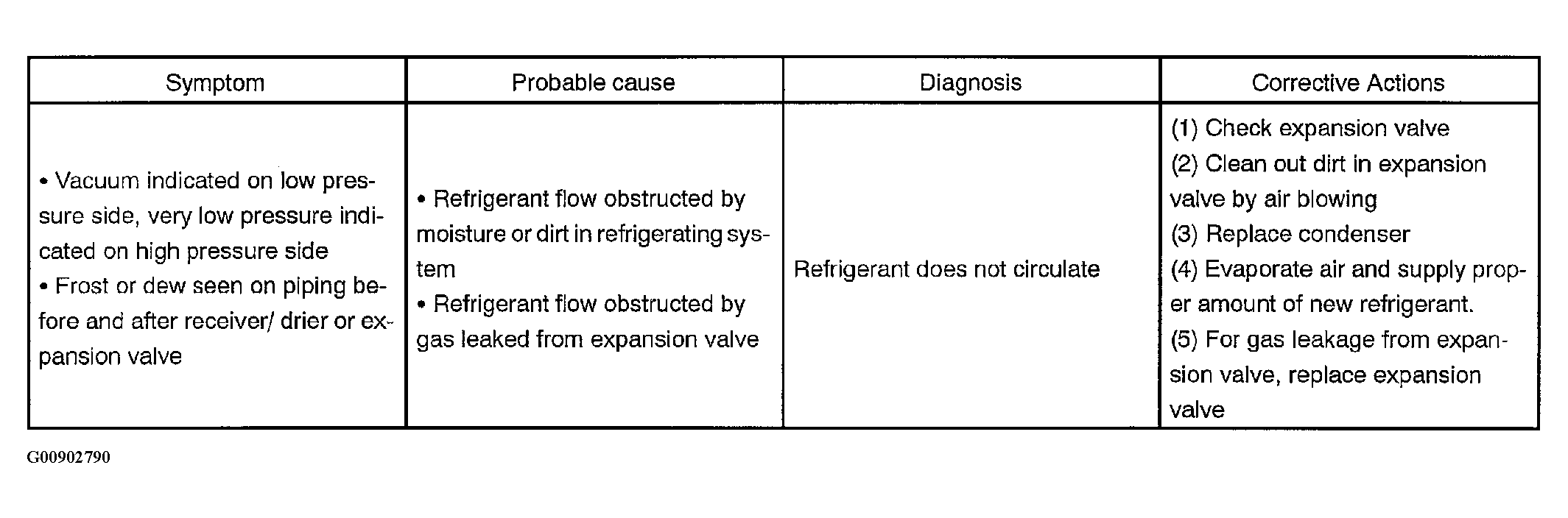

    Fig 11: Refrigerant Does Not Circulate Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

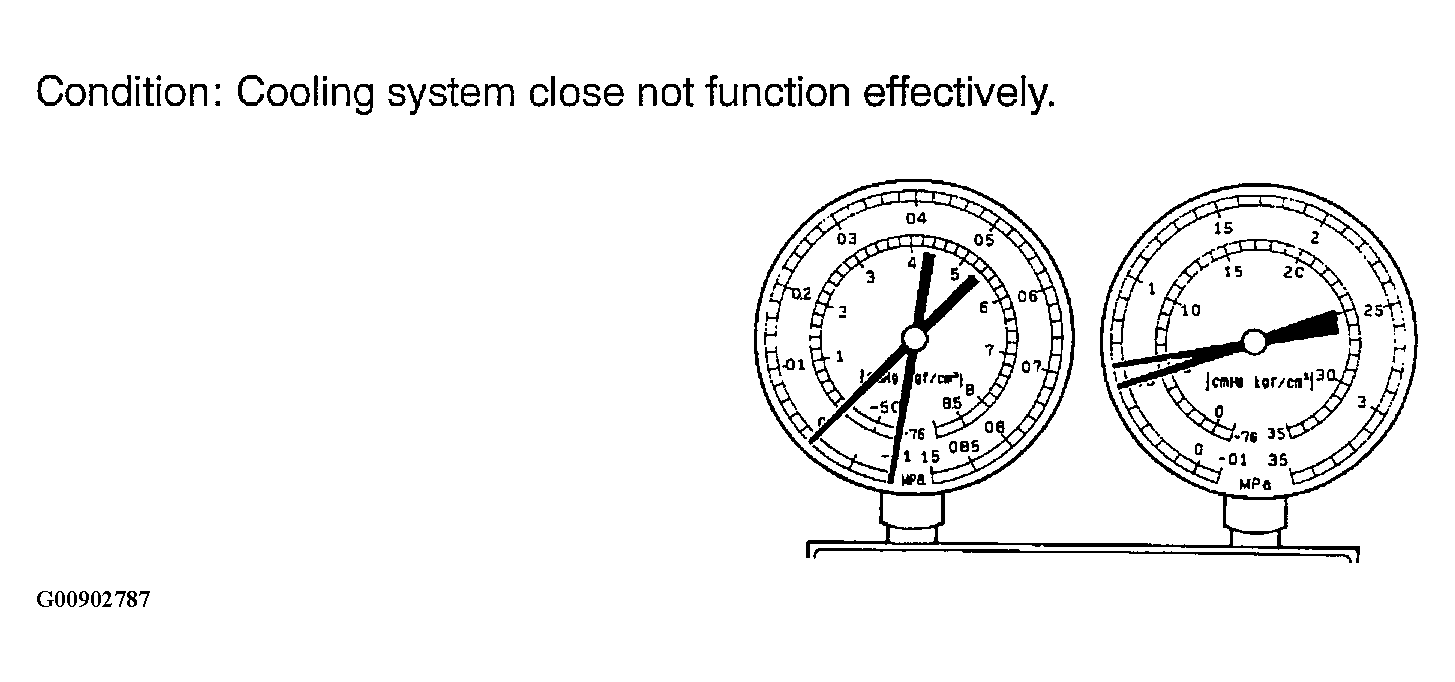

  6. Refrigerant overcharged or insufficient cooling of condenser

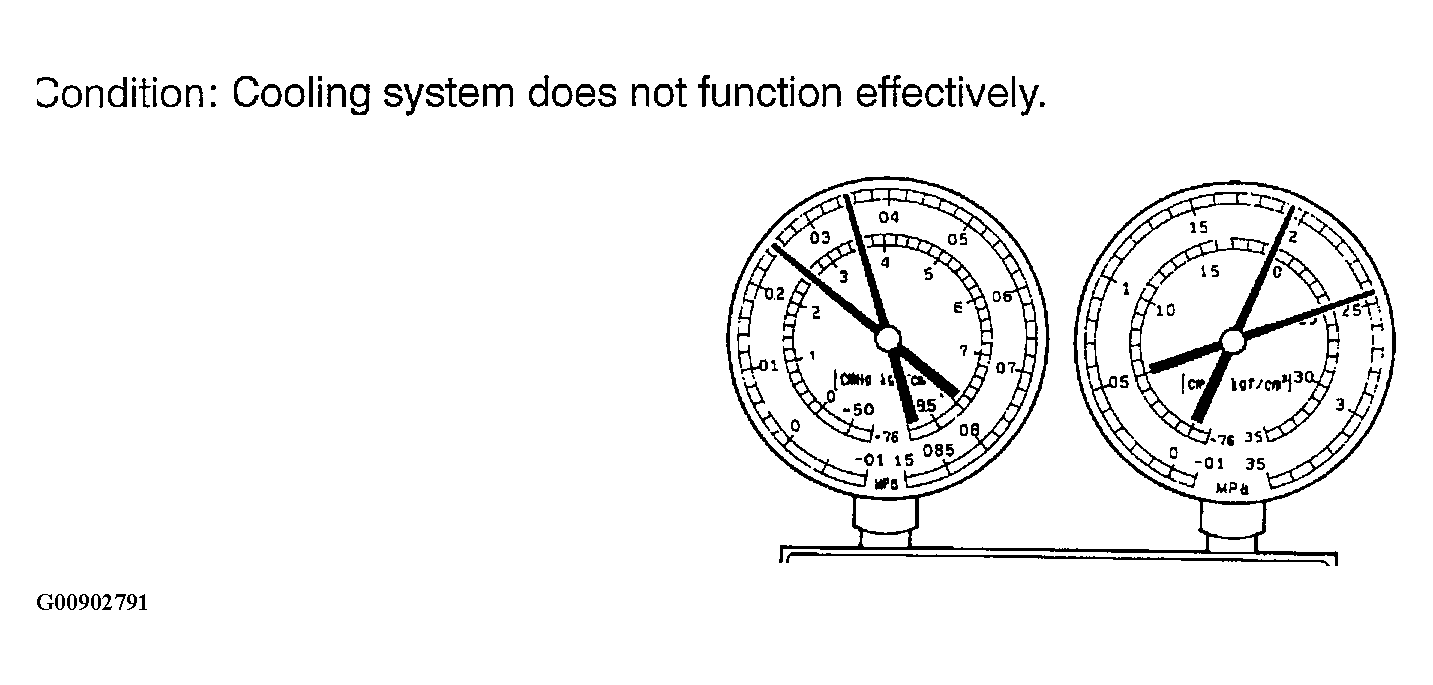

    Fig 12: Refrigerant Overcharged Or Insufficient Cooling Of Condenser
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

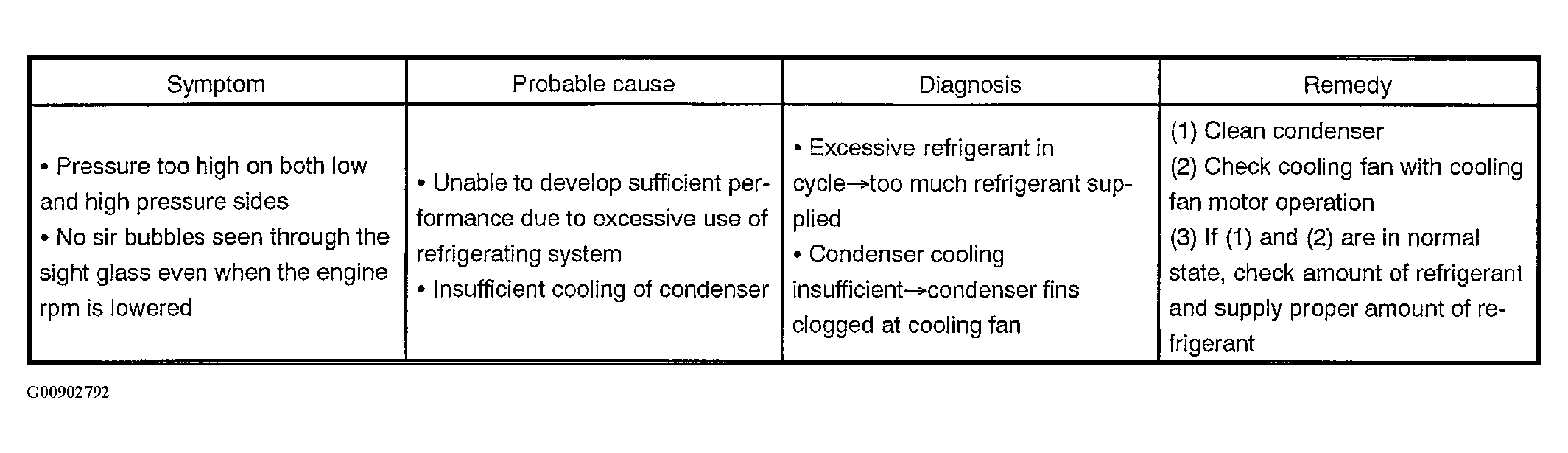

    Fig 13: Refrigerant Overcharged Or Insufficient Cooling Of Condenser Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

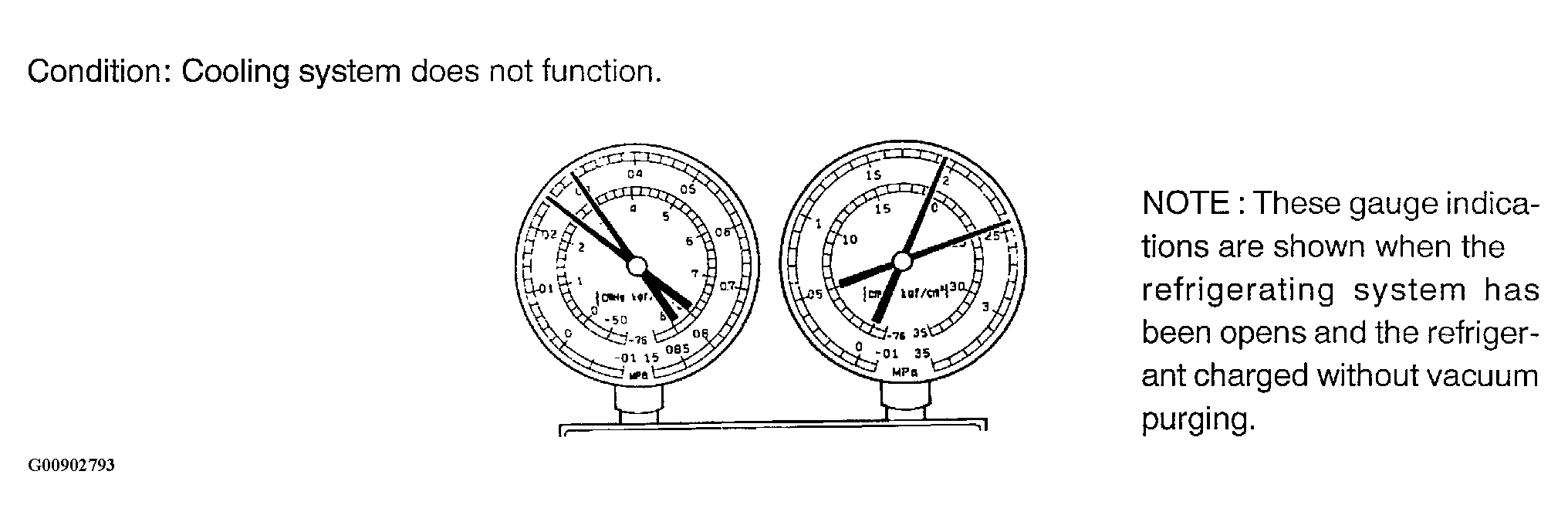

  7. Air present in refrigeration system

    Fig 14: Air Present In Refrigerant System
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

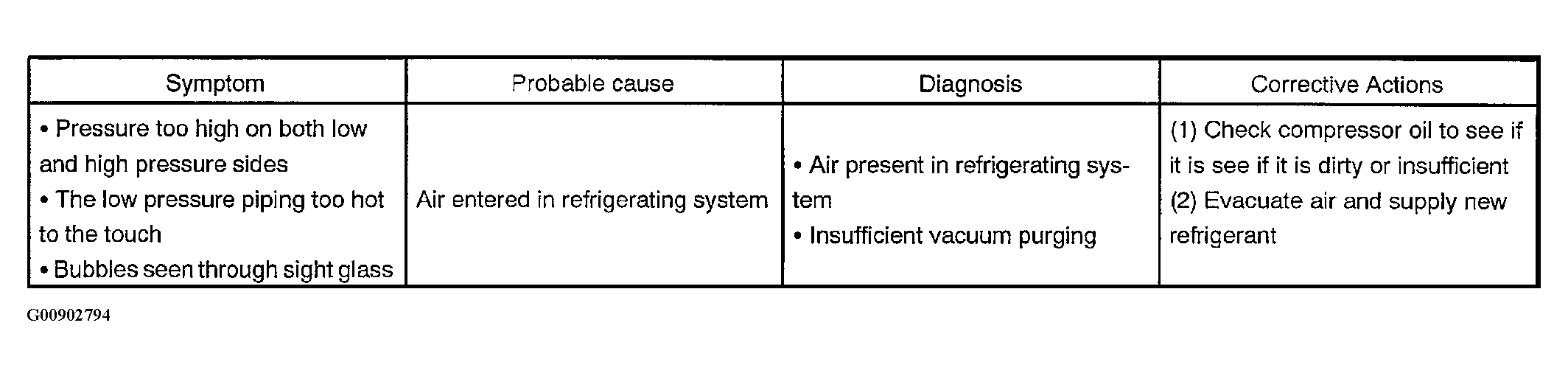

    Fig 15: Air Present In Refrigerant System Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Expansion valve improperly

    Fig 16: Expansion Valve Improperly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

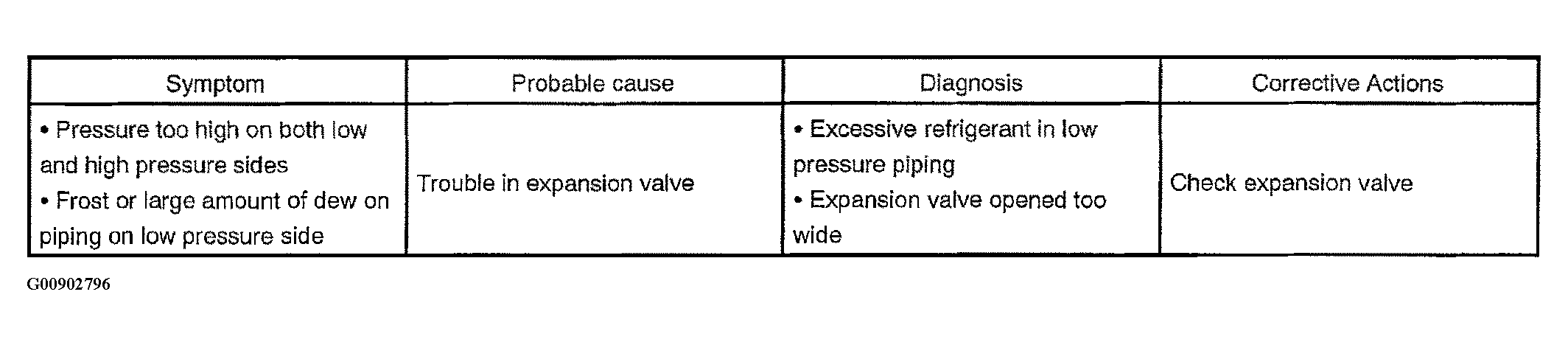

    Fig 17: Expansion Valve Improperly Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Defective compression compressor

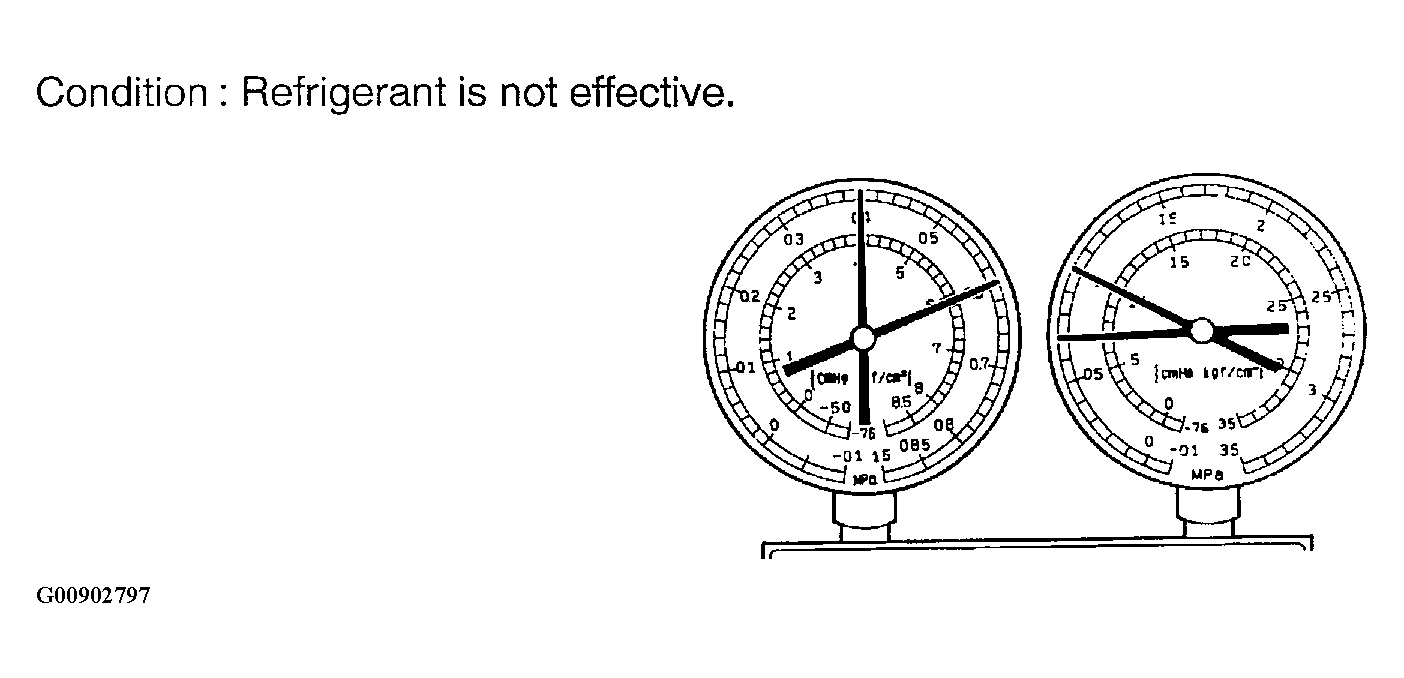

    Fig 18: Defective Compression Compressor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

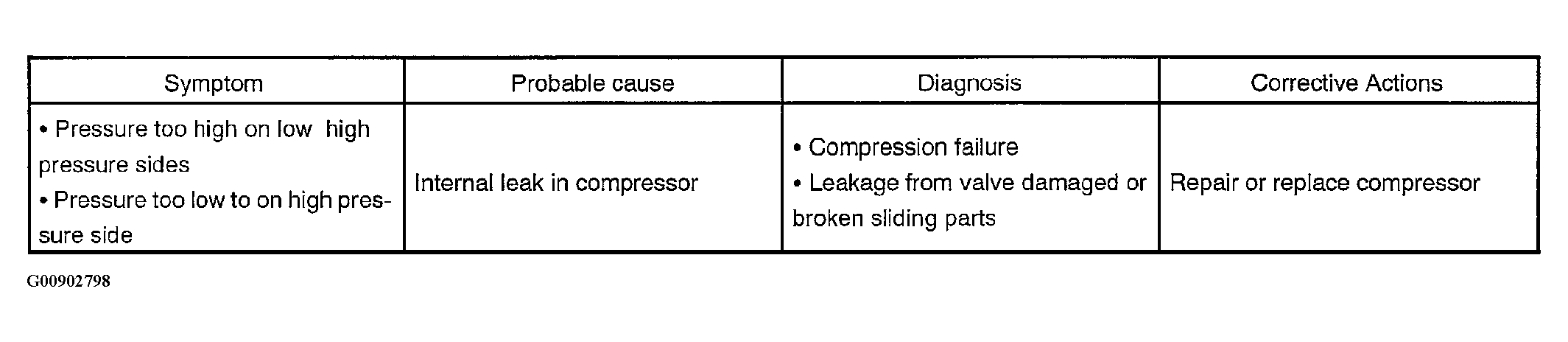

    Fig 19: Defective Compression Compressor Symptom Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
