Air Conditioning System: Precaution

WARNING: This page is about a different car, the 2004 Lexus ES 330, 2003 Lexus ES 300, and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

DO NOT HANDLE REFRIGERANT IN AN ENCLOSED AREA OR NEAR AN OPEN FLAME

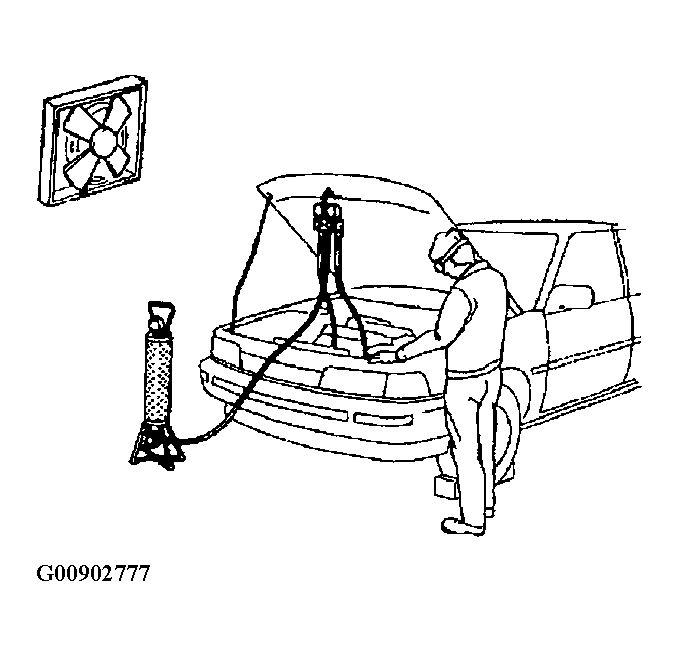

Fig 1: Precaution Of Handle Refrigerant System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ALWAYS WEAR EYE PROTECTION
BE CAREFUL NOT TO GET LIQUID REFRIGERANT IN YOUR EYES OR ON YOUR SKIN
If liquid refrigerant gets in your eyes or on your skin.
1. Wash the area with lots of cool water.
  CAUTION: Do not rub your eyes or skin.
2. Apply clean petroleum jelly to the skin.
3. Go immediately to a physician or hospital for professional treatment.

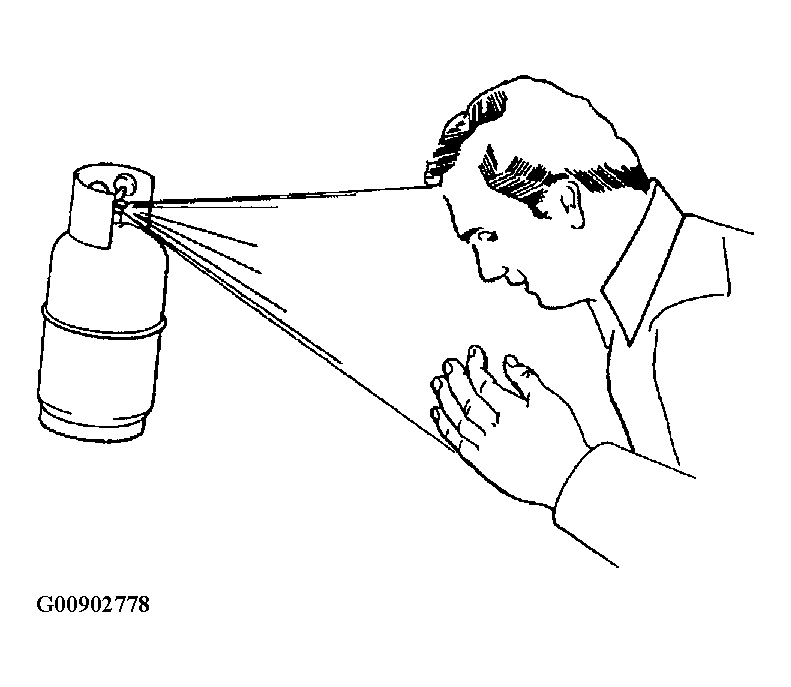

Fig 2: Precaution Of Liquid Refrigerant
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NEVER HEAT CONTAINER OR EXPOSE IT TO NAKED FLAME
BE CAREFUL NOT TO DROP CONTAINER AND NOT TO APPLY PHYSICAL SHOCKS TO IT
DO NOT OPERATE COMPRESSOR WITHOUT ENOUGH REFRIGERANT IN REFRIGERANT SYSTEM
If there is not enough refrigerant in the refrigerant system oil lubrication will be insufficient and compressor burnout may occur, so take care to avoid this, necessary care should be taken.

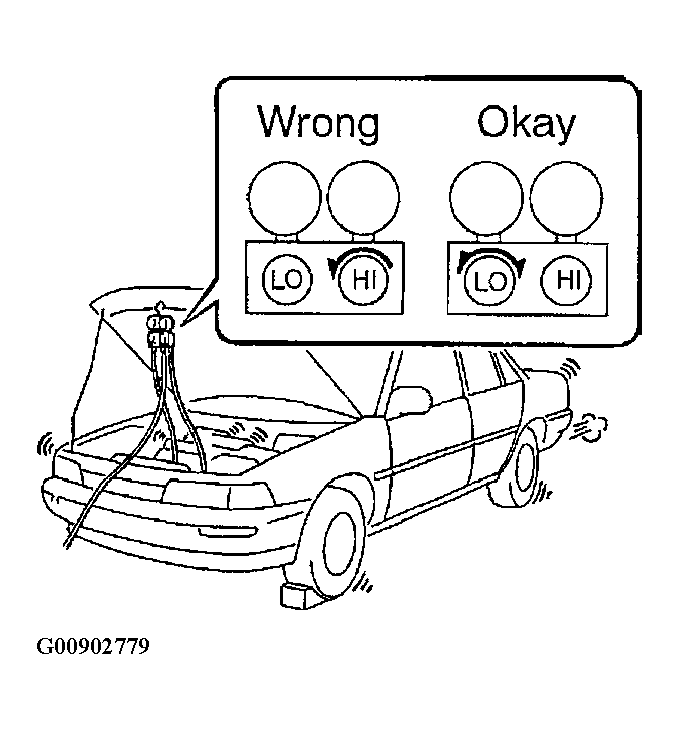

Fig 3: Precaution Of Operating Compressor Without Enough Refrigerant In Refrigerant
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DO NOT OPEN HIGH PRESSURE MANIFOLD VALVE WHILE COMPRESSOR IS OPERATING
If the high pressure valves opened, refrigerant flows in the reverse direction and could cause the charging cylinder to rupture, so open and close the only low pressure valve.
BE CAREFUL NOT TO OVERCHARGE SYSTEM WITH REFRIGERANT
If refrigerant is overcharged, it causes problems such as insufficient cooling, poor fuel economy, engine overheating etc.
