Automatic Transaxle ASSY (U151E): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

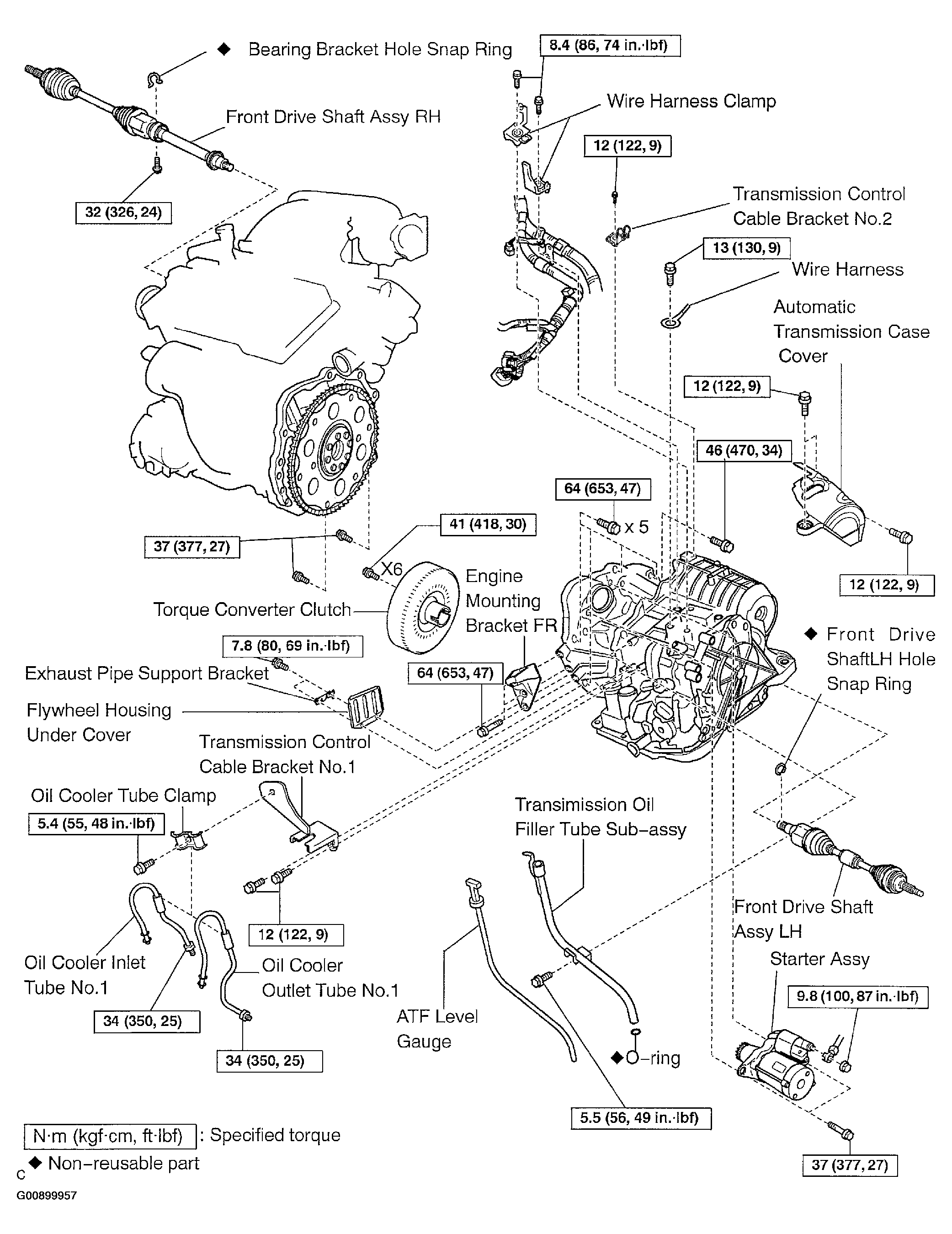

Fig 1: Identifying Automatic Transaxle Assy (U151E) Components
G00899957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
