Oil Pump ASSY (3MZ-FE): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

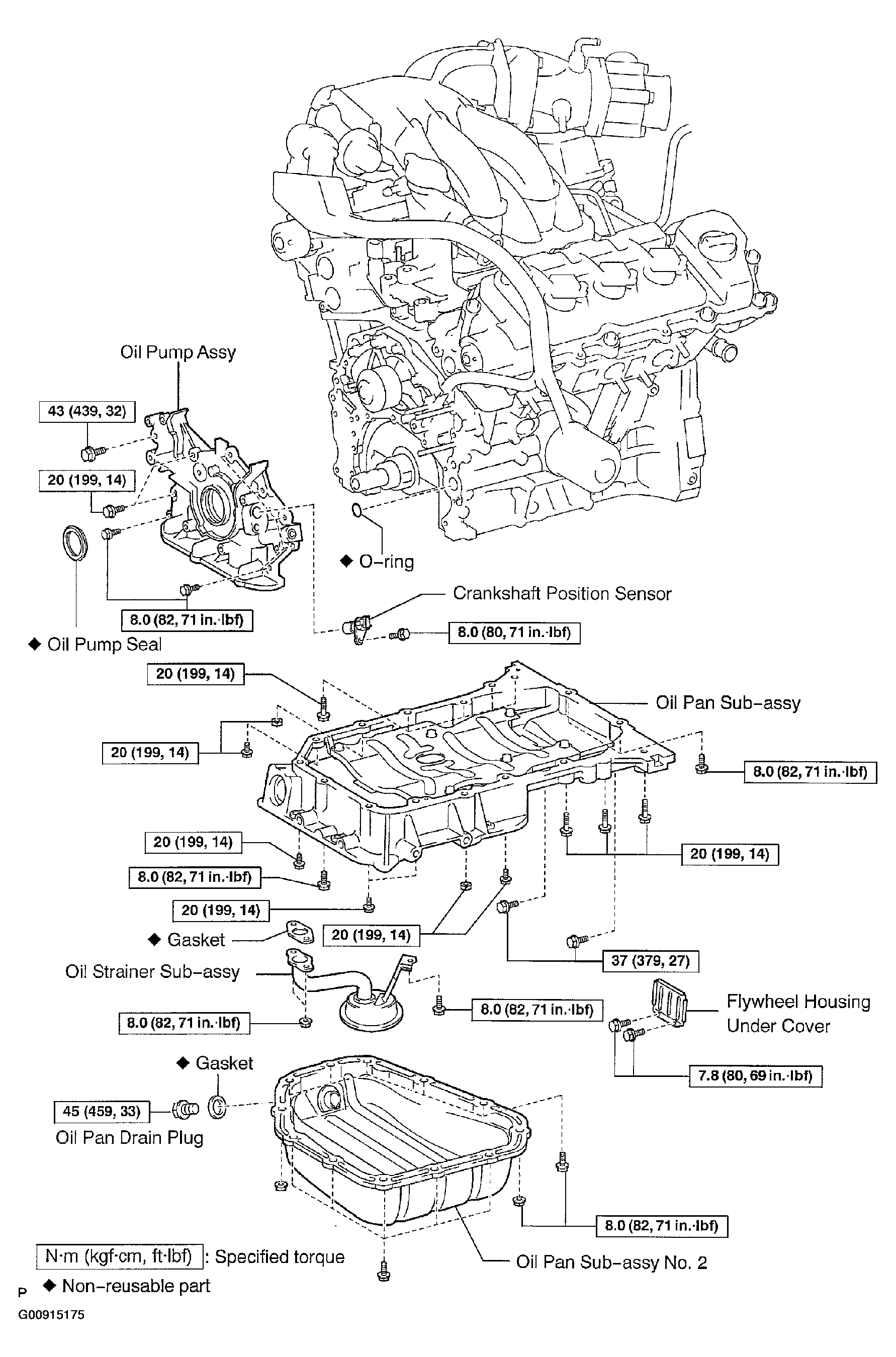

Fig 1: Identifying Oil Pump Assy (3MZ-FE) Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

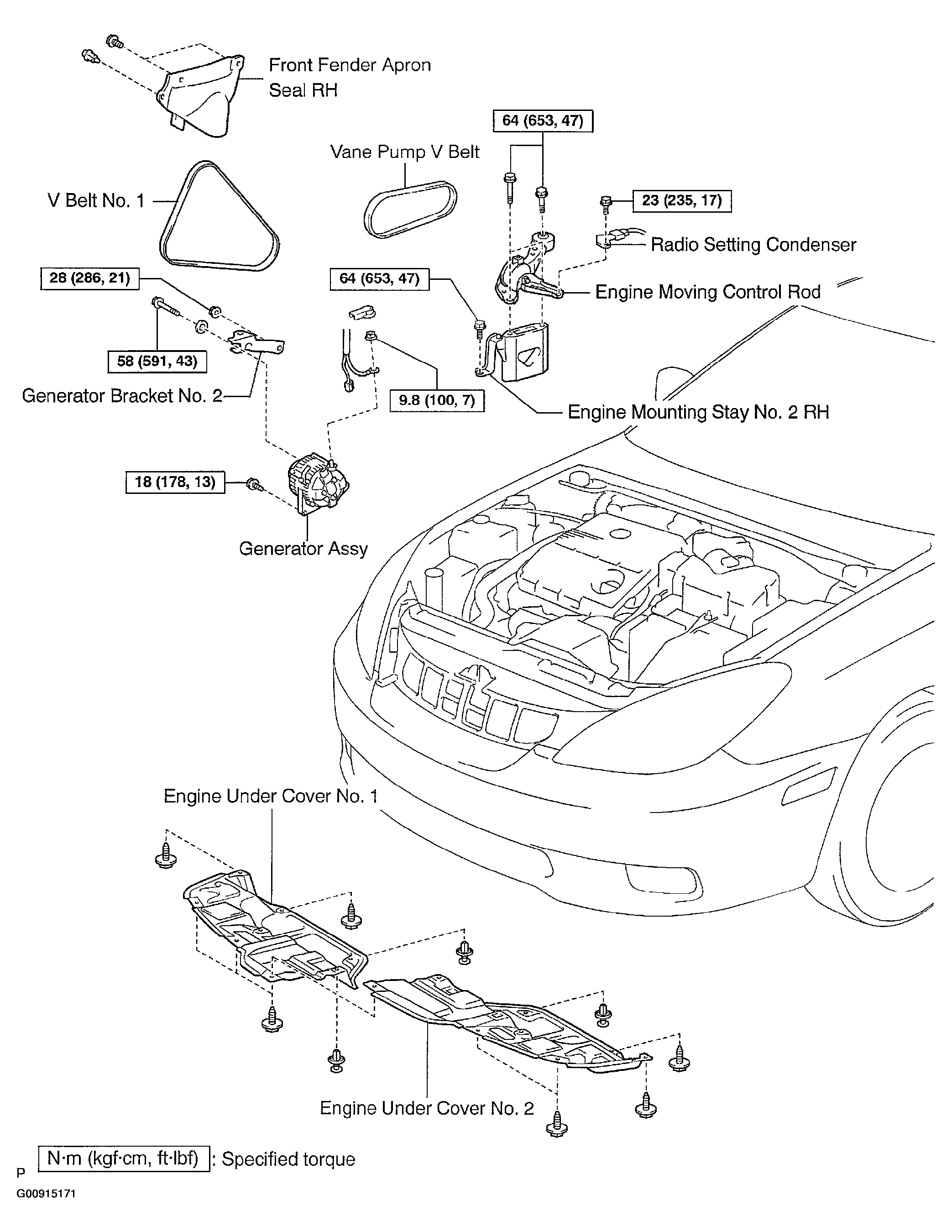

Fig 2: Identifying Oil Pump Assy (3MZ-FE) Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

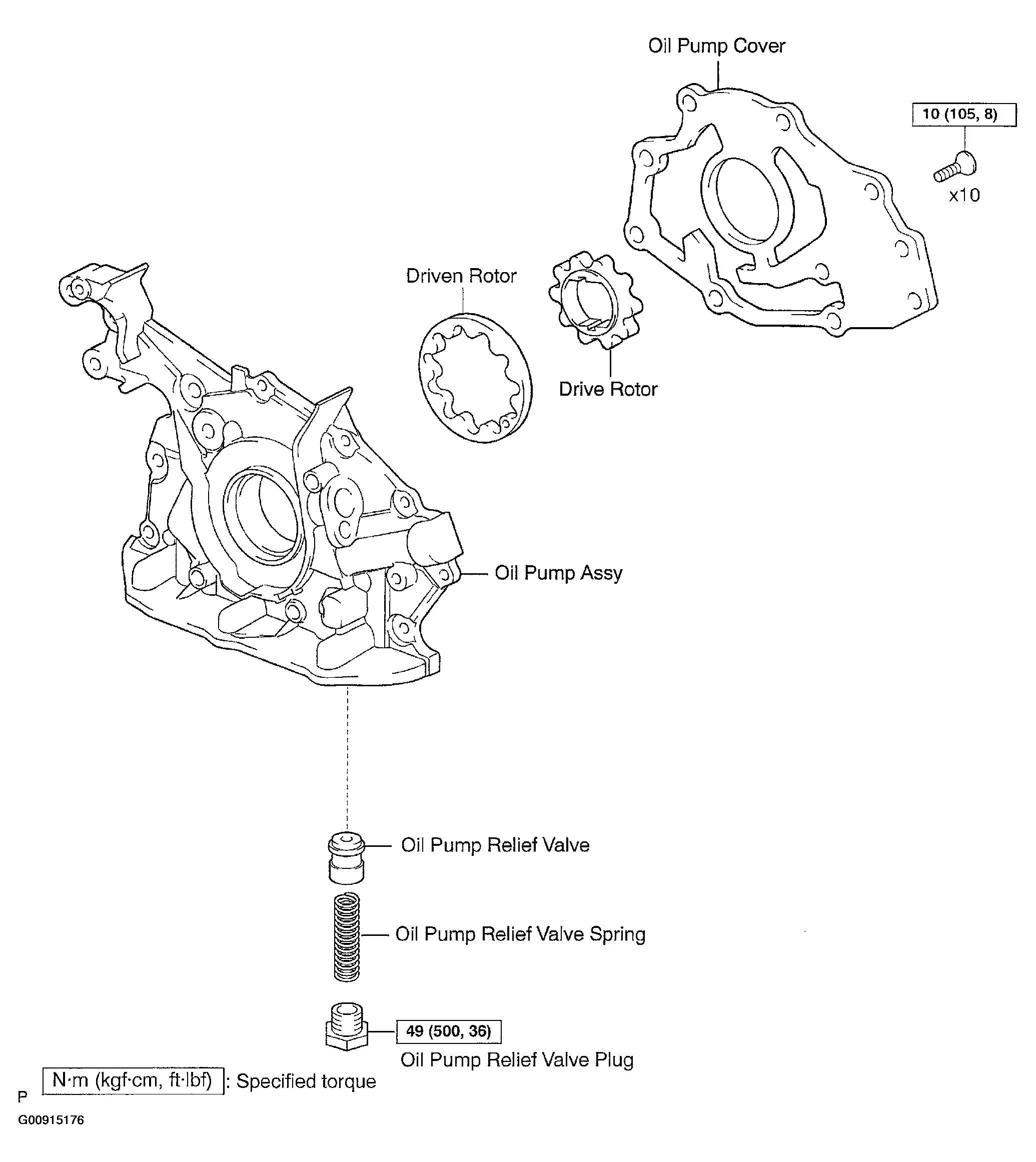

Fig 3: Identifying Oil Pump Assy (3MZ-FE) Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

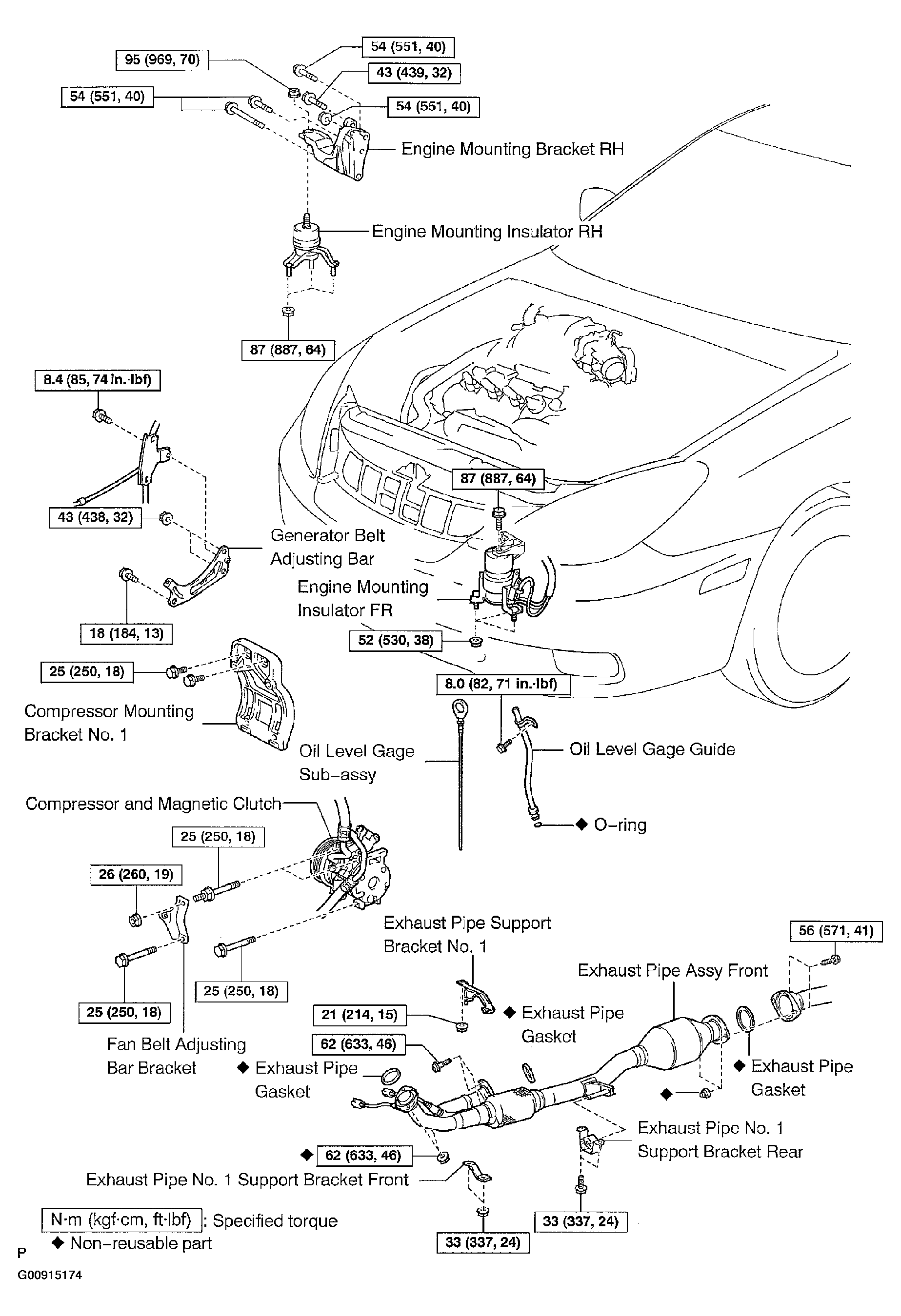

Fig 4: Identifying Oil Pump Assy (3MZ-FE) Components (4 Of 6)

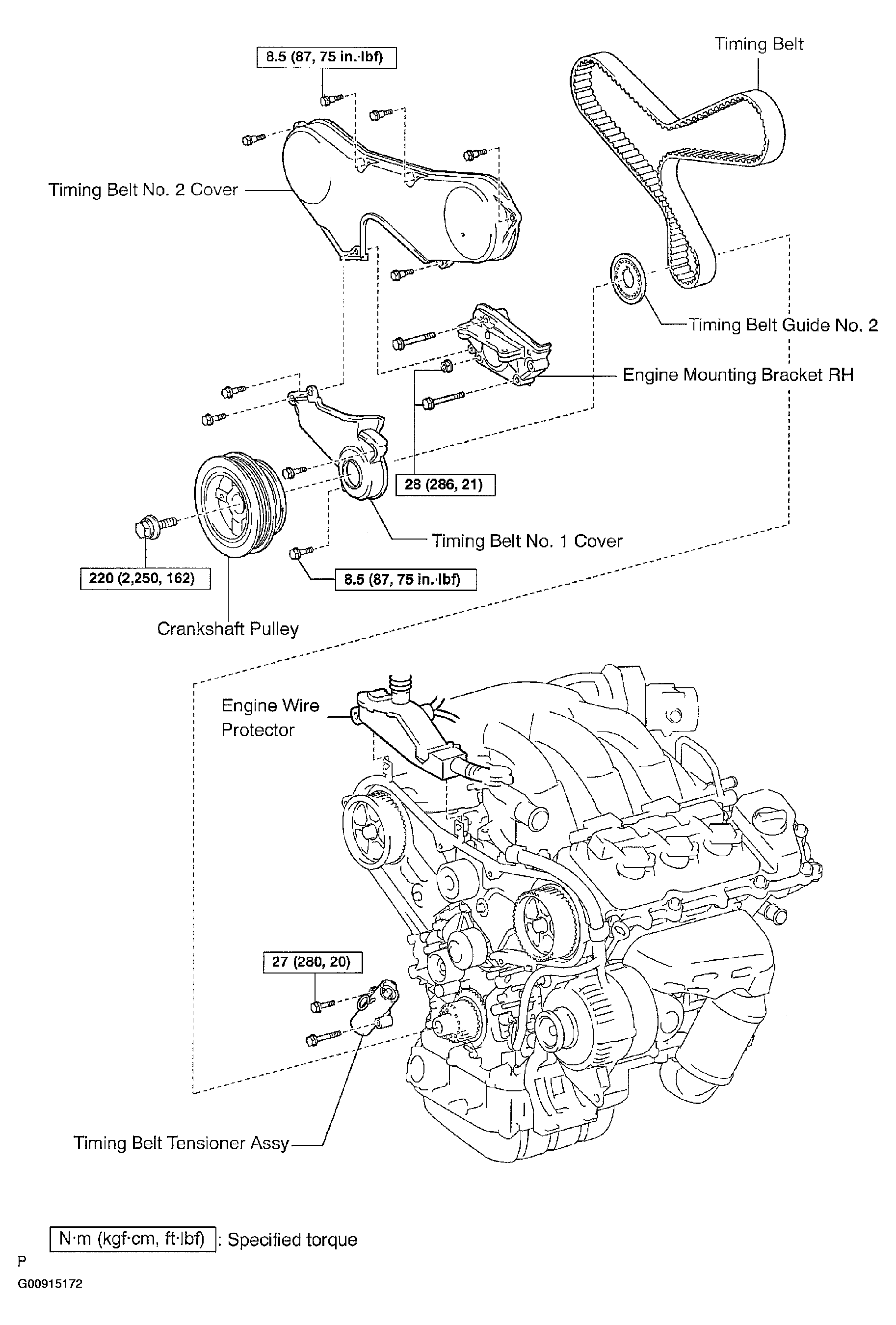

Fig 5: Identifying Oil Pump Assy (3MZ-FE) Components (5 Of 6)

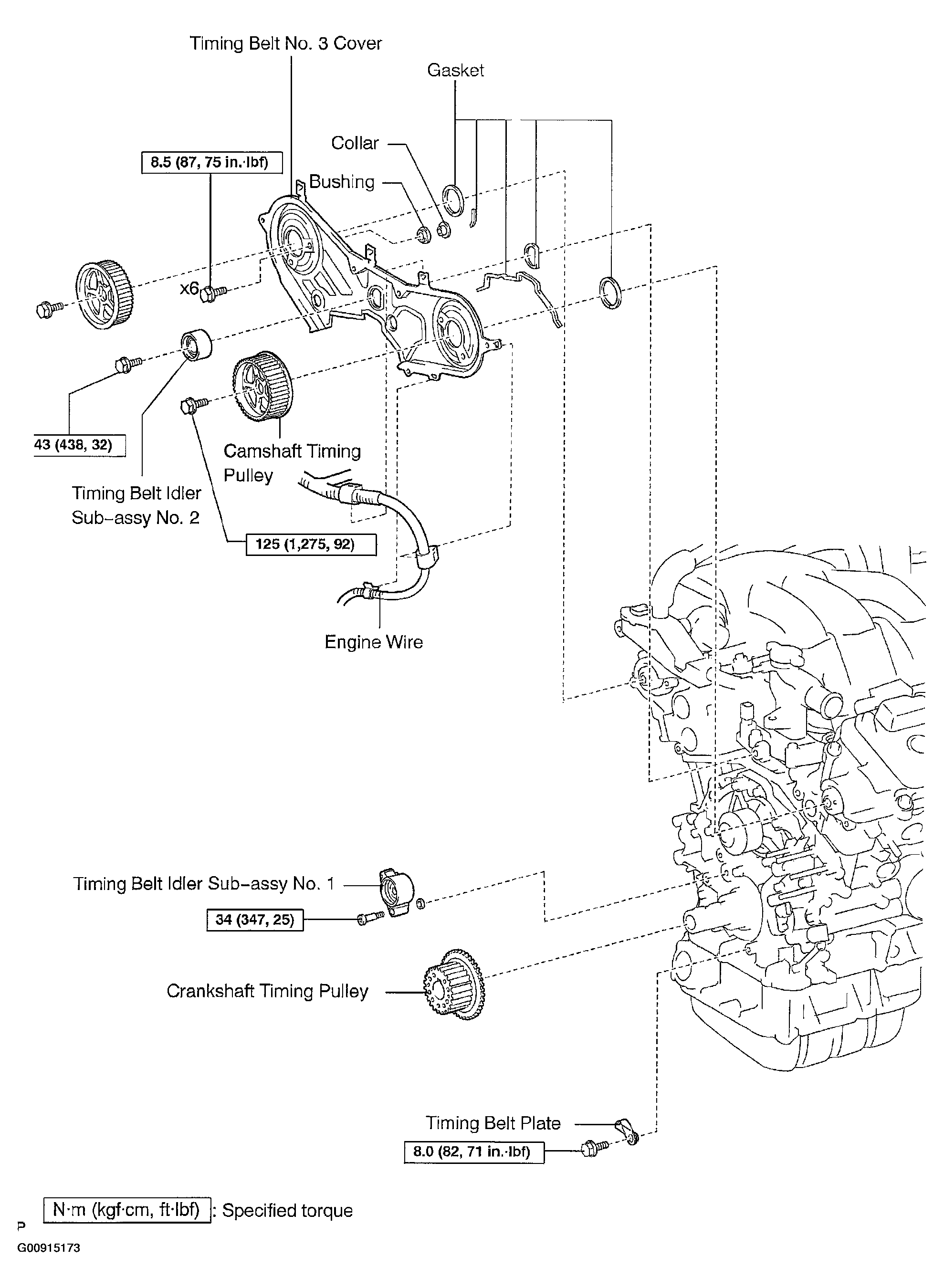

Fig 6: Identifying Oil Pump Assy (3MZ-FE) Components (6 Of 6)
