Timing Belt (3MZ-FE): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

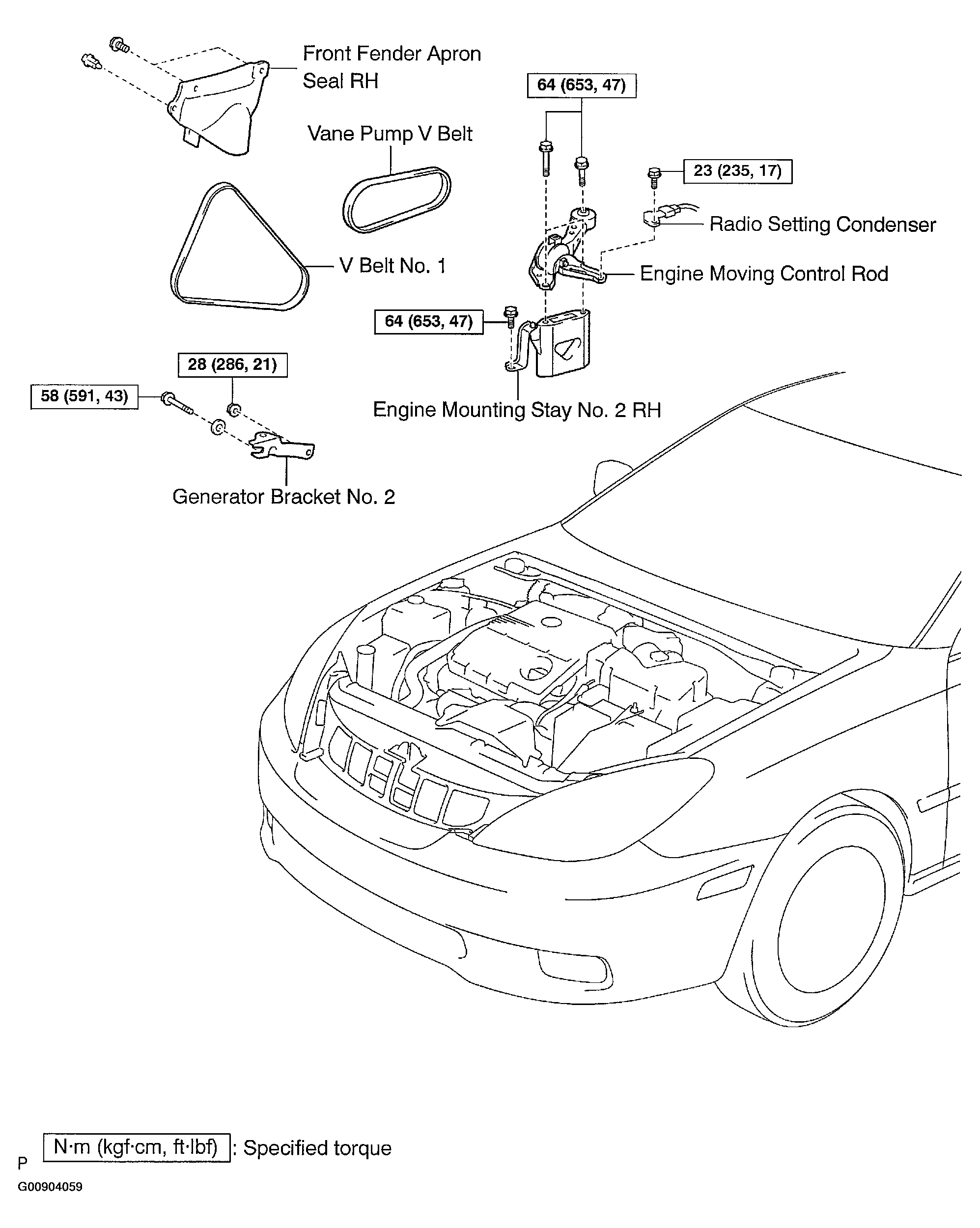

Fig 1: Exploded View Of Drive Belt Components
G00904059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

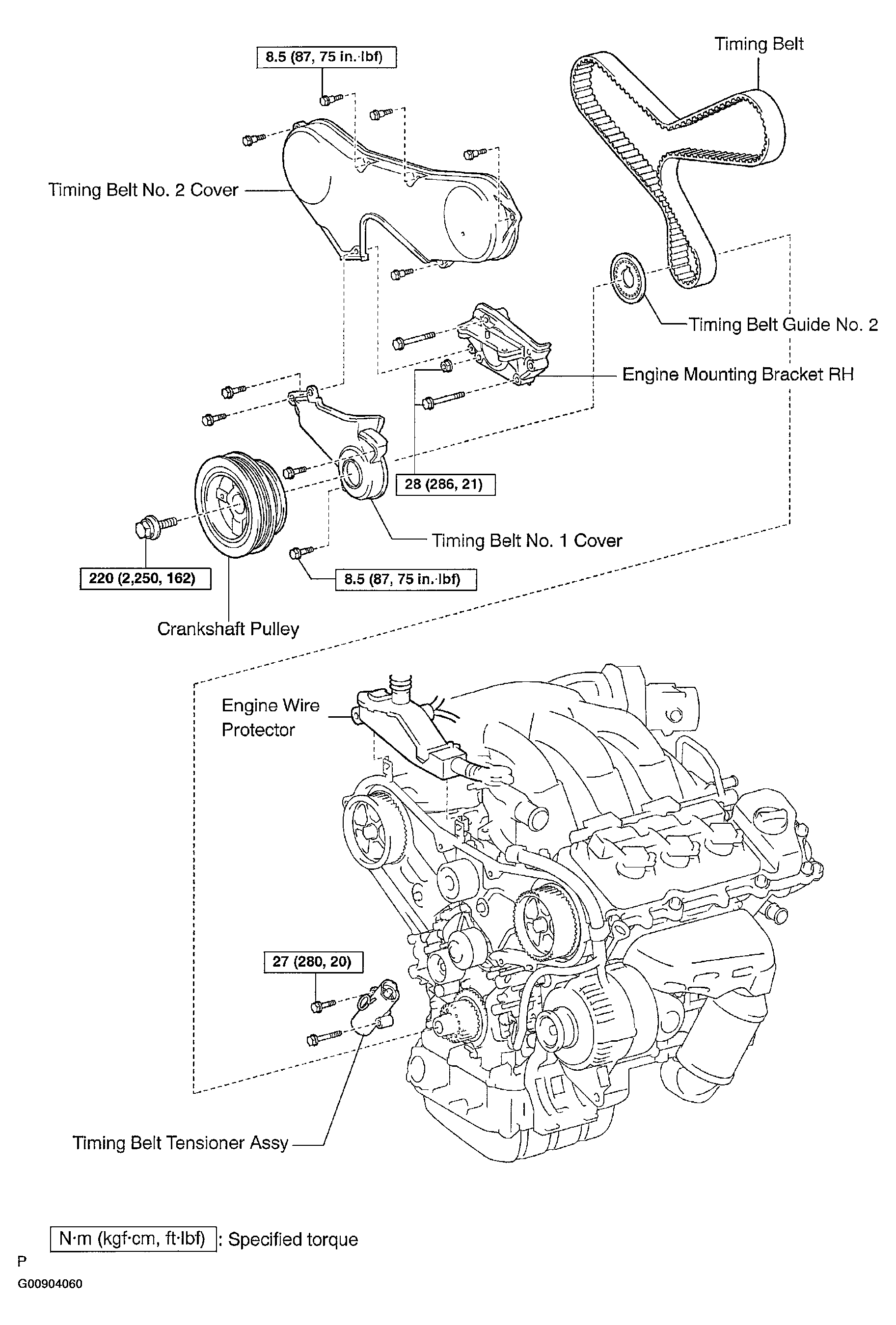

Fig 2: Exploded View Of Timing Belt (3MZ-FE) Components
G00904060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
