Partial Engine ASSY (3MZ-FE): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

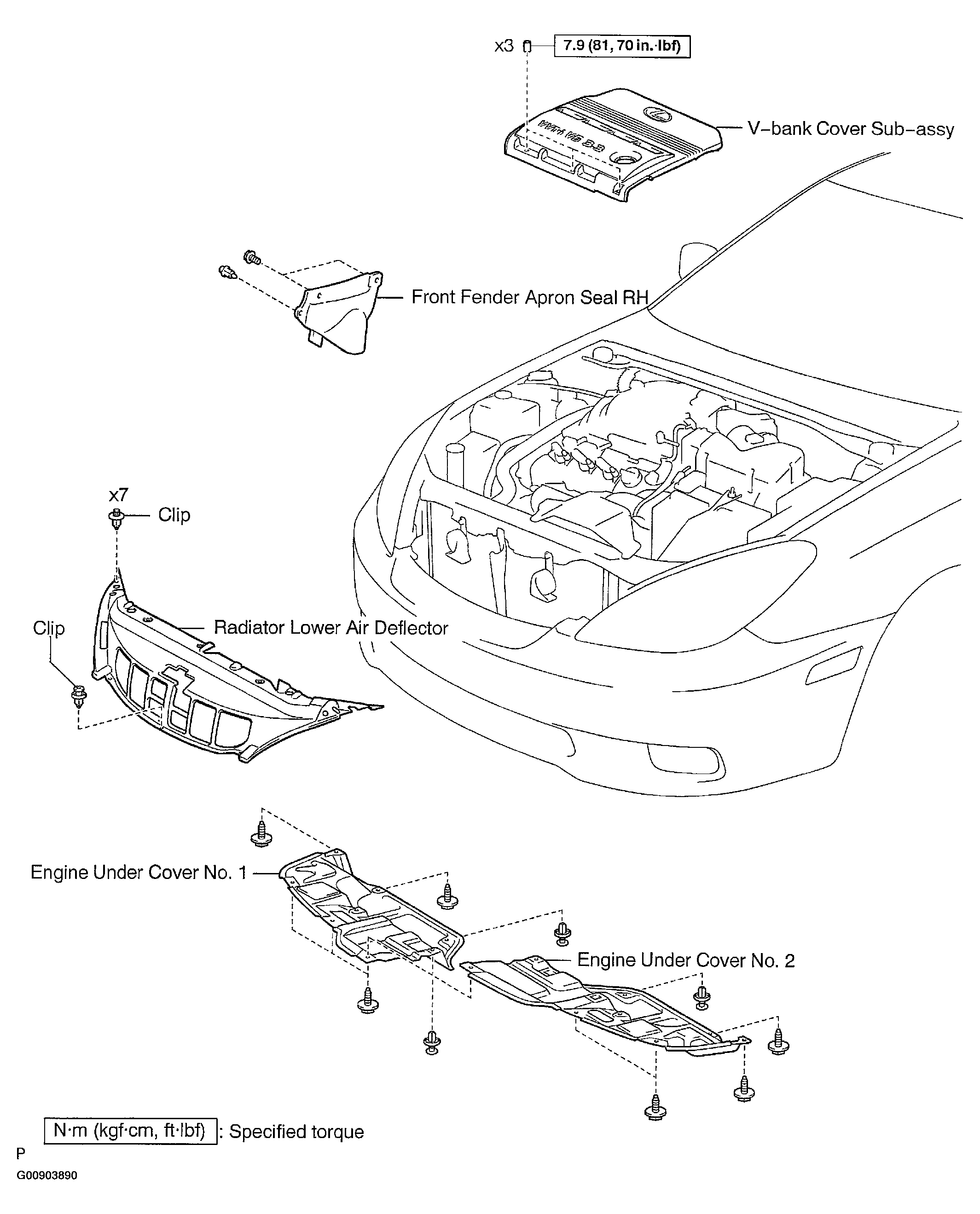

Fig 1: Identifying Engine Cover Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

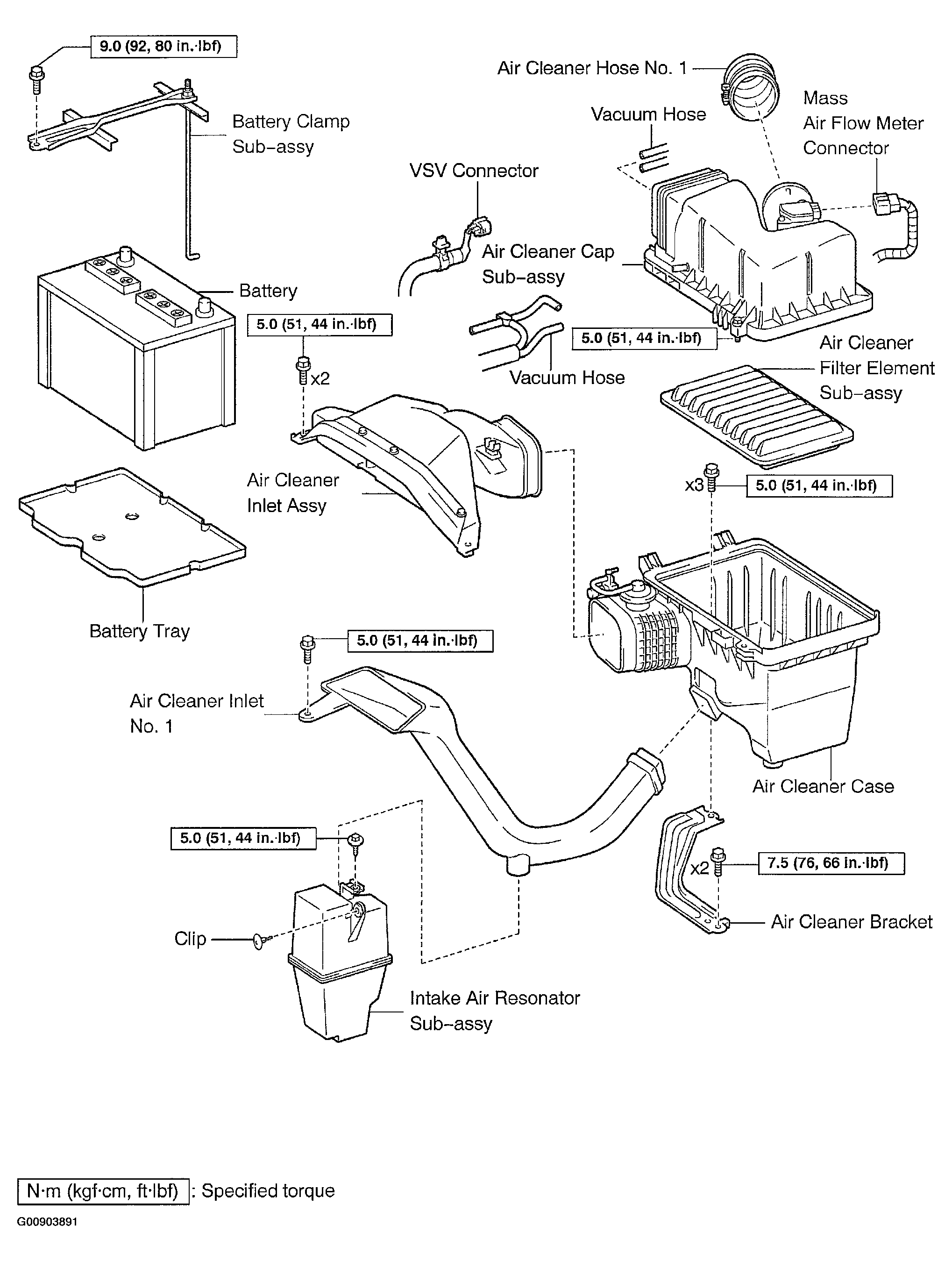

Fig 2: Identifying Air Cleaner Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

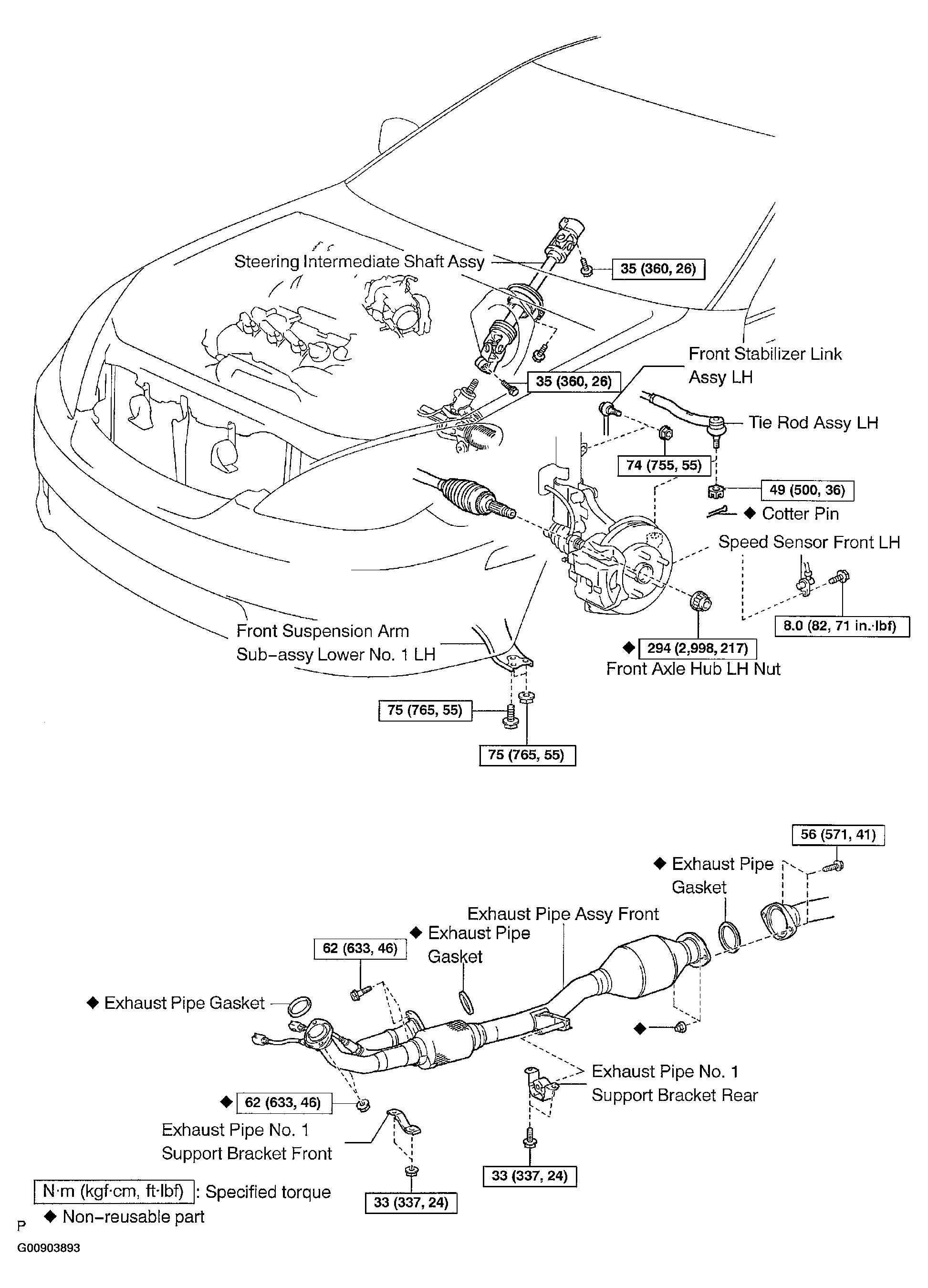

Fig 3: Identifying Engine Removal & Installation Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

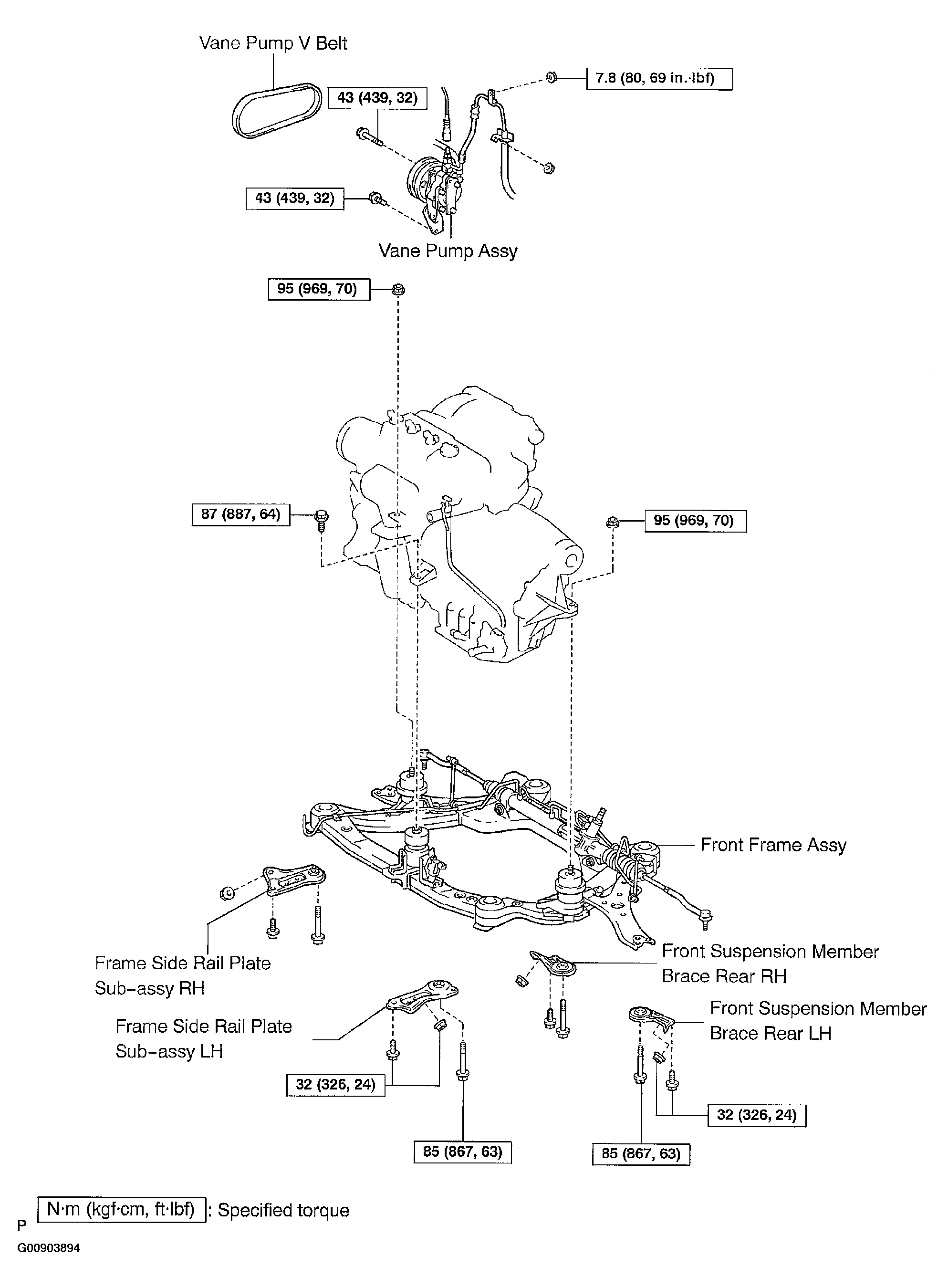

Fig 4: Identifying Engine Removal & Installation Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

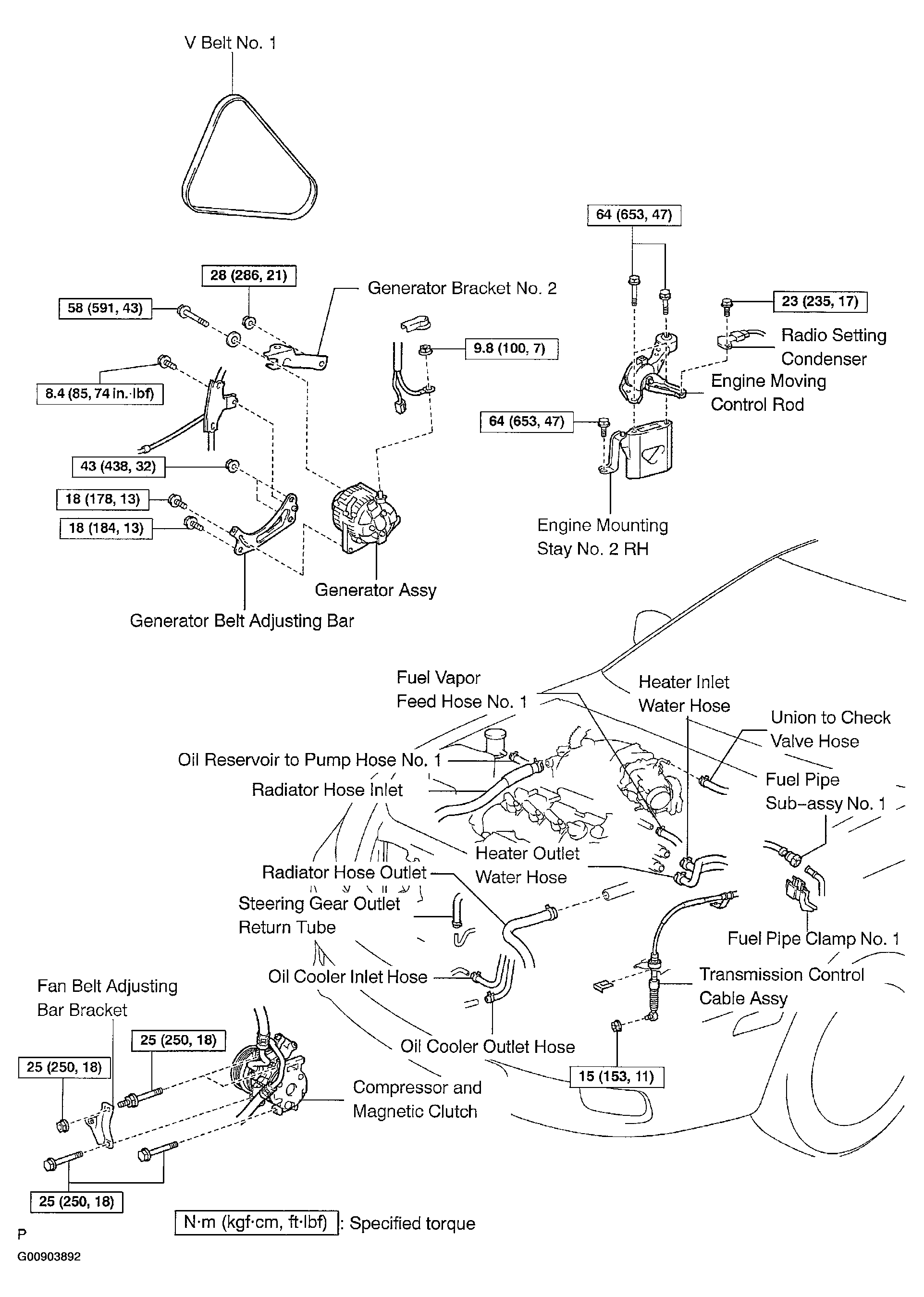

Fig 5: Identifying Engine Removal & Installation Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

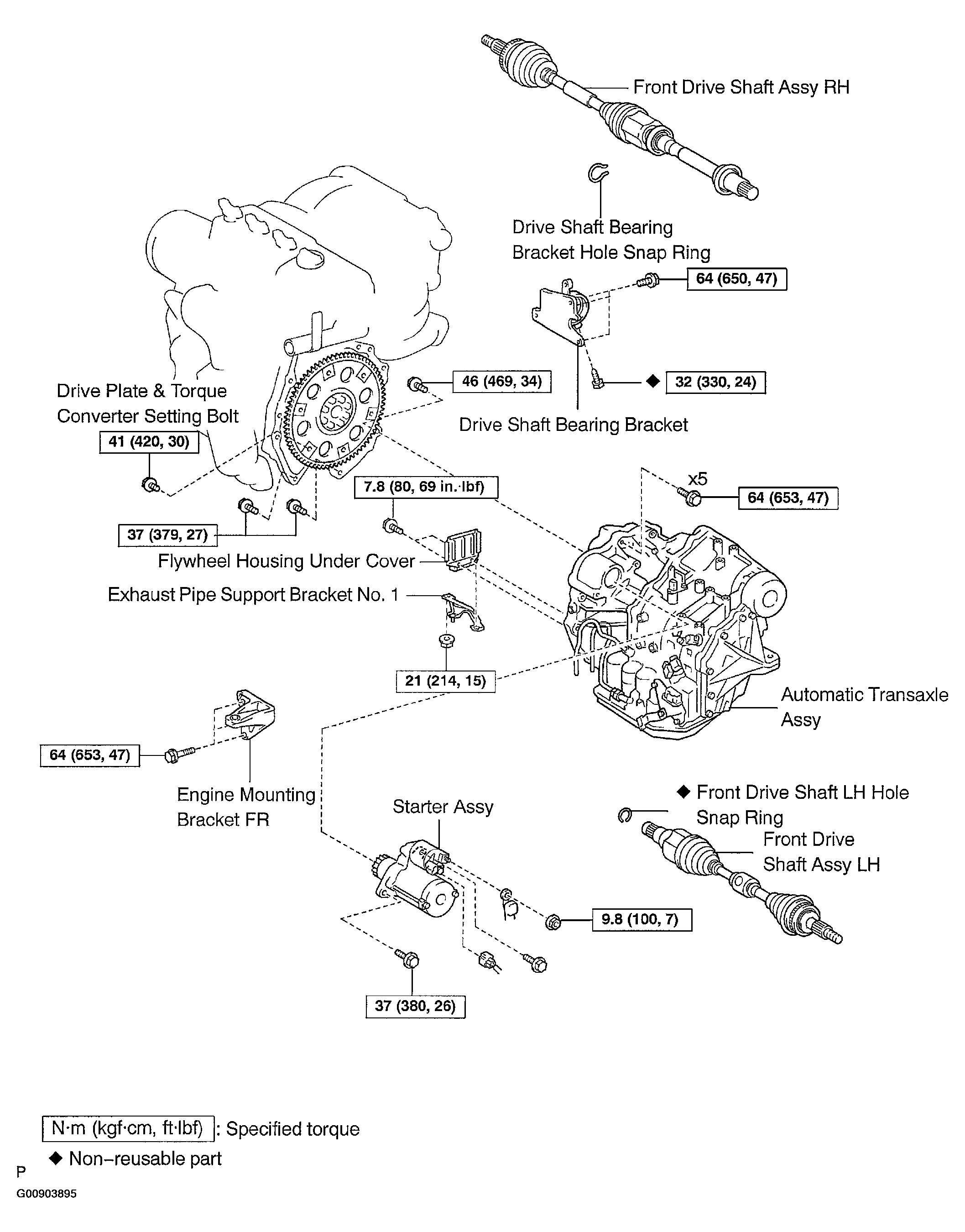

Fig 6: Identifying Engine Removal & Installation Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

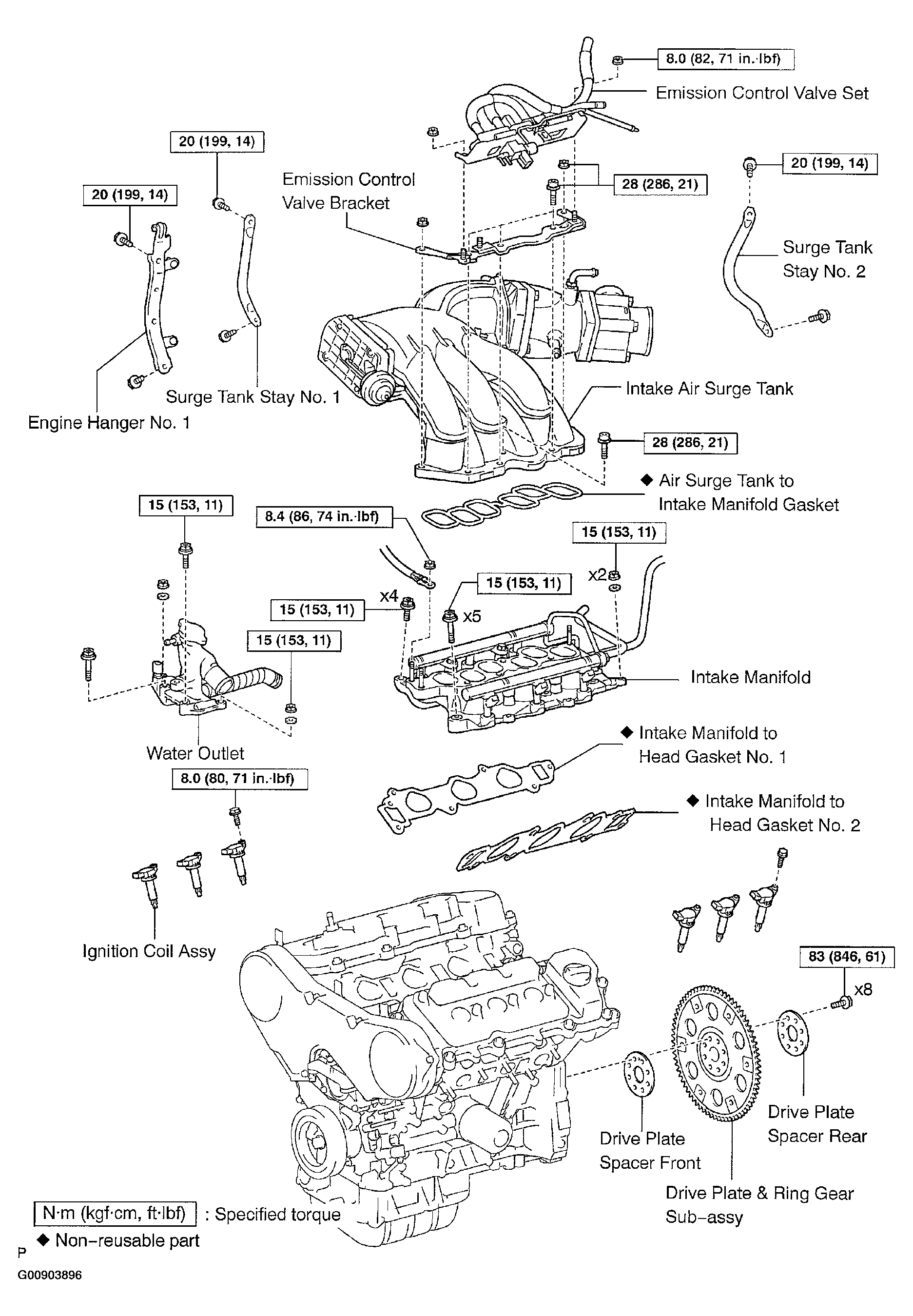

Fig 7: Identifying Engine Intake Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

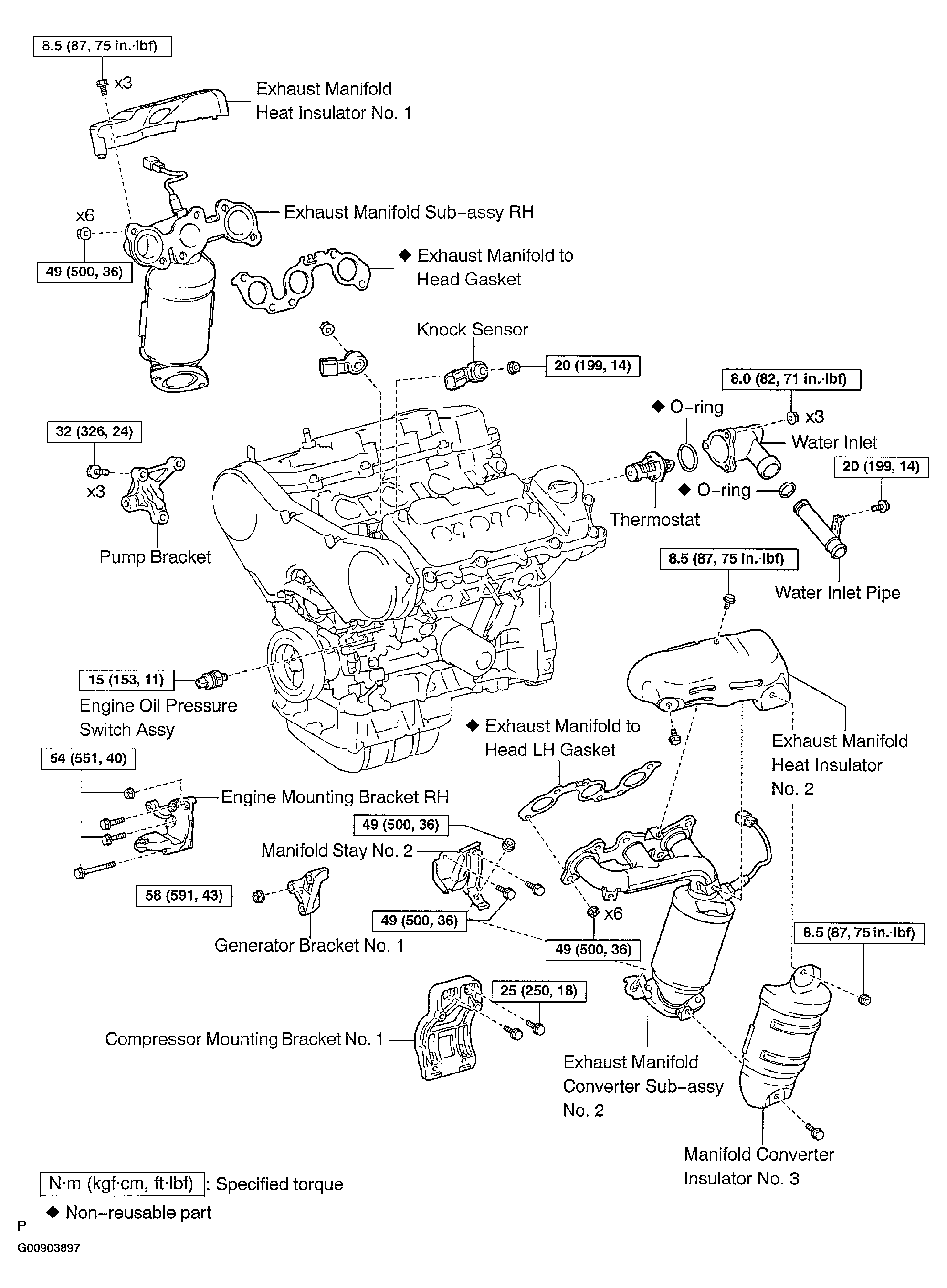

Fig 8: Identifying Engine Exhaust Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

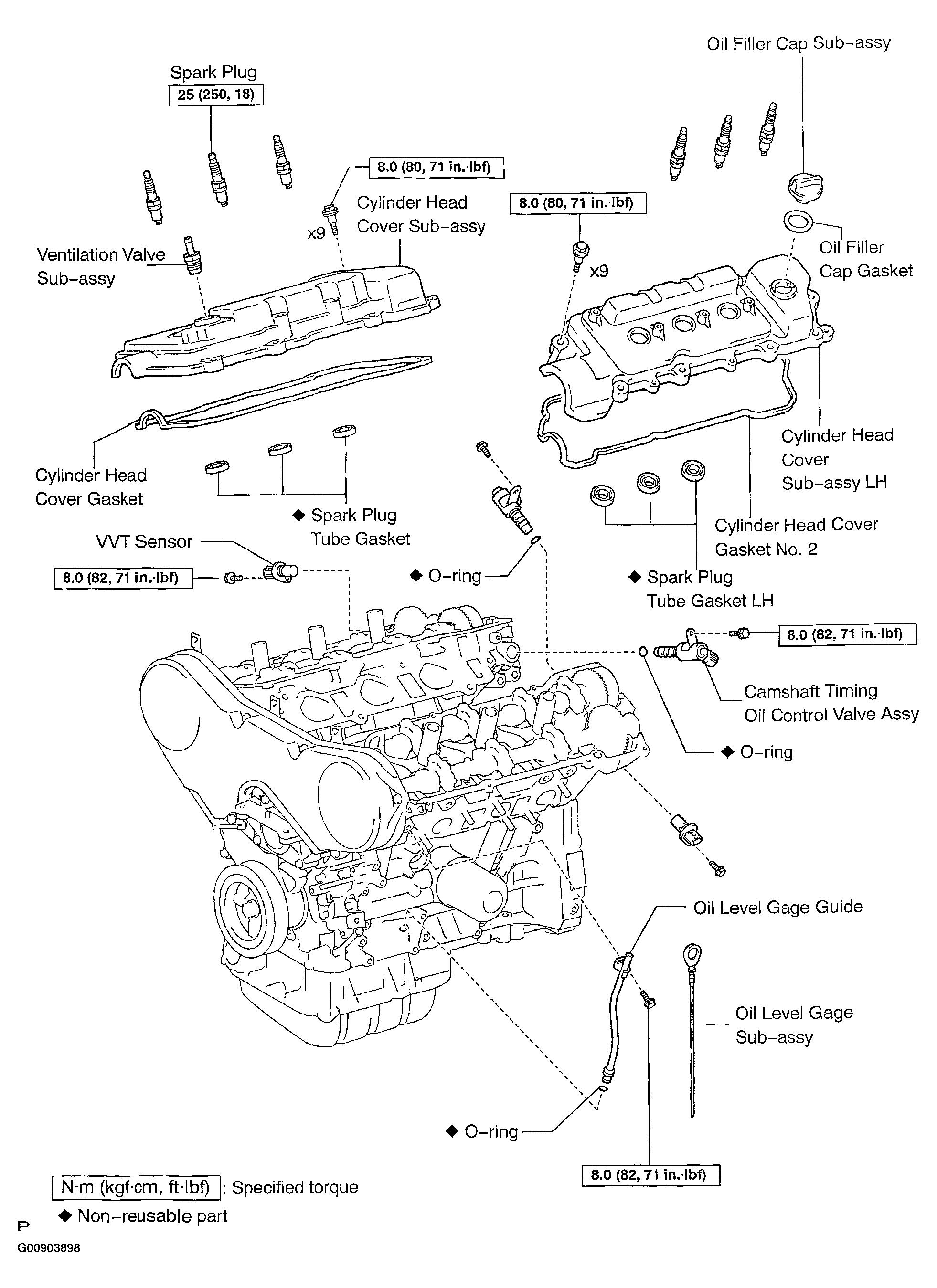

Fig 9: Identifying Engine Cylinder Head Cover Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

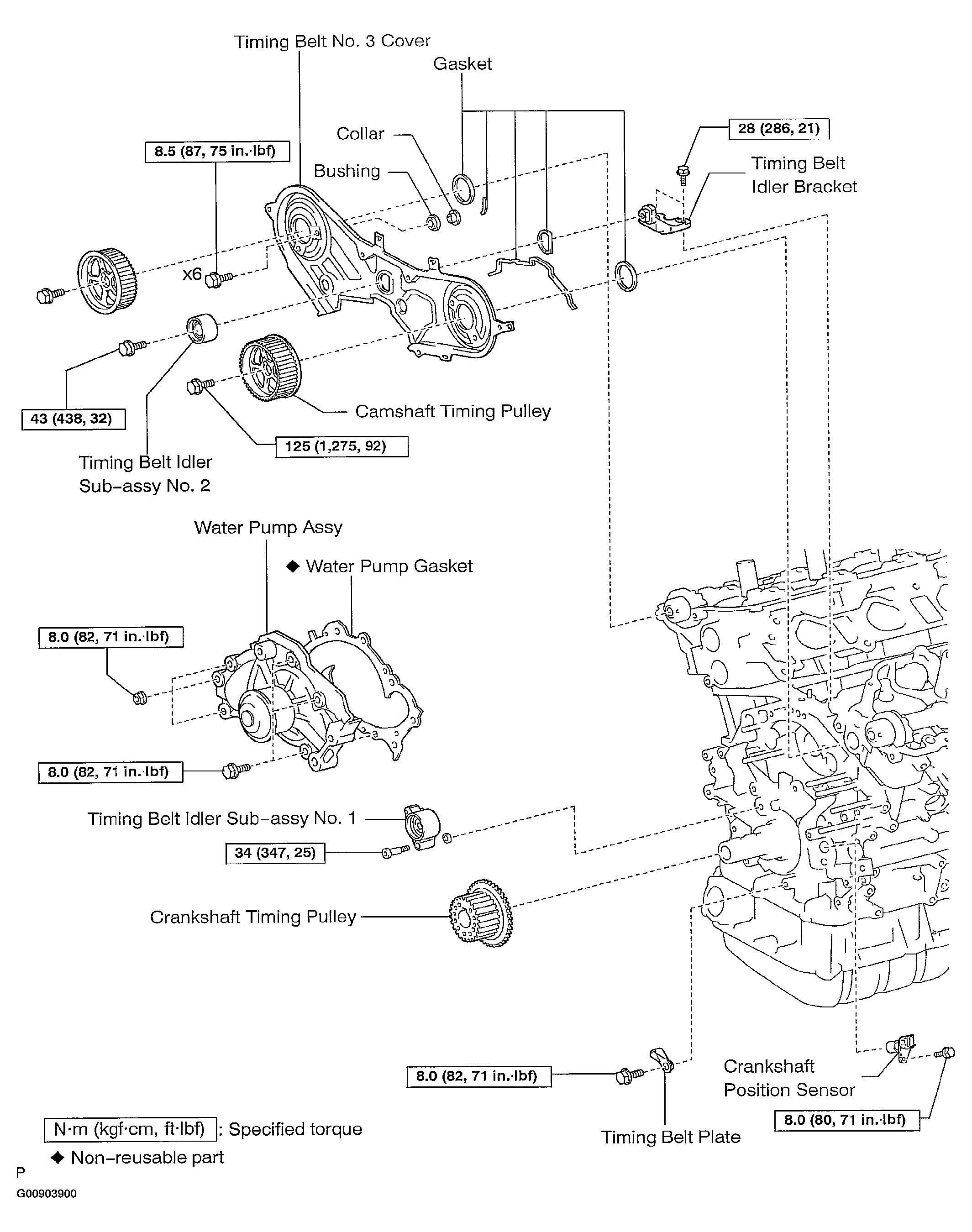

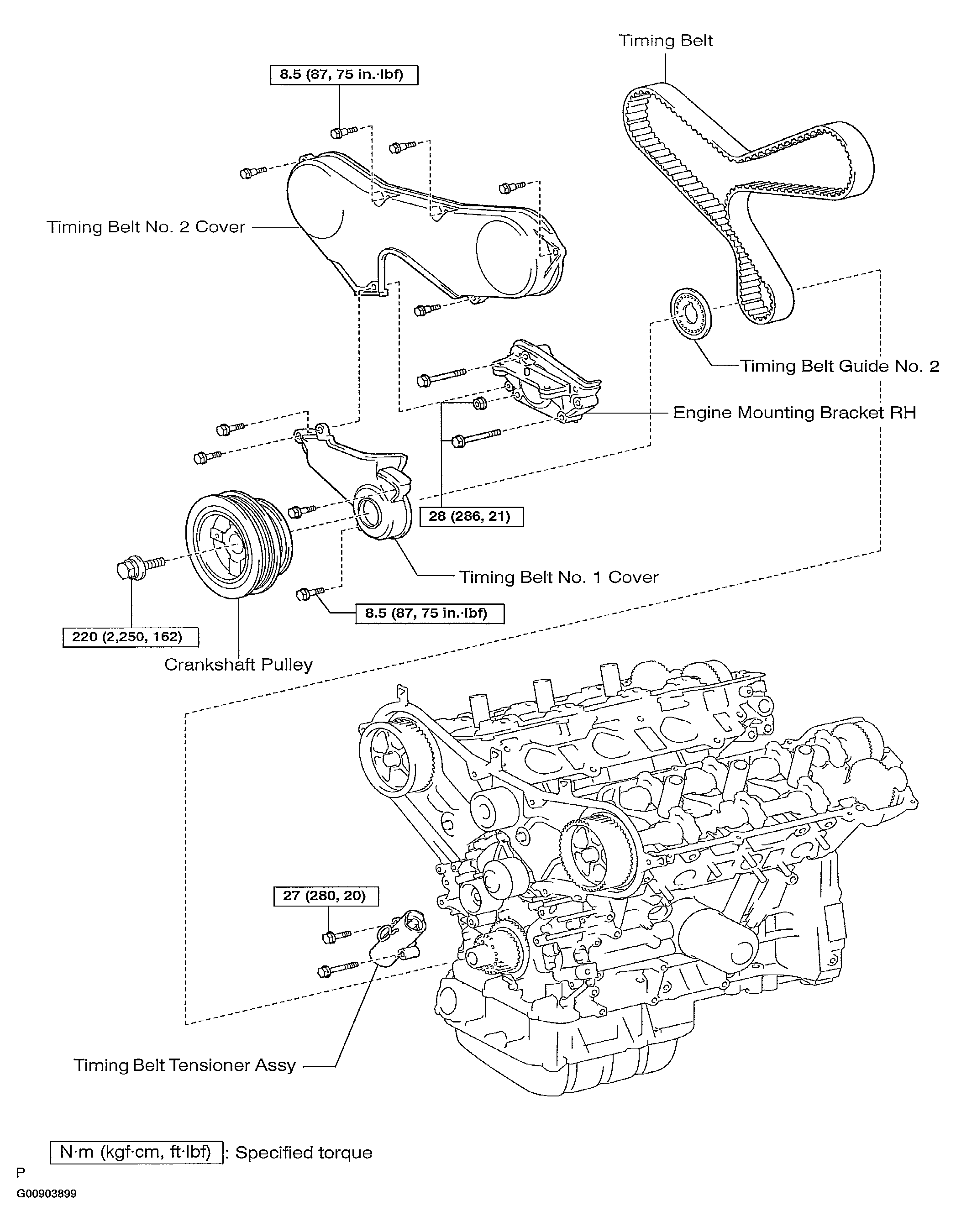

Fig 10: Identifying Engine Timing Belt Components

Fig 11: Identifying Engine Water Pump Components

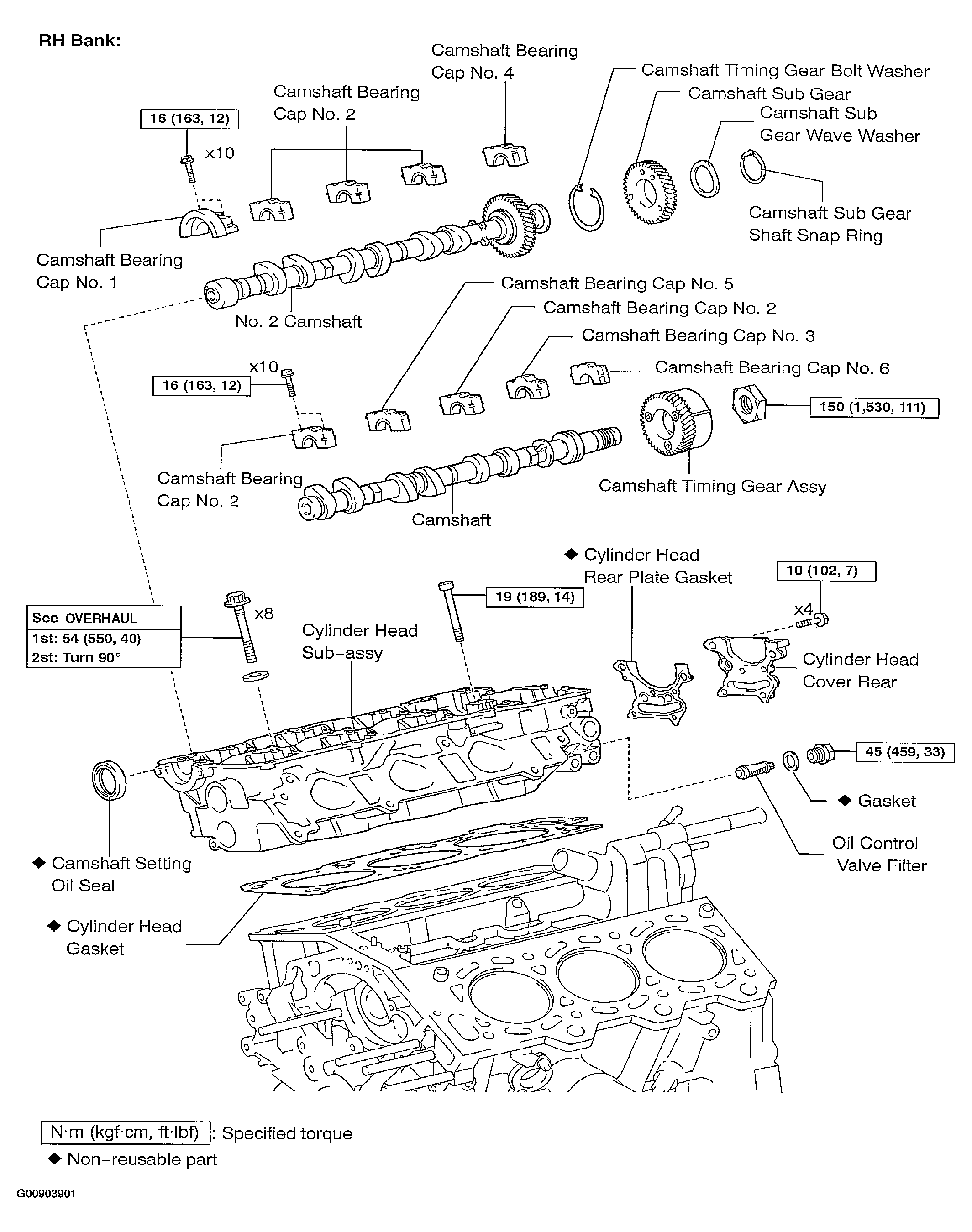

Fig 12: Identifying Engine Camshaft Components (RH Bank)

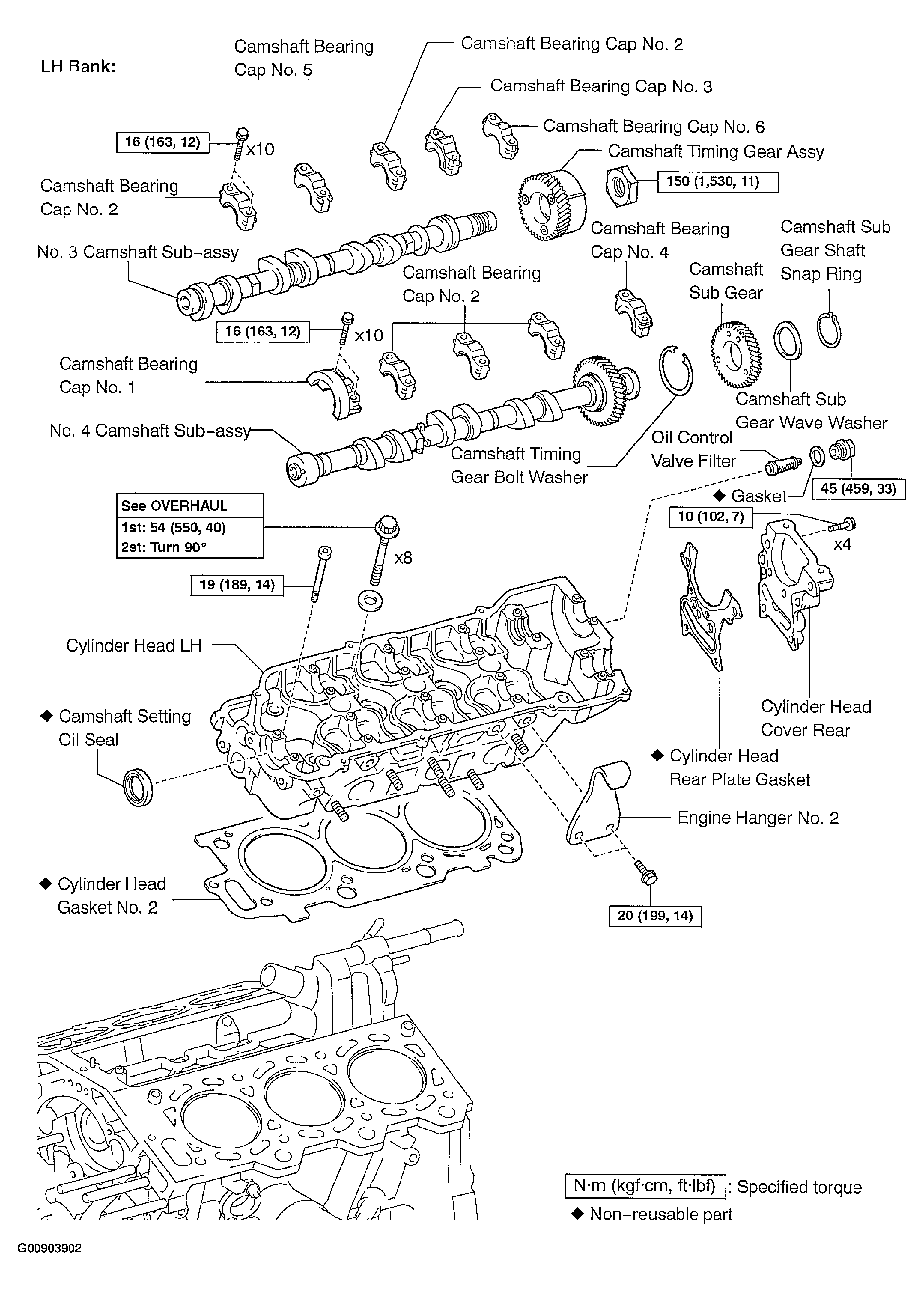

Fig 13: Identifying Engine Camshaft Components (LH Bank)

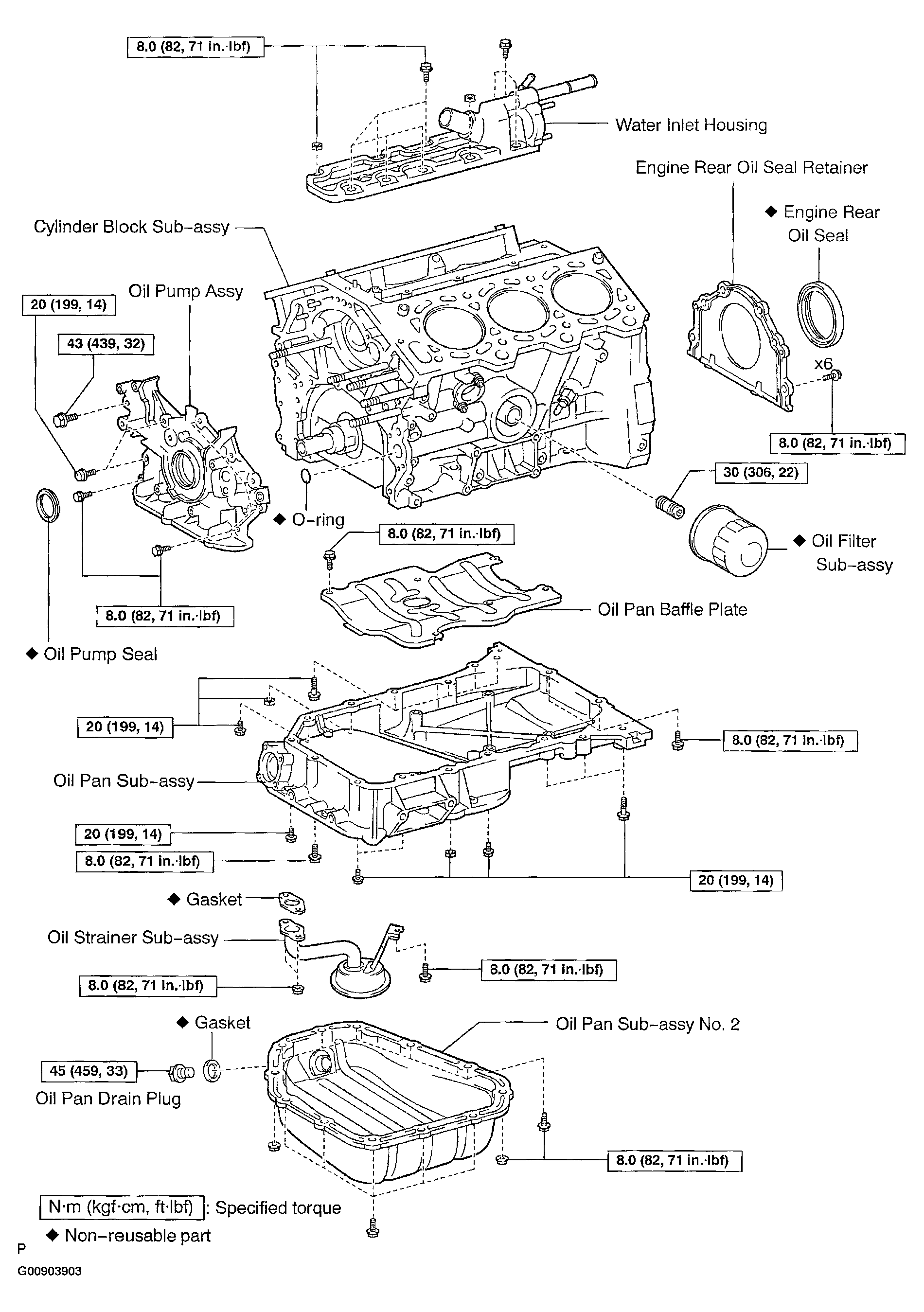

Fig 14: Identifying Engine Block Components
