Cylinder Head Gasket (3MZ-FE): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

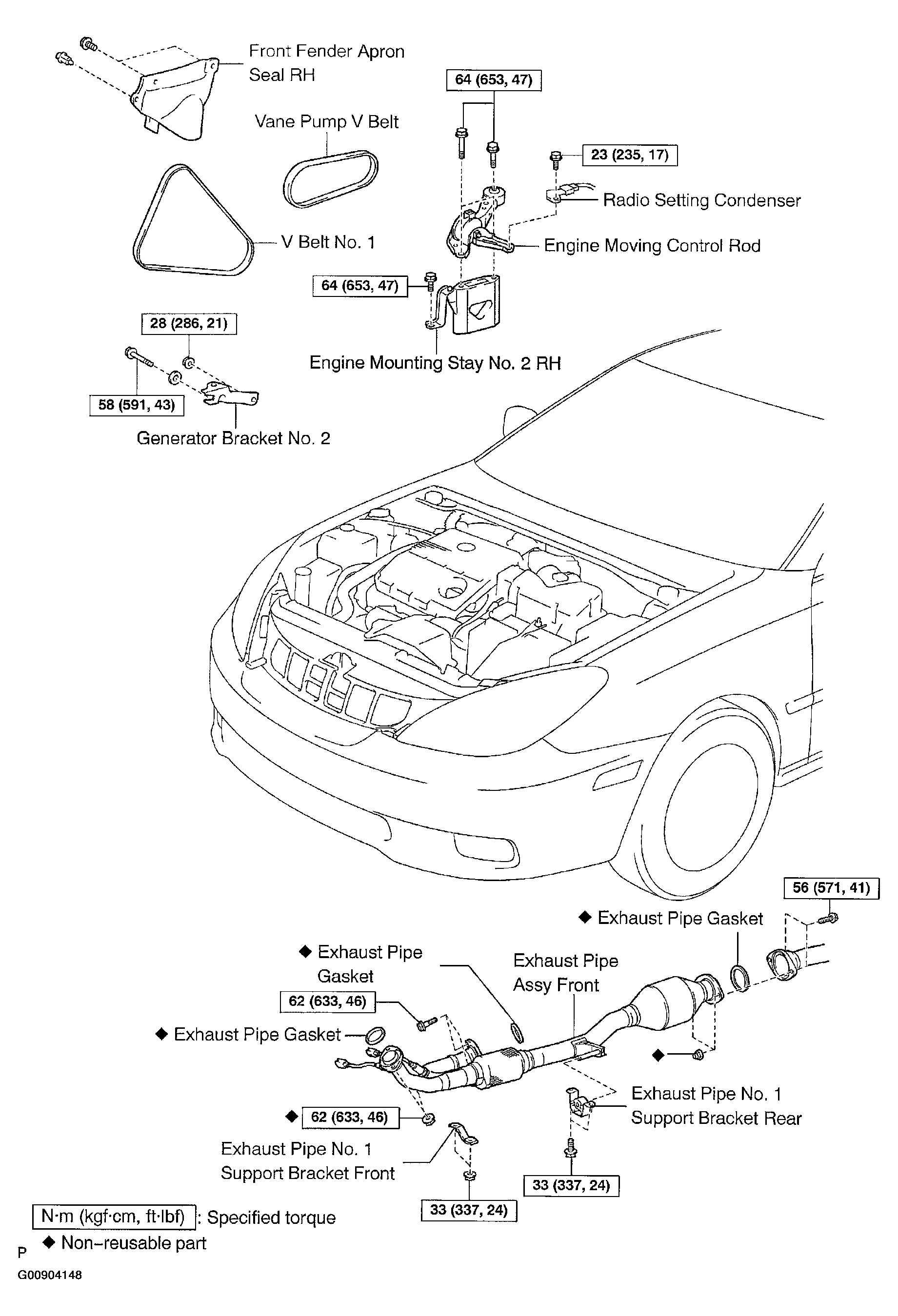

Fig 1: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (1 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

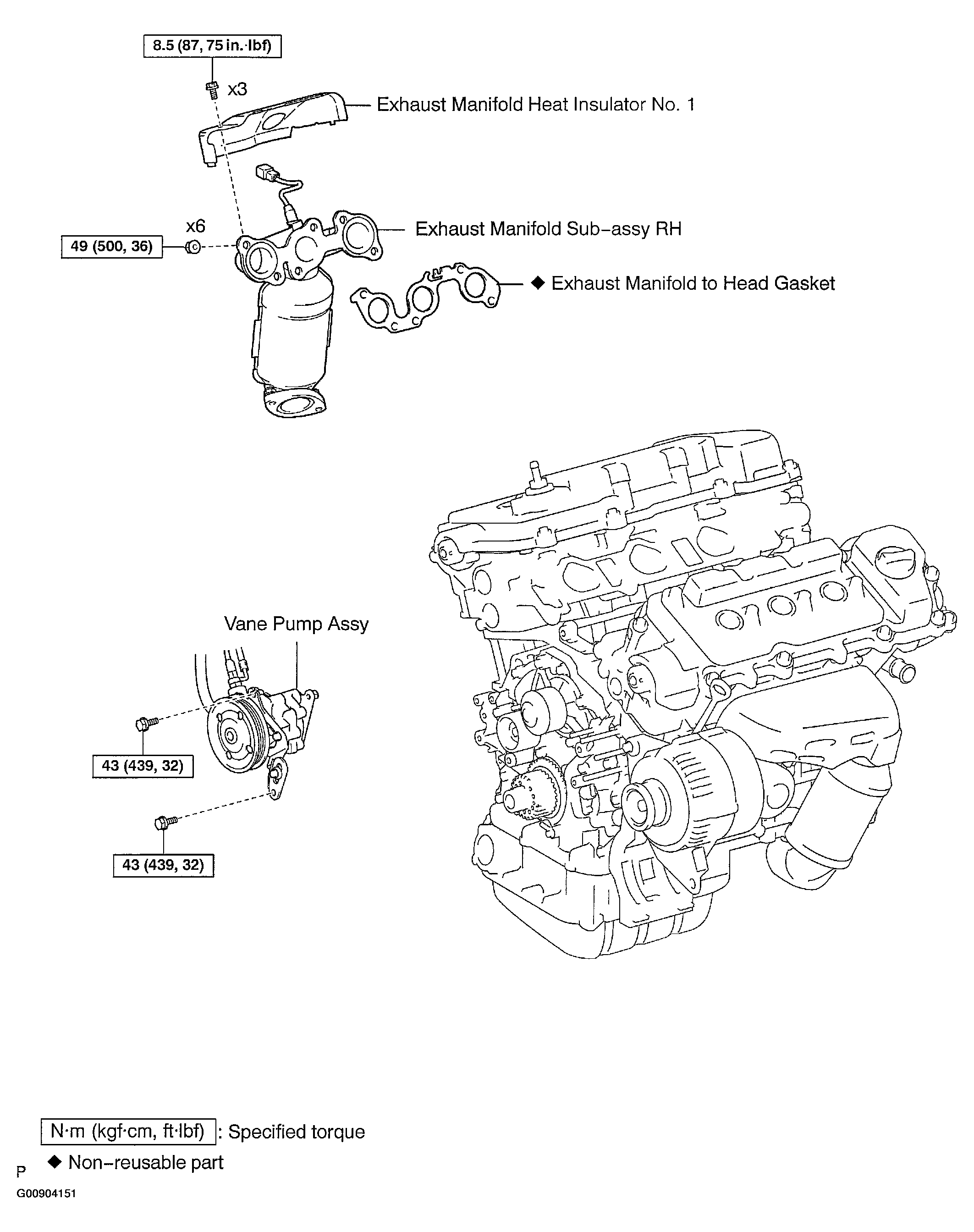

Fig 2: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (2 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

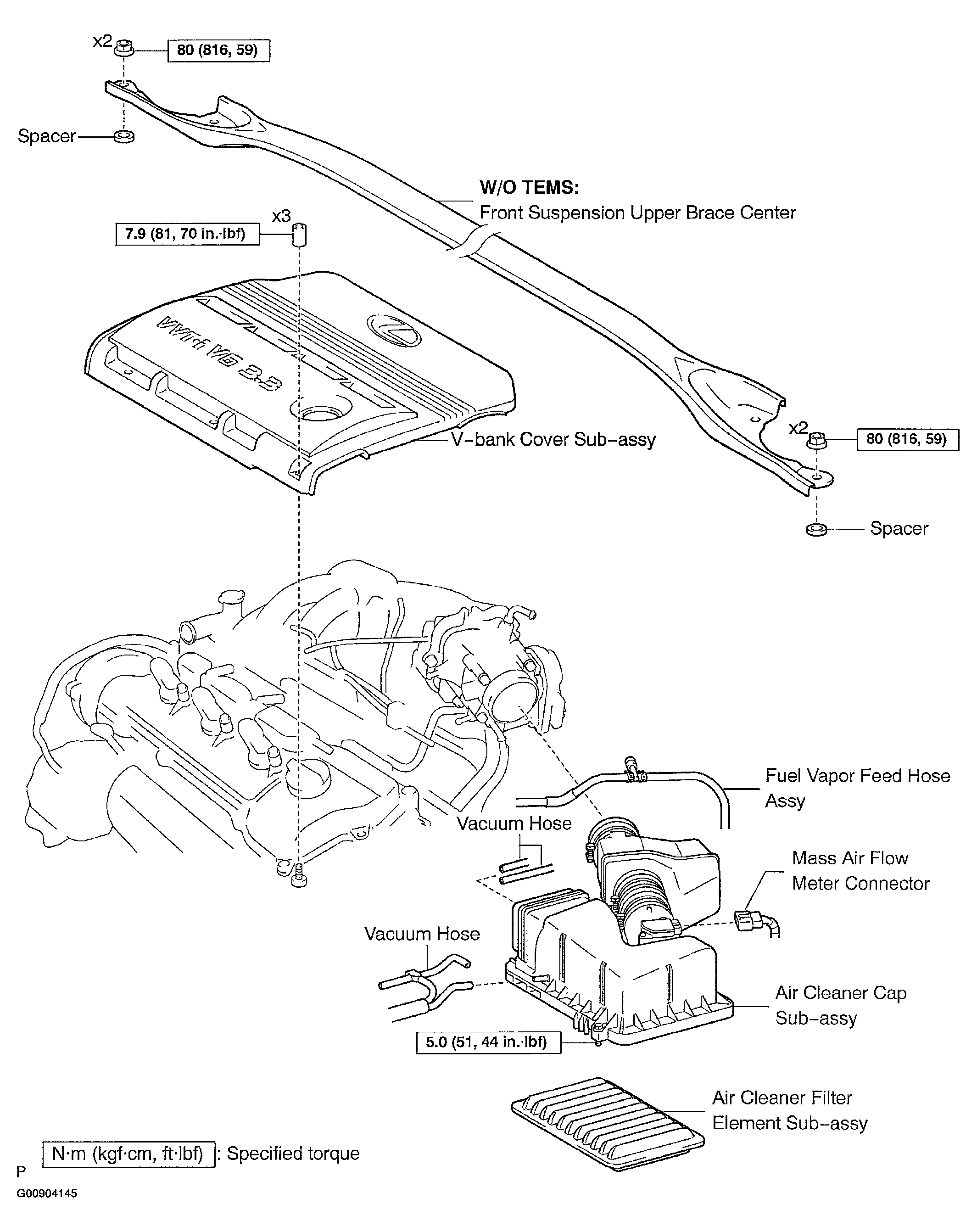

Fig 3: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (3 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

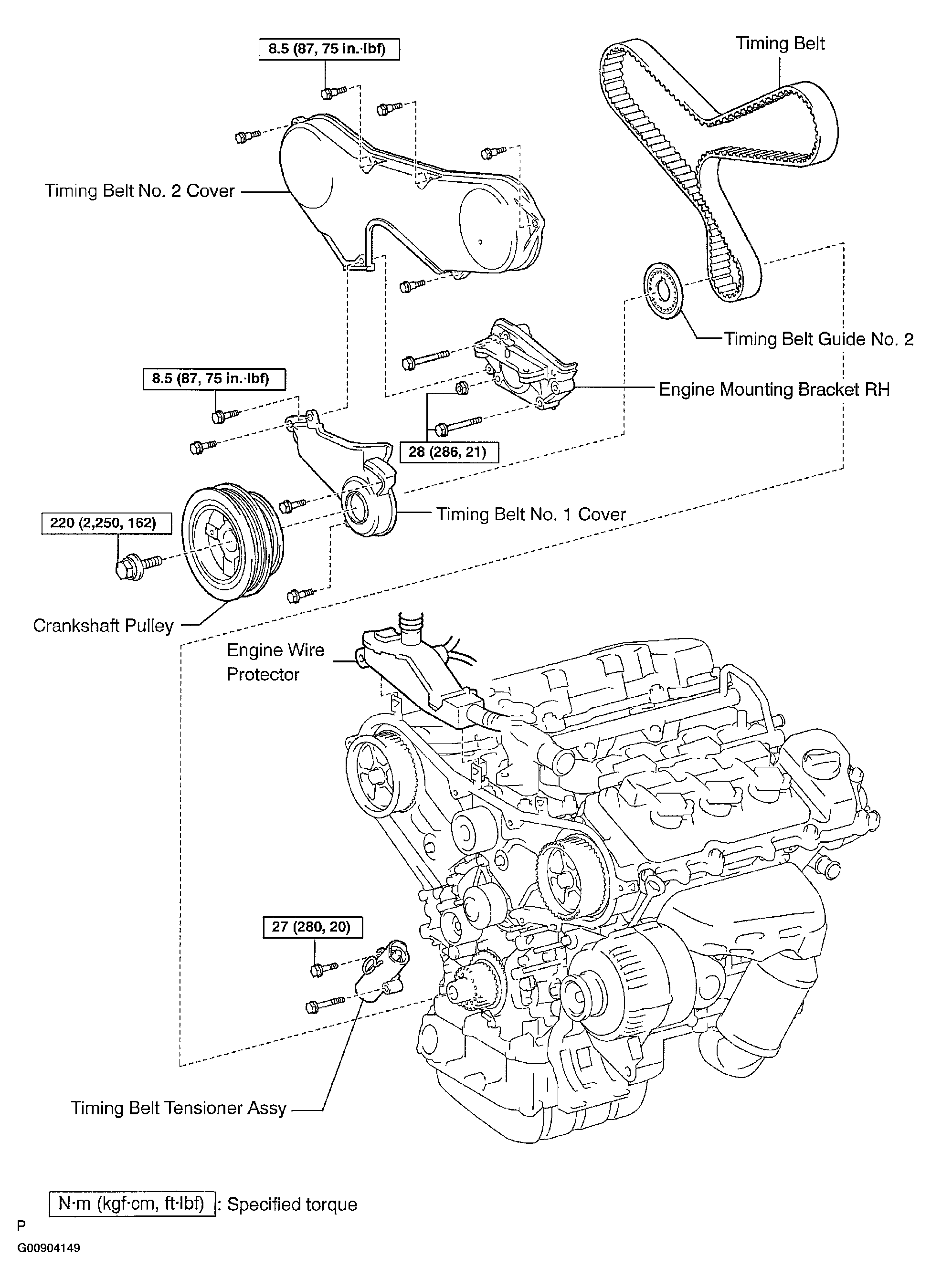

Fig 4: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (4 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

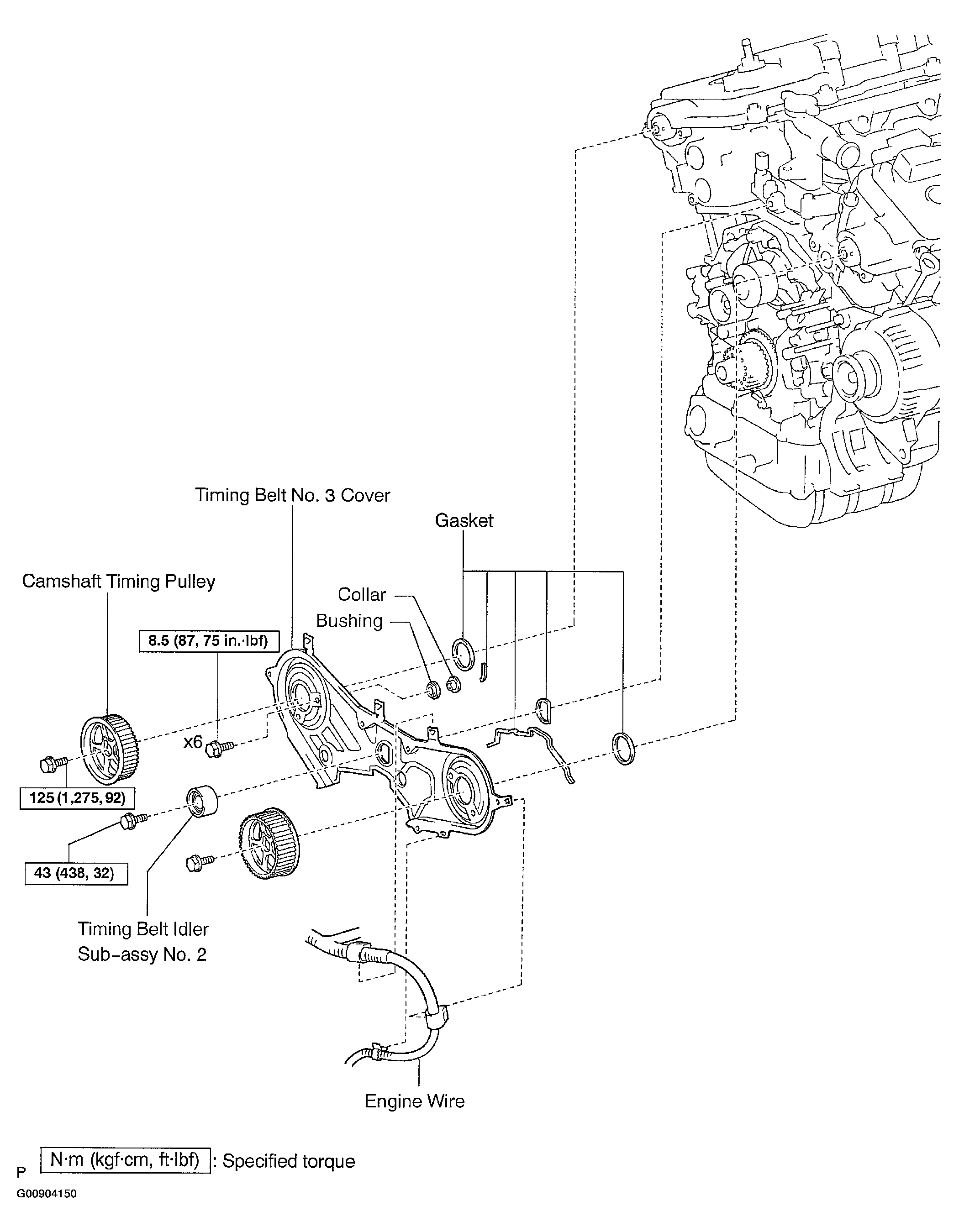

Fig 5: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (5 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

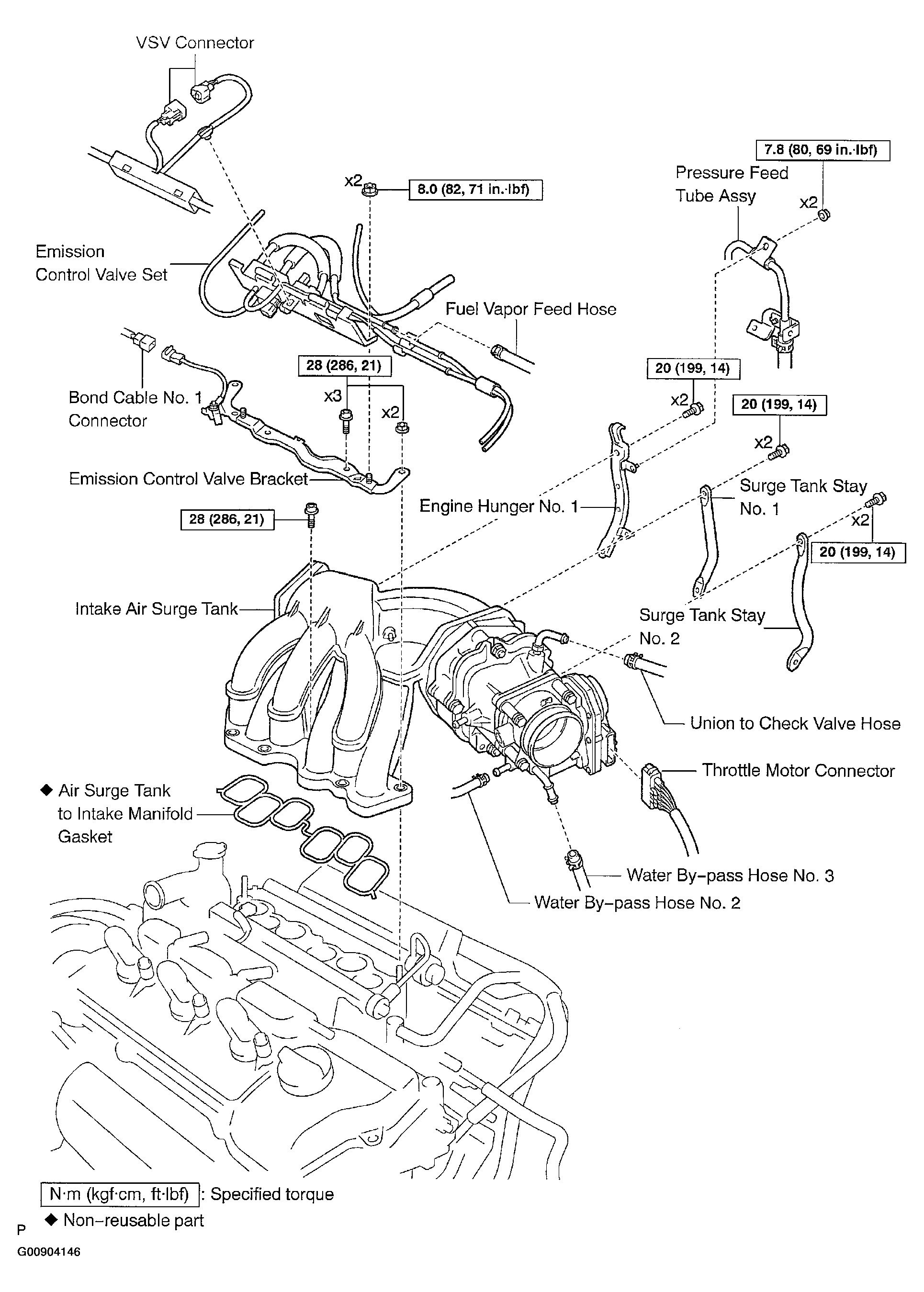

Fig 6: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (6 of 8)

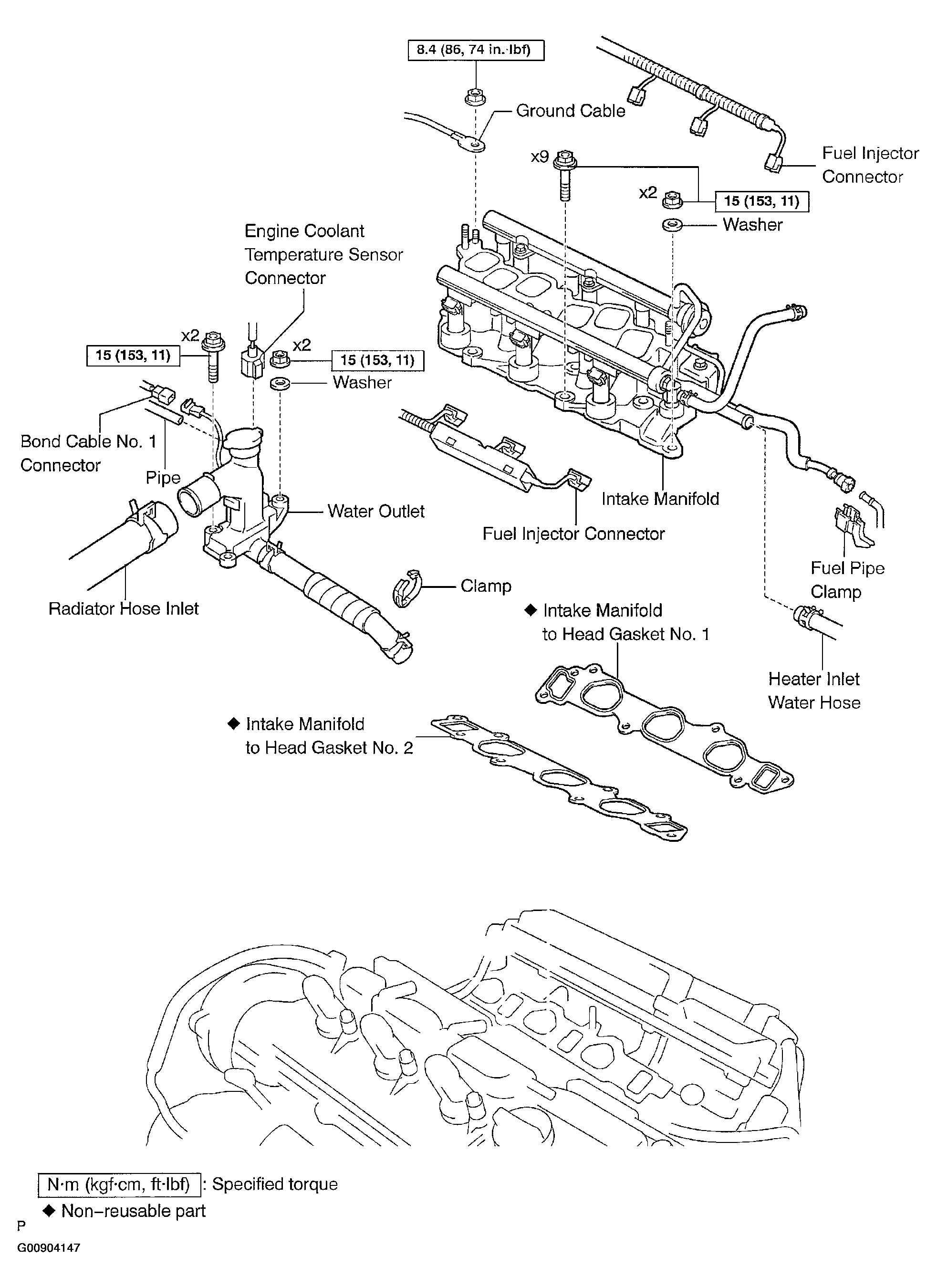

Fig 7: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (7 of 8)

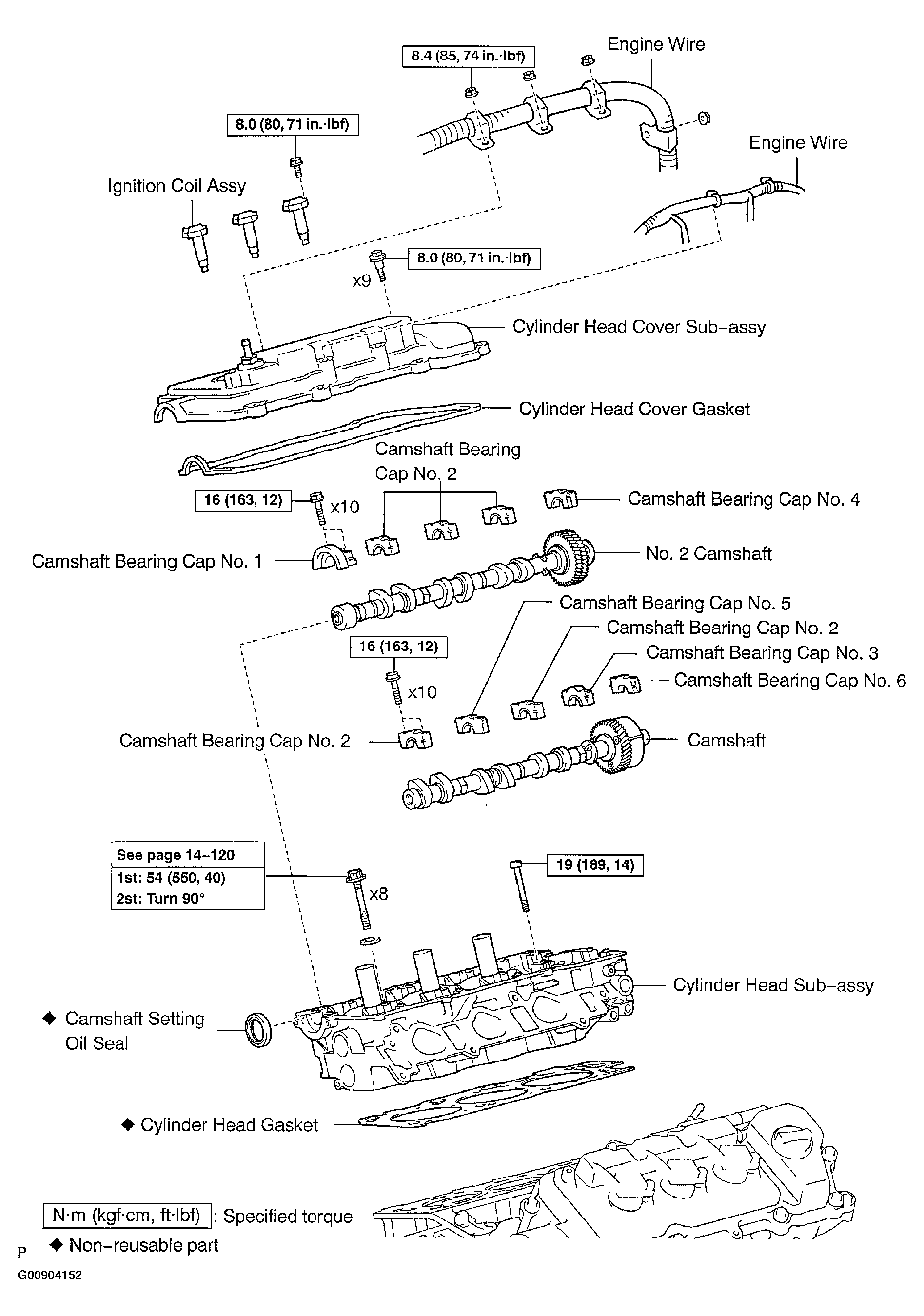

Fig 8: Identifying Cylinder Head Gasket (3MZ-FE) Removal & Installation Components (8 of 8)
