Cylinder Block ASSY (3MZ-FE): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

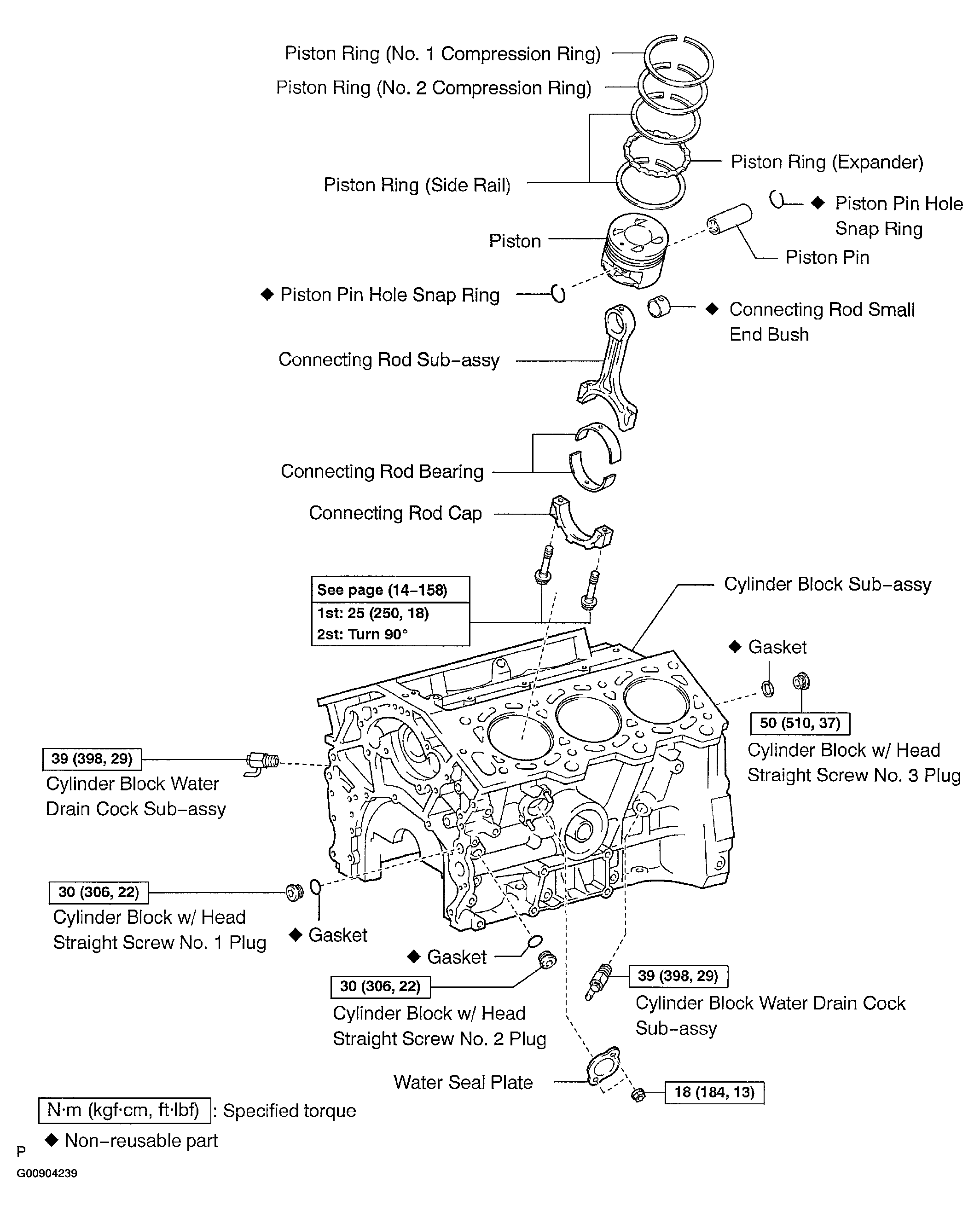

Fig 1: Exploded View Of Cylinder Block Assy (3MZ-FE) Components (1 of 2)
G00904239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

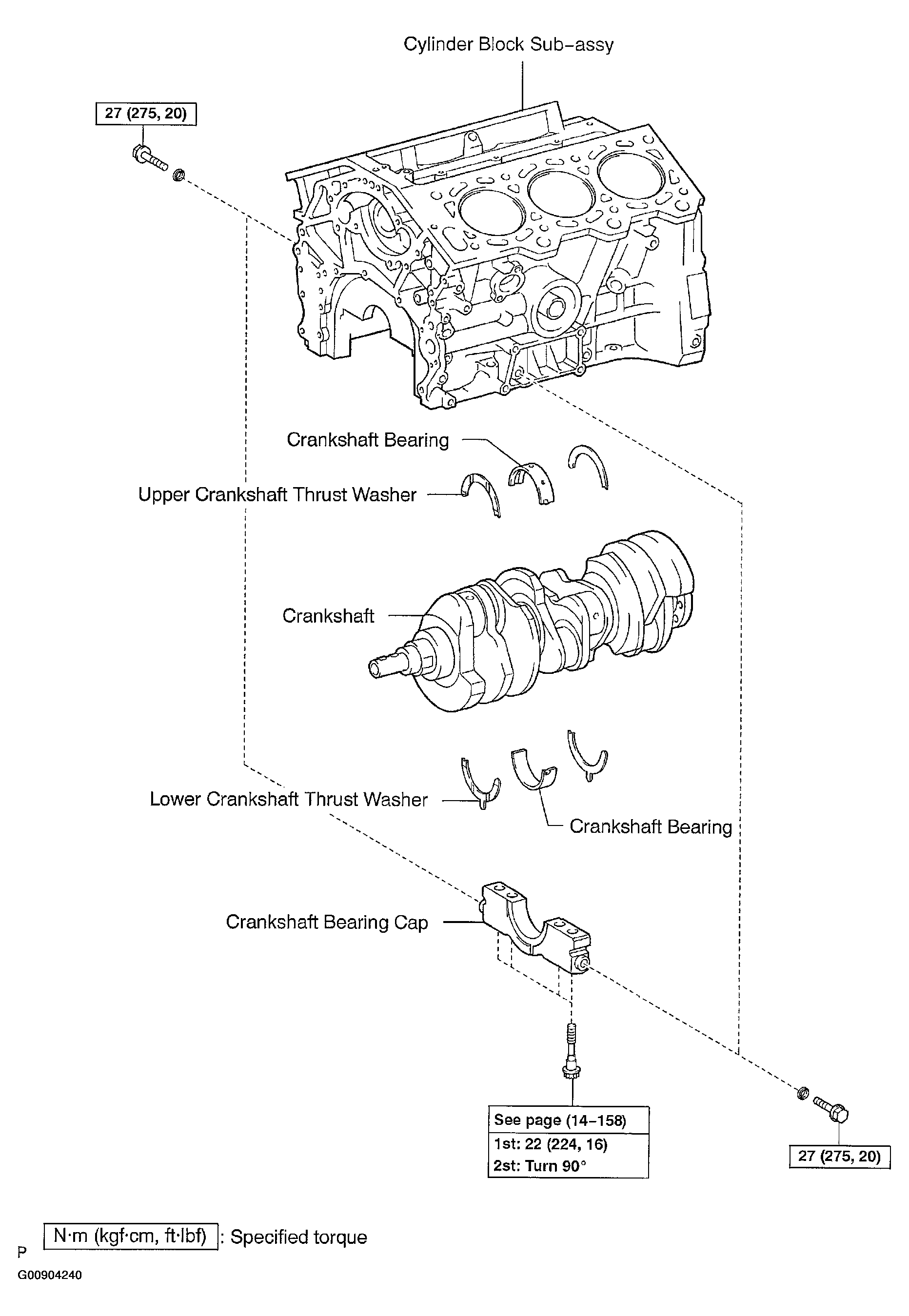

Fig 2: Exploded View Of Cylinder Block Assy (3MZ-FE) Components (2 of 2)
G00904240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
