Section 425 (Engine (Mechanical))
>>
Camshaft (LH Bank) (3MZ-FE)
>>
Components
Camshaft (LH Bank) (3MZ-FE): Components
WARNING:
This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

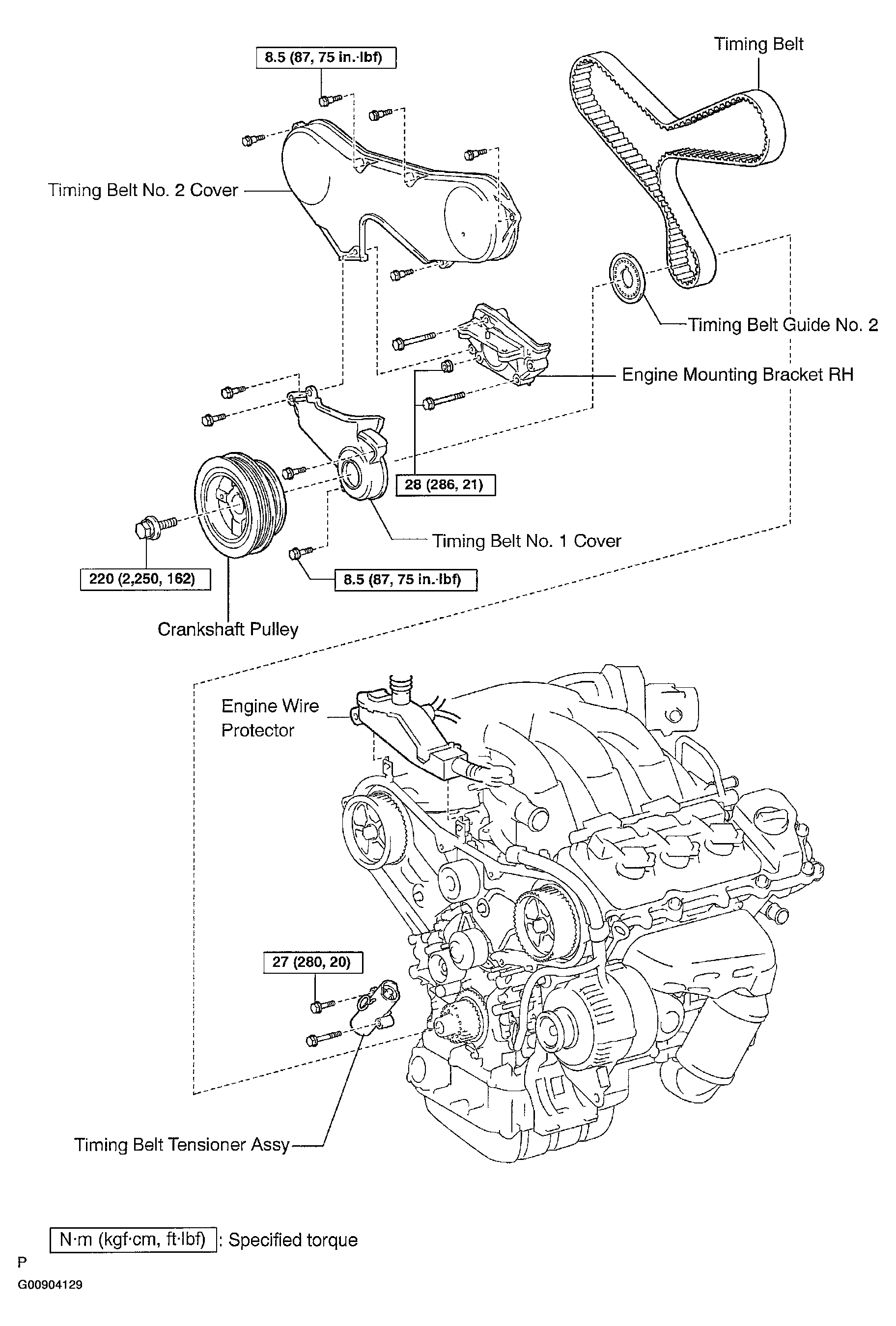

Fig 1: Identifying Camshaft (LH Bank) Removal & Installation Components (1 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

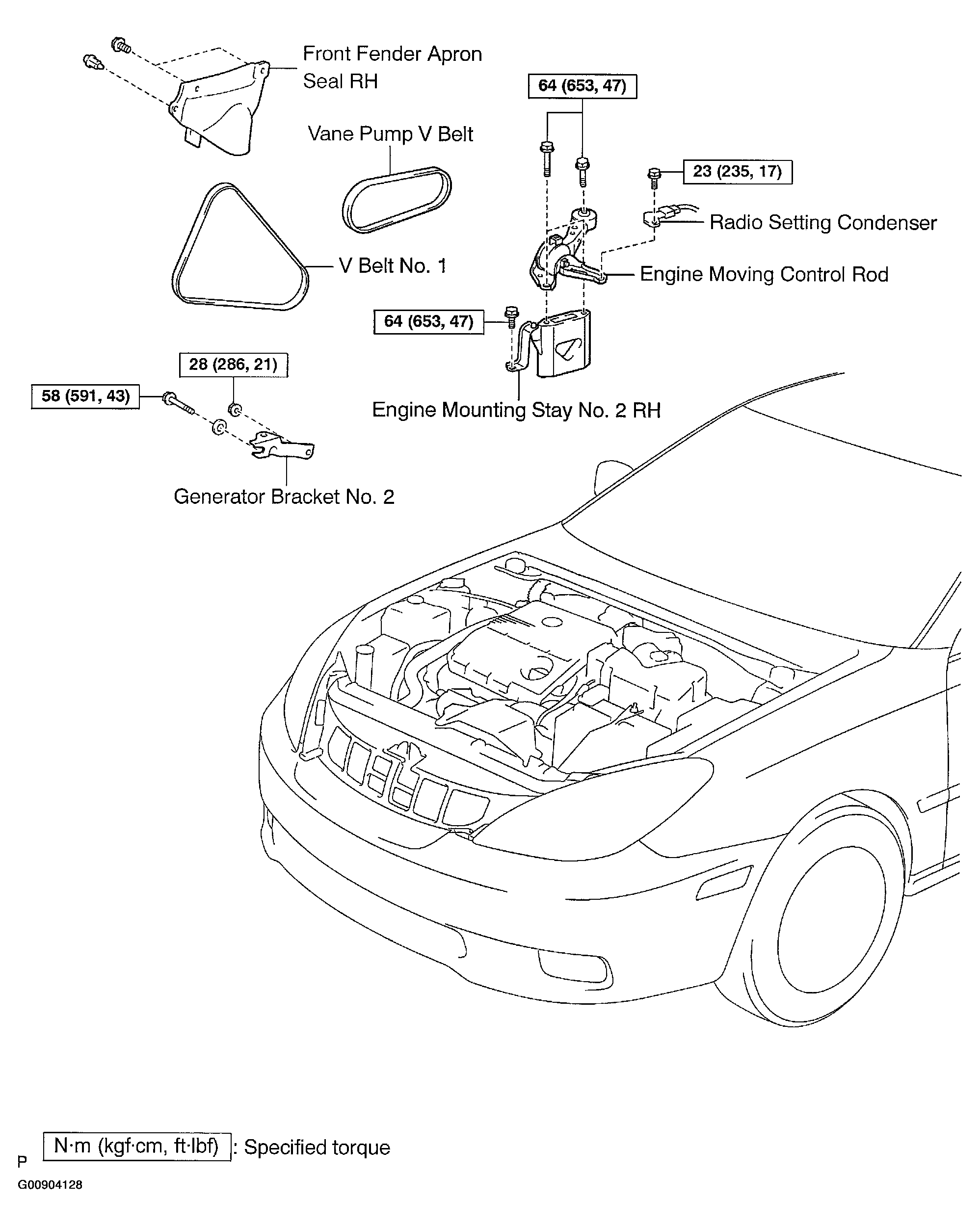

Fig 2: Identifying Camshaft (LH Bank) Removal & Installation Components (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

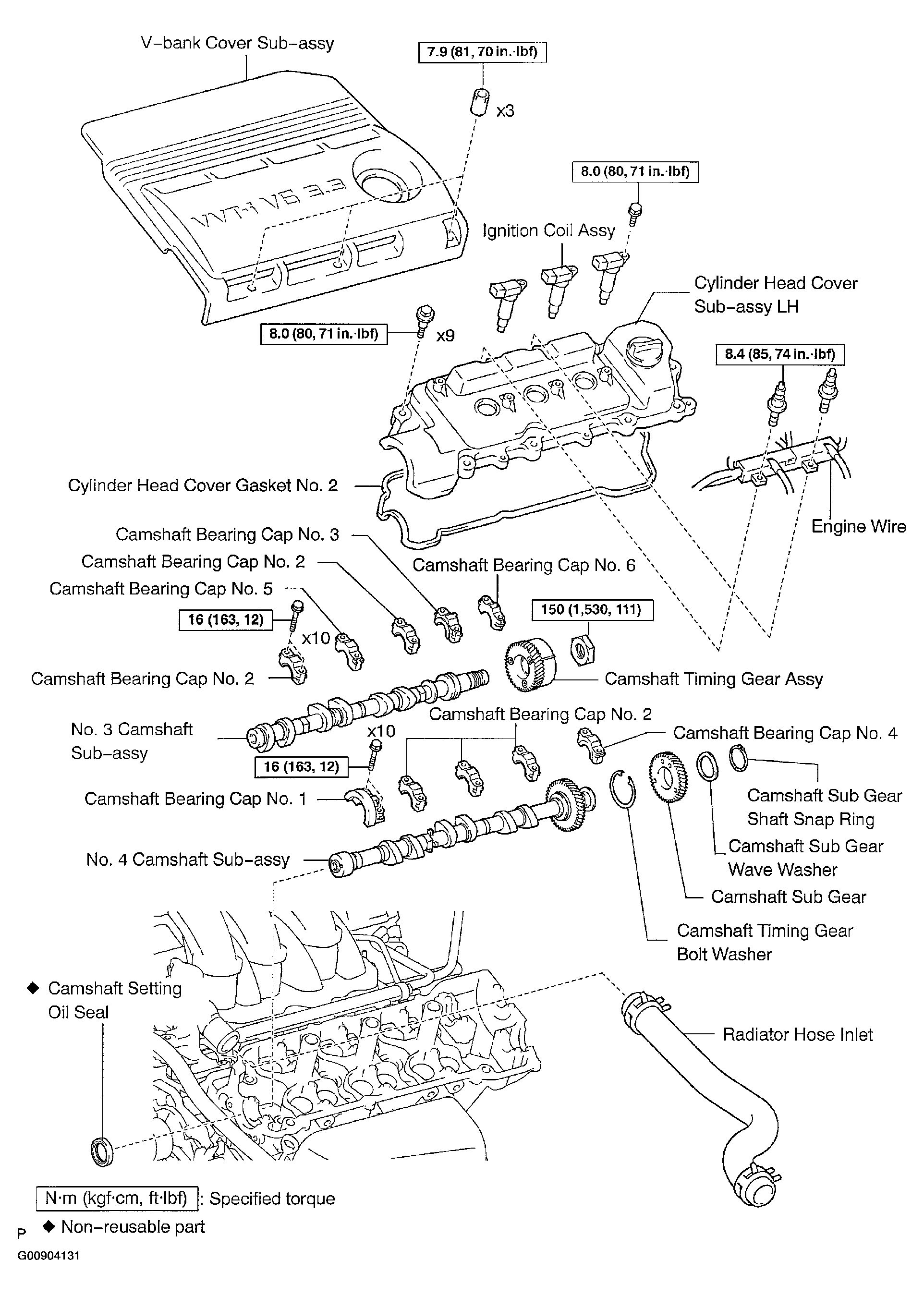

Fig 3: Identifying Camshaft (LH Bank) Removal & Installation Components (3 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

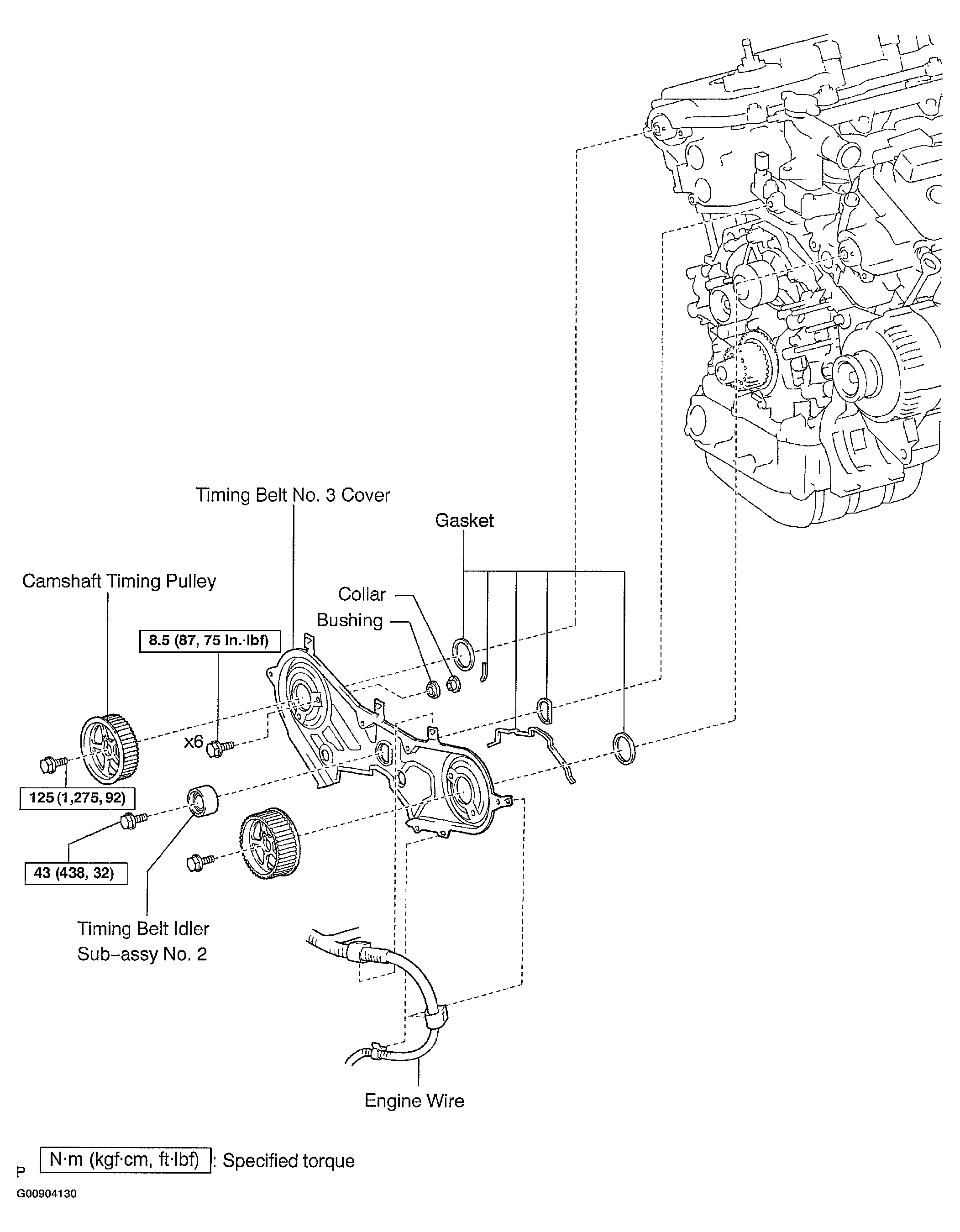

Fig 4: Identifying Camshaft (LH Bank) Removal & Installation Components (4 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
