Fuel Suction W/ Pump & Gauge Tube ASSY (3MZ-FE): Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

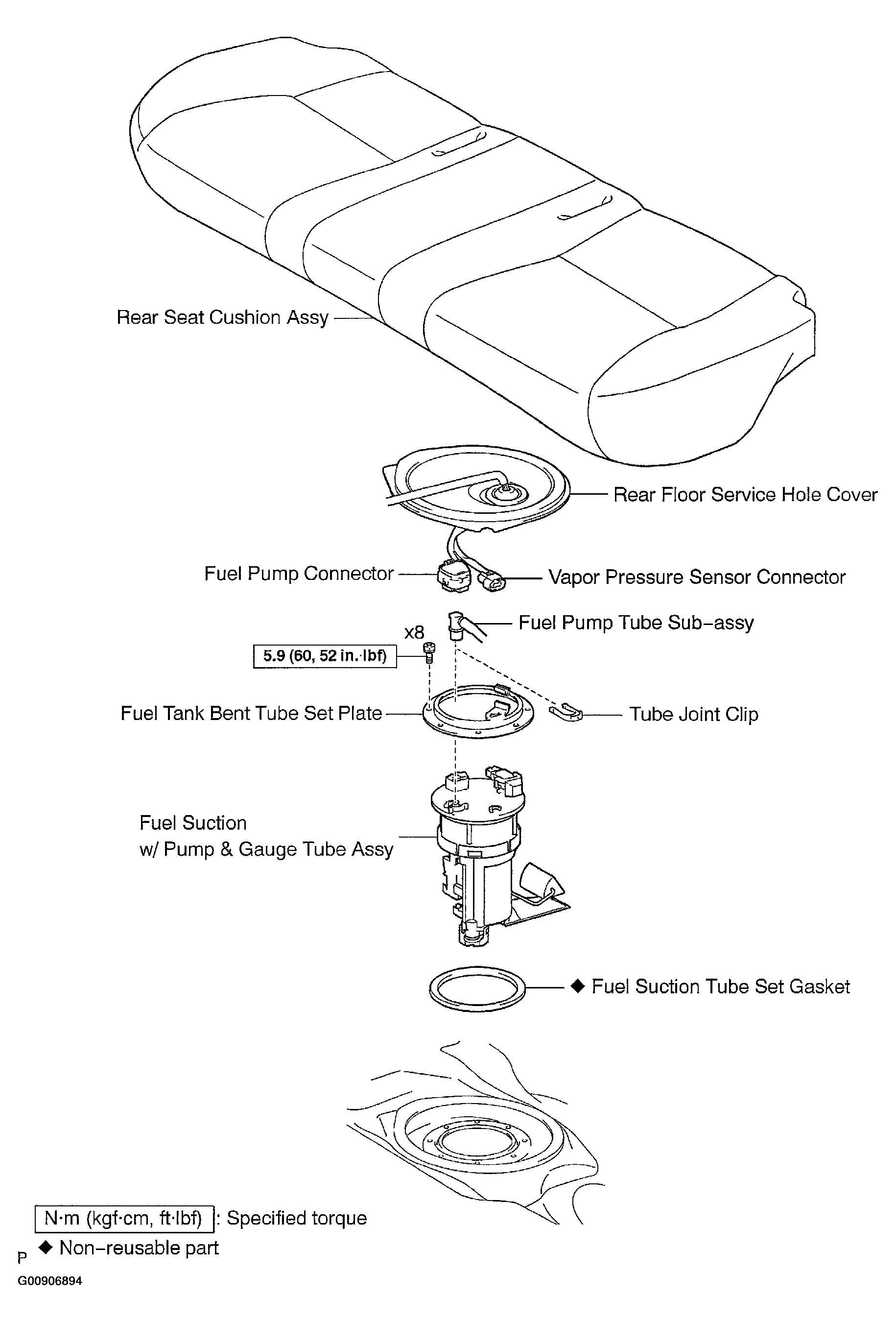

Fig 1: Identifying Fuel Suction W/ Pump & Gauge Tube Assy (3MZ-FE) Components (1 Of 2)
G00906894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

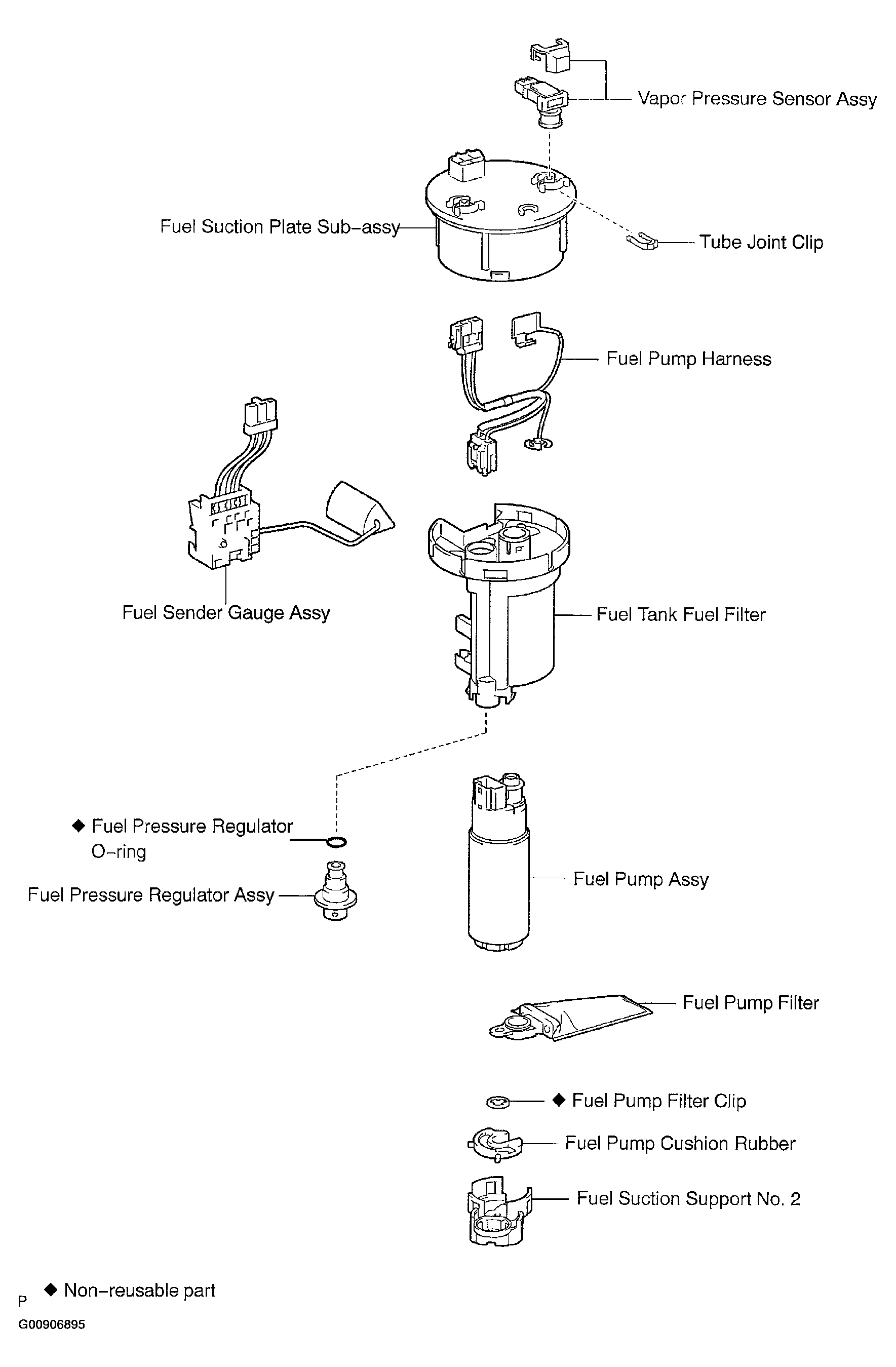

Fig 2: Identifying Fuel Suction W/ Pump & Gauge Tube Assy (3MZ-FE) Components (2 Of 2)
G00906895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
