Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

A short to the +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and 14 (CANL) of the DLC3.

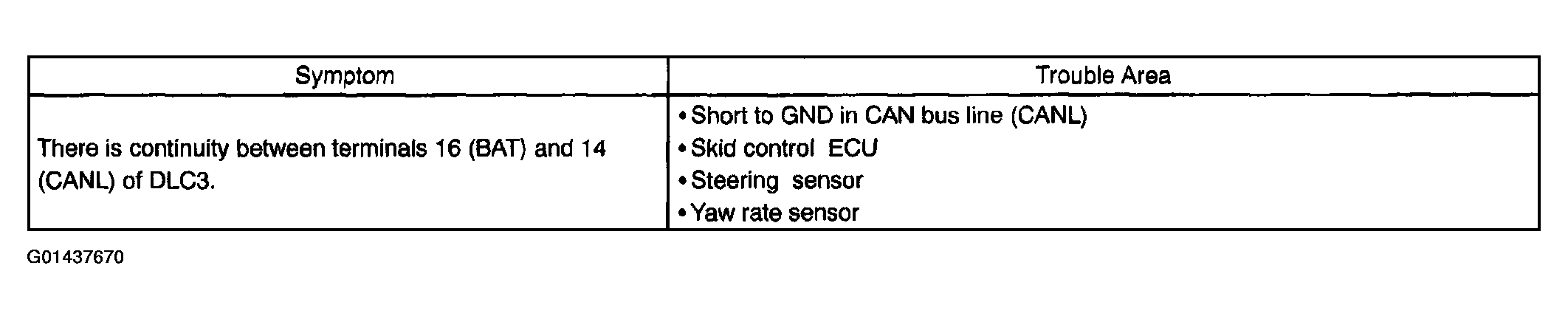

Fig 1: Circuit Description Chart
G01437670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
