Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DIAGNOSTIC TROUBLE CODE (A ECU)
    1. Check whether outputs of diagnostic codes will stop when A ECU connector is disconnected.

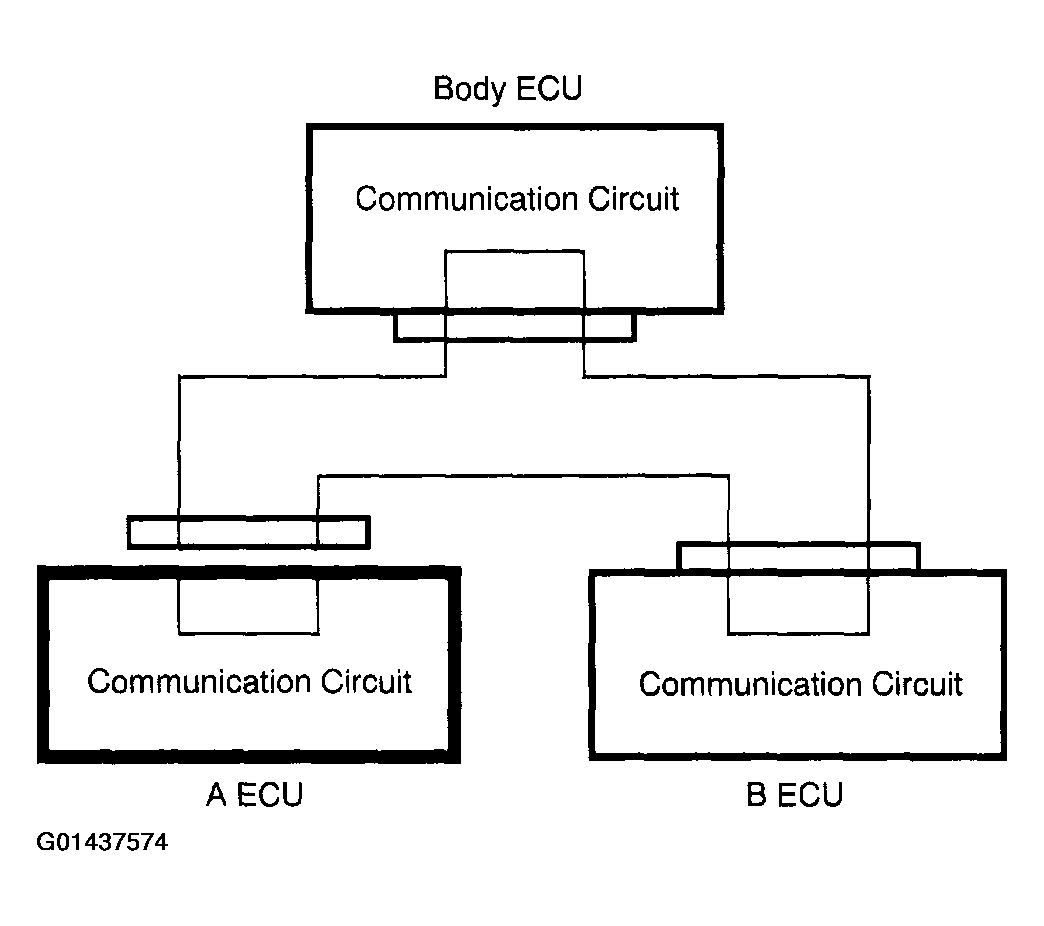

      Fig 1: Diagnostic Codes (A ECU) Circuit Diagram
      G01437574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Disconnect the connectors in the operational sequence, and start the next operation after the connector is connected.

      HINT:

      In this case, A ECU represents the power window regulator master switch assy (driver door ECU).

      Standard: If outputs of diagnostic codes stop, A ECU is abnormal.

    OK: REPLACE A ECU

    NG: Go to next step.

  2. CHECK DIAGNOSTIC TROUBLE CODE (B ECU)
    1. Check whether outputs of diagnostic codes will stop when B ECU connector is disconnected.

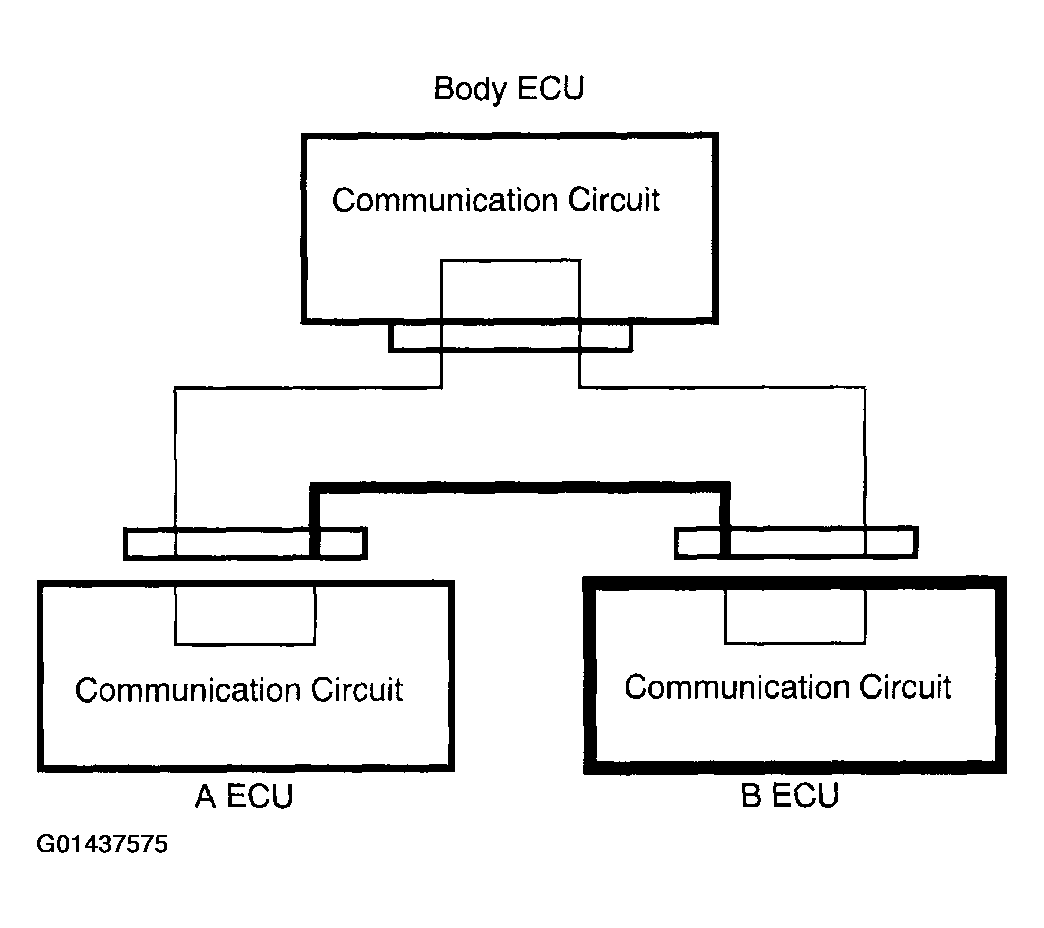

      Fig 2: Diagnostic Codes (B ECU) Circuit Diagram
      G01437575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Disconnect the connectors in the operational sequence, and start the next operation after the connector is connected.

    HINT: In this case, B ECU represents the power window regulator switch assy (passenger door ECU).

    Standard:

    If outputs of diagnostic codes stop, either B ECU or the wire harness between A ECU and B ECU is abnormal.

    NG: Go to step   4

    OK: Go to next step.

  3. CHECK WIRE HARNESS BETWEEN A ECU AND B ECU

    Inspect short-circuit in +B or body ground.

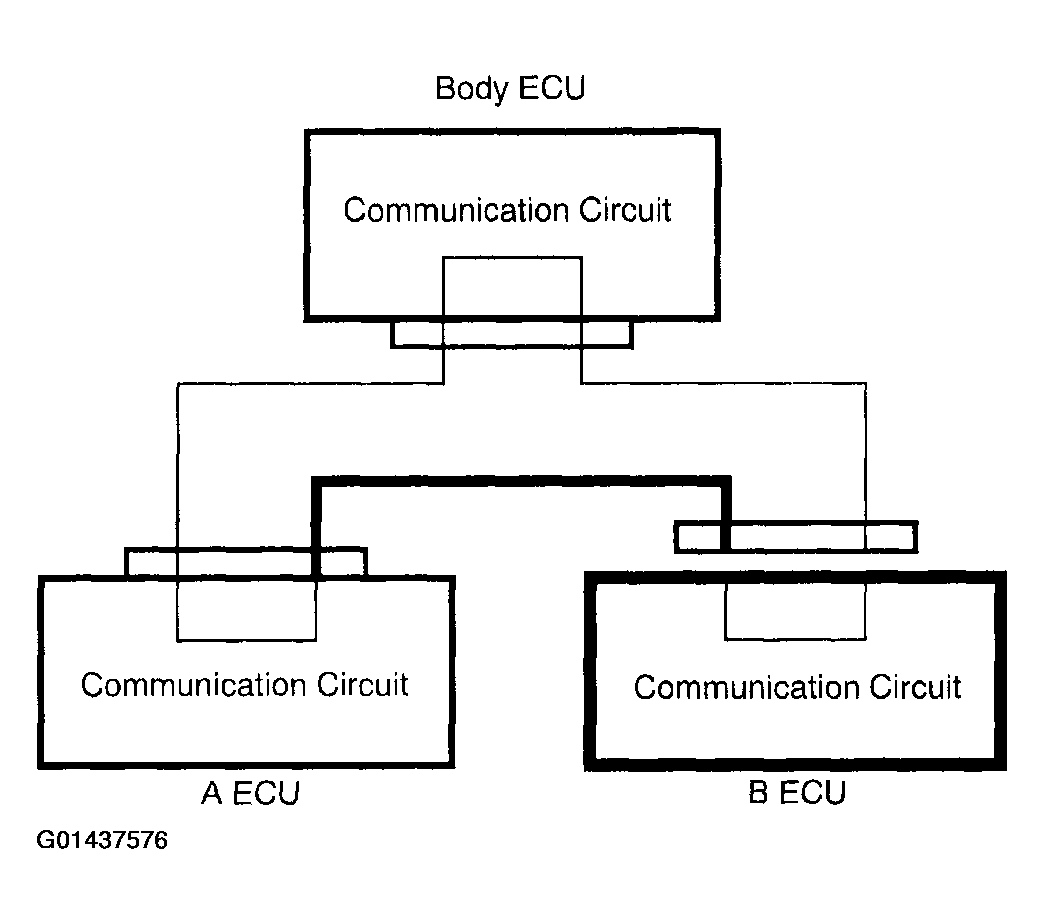

    Fig 3: Diagnostic Codes (A And B ECU) Circuit Diagram
    G01437576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check whether a diagnostic code will be output when A ECU connector is connected.
    NOTE: Disconnect the connectors in the operational sequence, and start the next operation after the connector is connected.

    OK: REPLACE B ECU

    NG: REPAIR OR REPLACE WIRE HARNESS BETWEEN A ECU AND B ECU

  4. CHECK WIRE HARNESS MPX BODY ECU AND A ECU OR B ECU
    1. Inspect short-circuit in +B or body ground.
      1. Disconnect the connector of A ECU and body ECU.
      2. Inspect short-circuit in +B of the wire harness between A ECU and body ECU, and also short-circuit in the body ground.

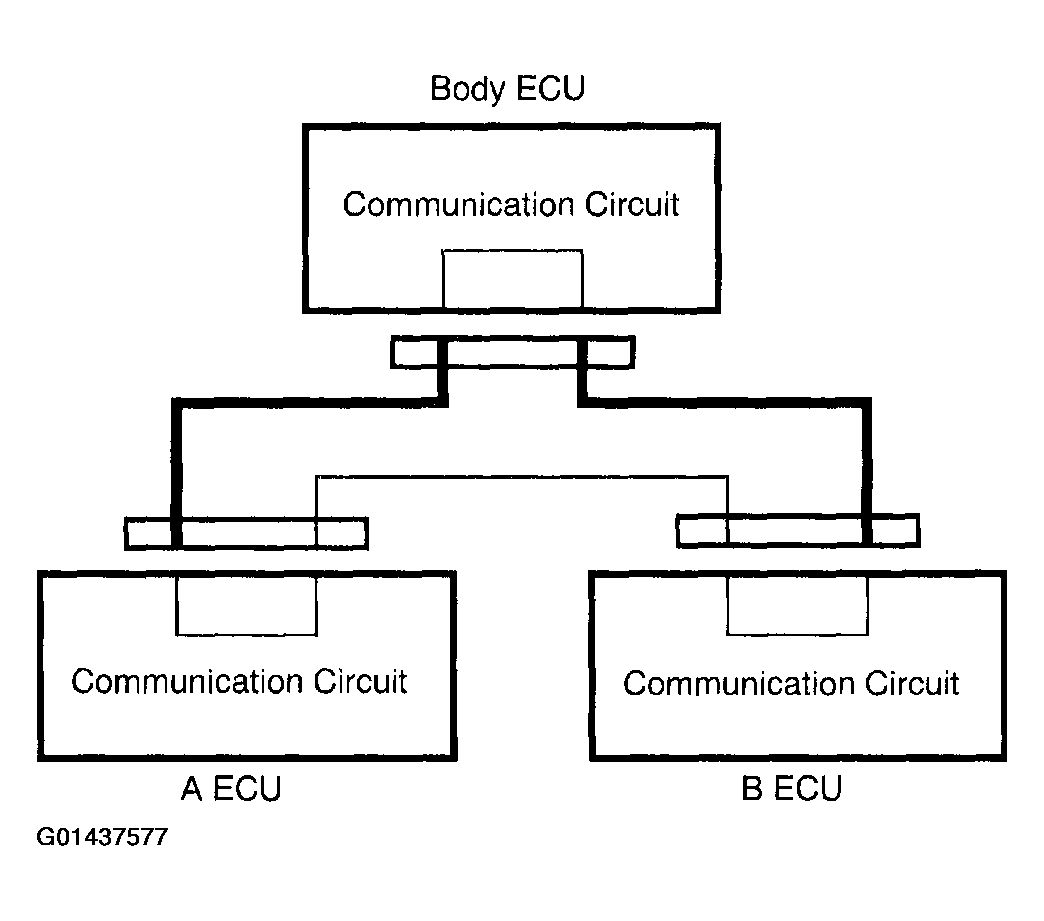

        Fig 4: MPX Body ECU And A ECU Or B ECU Circuit Diagram
        G01437577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard:

        0 V when short-circuited in +B.

        No continuity exists between each ECU and the body ground when short-circuited in the body ground.

        HINT:

        In this case, A ECU represents the power window regulator master switch assy (driver door ECU).

      3. Inspect short-circuit in +B of the wire harness between B ECU and driver side J/B (body ECU) and also short-circuit in the body ground.

        Standard:

        0 V when short-circuited in +B.

        No continuity exists between each ECU and the body ground when short-circuited in the body ground.

        HINT:

        In this case, B ECU represents the power window regulator switch assy (passenger door ECU).

        NG: REPAIR OR REPLACE WIRE HARNESS BETWEEN MPX BODY ECU AND A ECU OR B ECU

        OK: REPLACE DRIVER SIDE JUNCTION BLOCK ASSY
