Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONTINUITY OF COMMUNICATION LINE
1. Check the wire harness among the power window regulator master switch assy (driver door ECU) and driver side J/B (body ECU) and power window regulator switch assy (passenger door ECU).

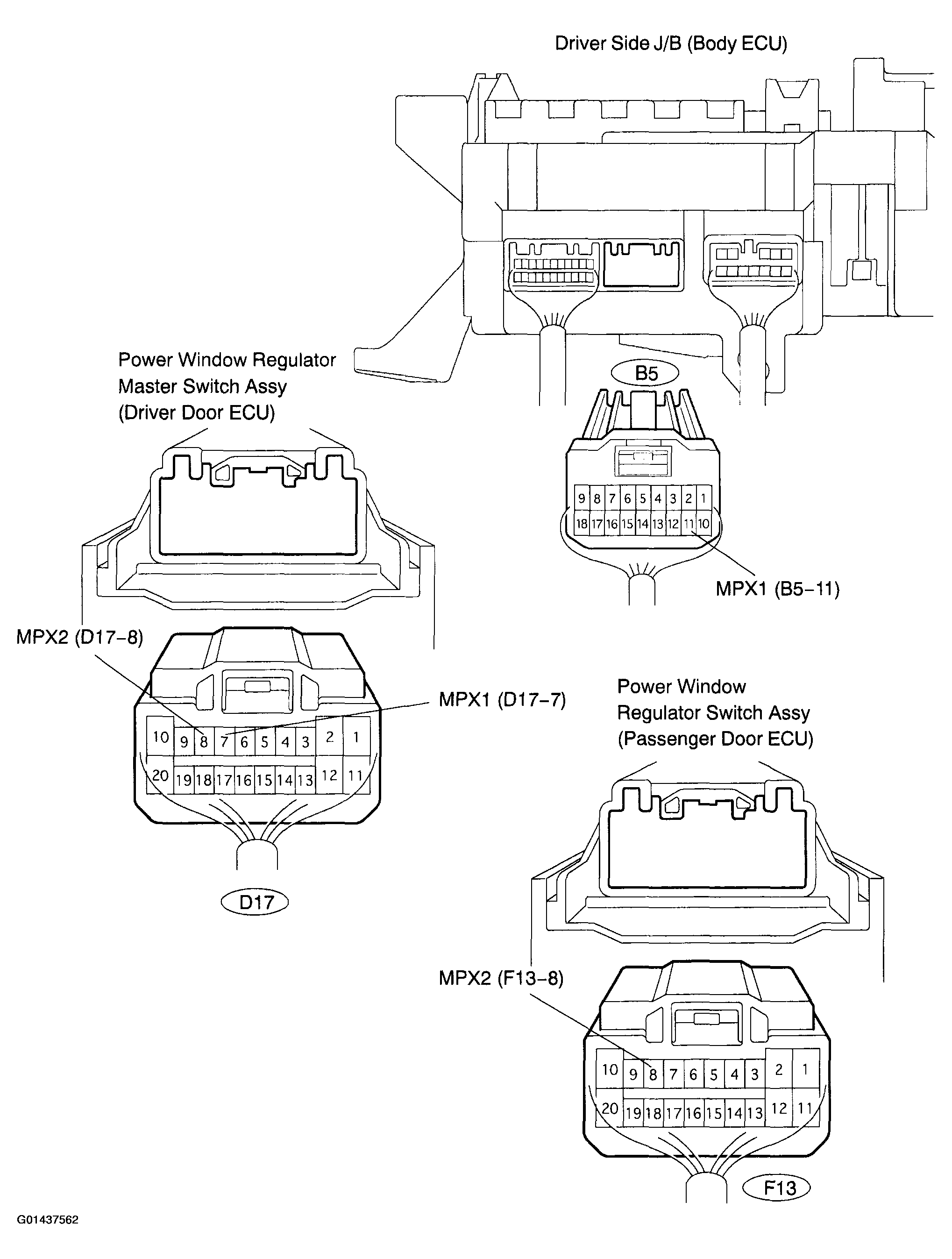

  Fig 1: Identifying Power Window Regulator Master Switch Assy (Driver And Passenger Door ECU) And Driver Side J/B (Body ECU)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Disconnect the connectors of the D17 power window regulator master switch assy (driver door ECU), B5 driver side J/B (body ECU) and F19 power window regulator switch assy (passenger door ECU).
  2. Check the continuity between terminal MPX1 (D17-7) of the power window regulator master switch assy (driver door ECU) wire harness side connector and terminal MPX1 (B5-11) of the driver side J/B (body ECU) wire harness side connector.
    Standard: Continuity
  3. Check the continuity between terminal MPX2 (D17-8) of the power window regulator master switch assy (driver door ECU) wire harness side connector and terminal MPX2 (F13-8) of the power window regulator switch assy (passenger door ECU) wire harness connector.
    Standard: Continuity

    NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

    OK: Go to next step.
CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY (DRIVER DOOR ECU) (POWER SOURCE)
1. Inspect the ECU power source input.
  1. Disconnect the D17 ECU connector.
  2. Check the voltage between each terminal of the ECU wire harness side connector and the body ground.

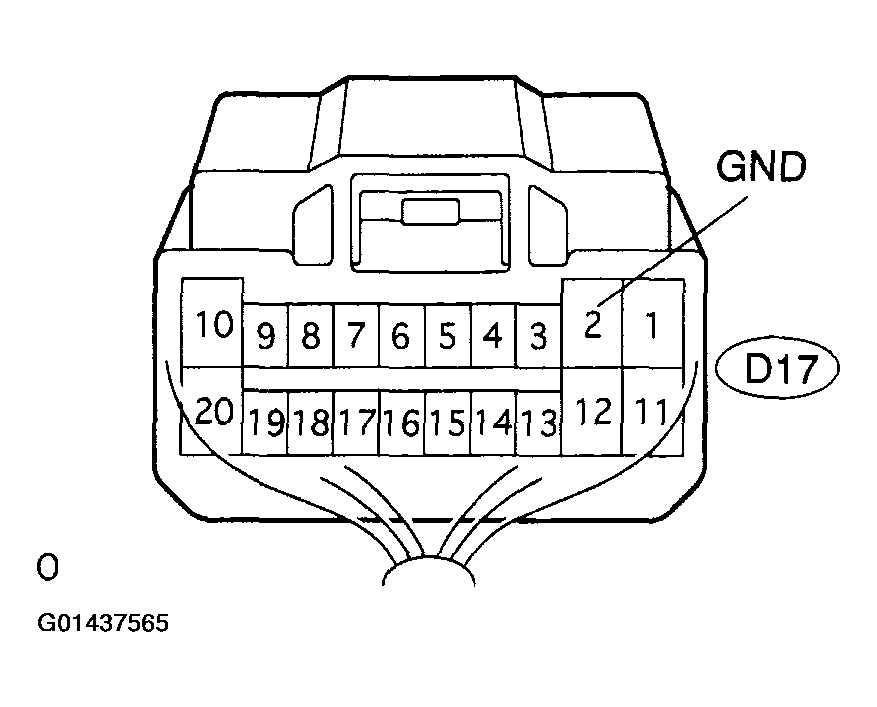

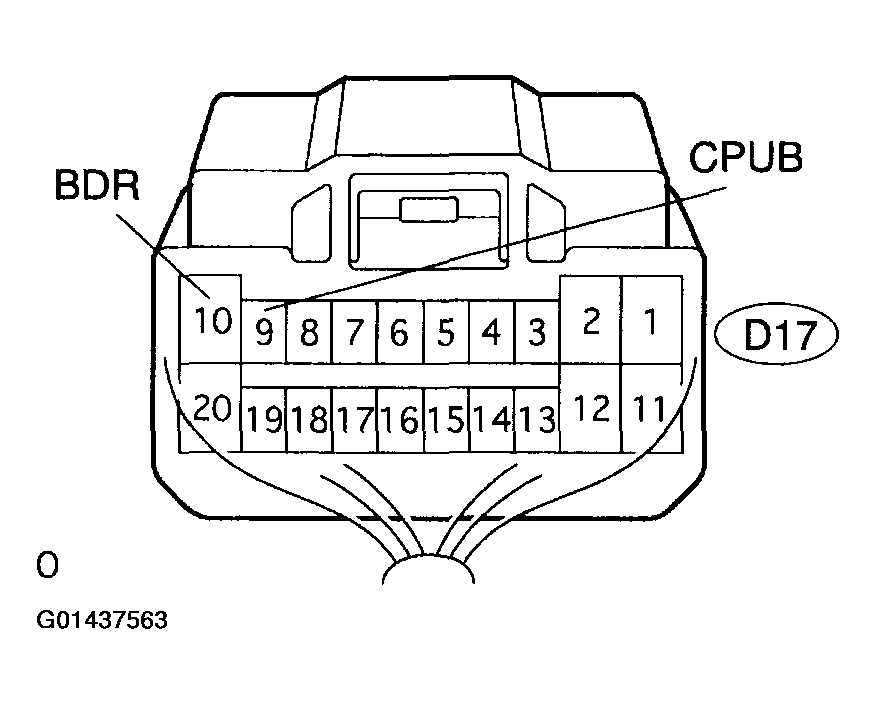

    Fig 2: Identifying D17 ECU Connector Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

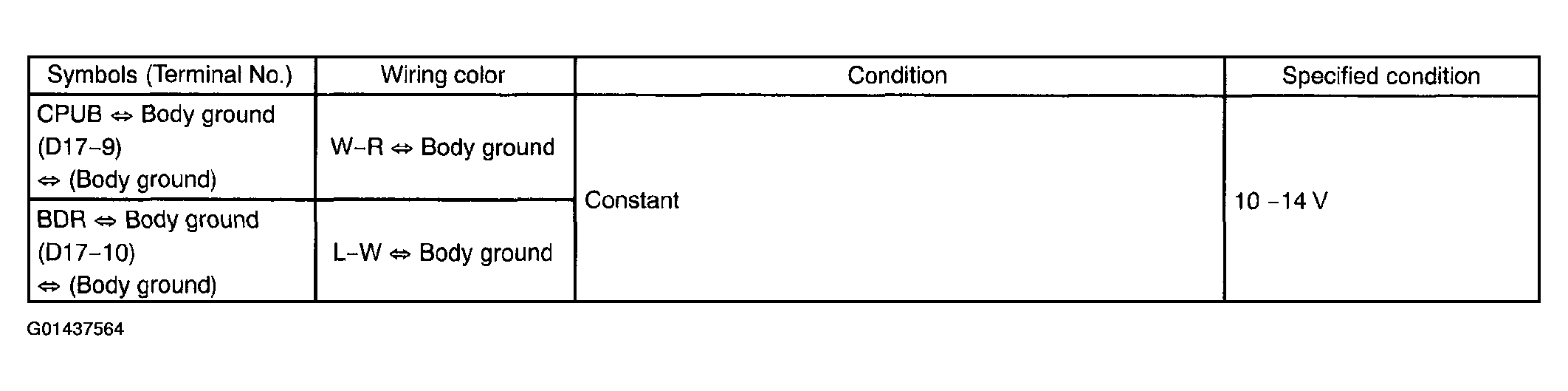

    Fig 3: Terminals Of ECU Wire Harness Side Connector And Body Ground Voltage Specification Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE FUSE OR WIRE HARNESS AND CONNECTOR

OK: Go to next step.
CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY (PASSENGER DOOR ECU) (GROUND)
1. Inspect the ECU.
  1. Disconnect the D17 ECU connector.
  2. Check the continuity between terminal GND (D17-2) of the ECU wire harness connector and the body ground.
  Standard: Continuity

  NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

  OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
