Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY
1. Remove the courtesy switch.

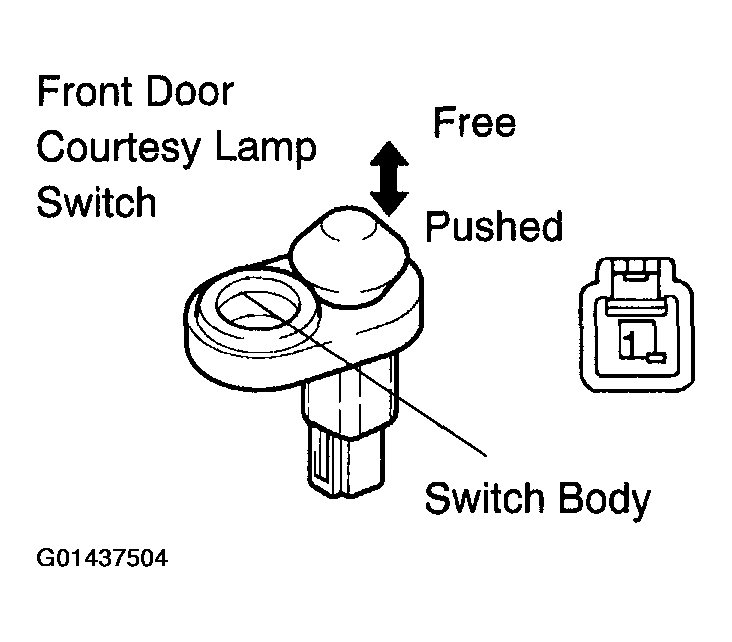

  Fig 1: Removing Courtesy Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the switch resistance.
  Standard

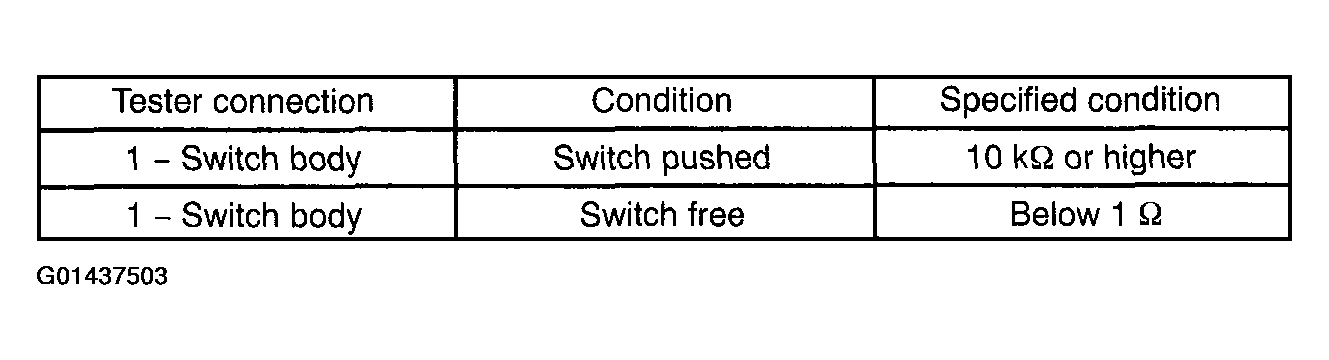

  Fig 2: Measuring Switch Resistance Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY

OK: Go to next step.
CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - BODY GROUND)
1. Disconnect the T20 ECU connector.

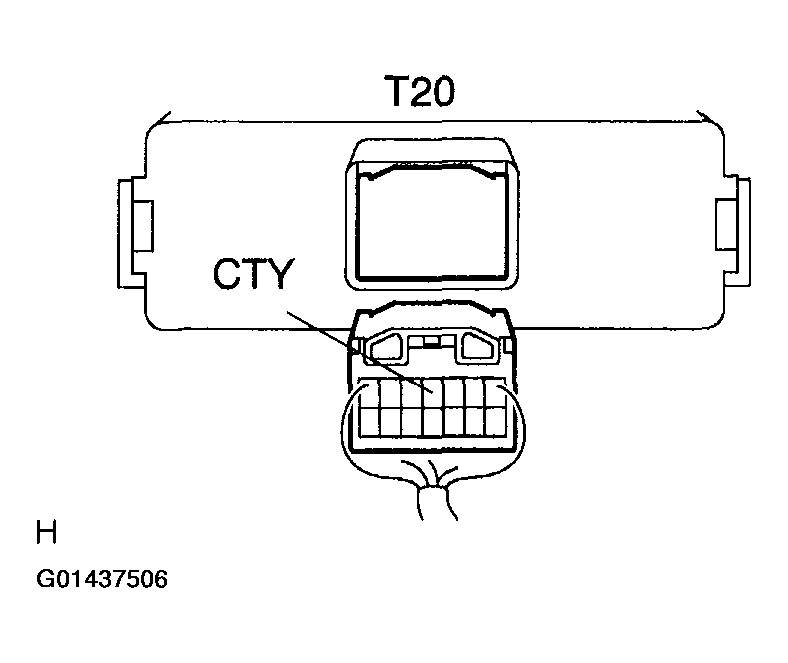

  Fig 3: Disconnecting T20 ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the wire harness side connectors.
  Standard

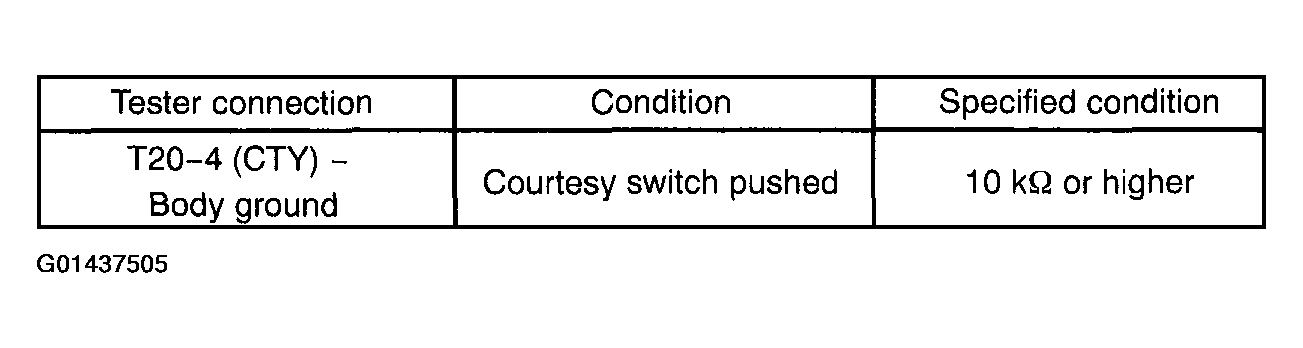

  Fig 4: Measuring Resistance Between CTY & Body Ground Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
