Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - DLC3)
1. Disconnect the T20 ECU connector.

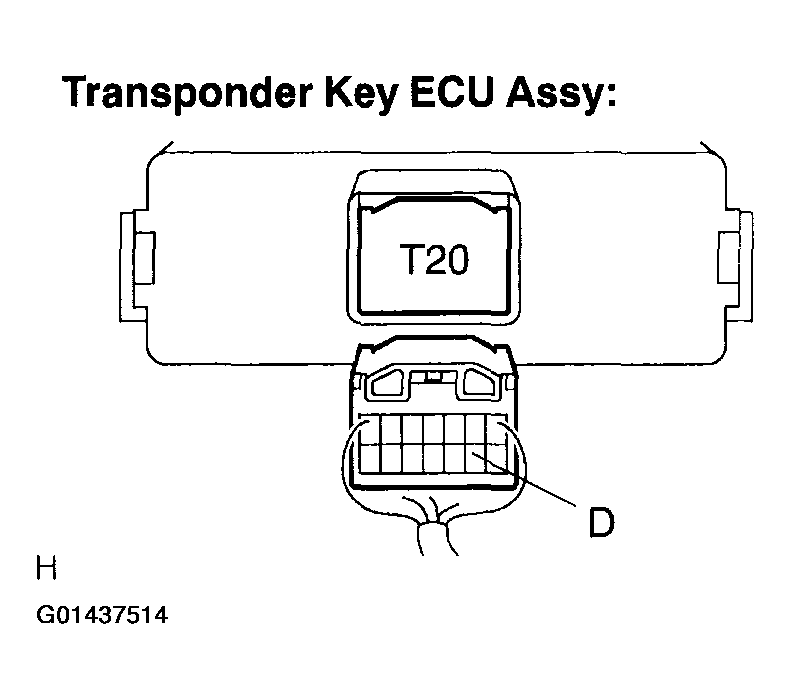

  Fig 1: Identifying Transponder Key ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

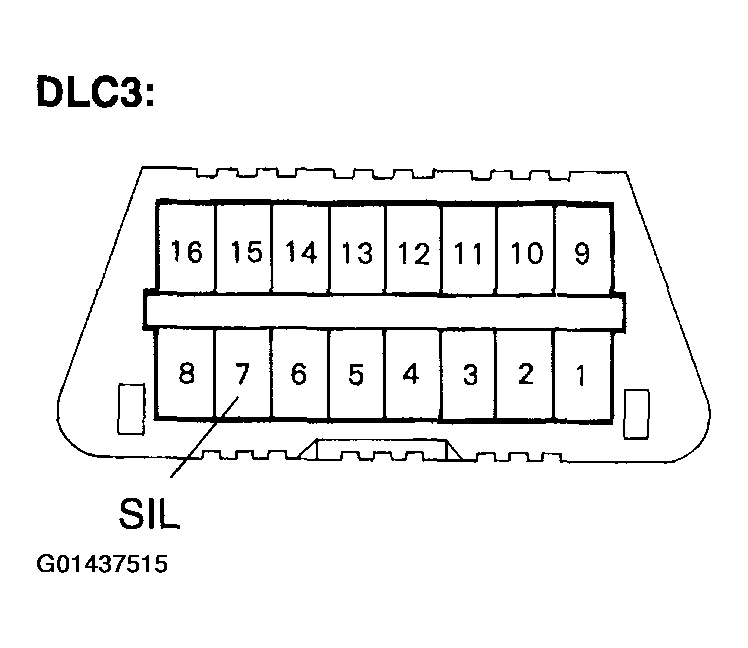

  Fig 2: Identifying SIL Of DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the wire harness side connectors.
  Standard

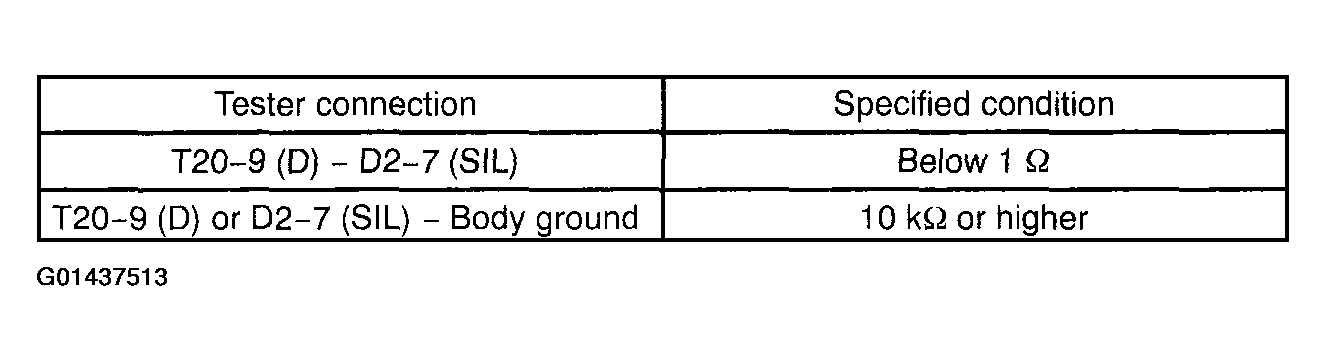

  Fig 3: Measuring Resistance Between Transponder Key ECU & DLC3 Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.
CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
1. Measure the resistance of the wire harness side connector.

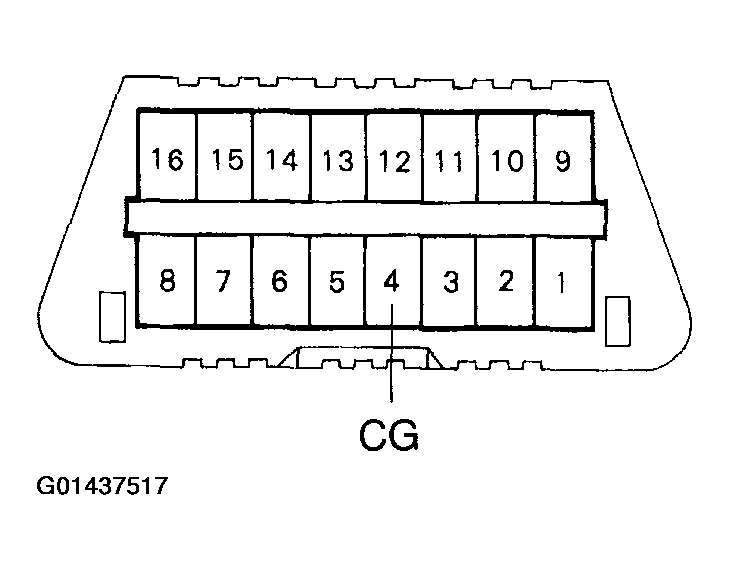

  Fig 4: Identifying Terminal CG
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard

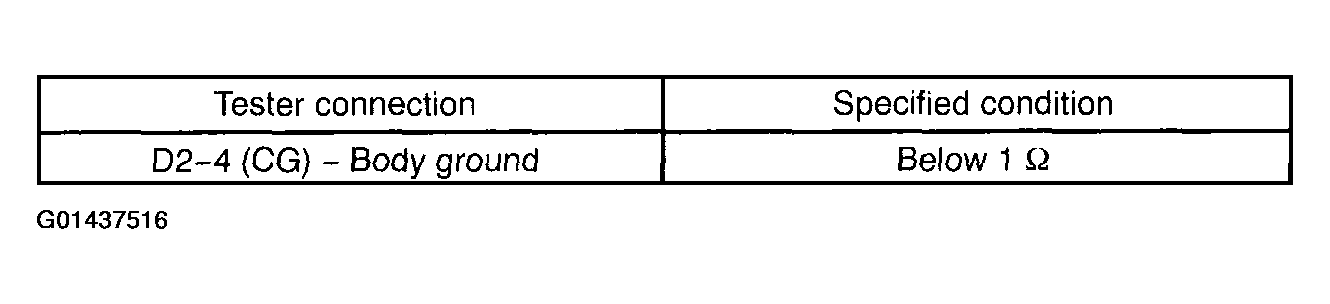

  Fig 5: Measuring Resistance Of DLC3 & Body Ground Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
