Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when an error occurs in normal communication.

HINT:

Some noise is found on the communication line.

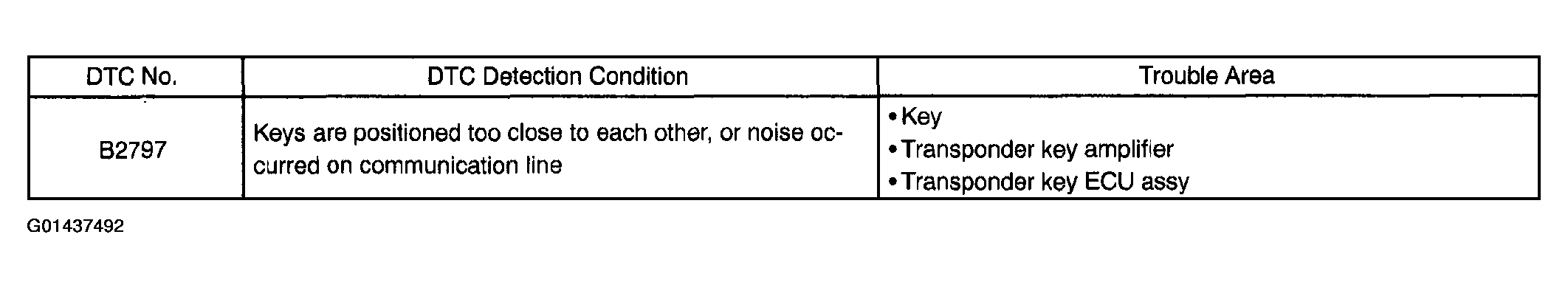

Fig 1: Communication Malfunction No.1 Circuit Description Chart
G01437492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
