Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

This code is stored in the memory when a key that does not have a transponder chip is inserted or if communication between the key and transponder key ECU is impossible.

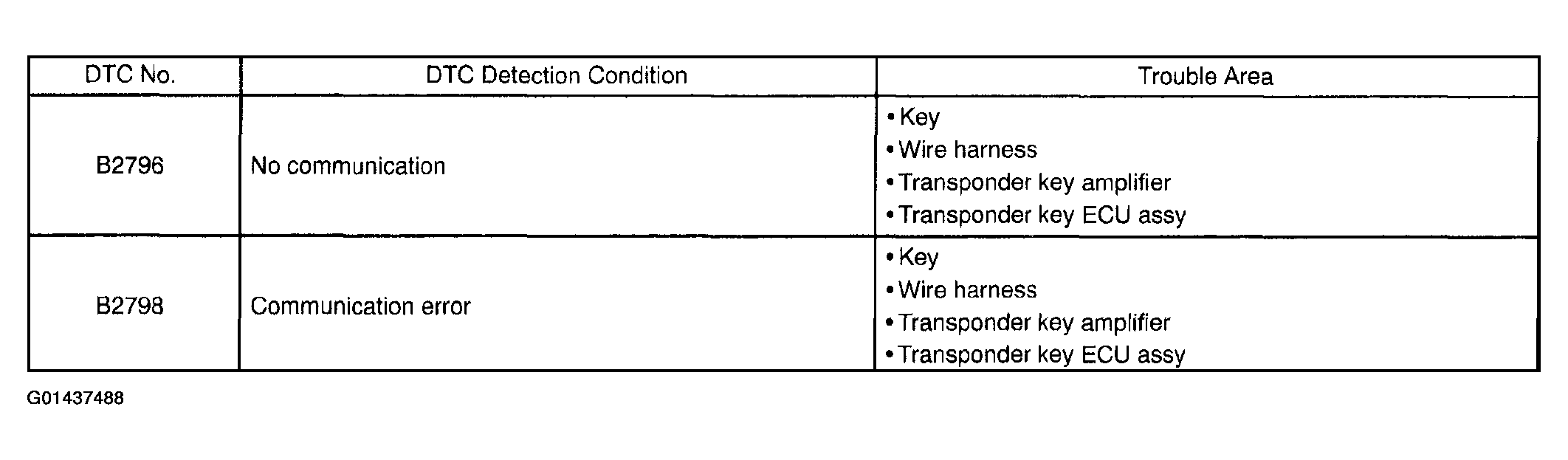

Fig 1: No Communication In Immobilizer System & Communication Malfunction No. 2 Circuit Description Chart
