CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (LEFT SIDE)

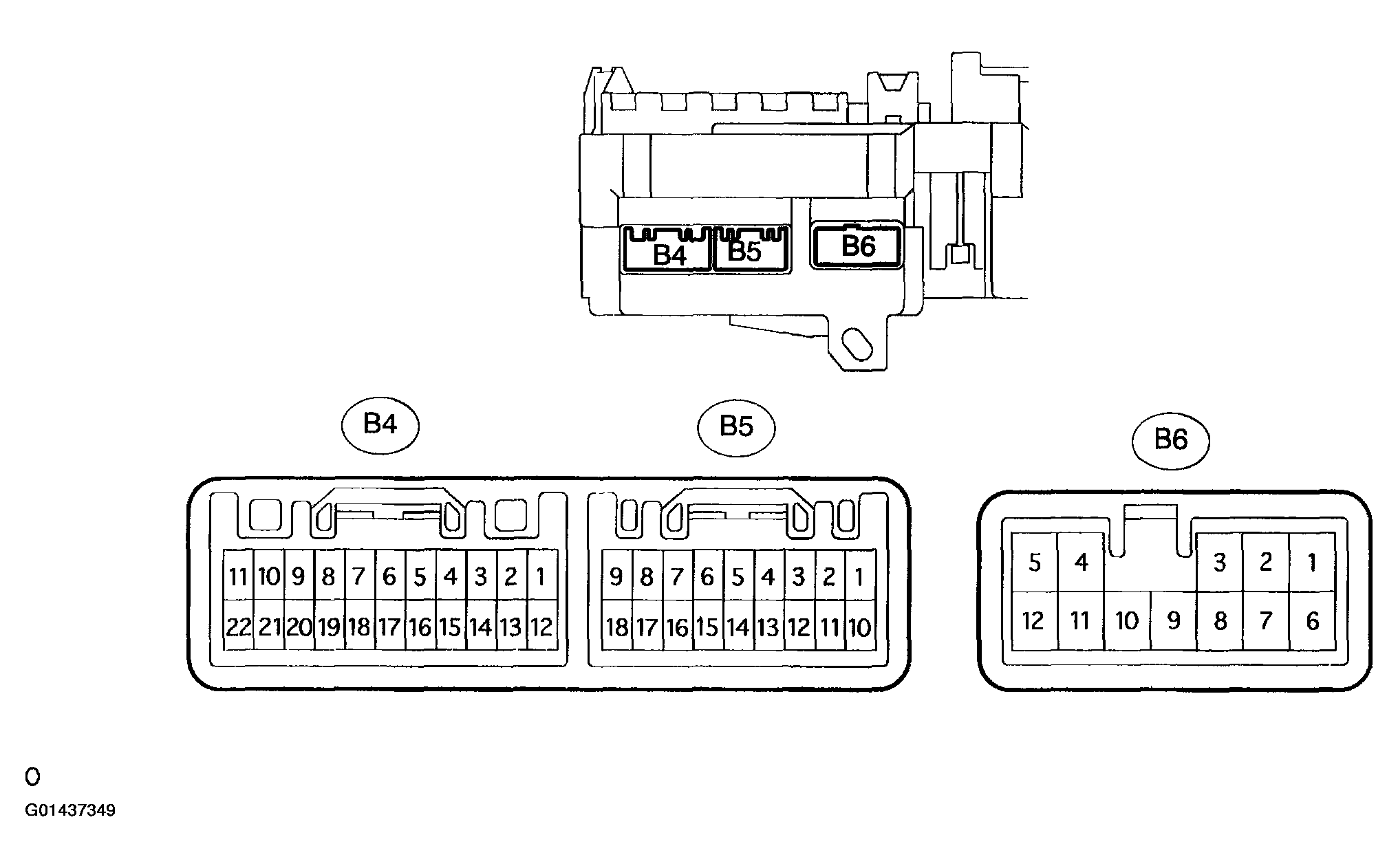

Fig 1: Identifying Driver Side Junction Block ECU Connectors (Left Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the B4 body ECU connector.
2. Check the continuity of the terminal of the disconnected connector.
  Standard:

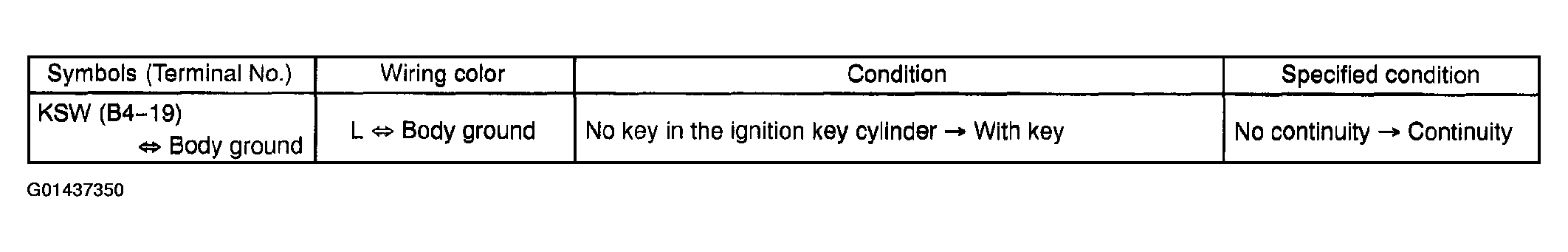

  Fig 2: Driver Side Junction Block ECU Terminal Continuity Specification Chart (Left Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Reconnect the B4 body ECU connector.
4. Check the voltage of each terminal of the connectors.
  Standard:

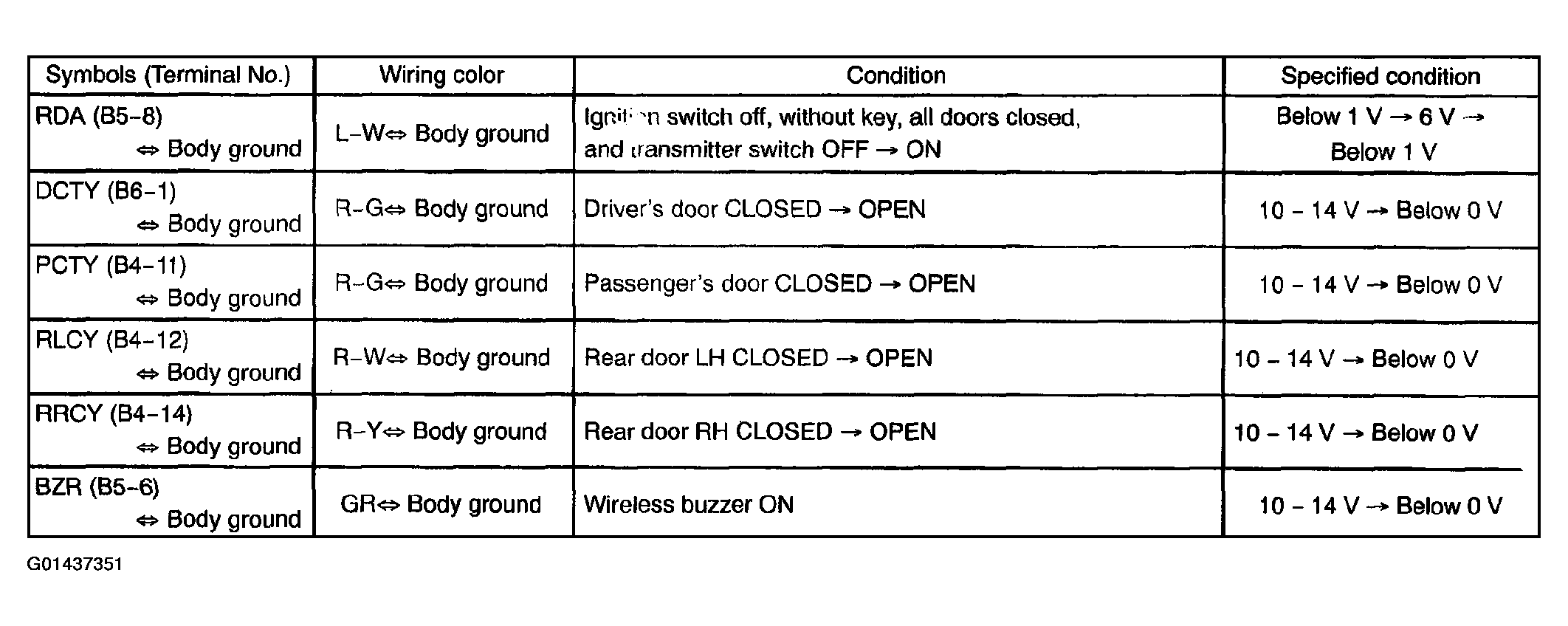

  Fig 3: Driver Side Junction Block ECU Connector Voltage Specification Chart (Left Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (REAR SIDE)

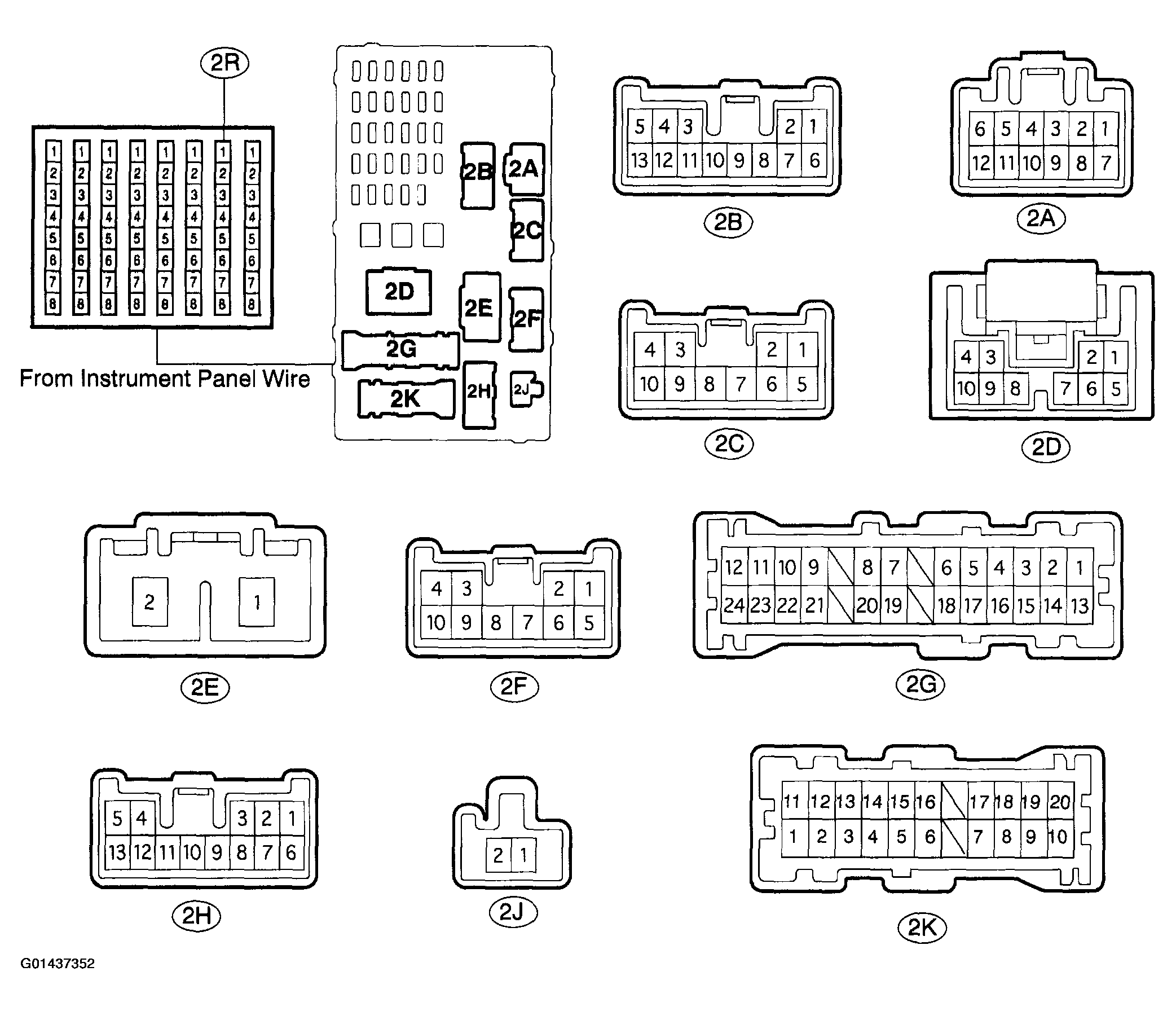

Fig 4: Identifying Driver Side Junction Block ECU Connectors (Rear Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 2B, 2F and 2G driver side J/B connectors.
2. Check the continuity and voltage of each terminal of the disconnected connectors.
  Standard:

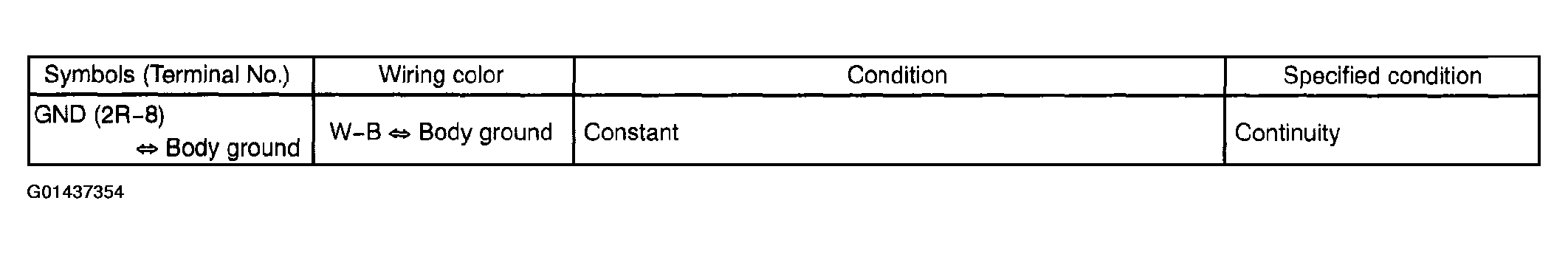

  Fig 5: Driver Side Junction Block ECU Terminal Continuity Specification Chart (Rear Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Reconnect the connectors, and check the continuity of the terminal of the connector.
  Standard:

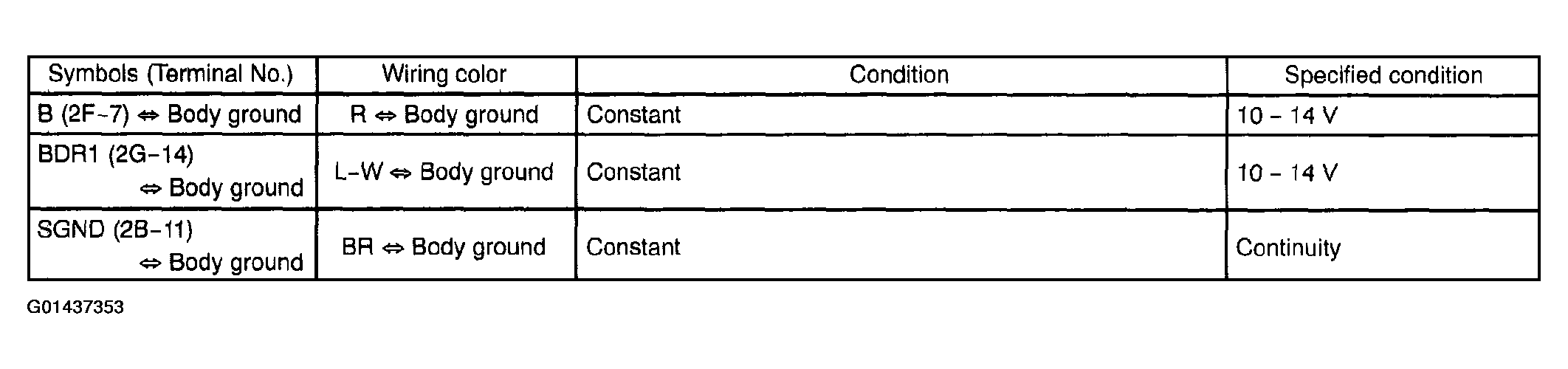

  Fig 6: Driver Side Junction Block ECU Connector Voltage Specification Chart (Rear Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
