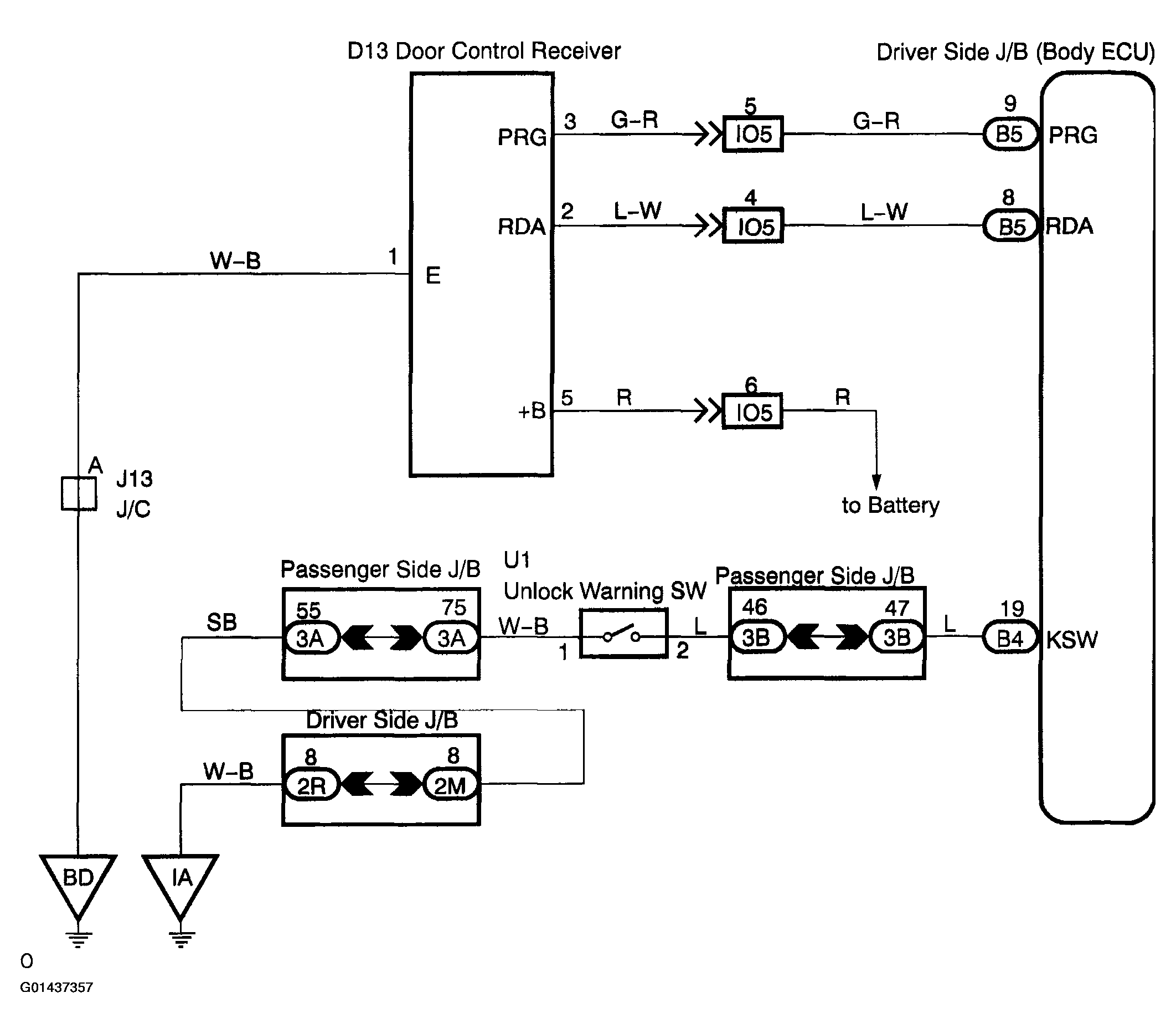

DTC B1242: Wireless Door Lock Tuner Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
