CHECK POWER WINDOW REGULATOR MASTER SWITCH (DRIVER'S DOOR ECU)

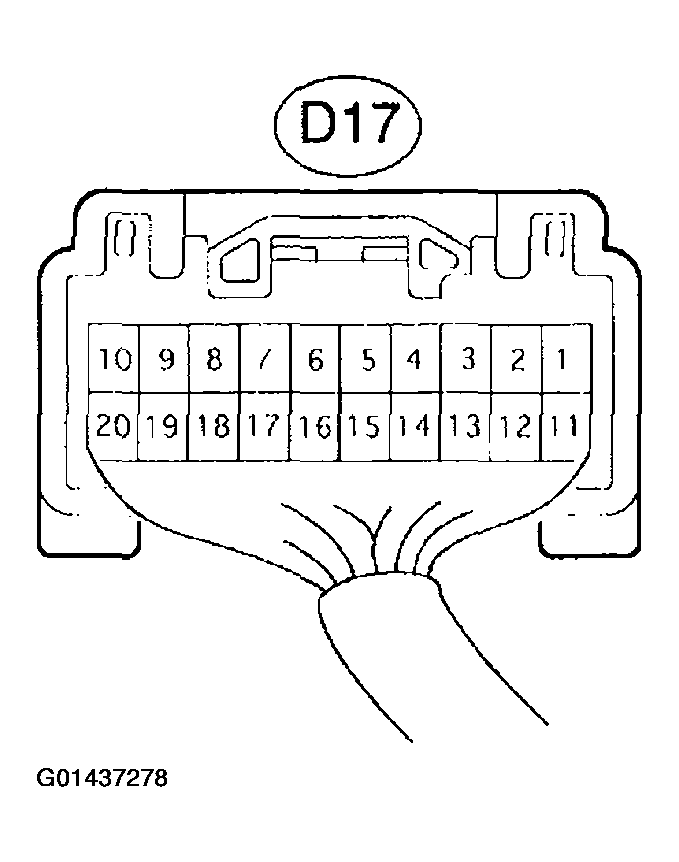

Fig 1: Identifying Power Window Regulator Master Switch (Driver Door ECU) Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the D17 master switch connector.
2. Check the continuity and voltage of each terminal of the disconnected connector.
  Standard:

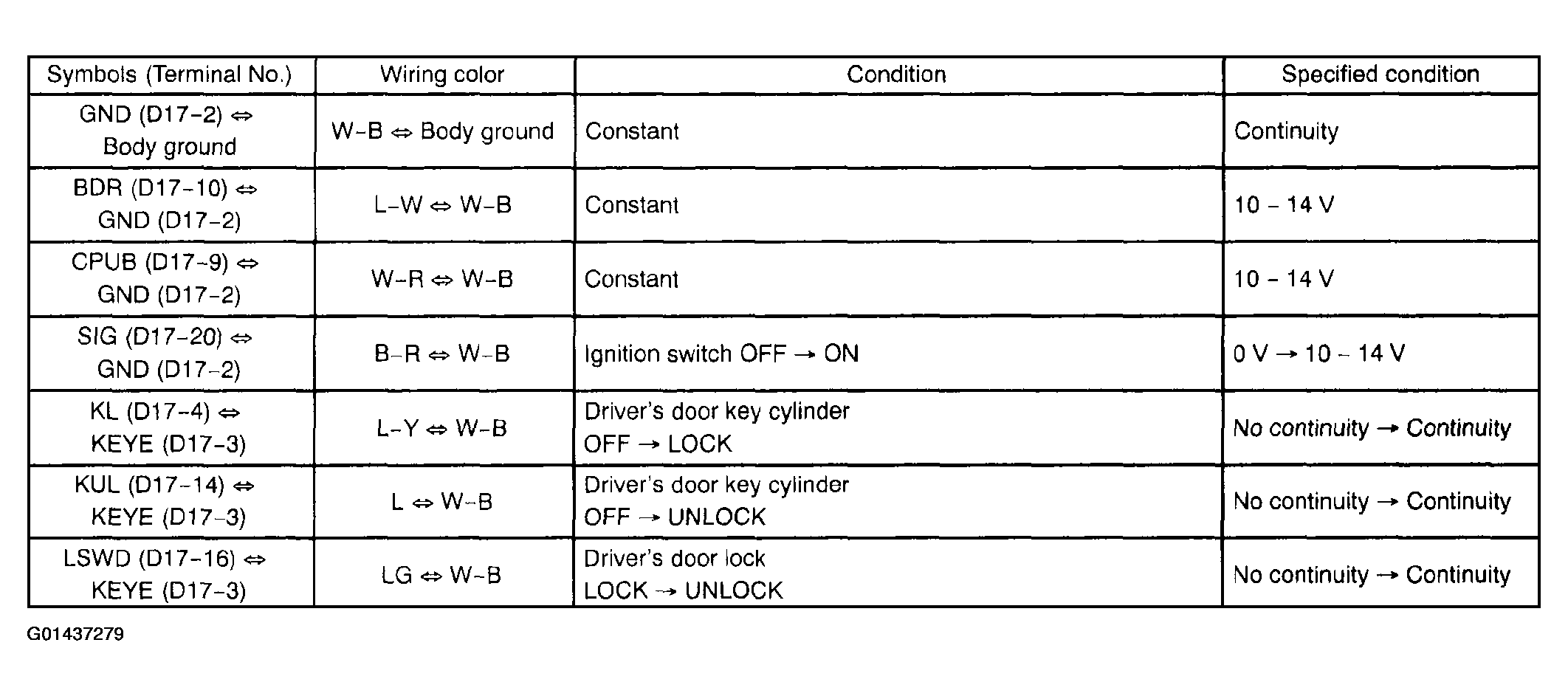

  Fig 2: Driver Door ECU Test Specification Table (Disconnected Connector)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Reconnect the master switch connector.
4. Check the voltage of each terminal of the connector.
  Standard:

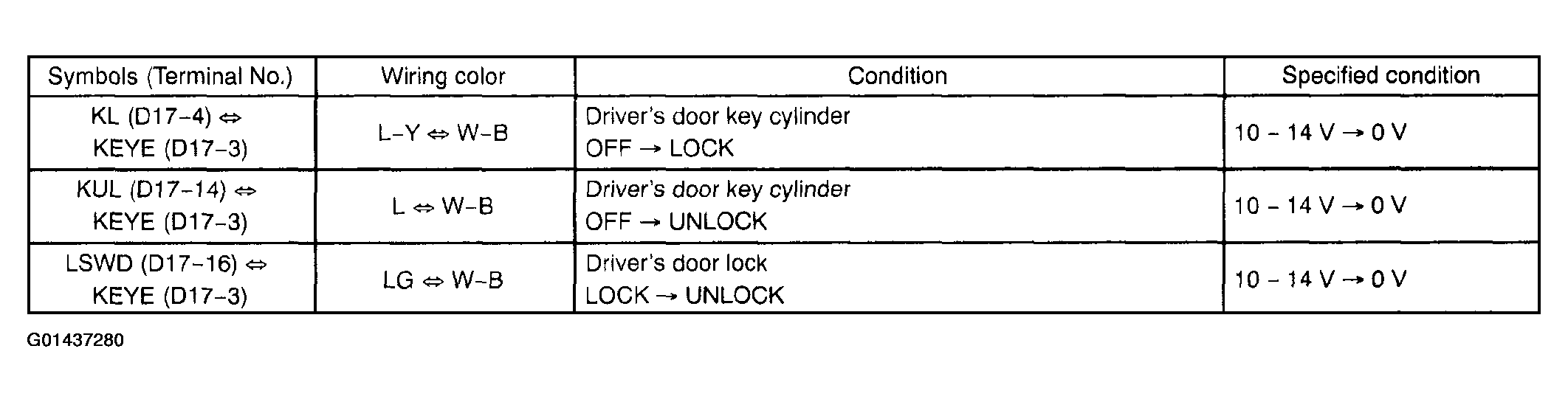

  Fig 3: Driver Door ECU Test Specification Table (Connected Connector)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (LEFT SIDE)

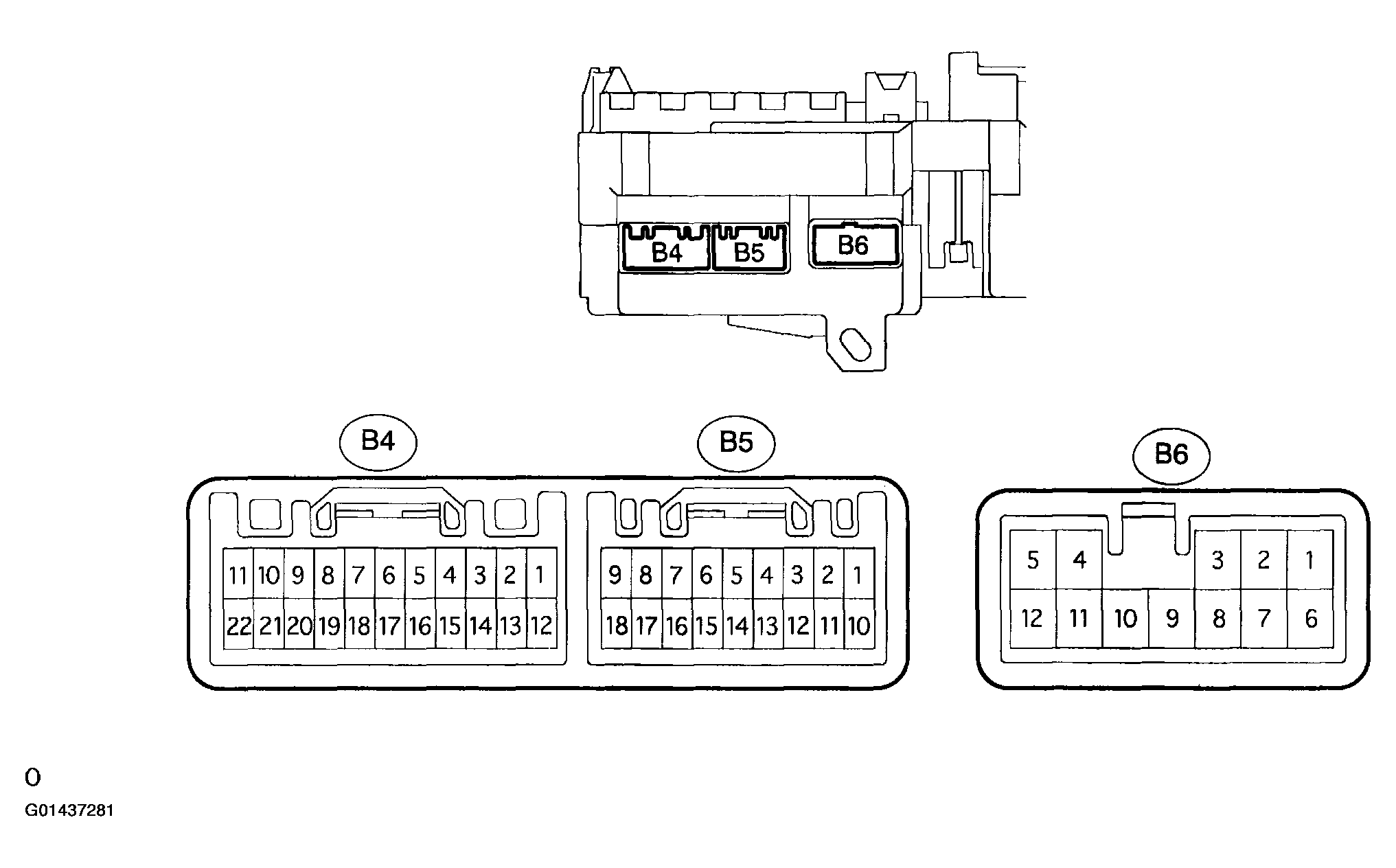

Fig 4: Identifying Driver Side Junction Block Assy (Body ECU Left Side) Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the B4 body ECU connector.
2. Check the continuity of the terminal of the disconnected connector.
  Standard:

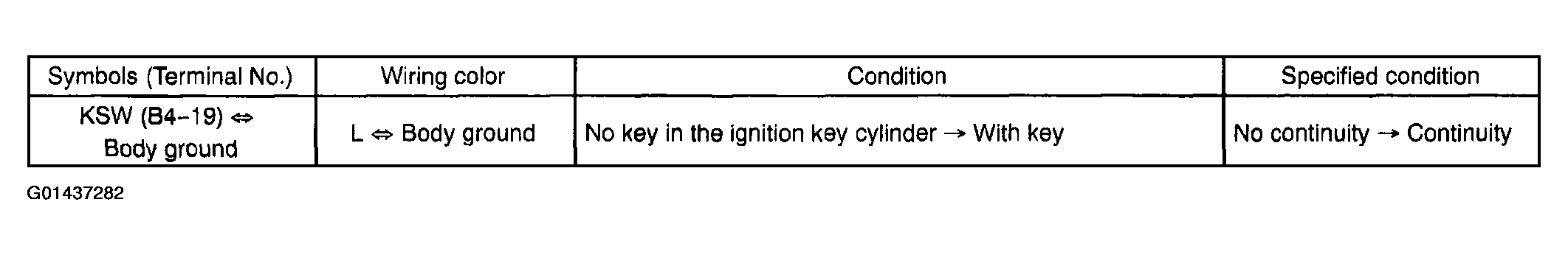

  Fig 5: Driver Side Junction Block Assy. (Left Side) Specified Conditions Table (Disconnected Connector)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Reconnect the B4 body ECU connector.
4. Check the voltage of each terminal of the connector.
  Standard:

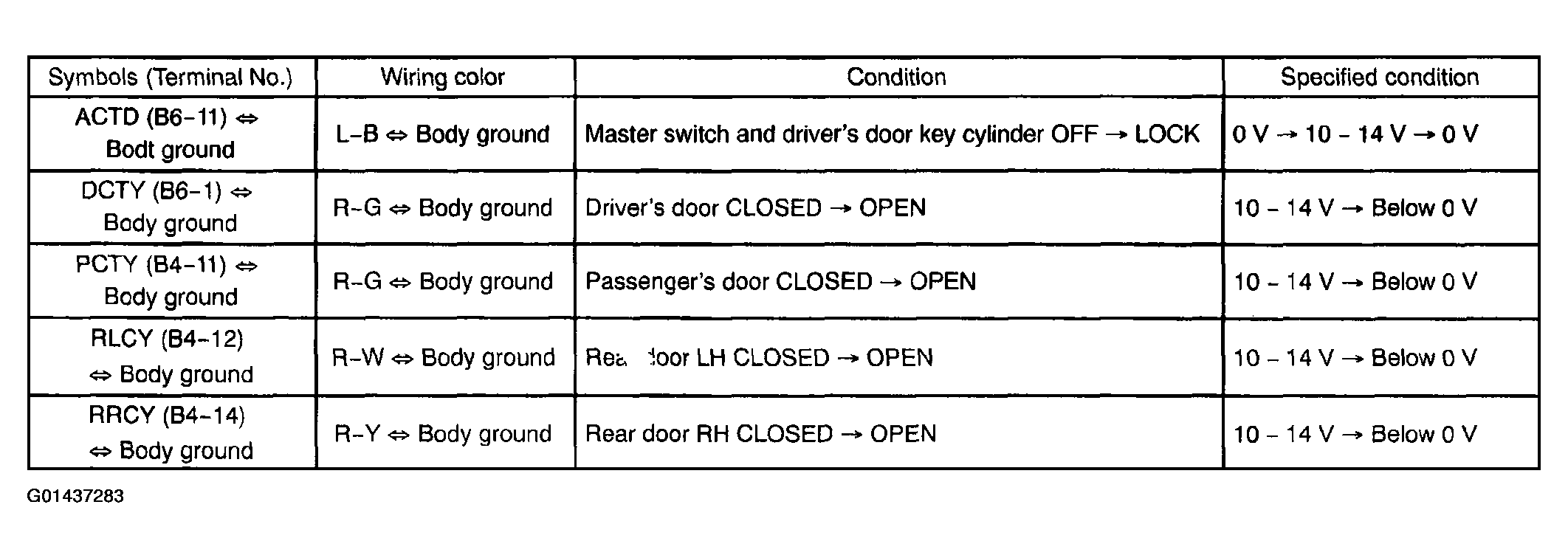

  Fig 6: Driver Side Junction Block Assy. (Left Side) Continuity Table (Connected Connector)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (REAR SIDE)

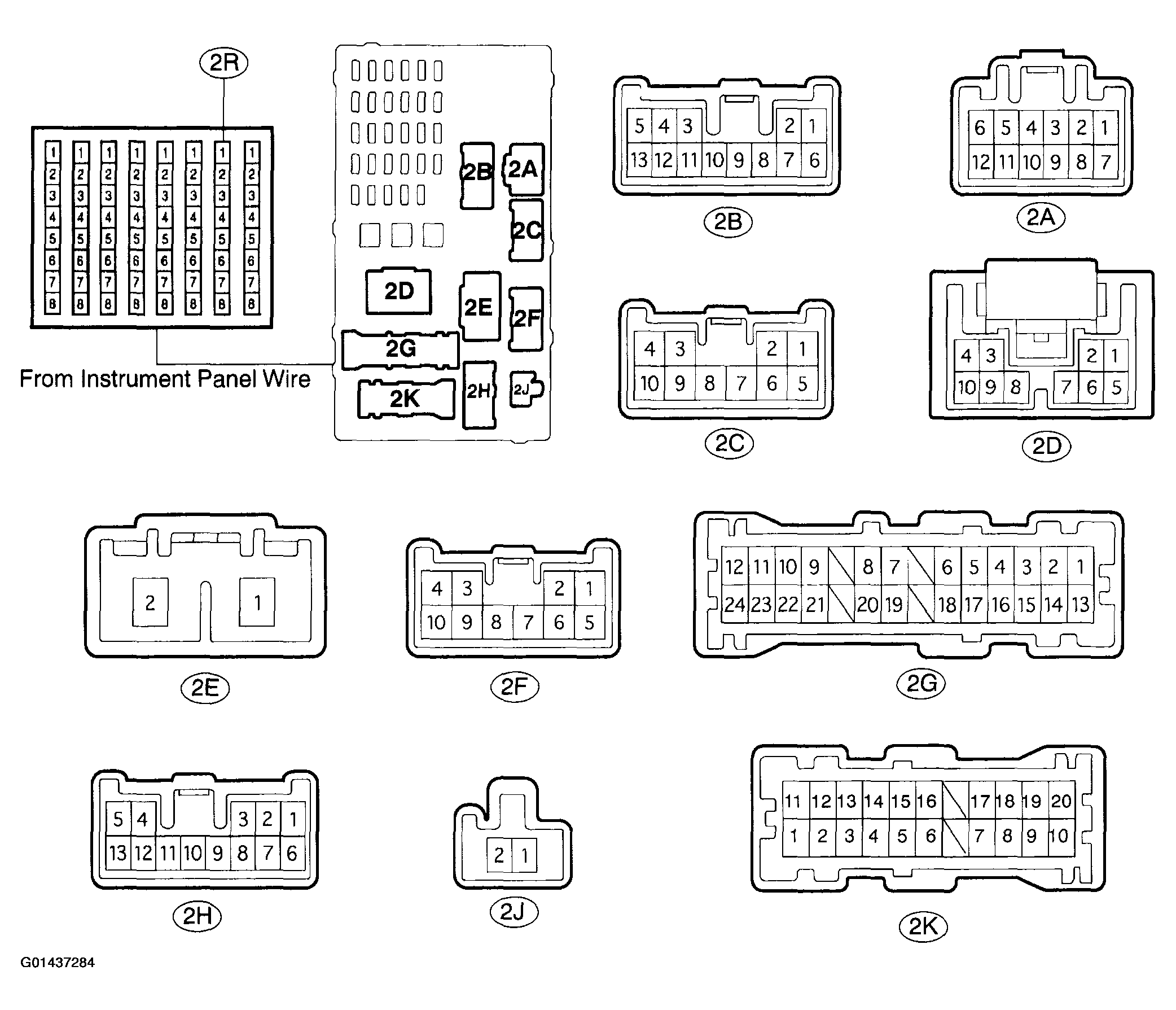

Fig 7: Identifying Driver Side Junction Block Assy (Body ECU Rear Side) Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 2B, 2F and 2G driver side J/B connectors.
2. Check the continuity and voltage of each terminal of the disconnected connectors.
  Standard:

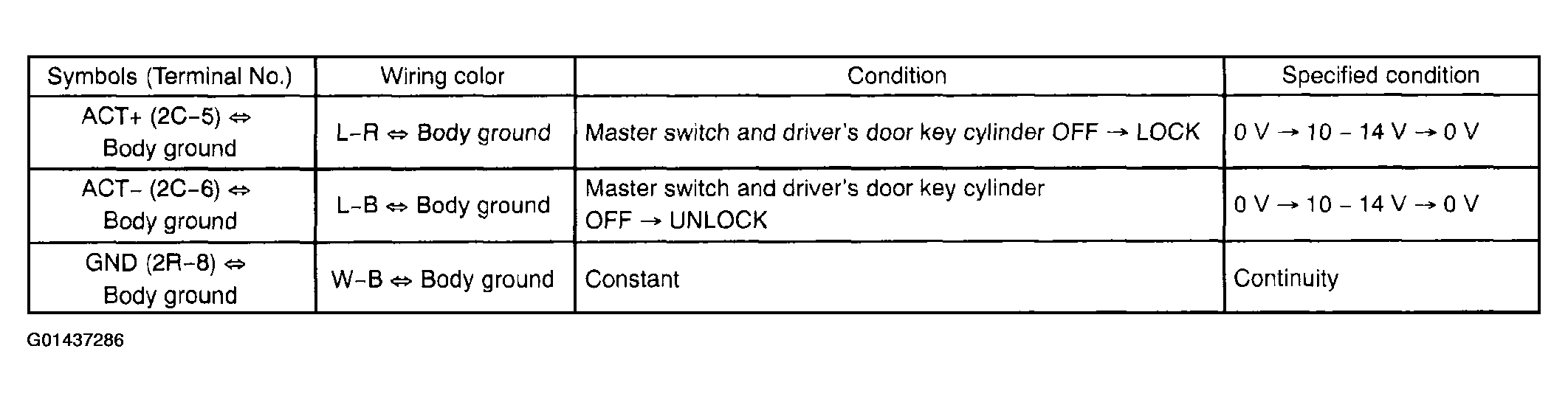

  Fig 8: Driver Side Junction Block Assy (Body ECU Rear Side) Specified Conditions Table (Disconnected Connectors)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Reconnect the connectors, and check continuity and voltage of each terminal of the connectors.
  Standard:

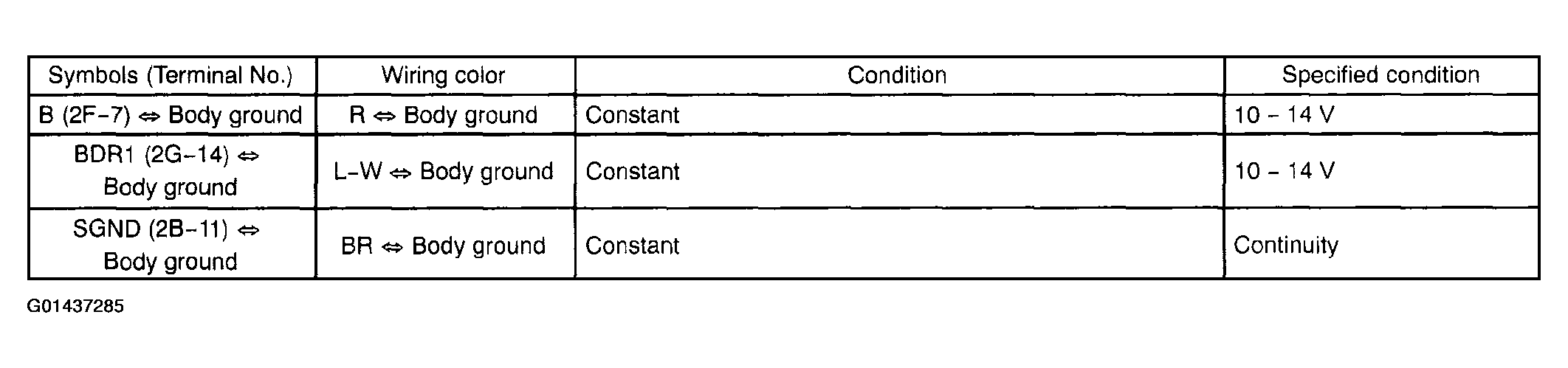

  Fig 9: Driver Side Junction Block Assy (Body ECU Rear Side) Continuity Table (Connected Connectors)
