INSPECT REAR DOOR W/MOTOR LOCK ASSY RH
1. Inspect the door lock motor operation.

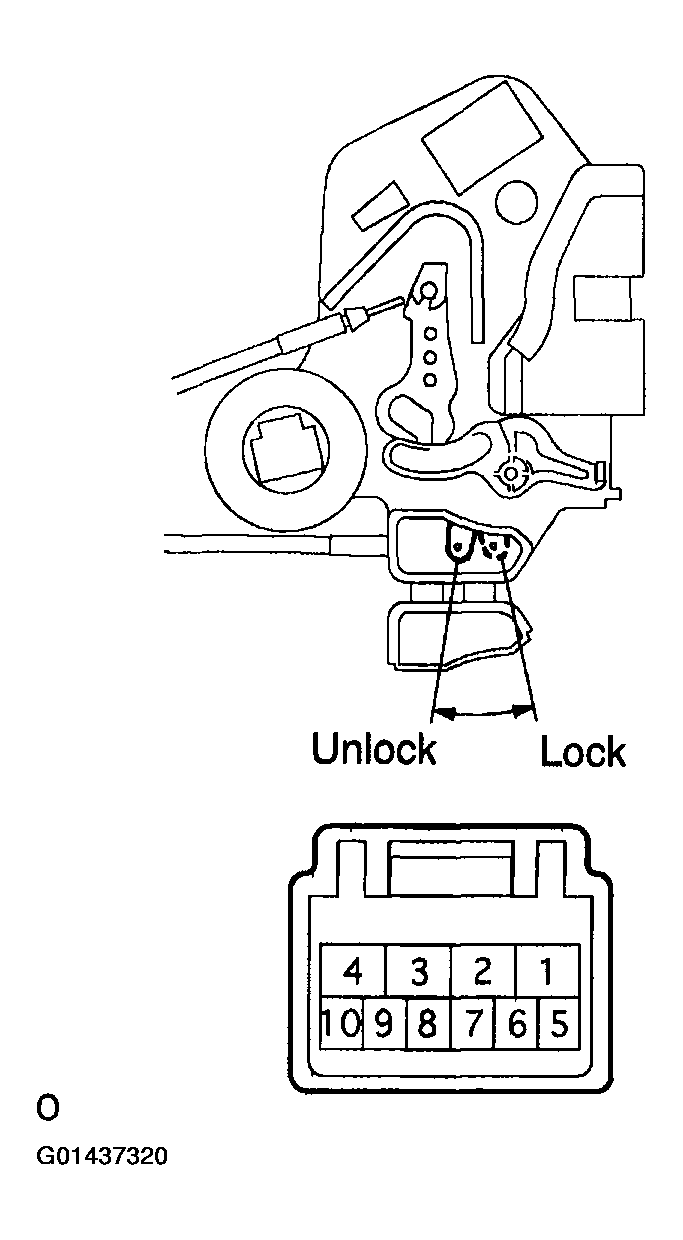

  Fig 1: Identifying Rear Door W/Motor Lock Assy RH Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

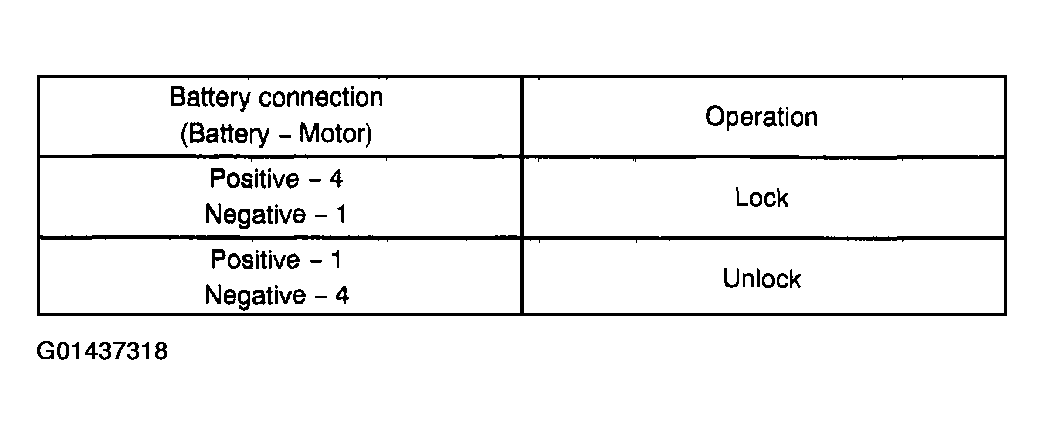

  Fig 2: Door Lock Motor Operation Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the continuity of the position switch.
  Standard:

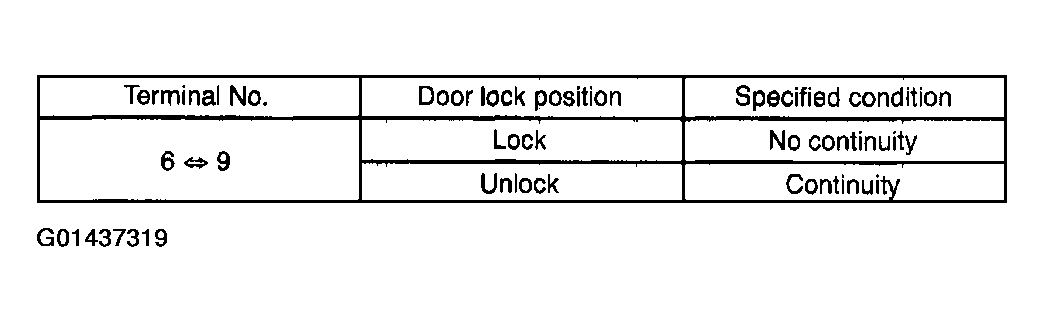

  Fig 3: Position Switch Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPLACE REAR DOOR W/MOTOR LOCK ASSY RH

  OK: Go to next step.
CHECK WIRE HARNESS

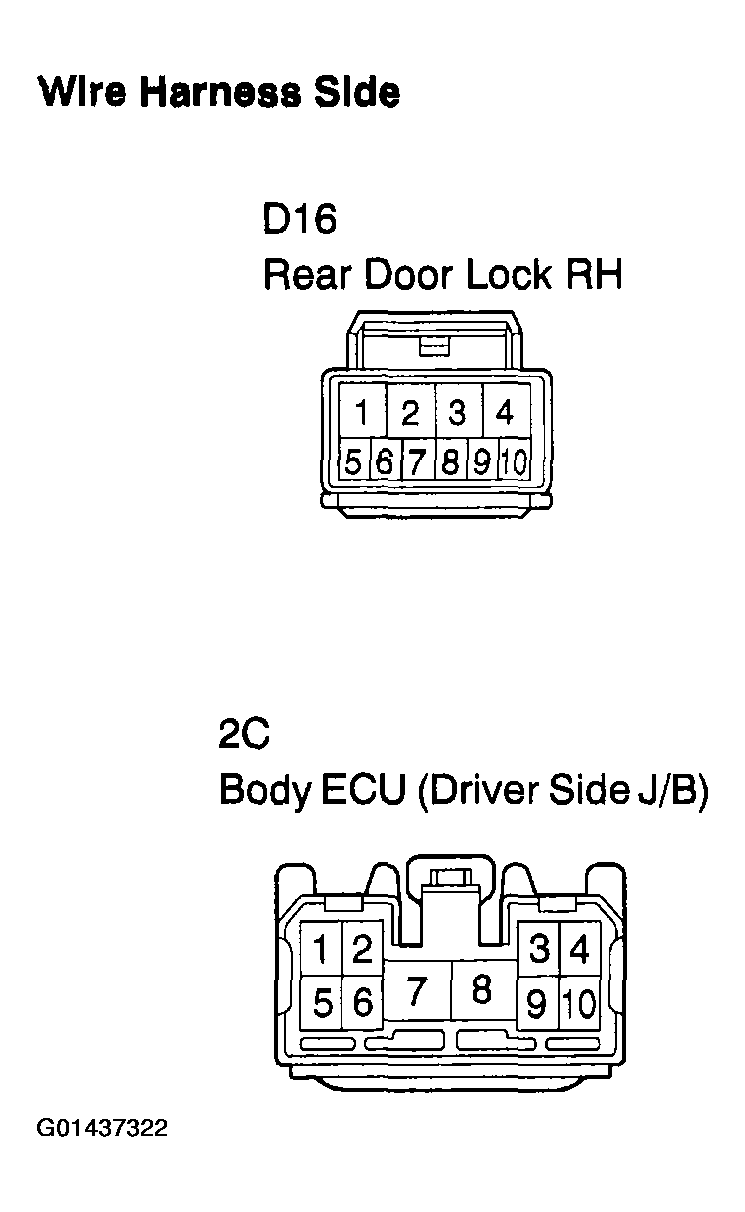

1. Disconnect the D16 rear door lock RH connector.
2. Disconnect the 2C connector from the driver side J/B.
3. Check the continuity between the disconnected connectors.
  Standard:

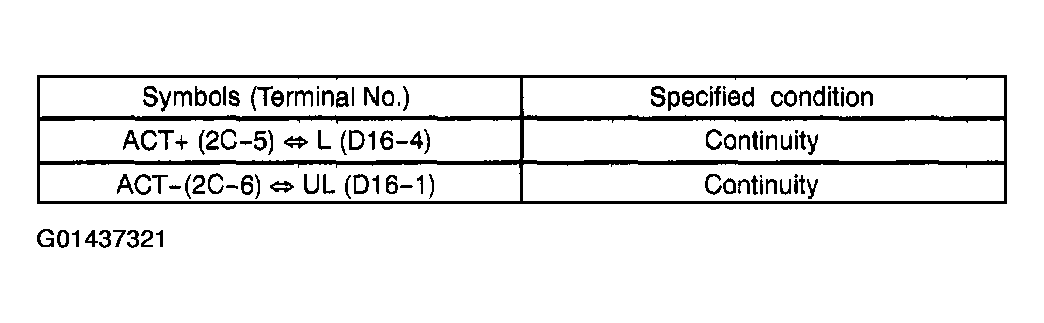

  Fig 5: Disconnected Connector Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

  OK: REPLACE DRIVER SIDE JUNCTION BLOCK ASSY
