Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT DOOR W/MOTOR LOCK ASSY RH
1. Inspect the door lock motor operation.

  Fig 1: Identifying Front Door W/Motor Lock Assy RH Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

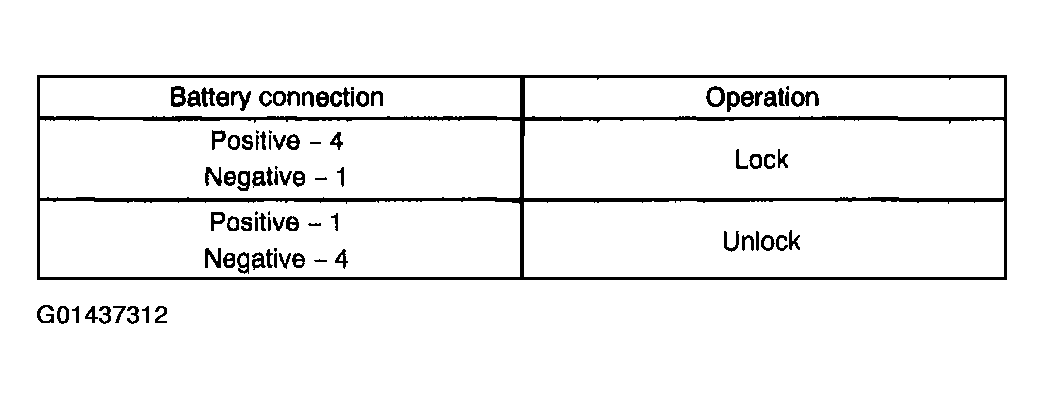

  Standard:

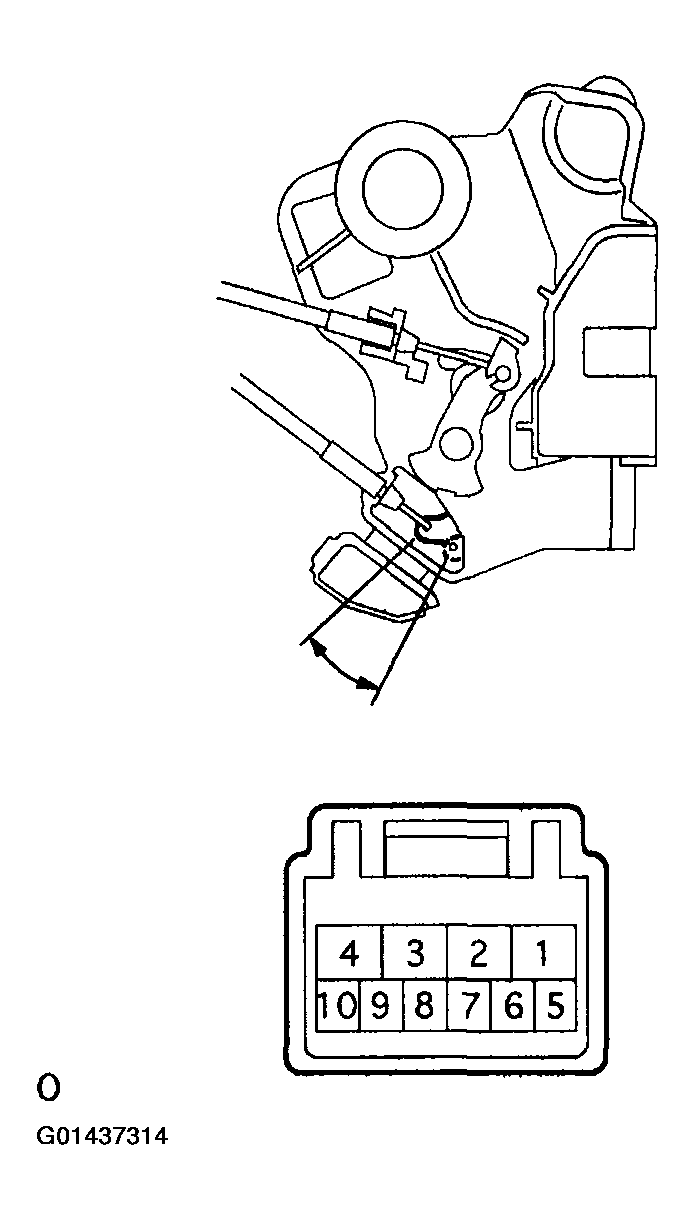

  Fig 2: Inspecting Door Lock Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the continuity of the position switch.
  Standard:

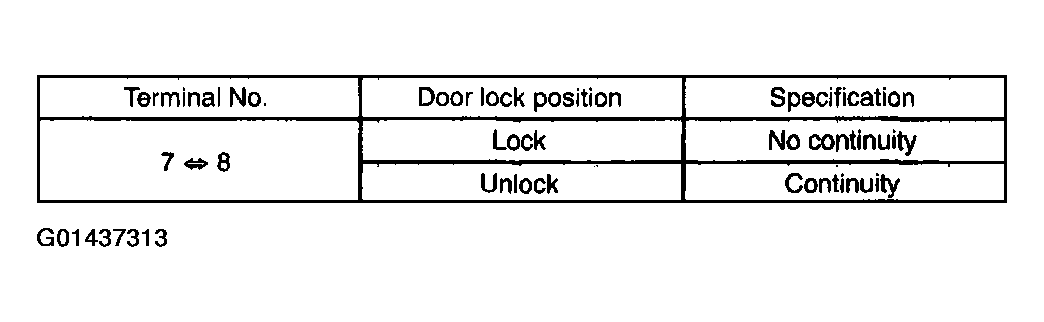

  Fig 3: Position Switch Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPLACE FRONT DOOR W/MOTOR LOCK ASSY RH

  OK: Go to next step.
CHECK WIRE HARNESS

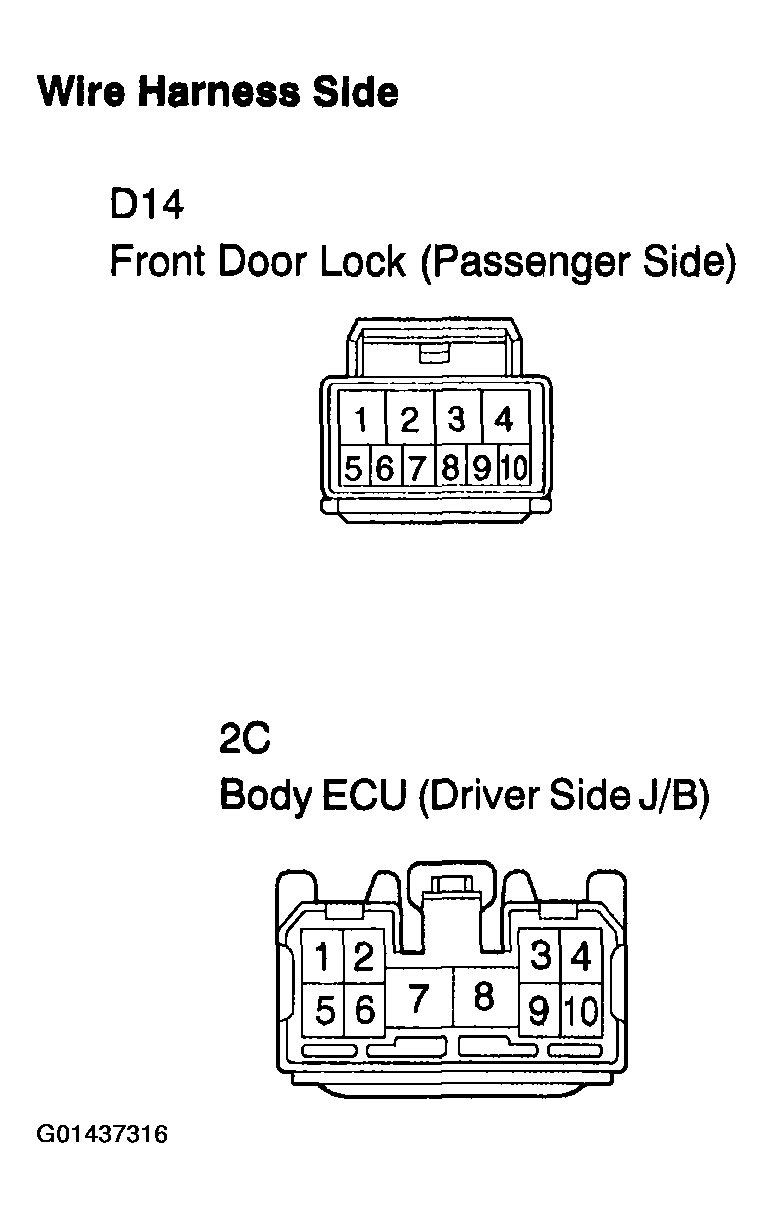

1. Disconnect the D14 door lock (passenger side) contour.
2. Disconnect the 2C connector from the driver side J/B.
3. Check the continuity between the disconnected connectors.
  Standard:

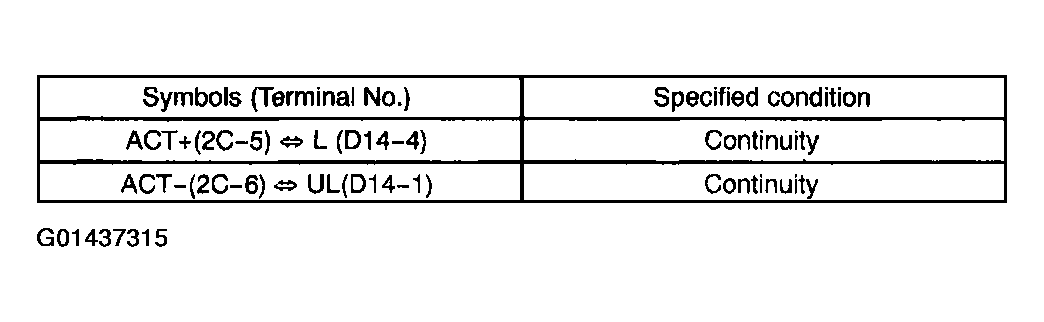

  Fig 5: Disconnected Connectors Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

  OK: REPLACE DRIVER SIDE JUNCTION BLOCK ASSY
