Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT DOOR W/MOTOR LOCK ASSY LH
1. Inspect the continuity of the door lock (driver side).
  Standard:

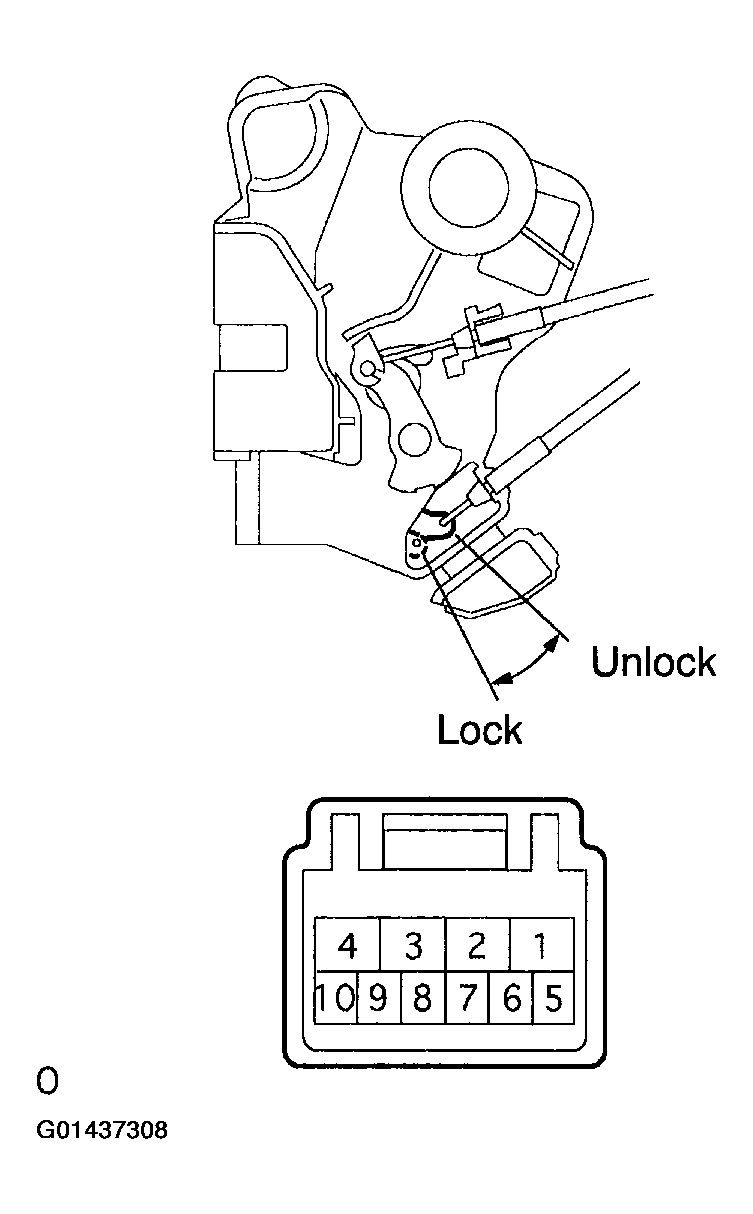

  Fig 1: Inspecting Front Door W/Motor Lock Assy LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

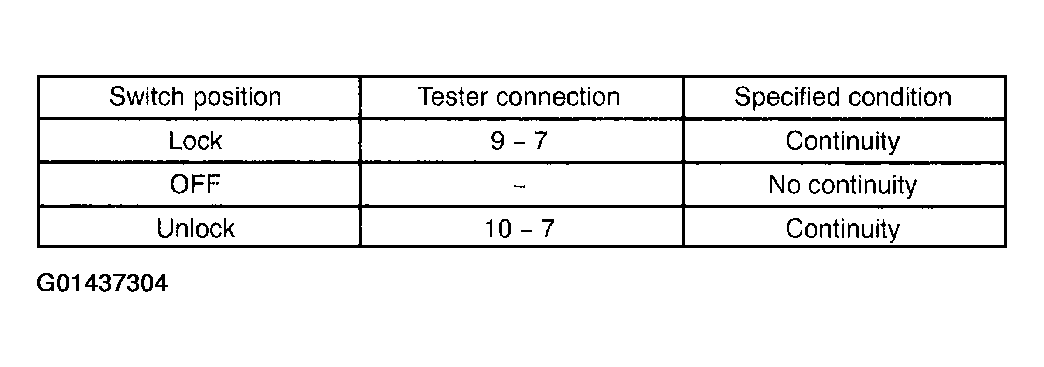

  Fig 2: Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the door lock motor operation.

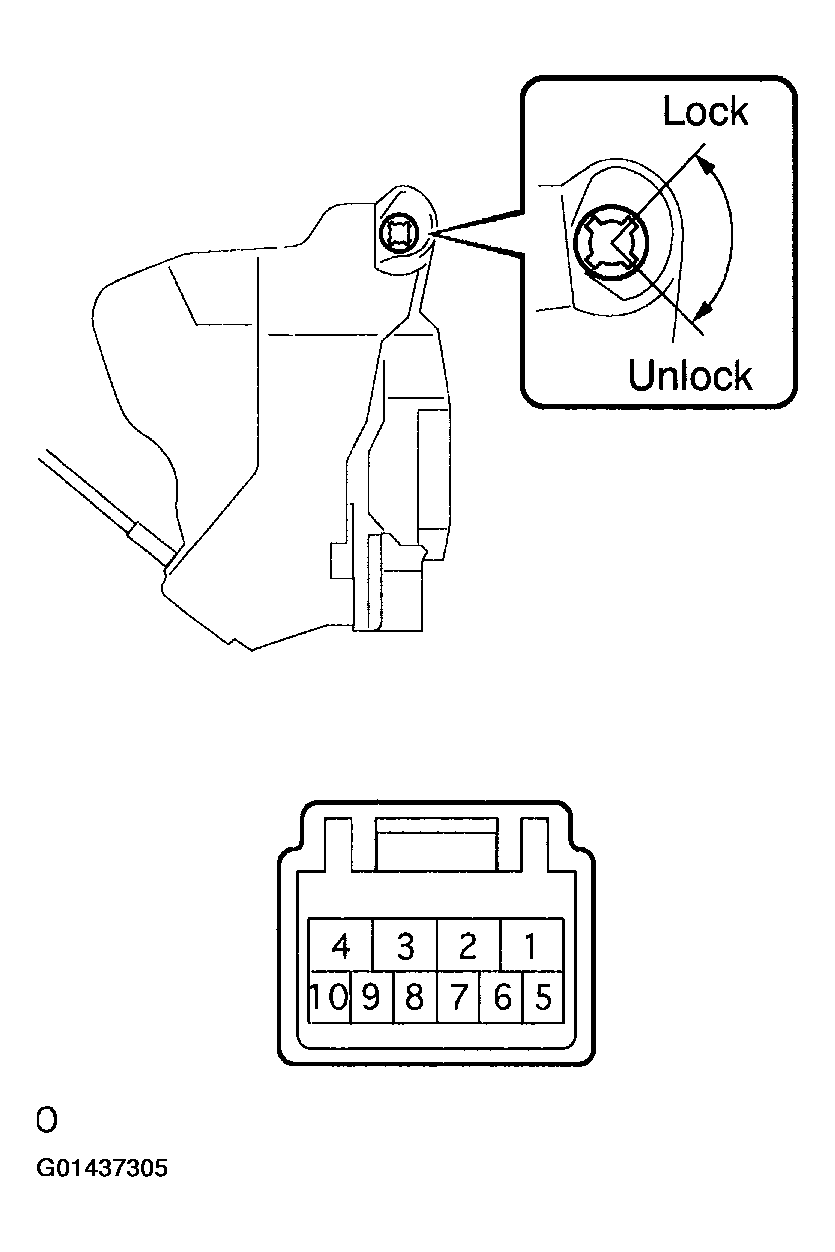

  Fig 3: Identifying Door Lock Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

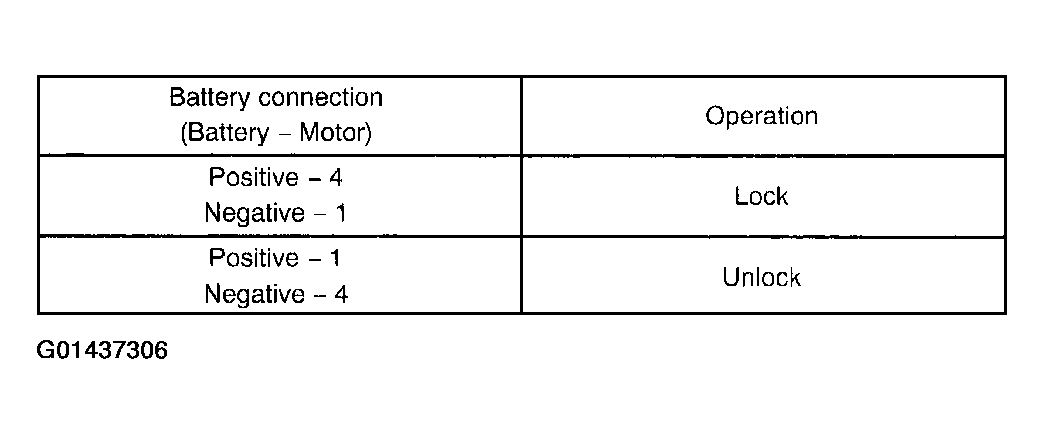

  Fig 4: Inspecting Door Lock Motor Operation Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspect the continuity of the position switch.
  Standard:

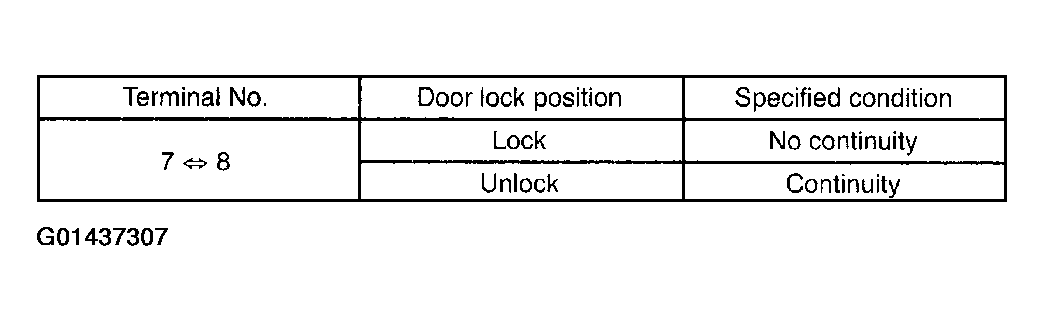

  Fig 5: Position Switch Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPLACE FRONT DOOR W/MOTOR LOCK ASSY LH

  OK: Go to next step.
CHECK WIRE HARNESS

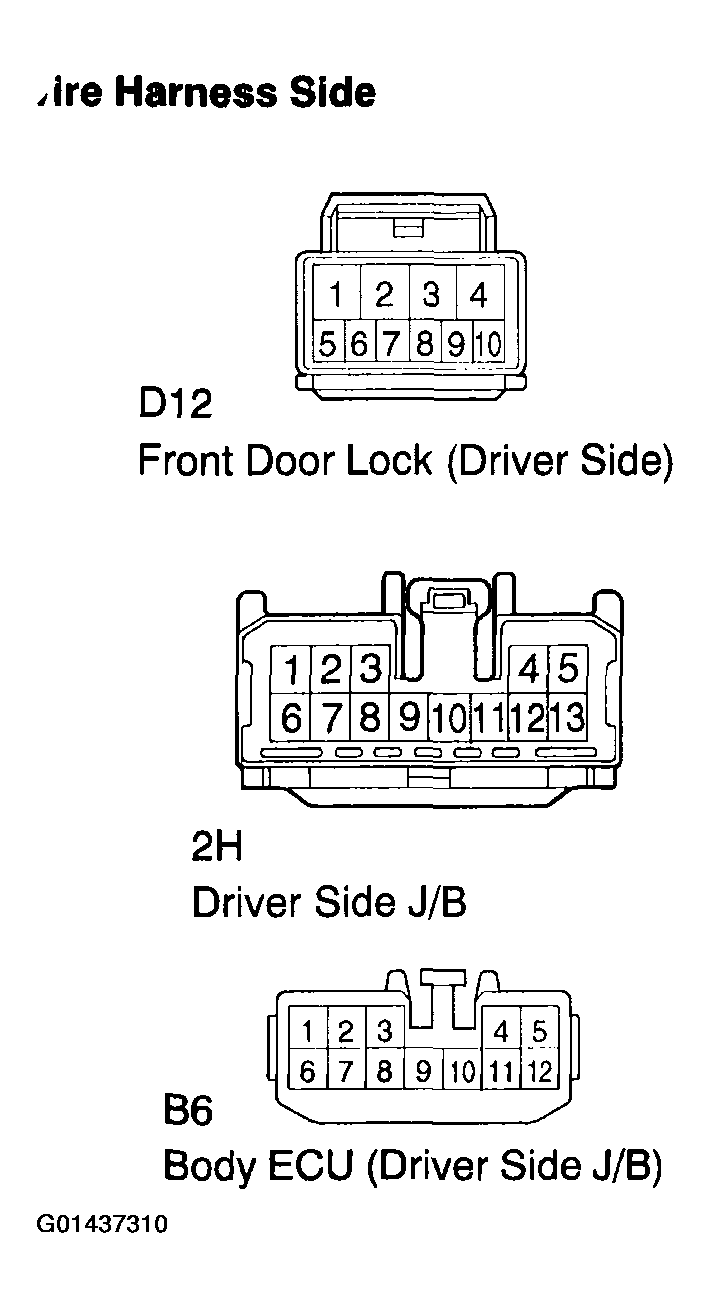

1. Disconnect the D12 front door lock (driver side) connector.
2. Disconnect the 2H and B6 connectors from the driver side J/B.
3. Check the continuity between the disconnected connectors.
  Standard:

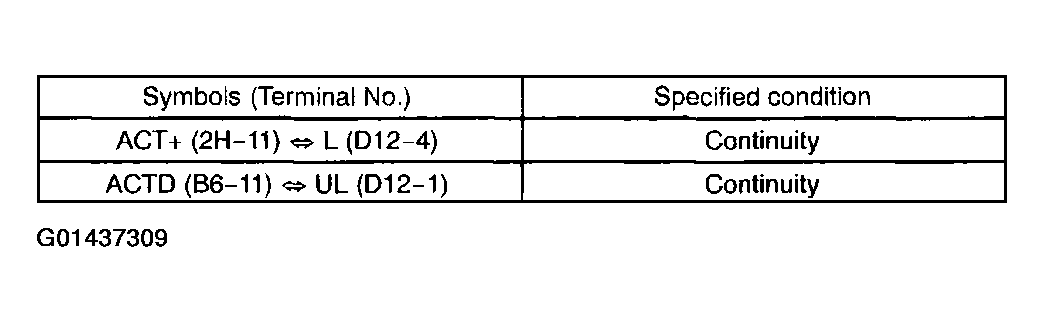

  Fig 7: Wire Harness Connector Conitinuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

  OK: REPLACE DRIVER SIDE JUNCTION BLOCK ASSY
