Power Seat Motor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

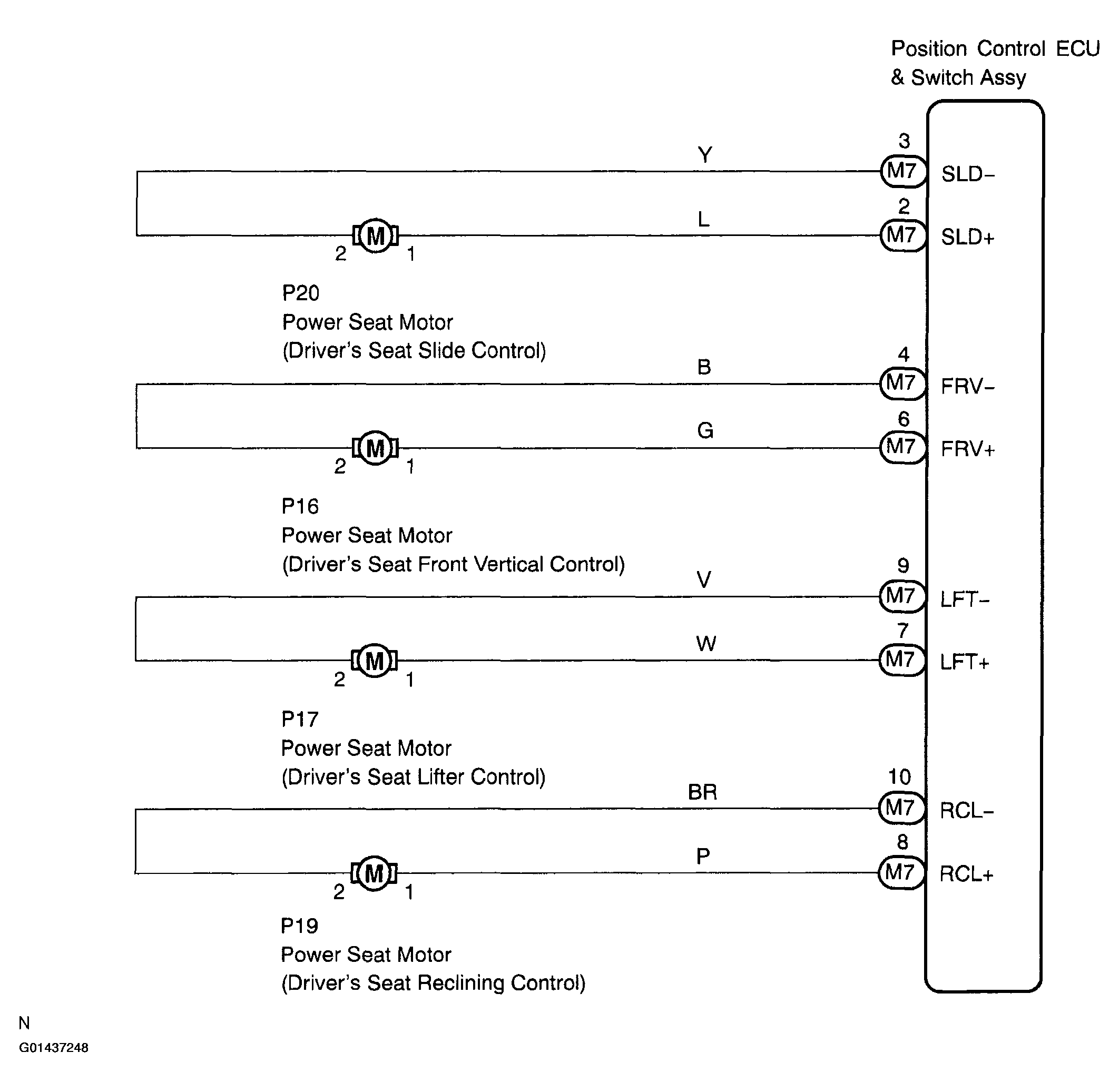

Fig 1: Power Seat Motor Circuit Wiring Diagram
G01437248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
