Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT POWER SEAT MOTOR ASSY
1. Check that the motor rotates smoothly when the battery is connected to the connector terminal.

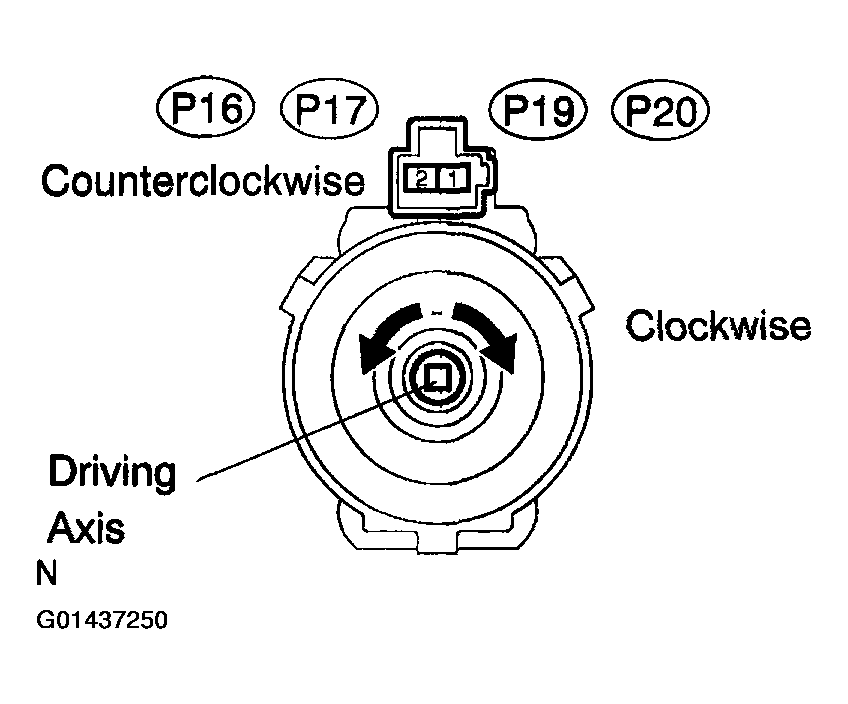

  Fig 1: Inspecting Power Seat Motor Assy P16, P17, P19, P20
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

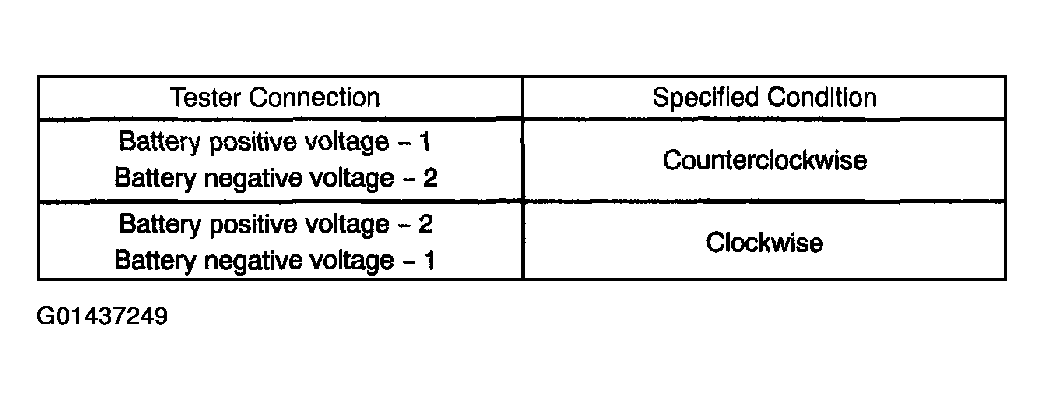

  Fig 2: Power Seat Motor Assy. Tester Connection Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPLACE POWER SEAT MOTOR ASSY (See OVERHAUL )

  OK: Go to next step.
CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU & SWITCH ASSY - POWER SEAT MOTOR ASSY)
1. Disconnect M7 ECU and P16, P17, P19 and P20 motor connectors.
2. Measure the resistance of the wire harness side connectors.
  Standard:

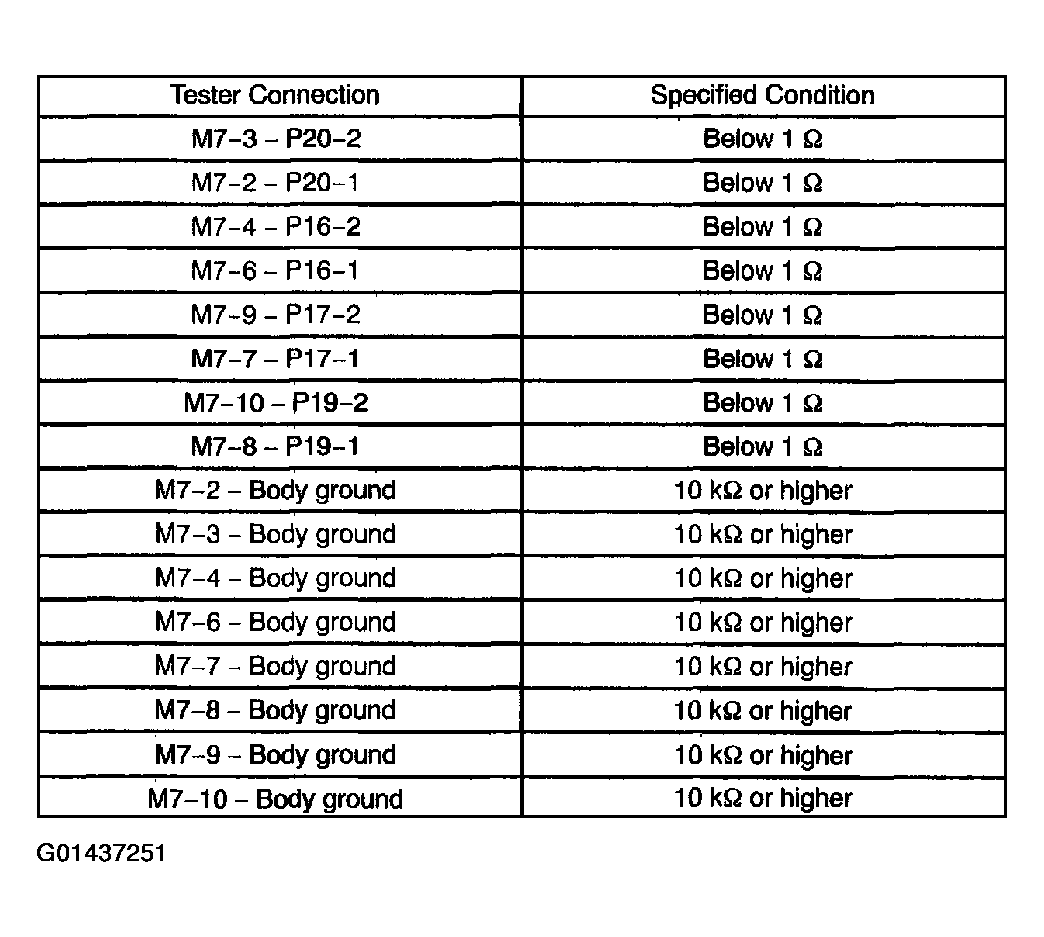

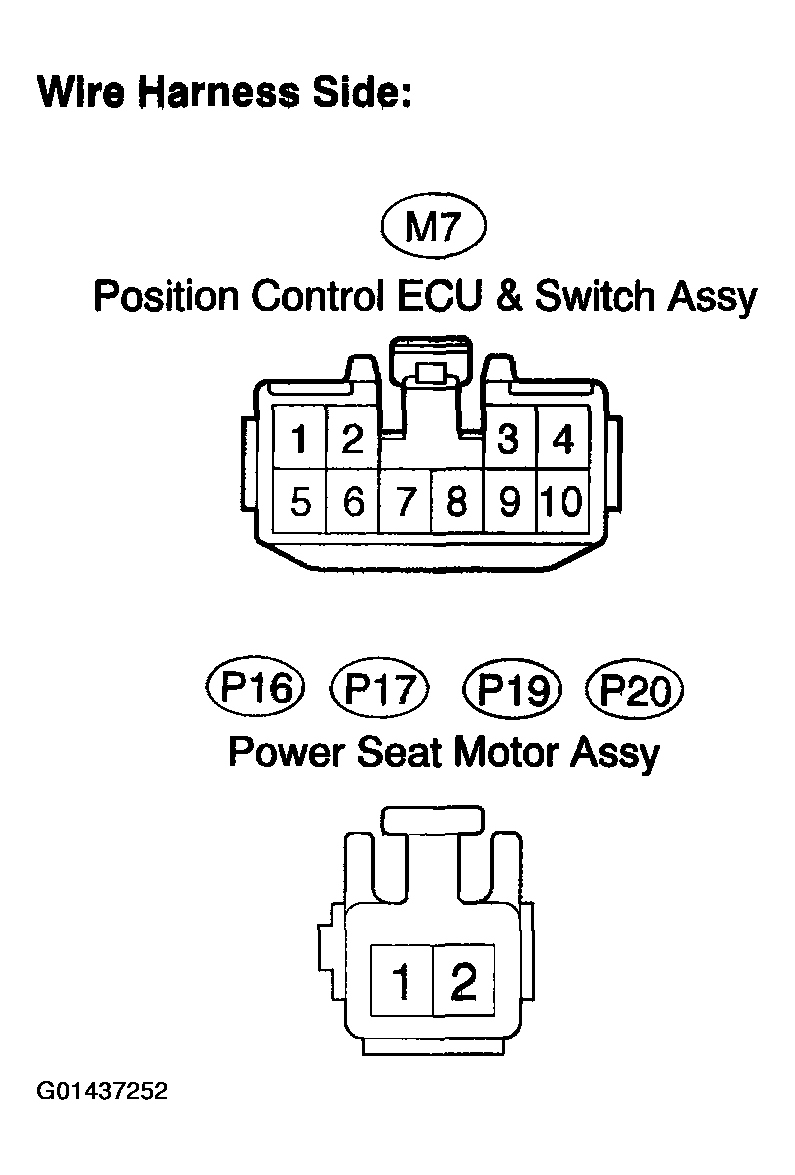

  Fig 4: Harness and Connector (Position Control, ECU & Switch Assy. - Power Seat Motor Assy.) Resistance Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

  OK: REPLACE POSITION CONTROL ECU & SWITCH ASSY (See OVERHAUL )
