Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

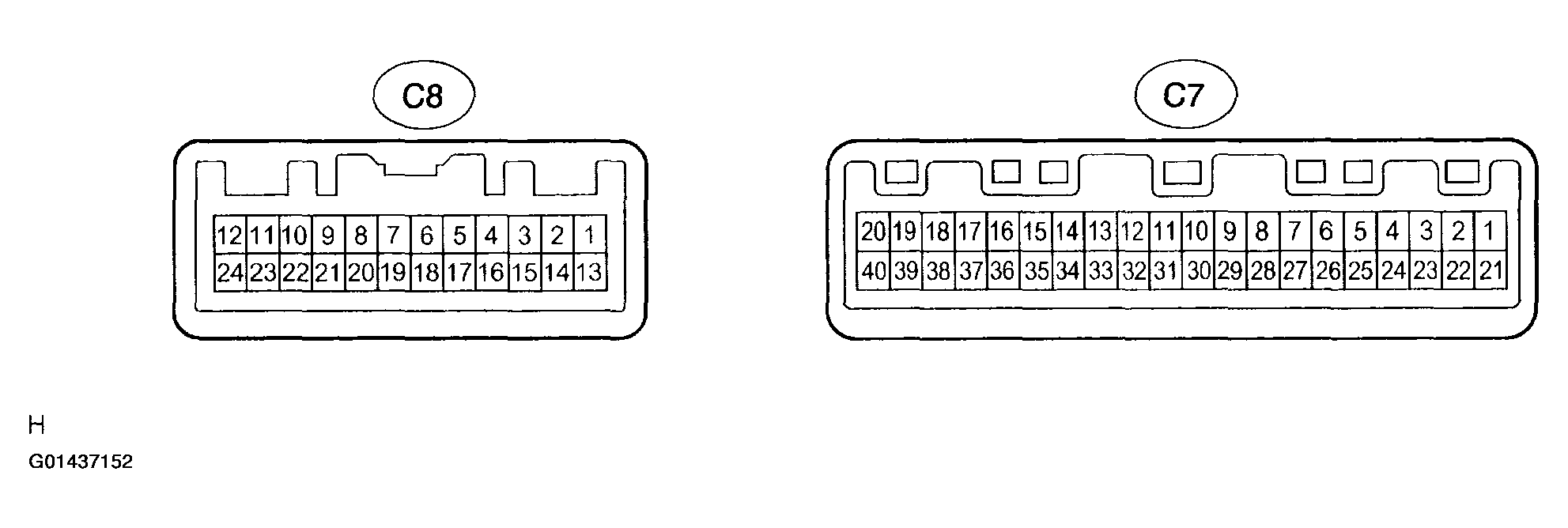

Fig 1: Identifying Connector Terminals Of C7 And C8

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

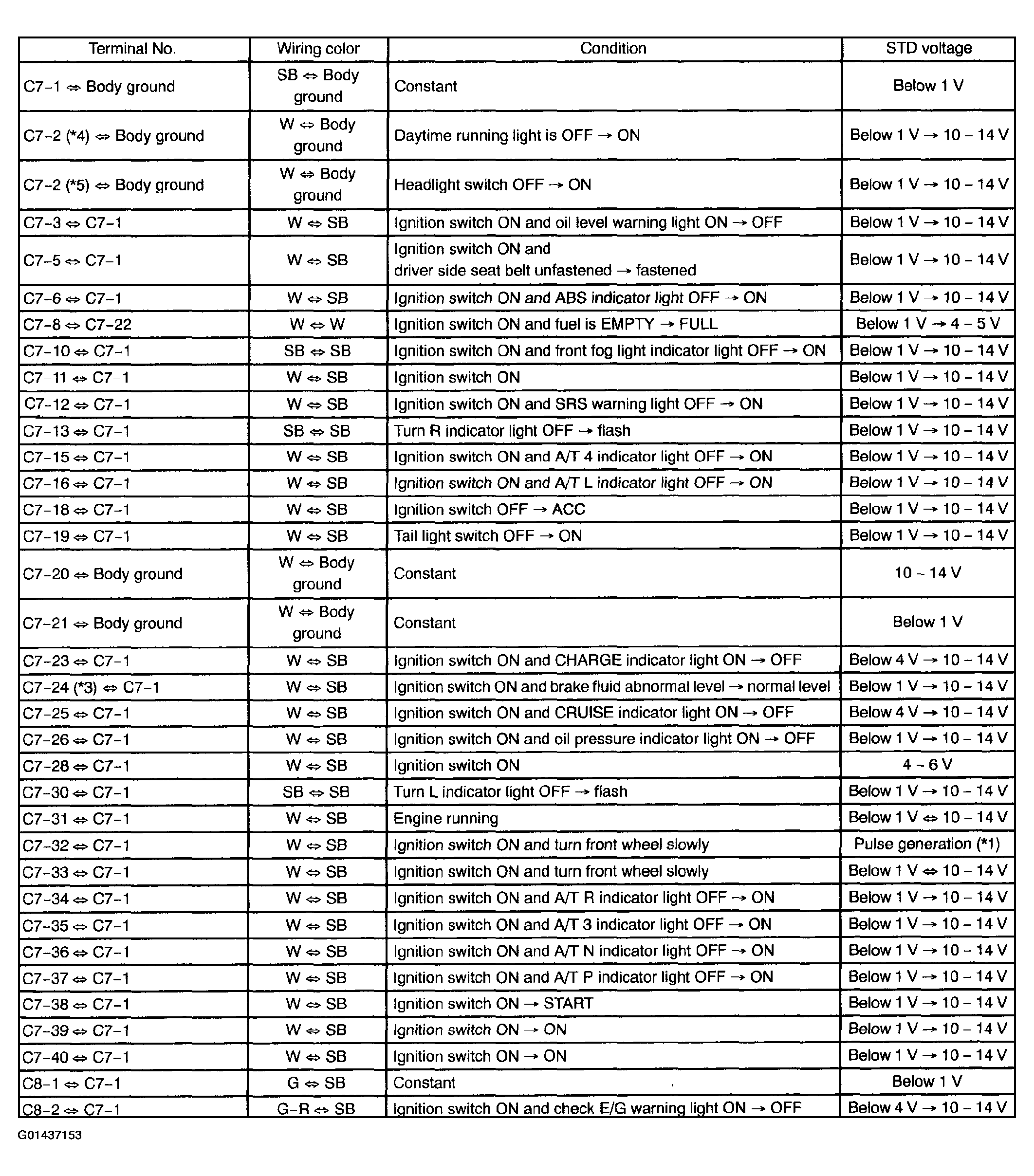

Fig 2: Terminal Reference Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

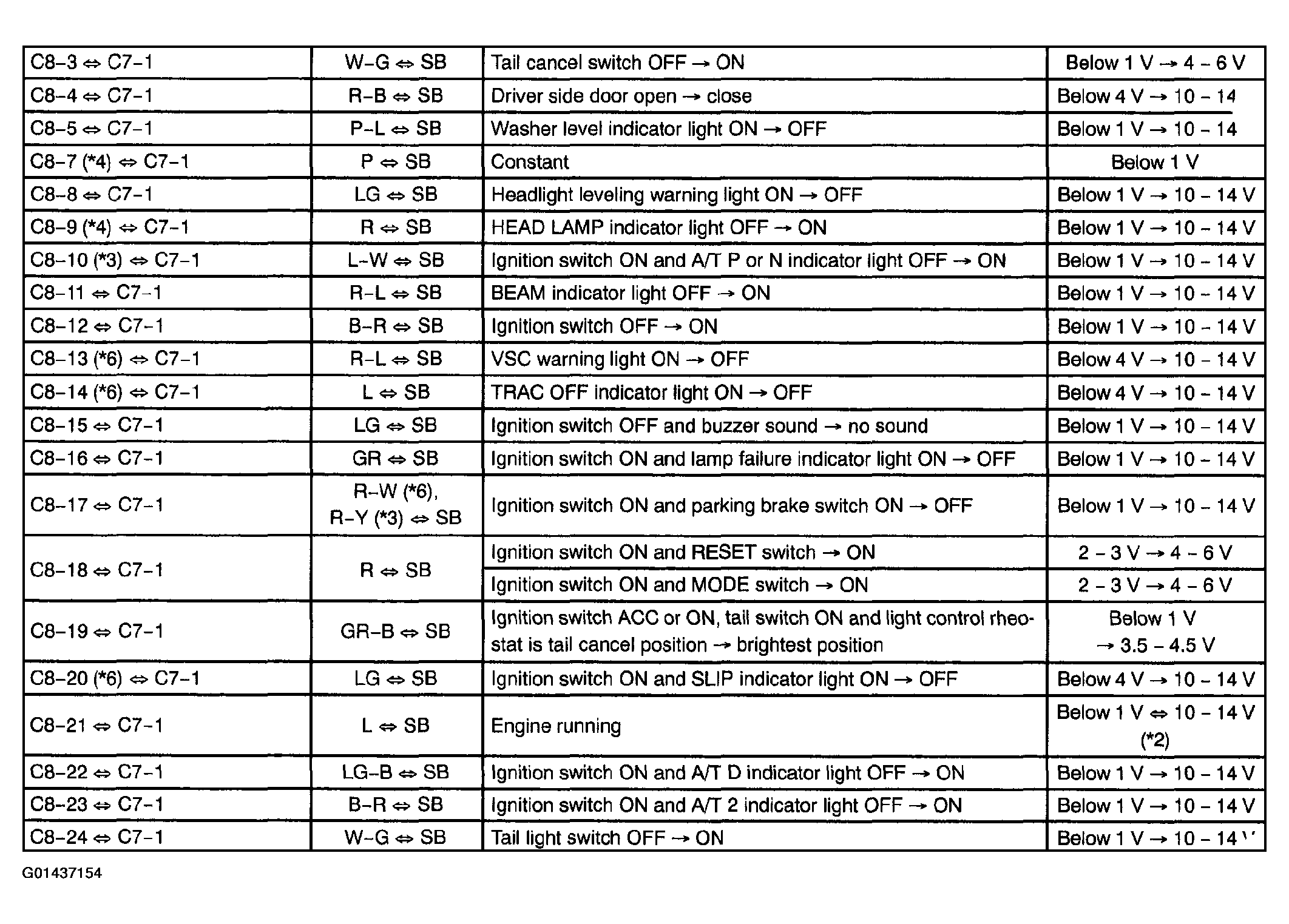

Fig 3: Terminal Reference Chart (2 Of 2)

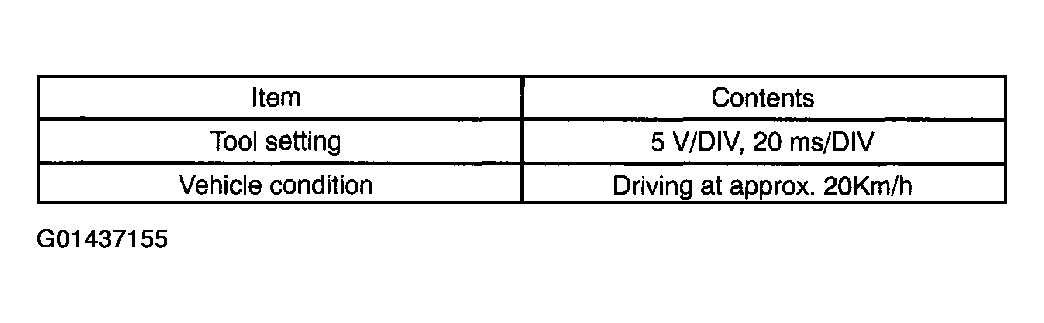

(*1): Reference: Using oscilloscope:

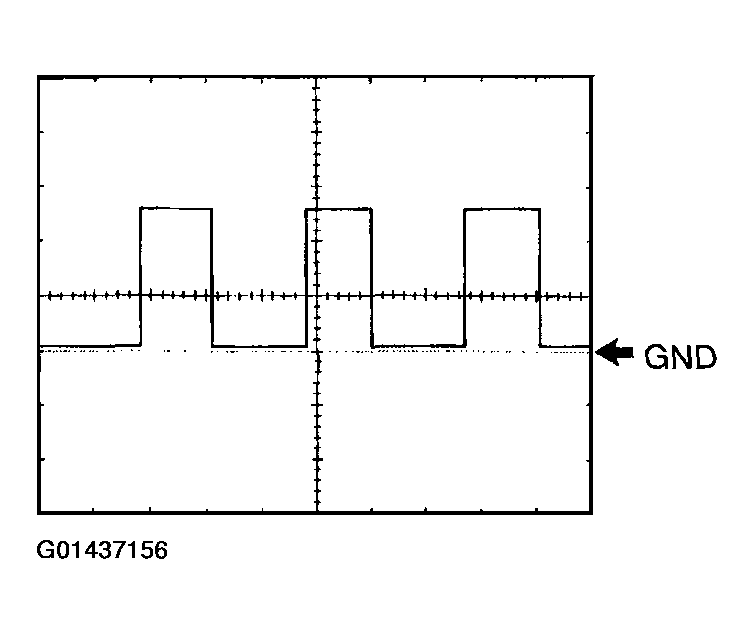

Fig 4: Oscilloscope Wave Graph (*1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Oscilloscope Wave Chart (*1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

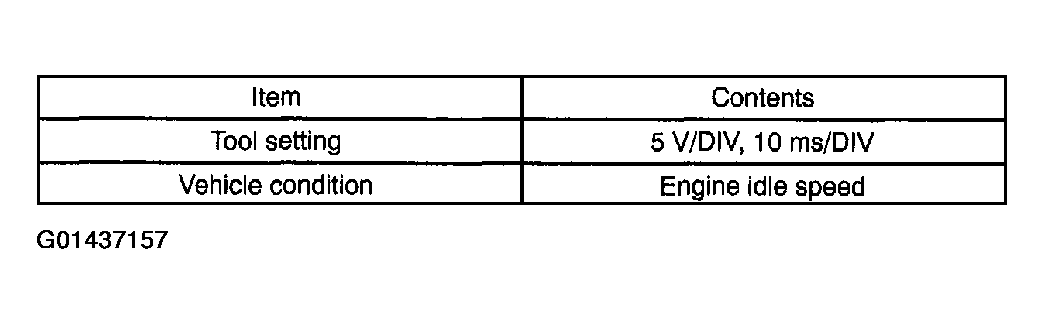

(*2): Reference: Using oscilloscope:

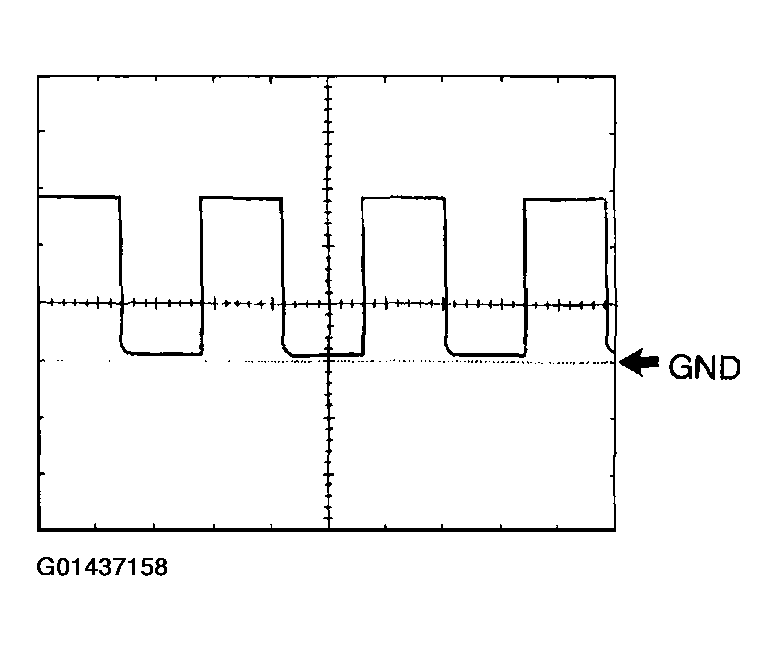

Fig 6: Oscilloscope Wave Graph (*2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Oscilloscope Wave Chart (*2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*3: w/o VSC
*4: w/ DRL
*5: w/o DRL
*6: w/ VSC
