Section 410 (Combination Meter - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

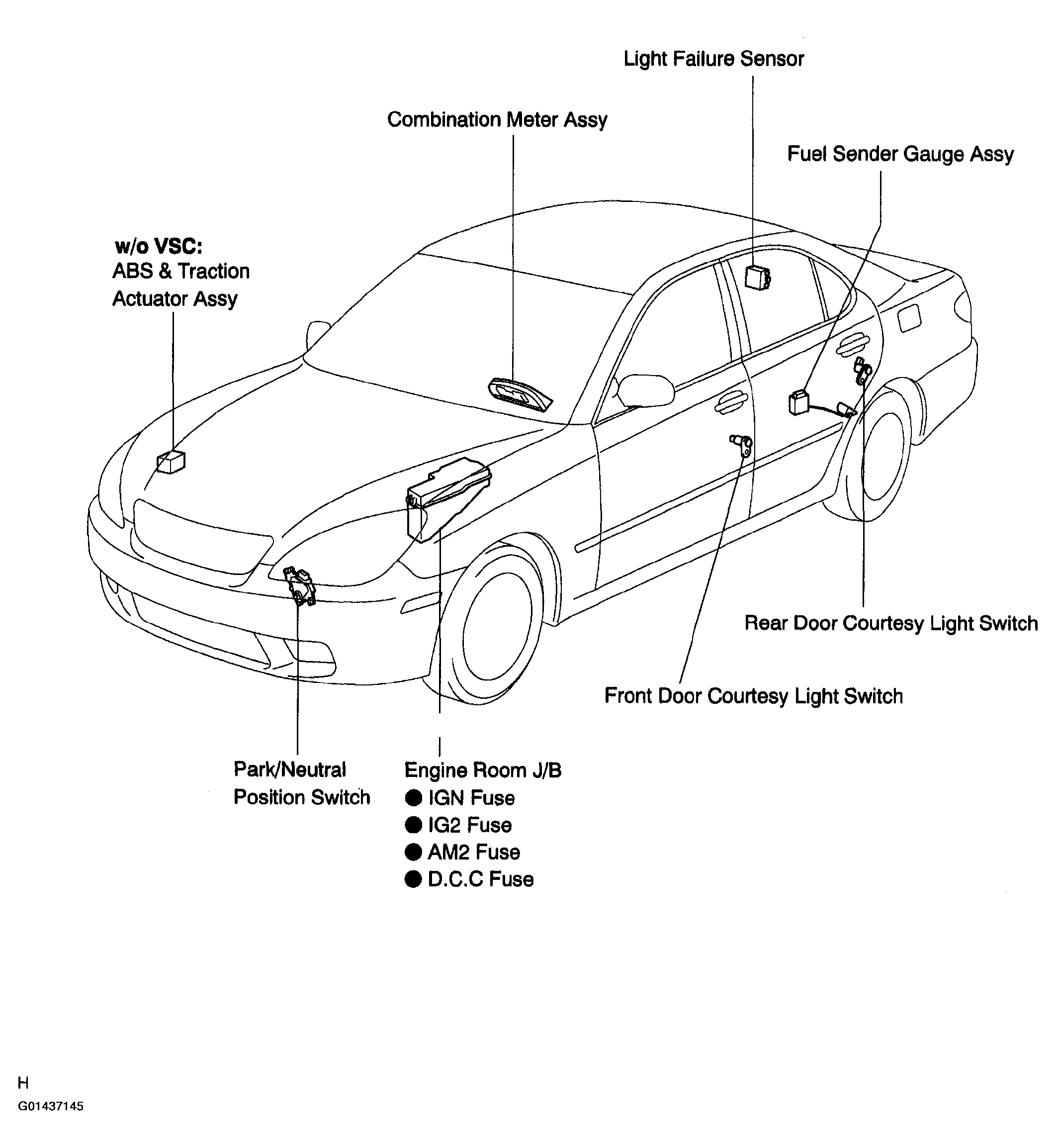

Fig 1: Identifying Combination Meter Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

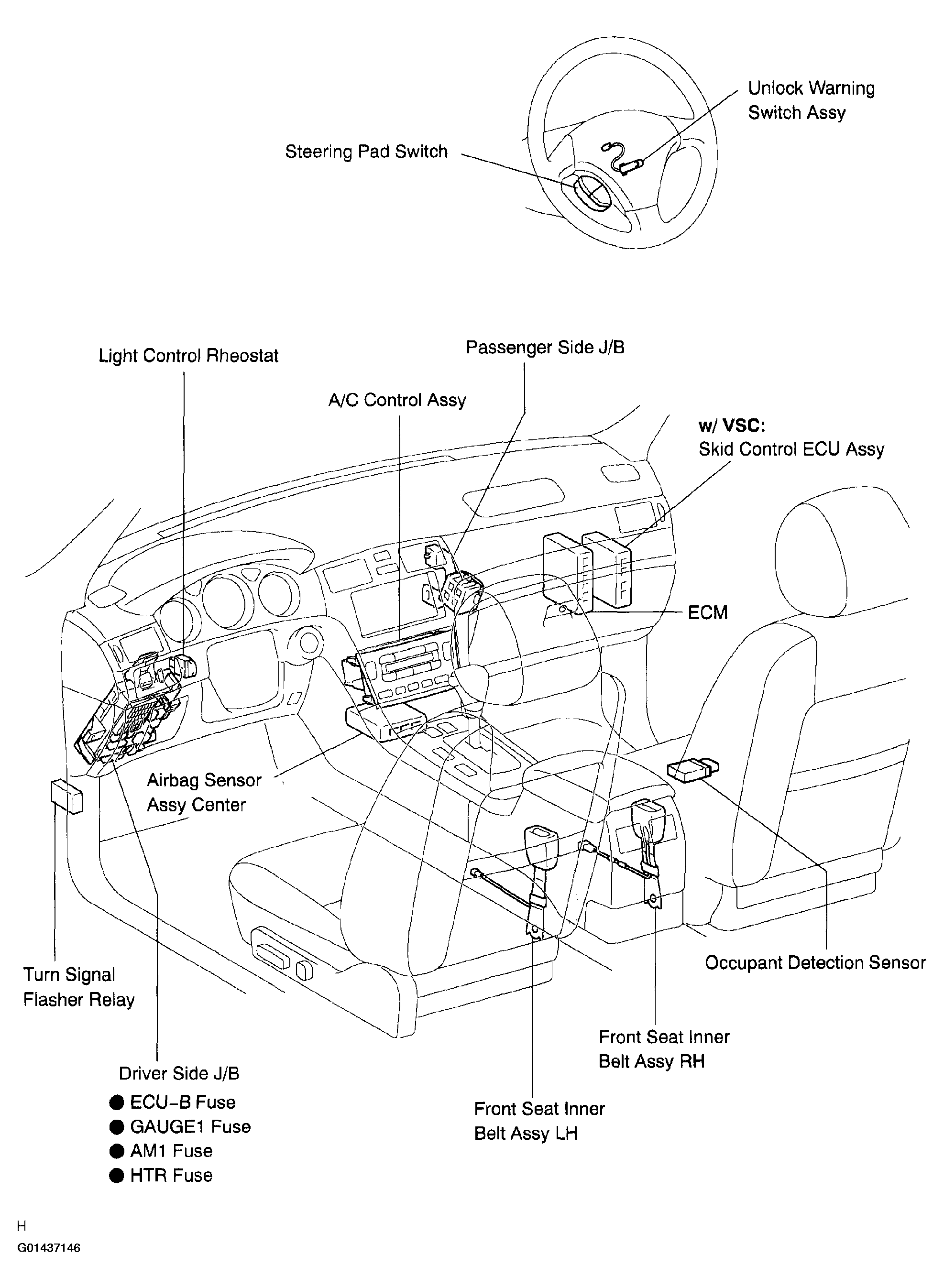

Fig 2: Identifying Combination Meter Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

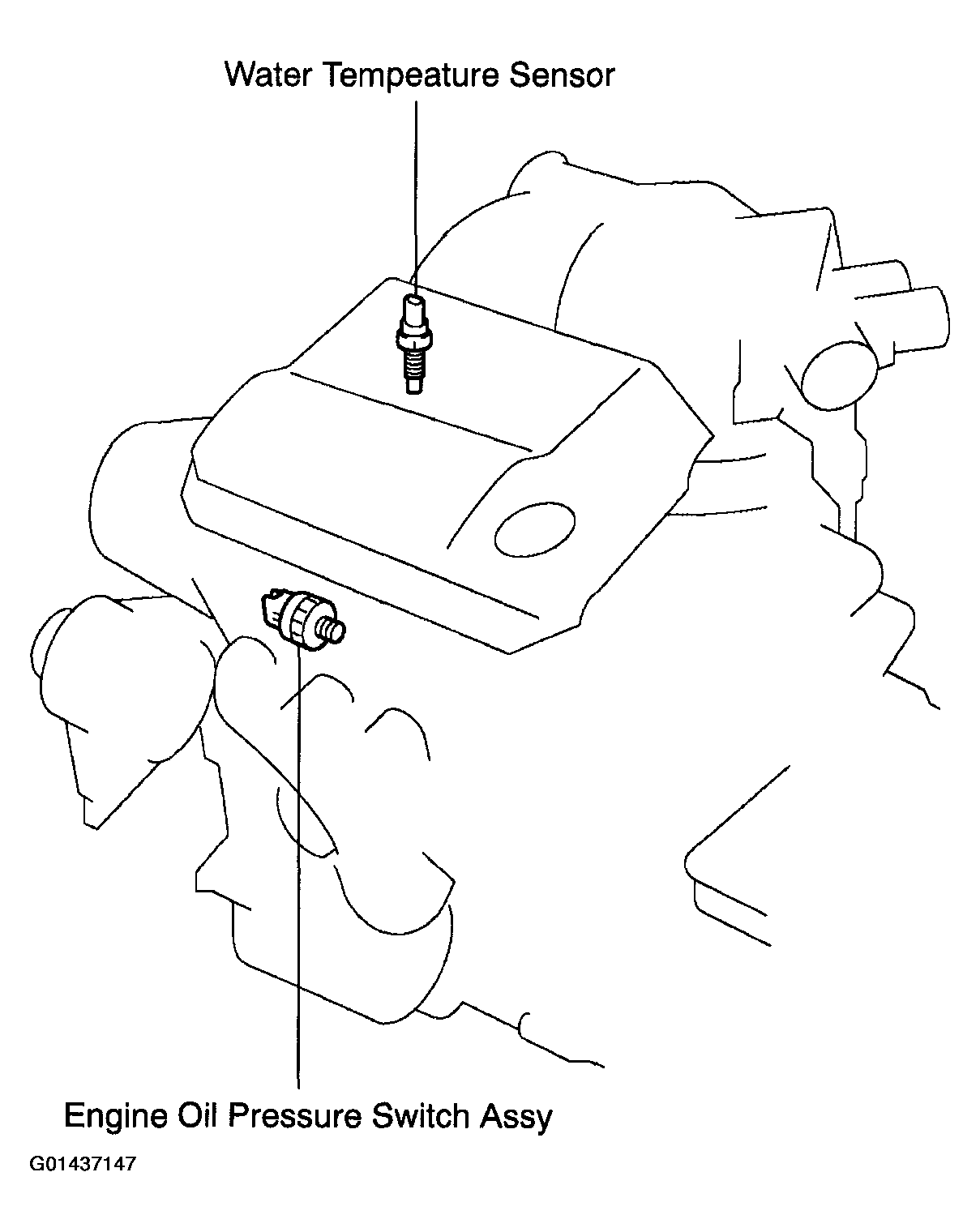

Fig 3: Identifying Water Temperature Sensor & Engine Oil Pressure Sensor Assy Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

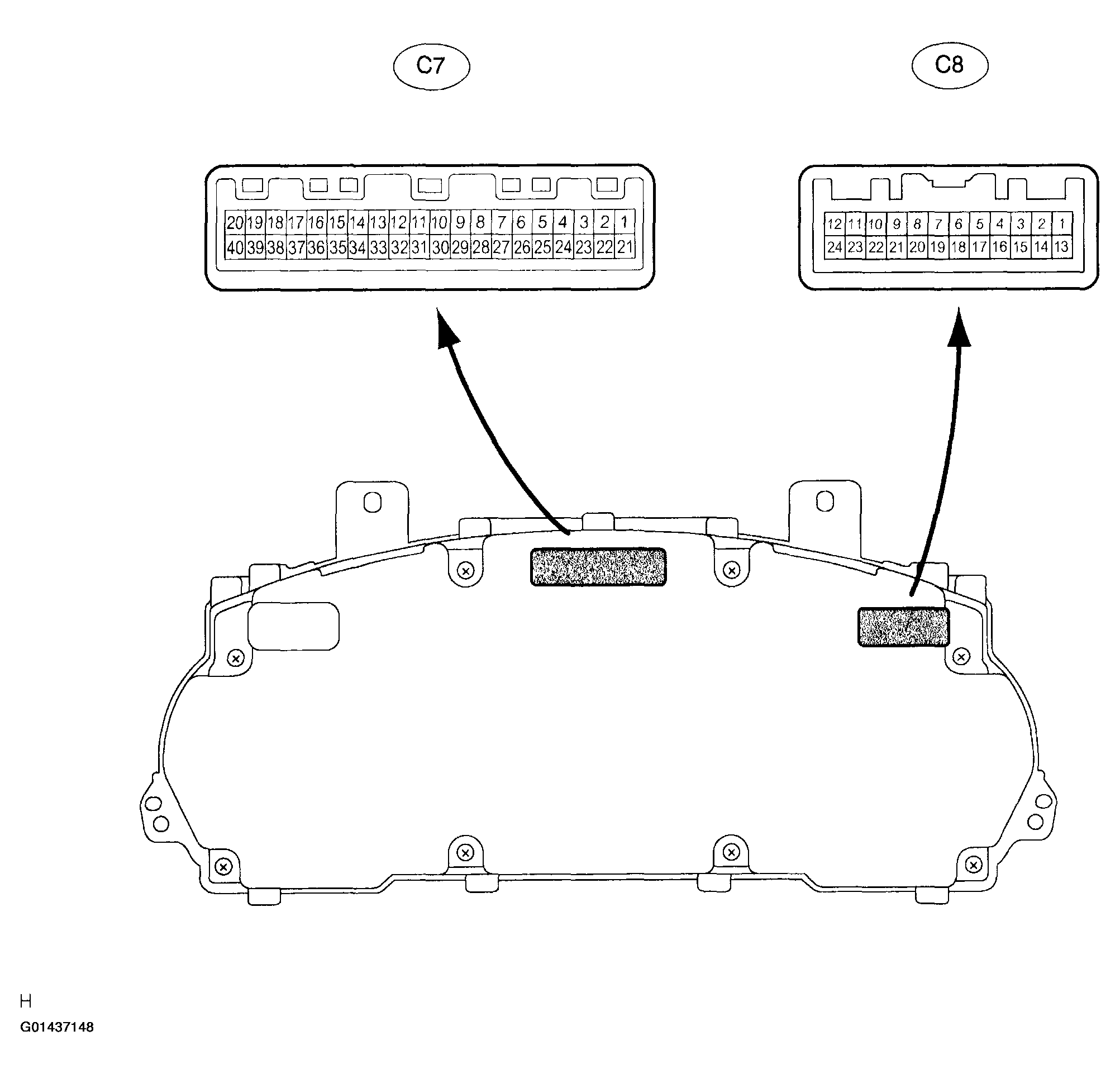

Fig 4: Identifying Terminals C7 & C8 Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

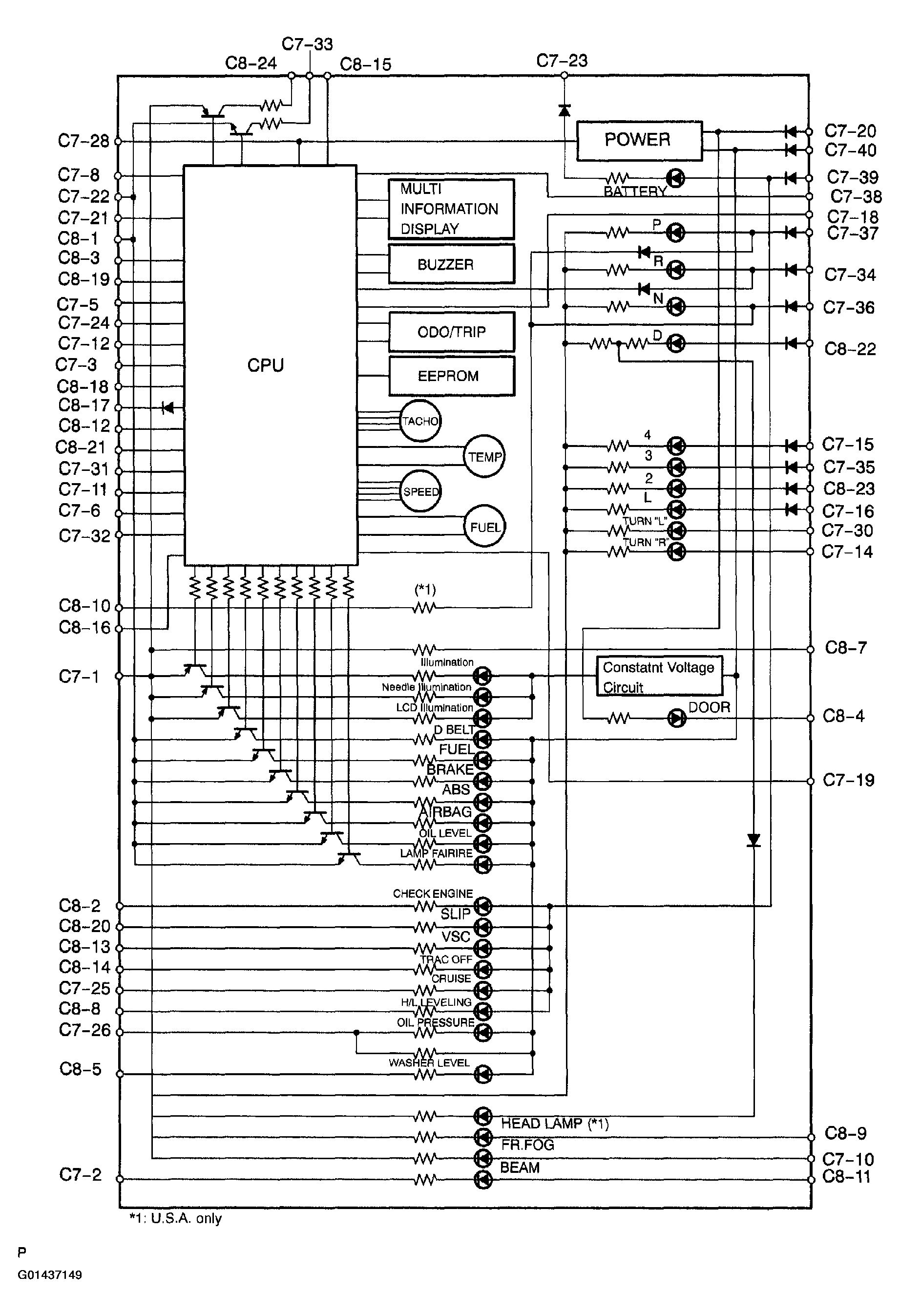

Fig 5: Identifying Combination Meter Wiring Diagram

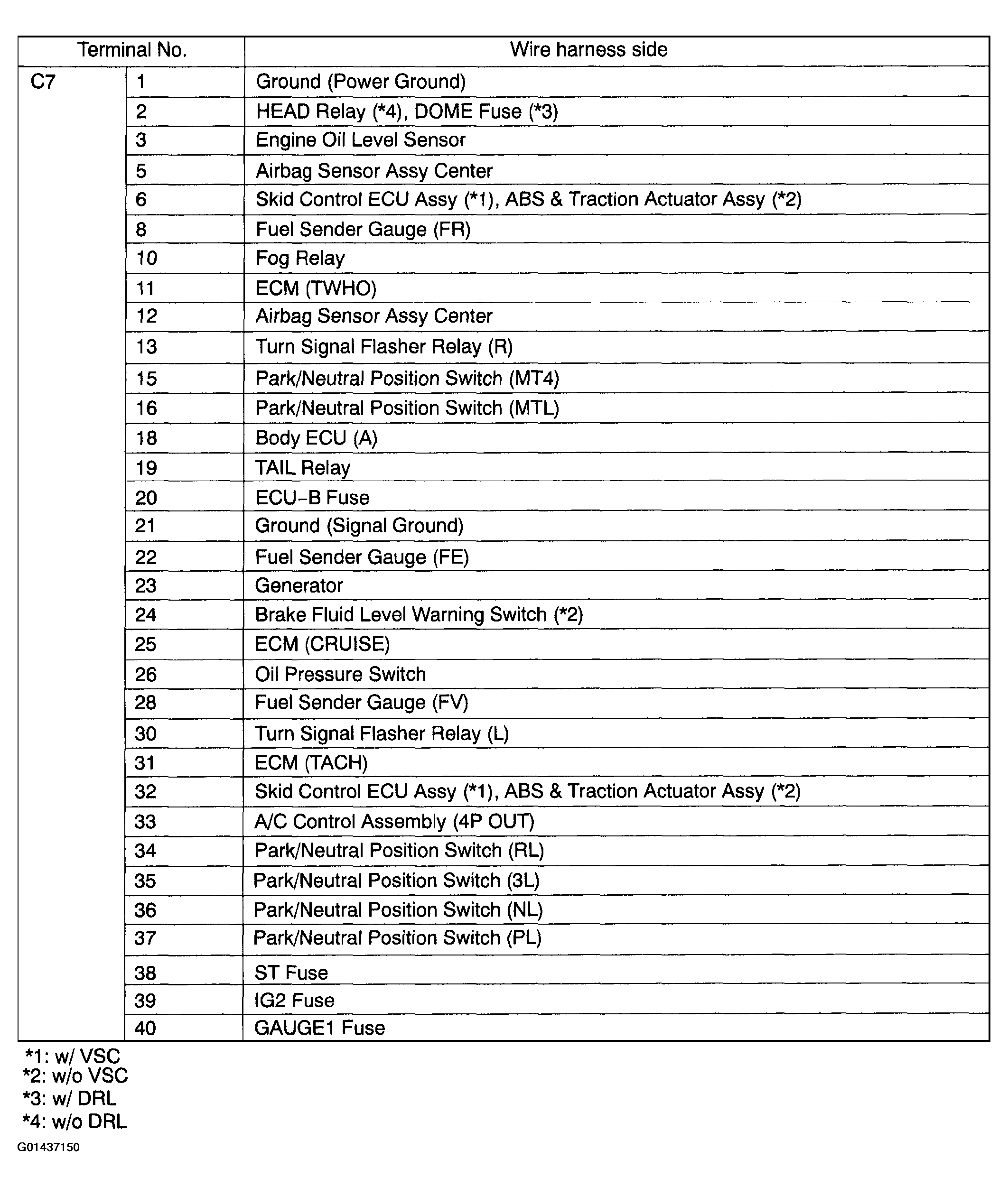

Fig 6: Terminal Reference Chart (C7)

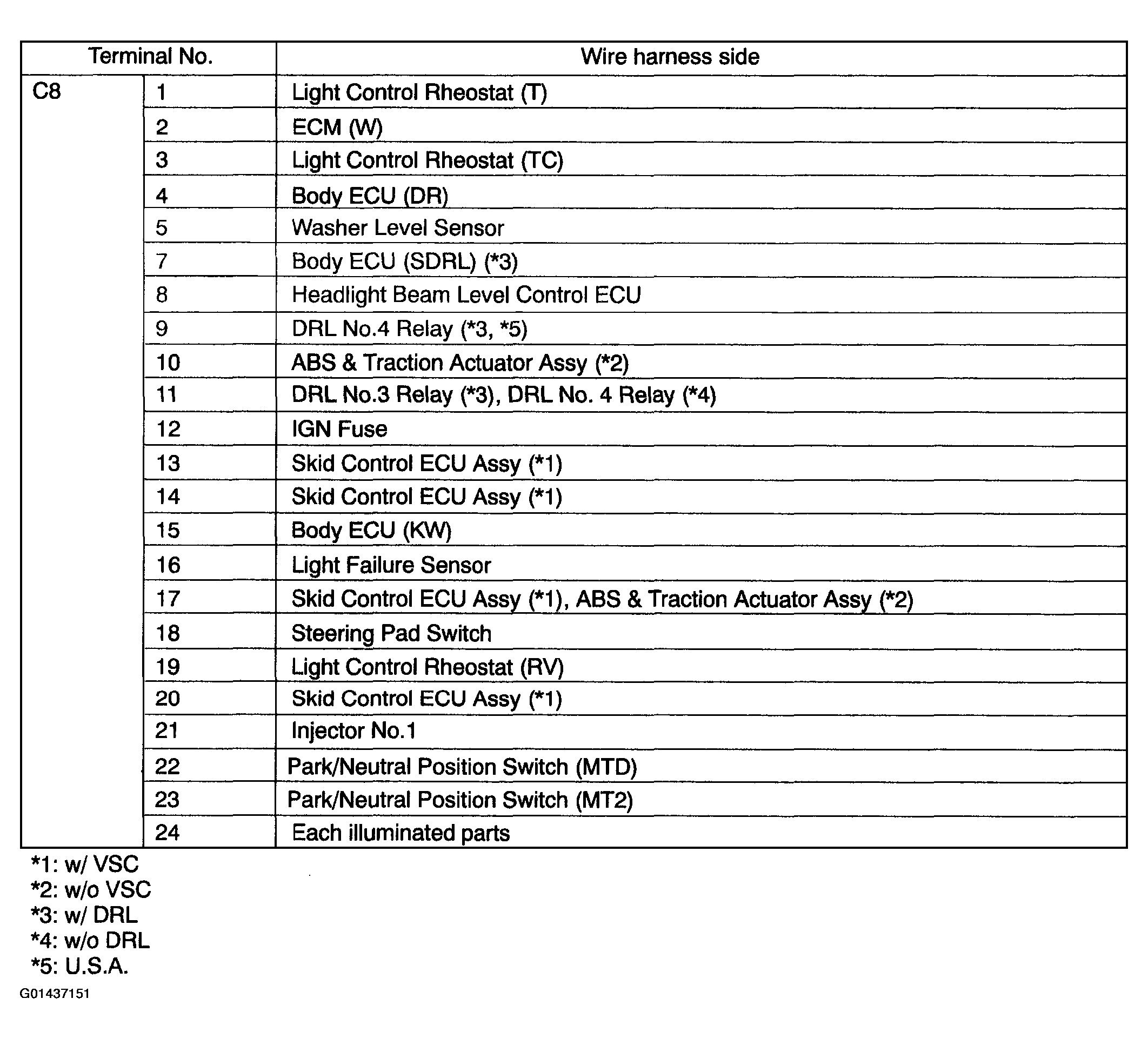

Fig 7: Terminal Reference Chart (C8)
