Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

RADIO RECEIVER ASSY (Except 1CD Type)

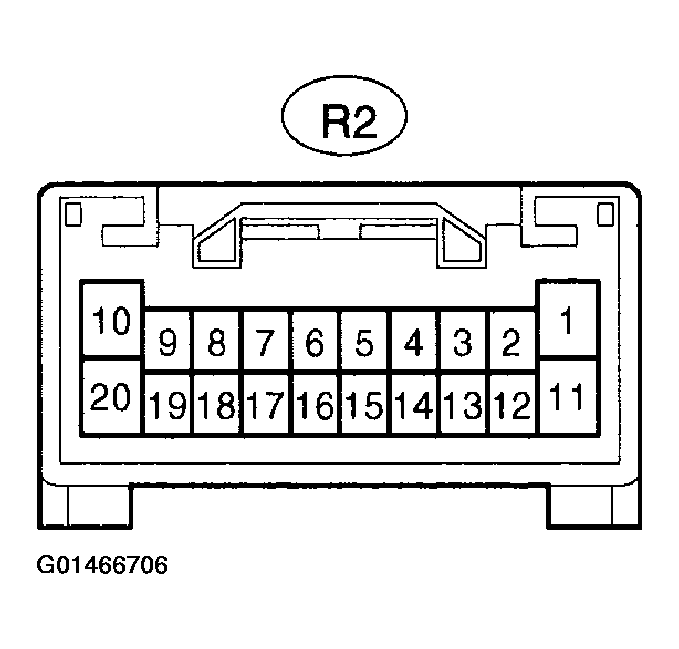

Fig 1: Identifying Radio Receiver Assy (Except 1CD Type) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

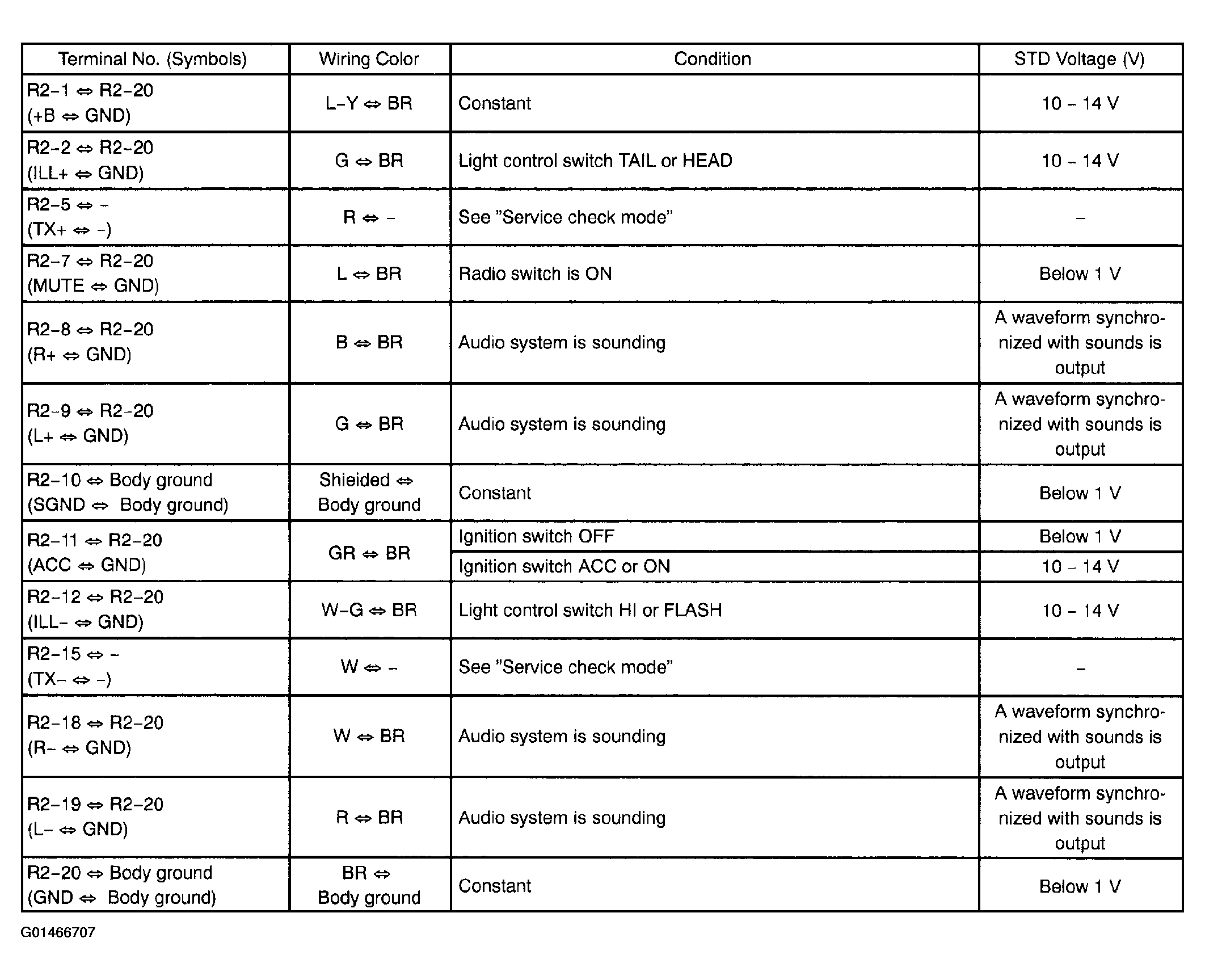

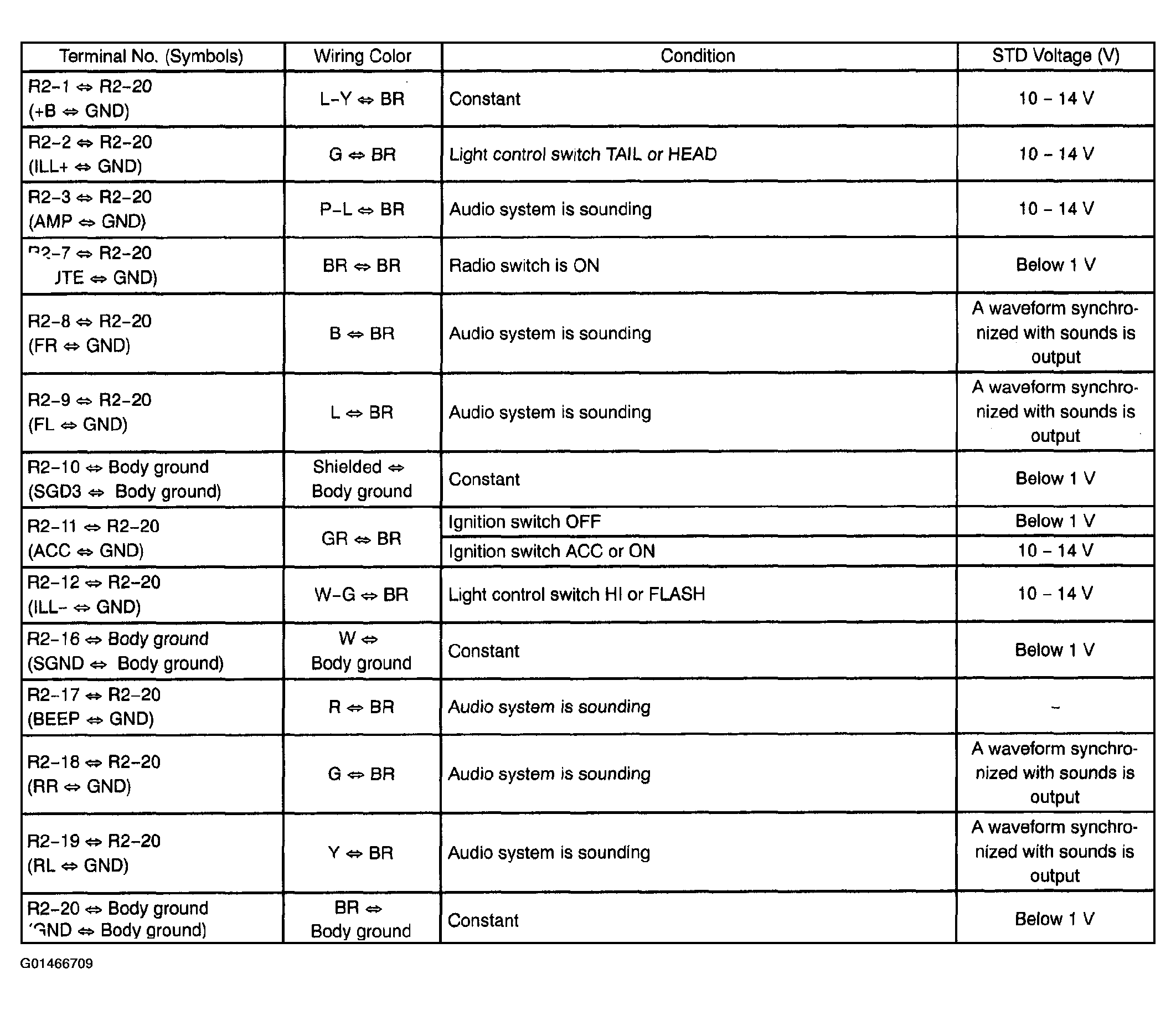

Fig 2: Radio Receiver Assy (Except 1CD Type) Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY (1CD Type)

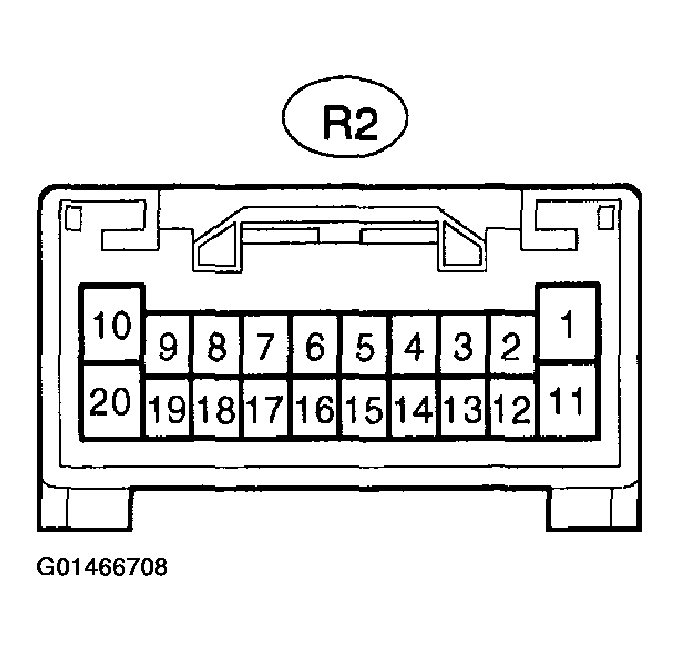

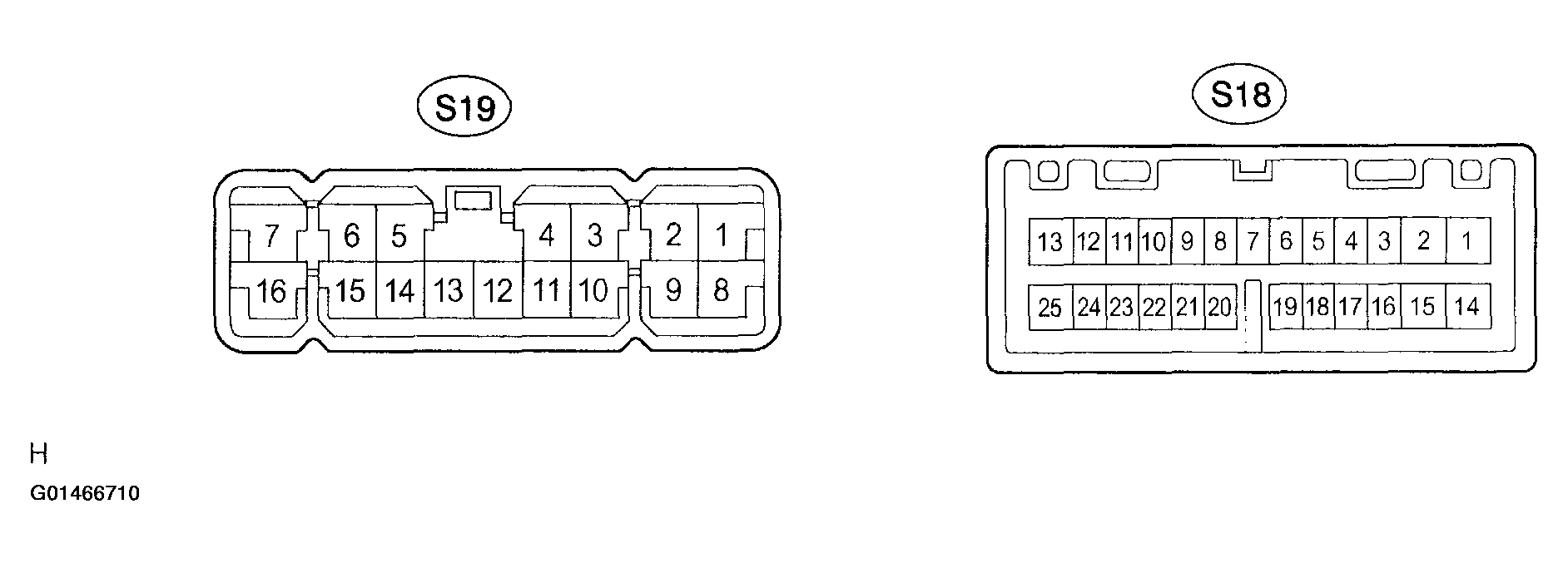

Fig 3: Identifying Radio Receiver Assy (1CD Type) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Radio Receiver Assy (1CD Type) Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY (MARK LEVINSON Type)

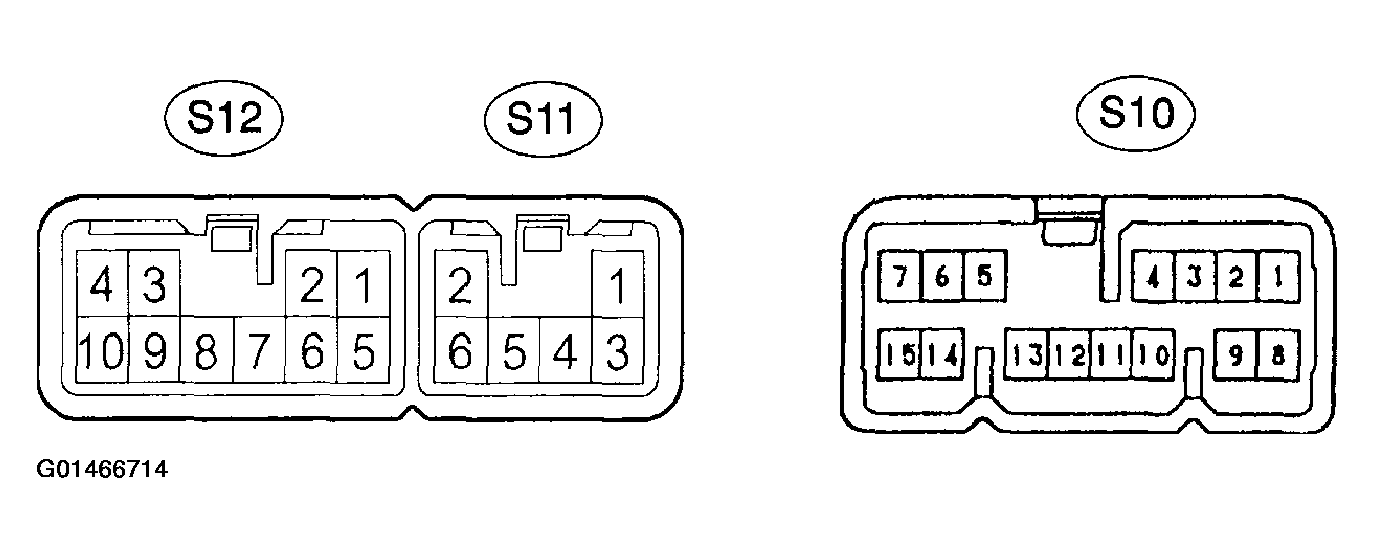

Fig 5: Identifying Stereo Component Amplifier Assy (Mark Levinson Type) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

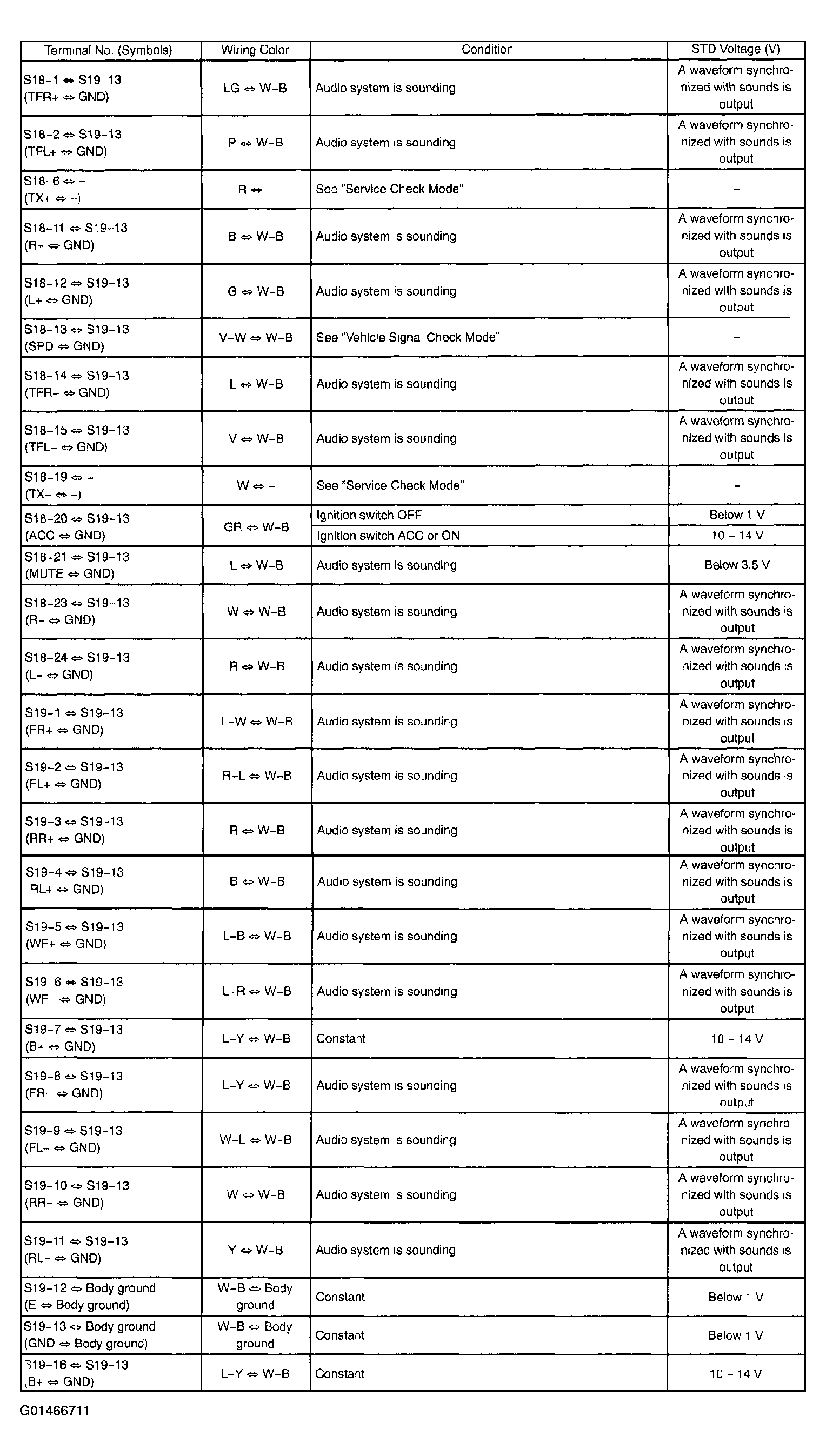

Fig 6: Stereo Component Amplifier Assy (Mark Levinson Type) Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY (6CD Type)

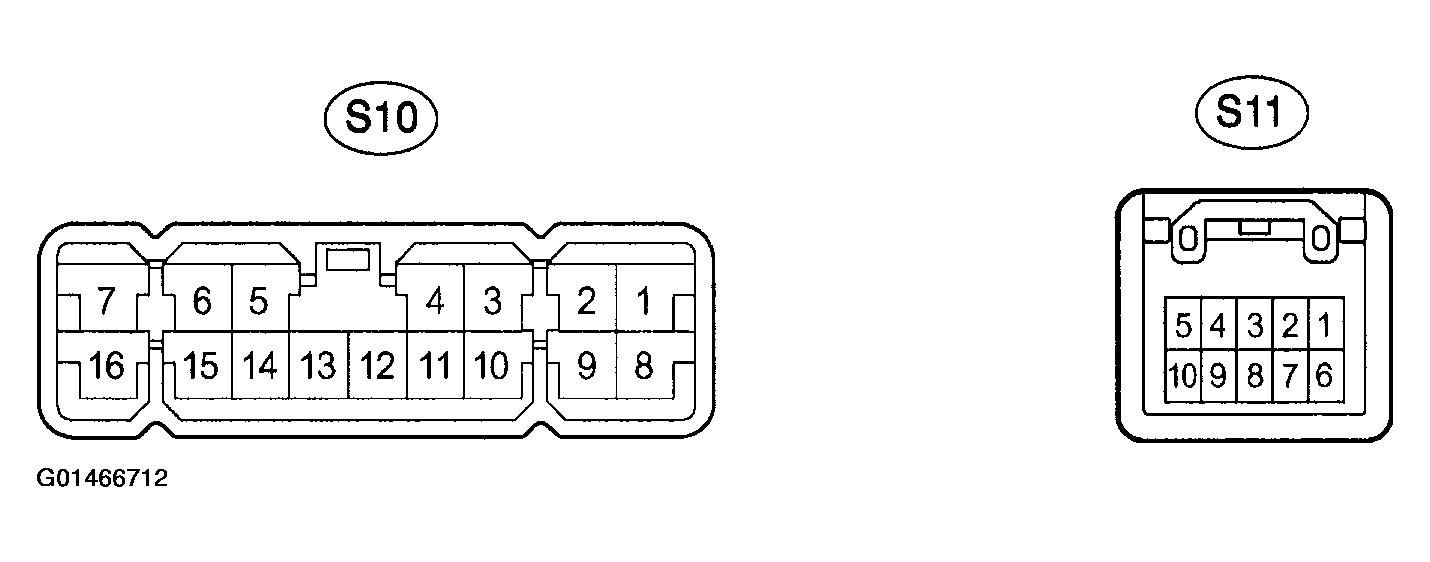

Fig 7: Identifying Stereo Component Amplifier Assy (6CD Type) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

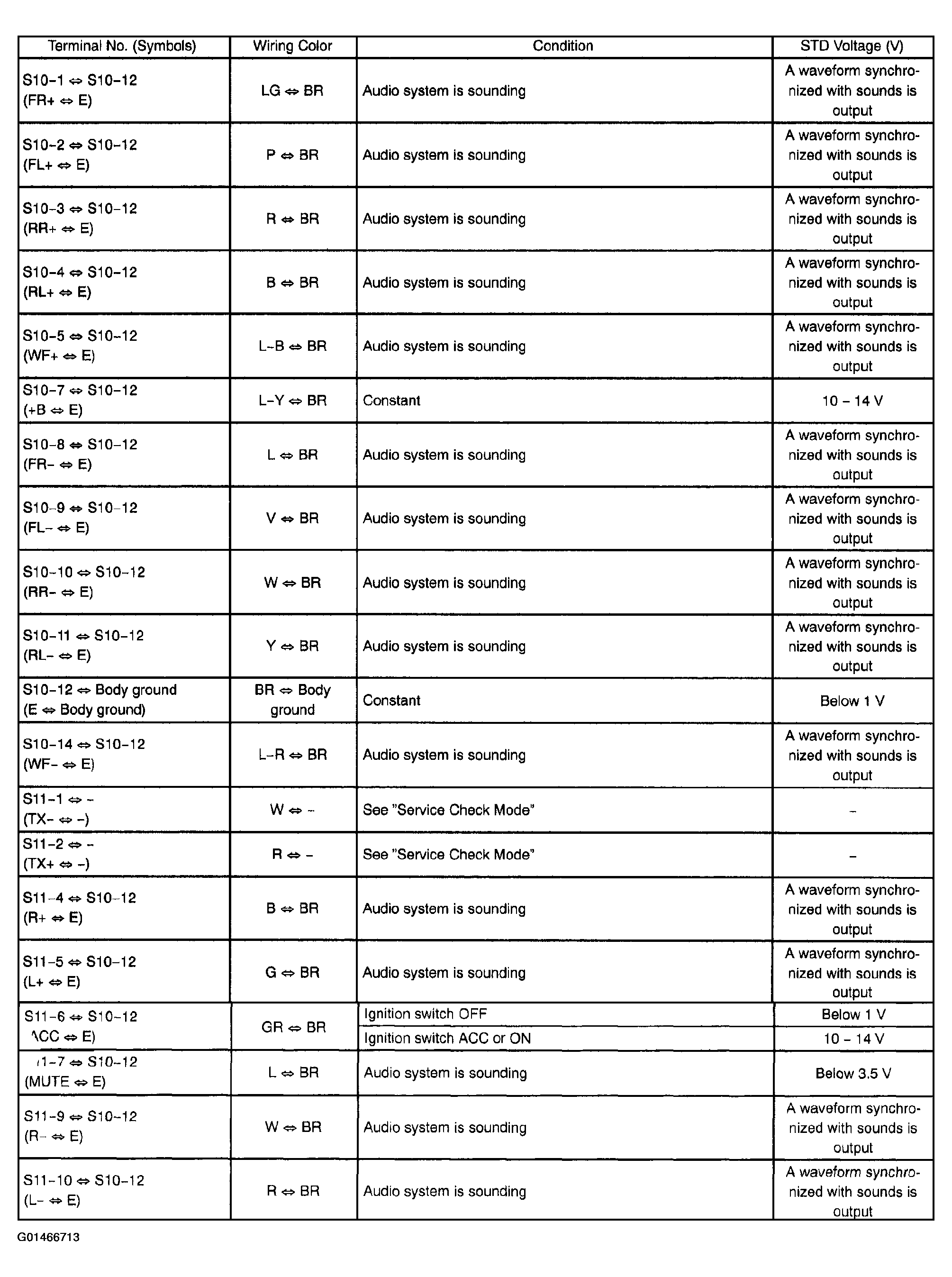

Fig 8: Stereo Component Amplifier Assy (6CD Type) Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY (1CD Type)

Fig 9: Identifying Stereo Component Amplifier Assy (1CD Type) Terminals

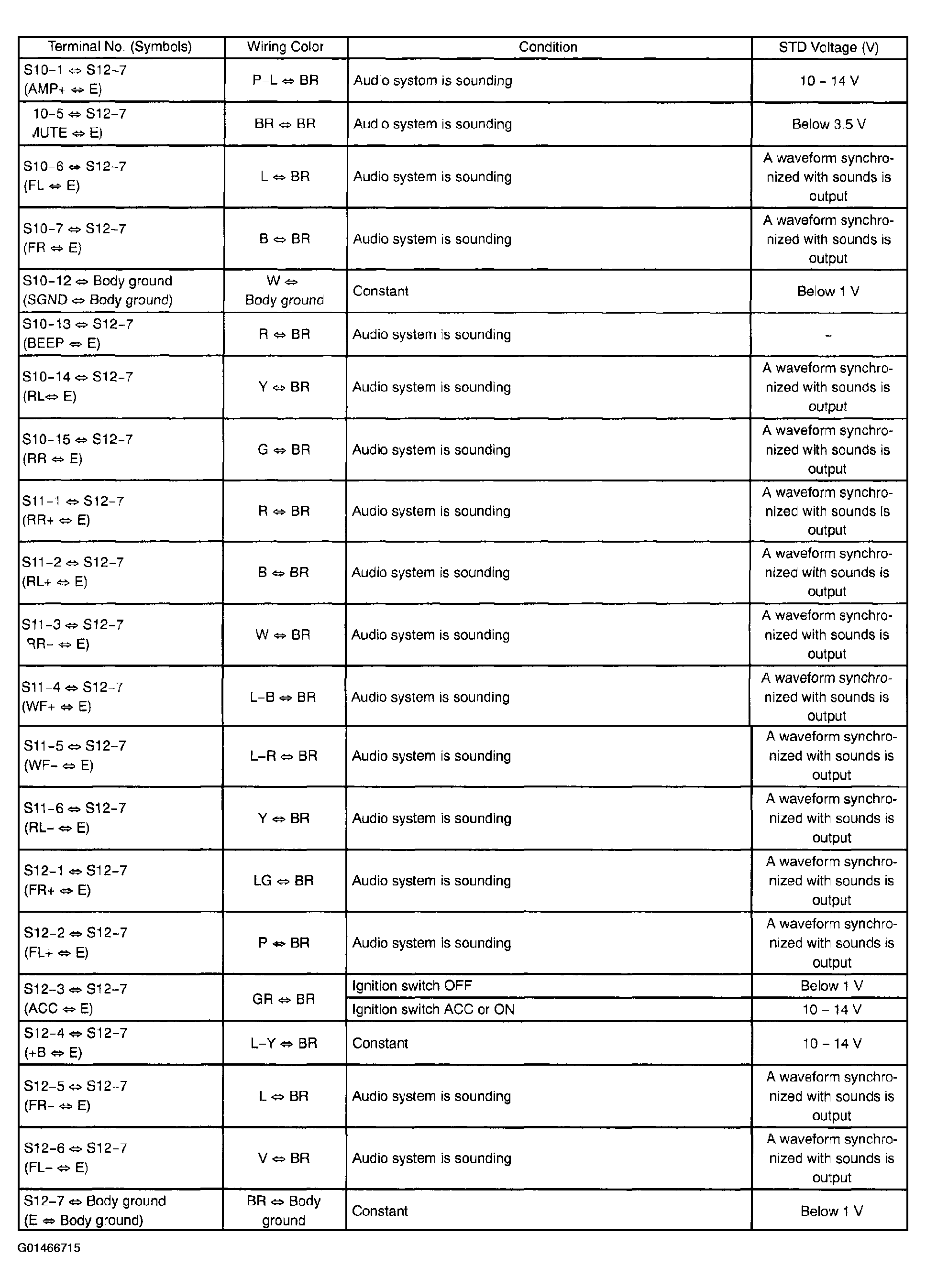

Fig 10: Stereo Component Amplifier Assy (1CD Type) Specifications Chart
