Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR ANY FOREIGN OBJECT
1. Check for any foreign object.
  1. Check that no foreign material and troubles are detected in the radio receiver assembly cassette tape player.
  Standard: No foreign material and trouble detected.

  NG: REMOVE FOREIGN OBJECT

  OK: Go to Next Step
REPLACE CASSETTE TAPE WITH ANOTHER AND RECHECK (BELOW 90 MIN.)
1. Replace the cassette tape with another and recheck.
  1. Replace the faulty cassette tape with the normal one (90 min or less) to see if the same trouble occurs again.
  Standard: malfunction disappear.

  OK: CASSETTE TAPE FAULTY

  NG: Go to Next Step
CLEAN HEAD AND CHECK OPERATION
1. Head cleaning
  1. Raise the cassette door with your finger. Next, using a pencil or similar object, push in the guide.
  2. Using a cleaning pen or cotton applicator soaked in cleaner, clean the head surface, pinch rollers and capstans.
  3. Check that the same trouble occurs again.

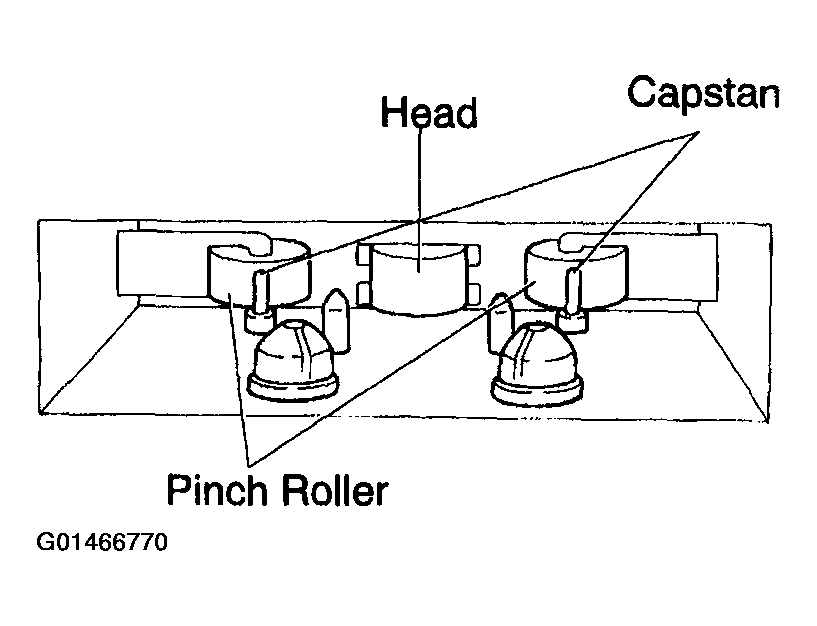

  Fig 1: Cleaning Head & Checking Operation (Tape Tangled)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK: HEAD DIRTY

  NG: CHECK AND REPLACE RADIO RECEIVER ASSY
