No Sound Is Heard From Speaker In All Modes: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

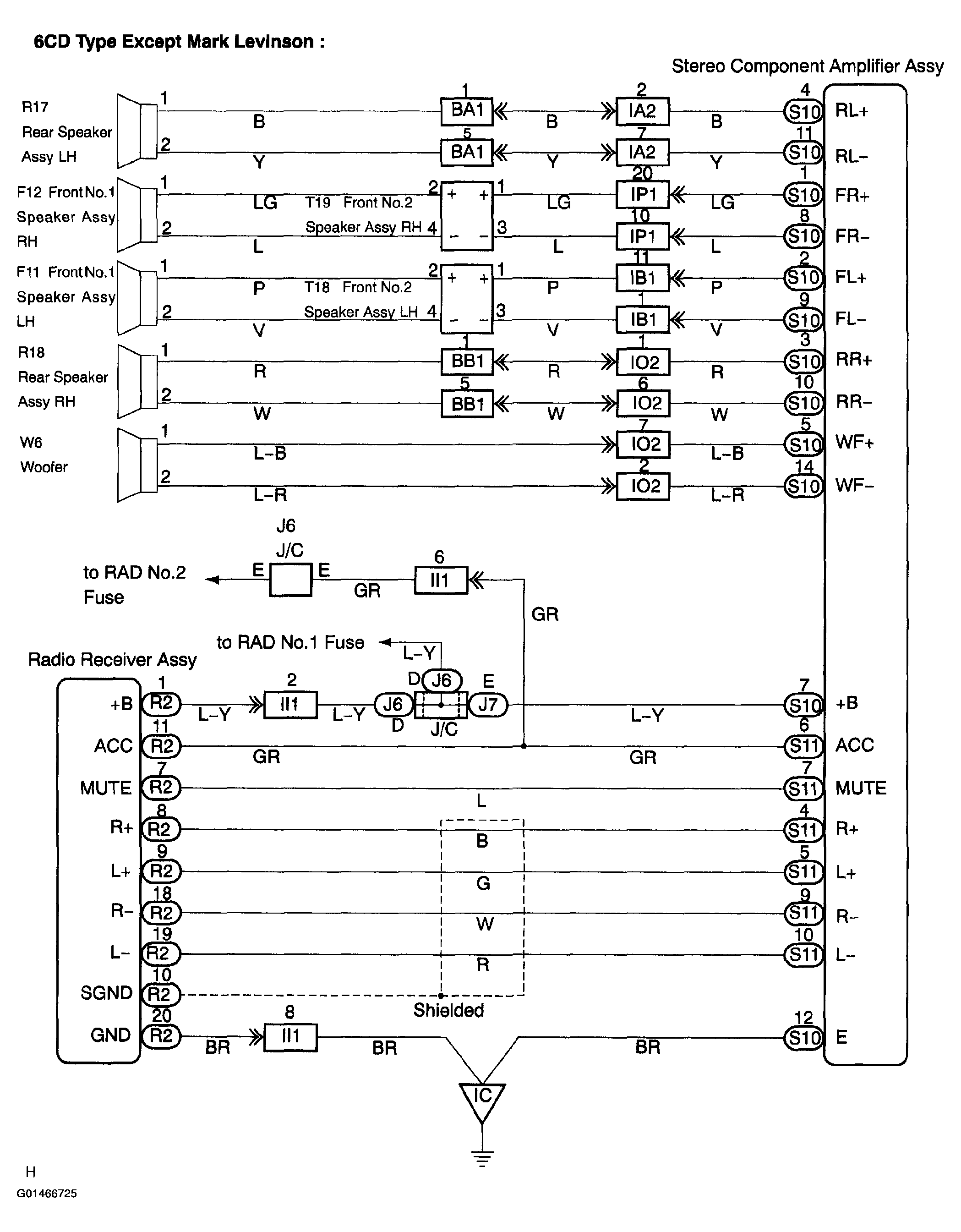

Fig 1: No Sound Is Heard From Speaker In All Modes Wiring Diagram (6CD Type Except Mark Levinson)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

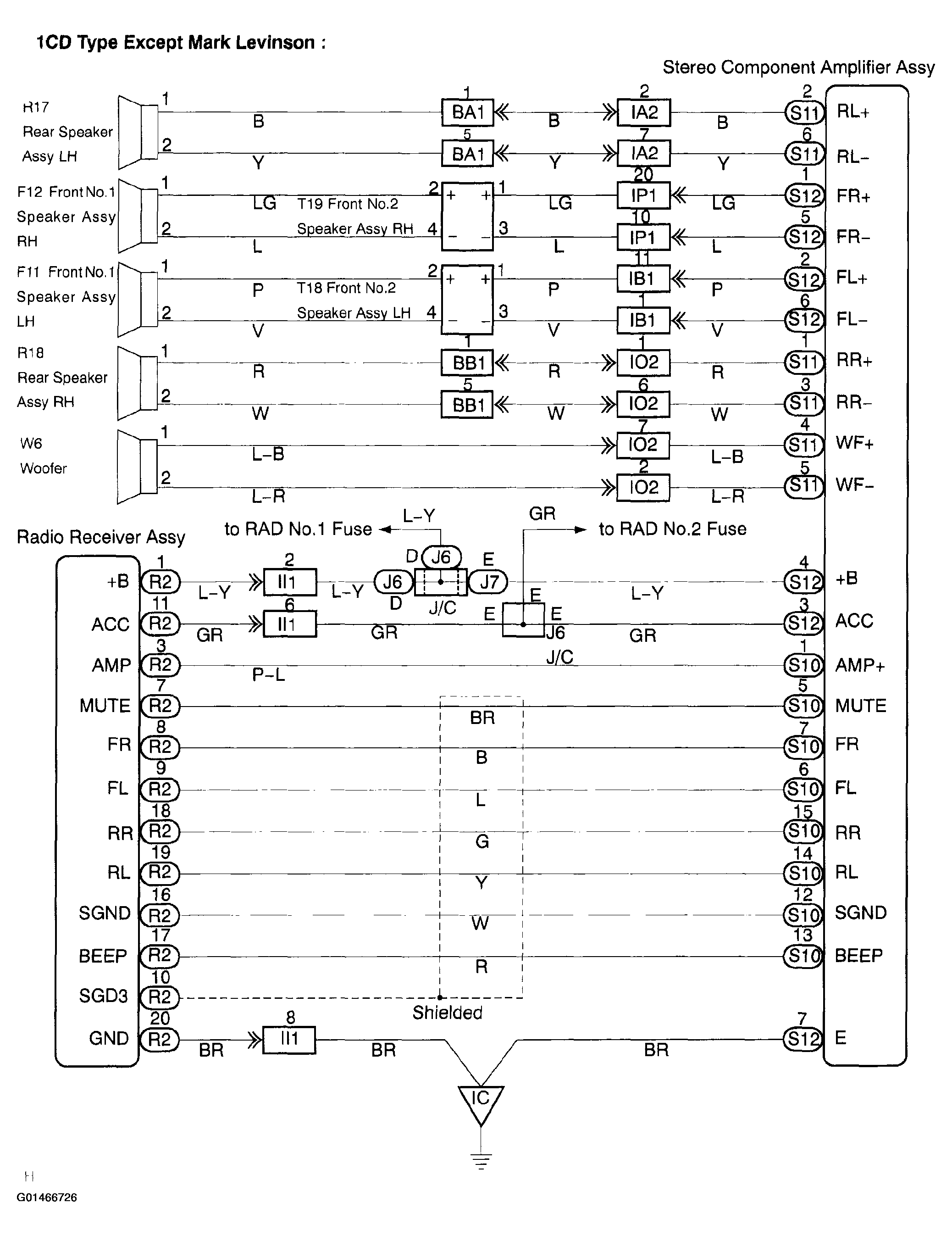

Fig 2: No Sound Is Heard From Speaker In All Modes Wiring Diagram (1CD Type Except Mark Levinson)

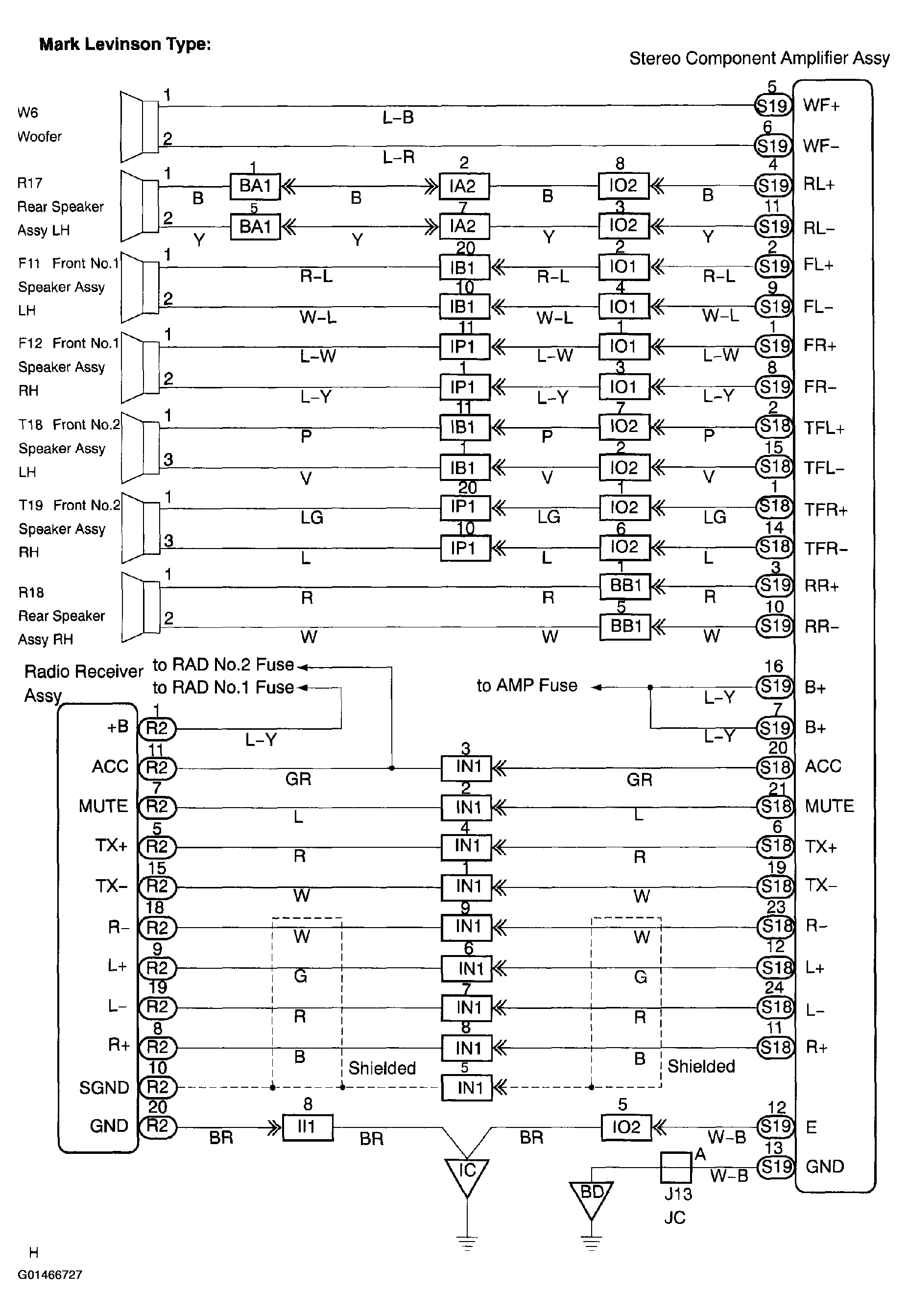

Fig 3: No Sound Is Heard From Speaker In All Modes Wiring Diagram (Mark Levinson Type)
