Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RADIO RECEIVER ASSY (MUTE)
    1. Check that the voltage between terminals at each condition, as shown in Fig 2 .

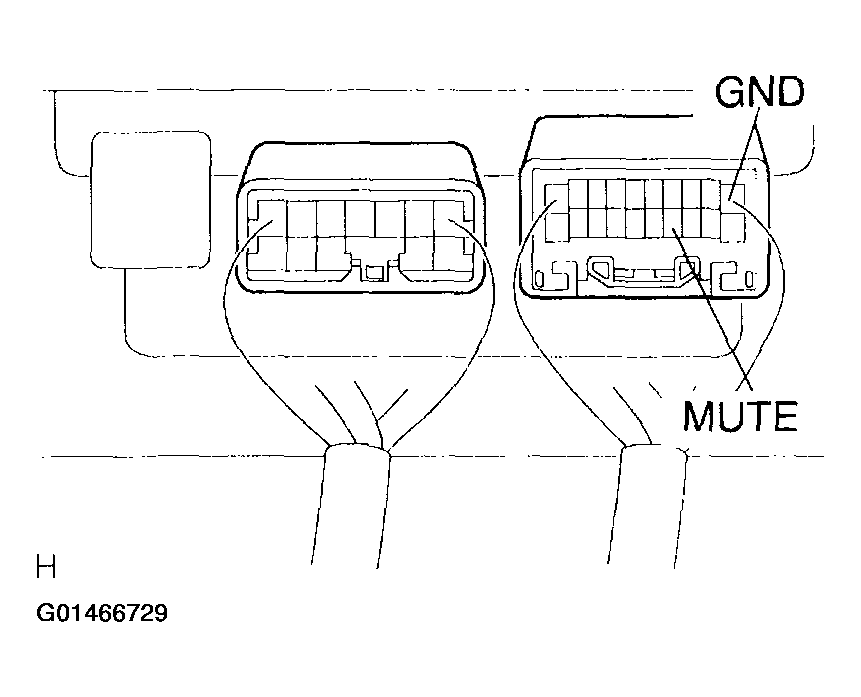

      Fig 1: Inspecting Radio Receiver Assy (Mute)
      G01466729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

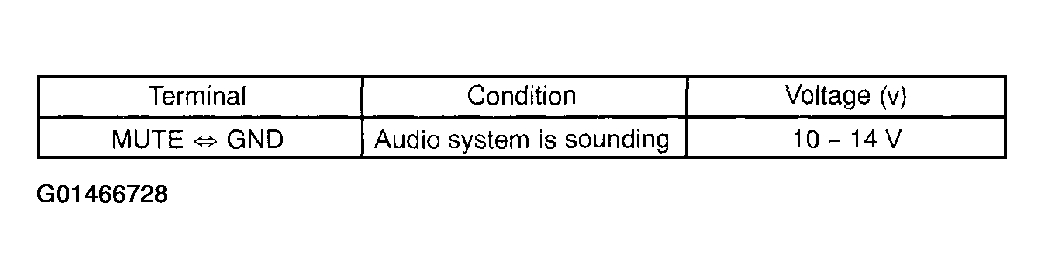

      Fig 2: Radio Receiver Assy (Mute) Specifications Chart
      G01466728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: CHECK AND REPLACE RADIO RECEIVER ASSY

      OK: Go to Next Step

  2. INSPECT STEREO COMPONENT AMPLIFIER ASSY (MUTE)
    1. Check that the voltage between terminals at each condition, as shown in Fig 3 .

      Standard:

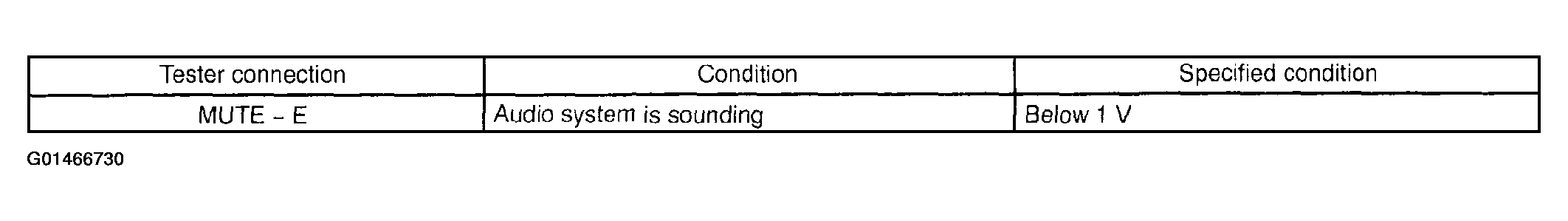

      Fig 3: Stereo Component Amplifier Assy (Mute) Specifications Chart
      G01466730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. MARK LEVINSON Type:

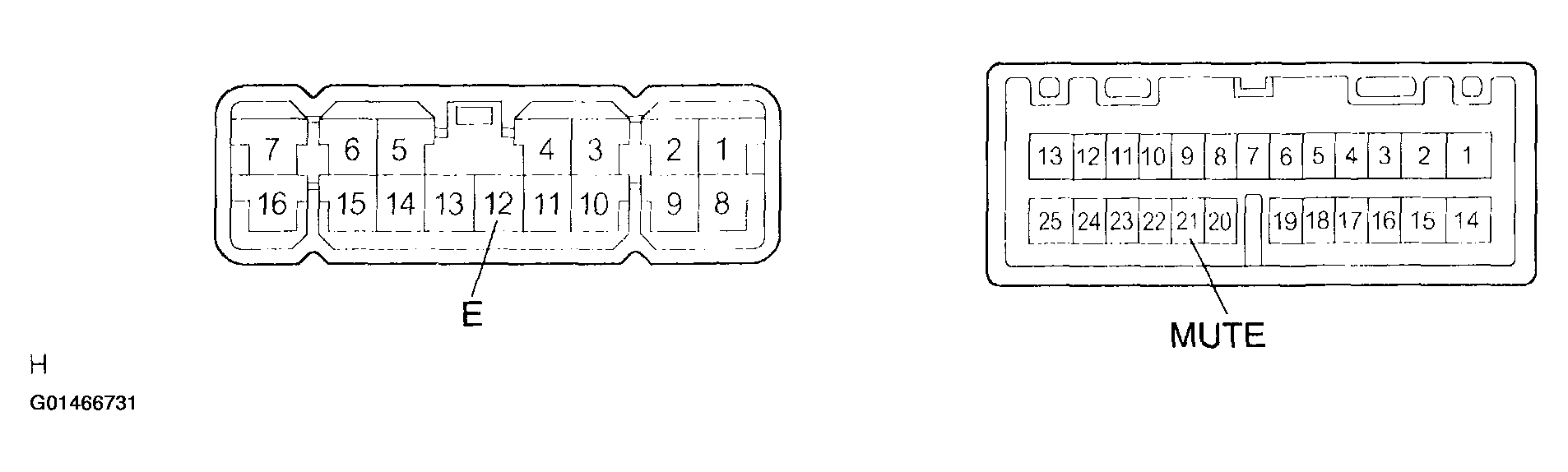

        Fig 4: Identifying Stereo Component Amplifier Assy (Mute) Mark Levinson Type Terminals
        G01466731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. 6CD Type:

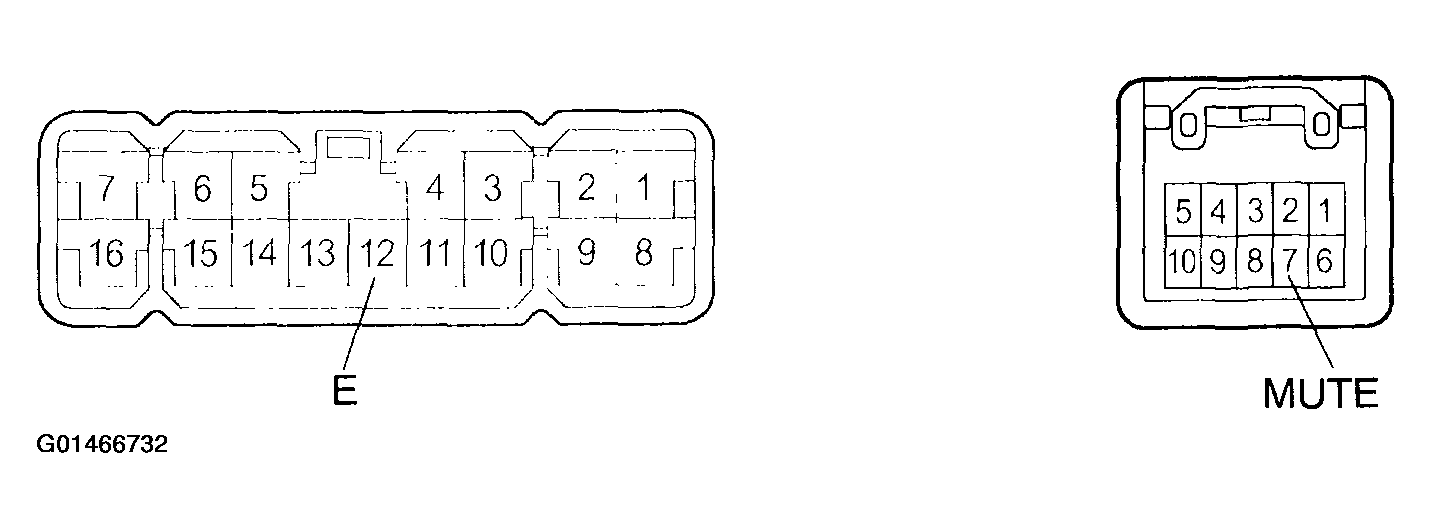

        Fig 5: Identifying Stereo Component Amplifier Assy (Mute) 6CD Type Terminals
        G01466732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. 1CD Type:

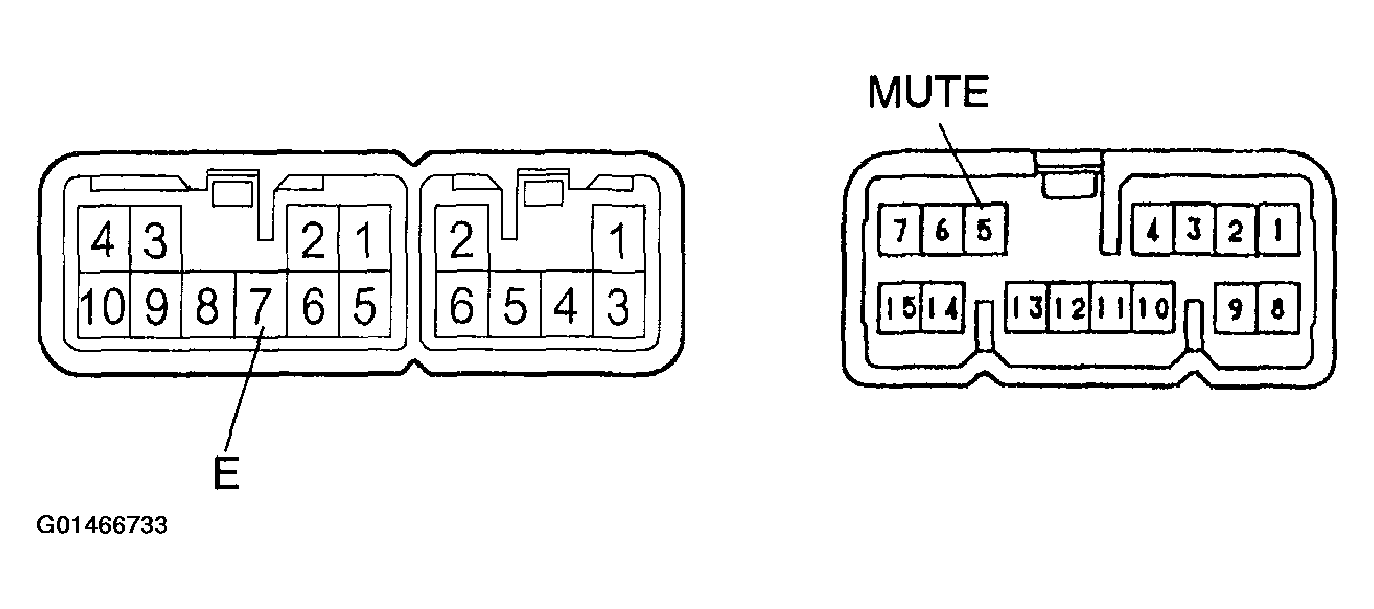

      Fig 6: Identifying Stereo Component Amplifier Assy (Mute) 1CD Type Terminals
      G01466733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  3. INSPECT RADIO RECEIVER ASSY
    1. Check that the voltage between terminals at each condition, as shown in Fig 7 .

      Standard:

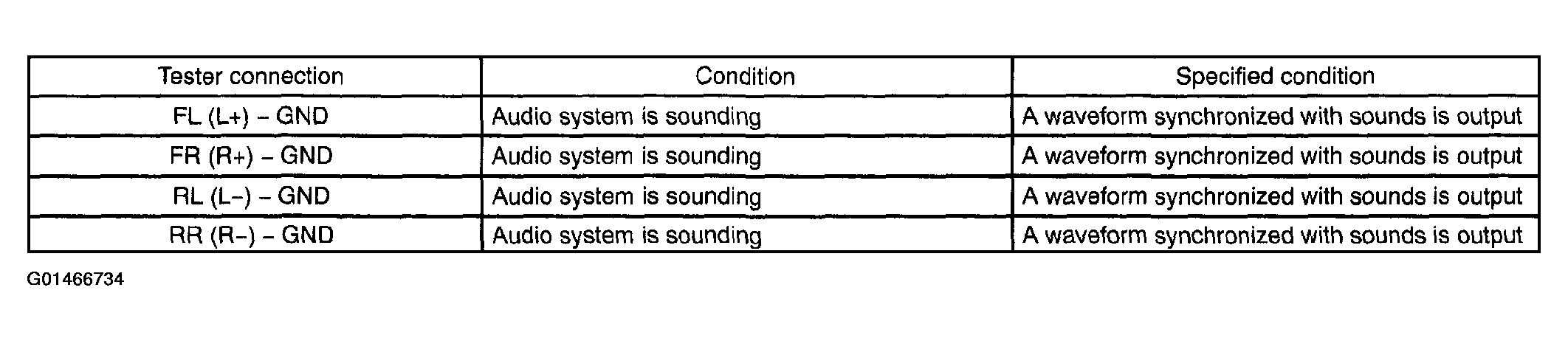

      Fig 7: Radio Receiver Assy Specifications Chart
      G01466734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Radio Receiver Assy

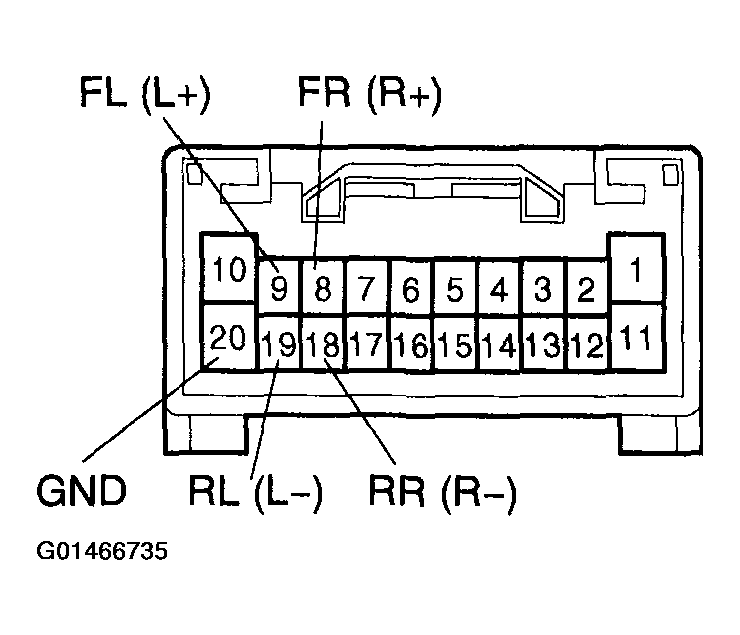

      Fig 8: Identifying Radio Receiver Assy Terminals
      G01466735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: CHECK AND REPLACE RADIO RECEIVER ASSY

      OK: Go to Next Step

  4. INSPECT STEREO COMPONENT AMPLIFIER ASSY (INPUT SIGNAL)
    1. Check that the voltage between terminals at each condition, as shown in Fig 9 .

      Standard:

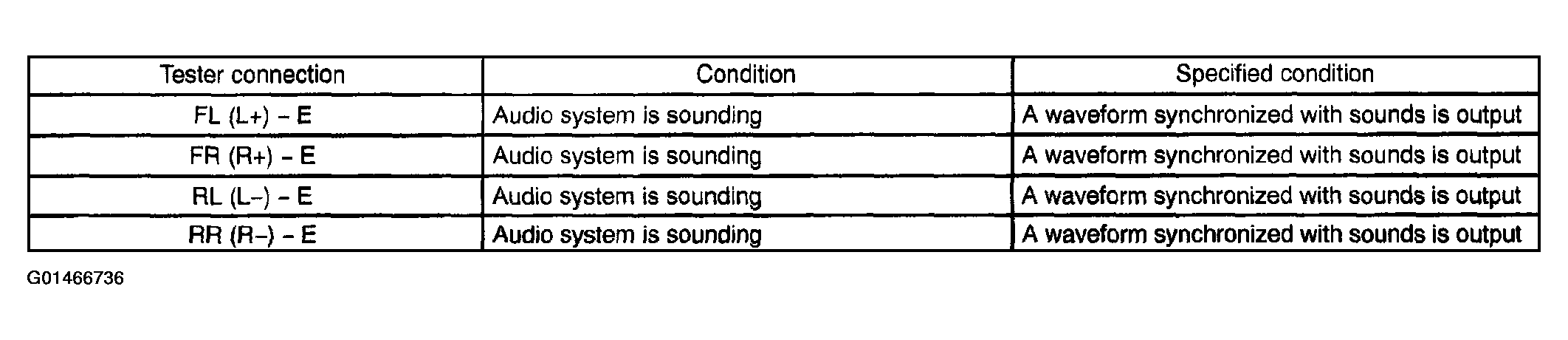

      Fig 9: Stereo Component Amplifier Assy (Input Signal) Specifications Chart
      G01466736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. MARK LEVINSON Type:

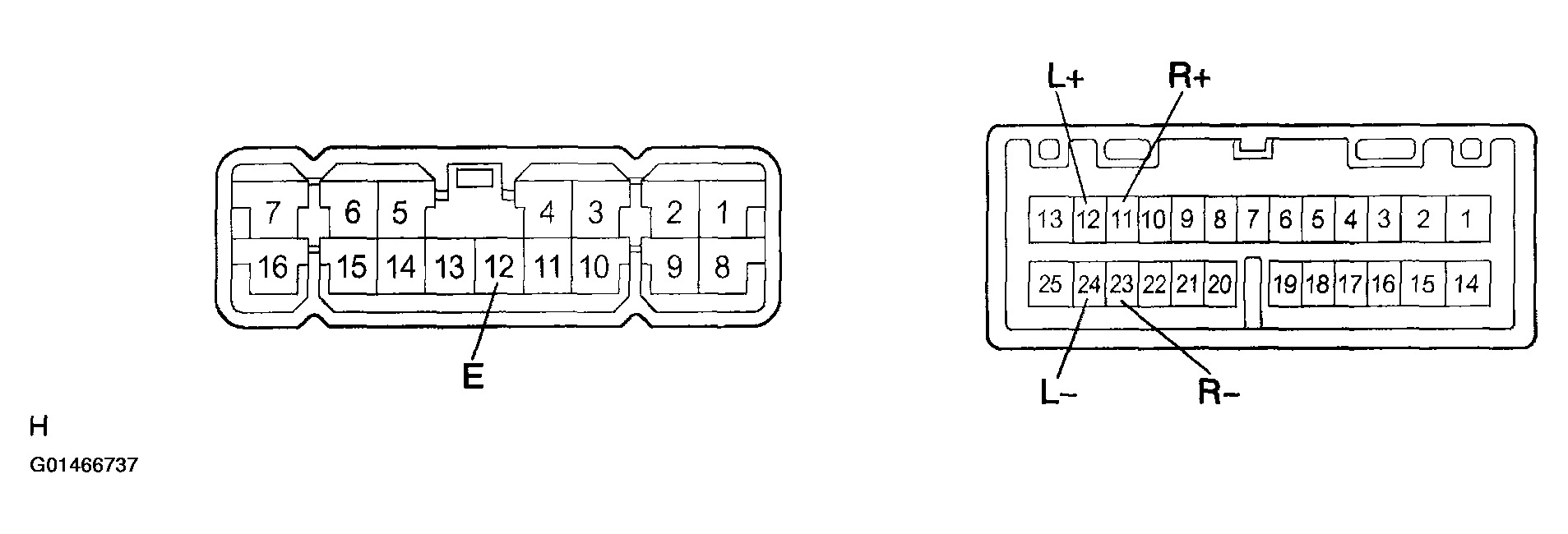

        Fig 10: Identifying Stereo Component Amplifier Assy (Input Signal) Mark Levinson Type Terminals
        G01466737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. 6CD Type:

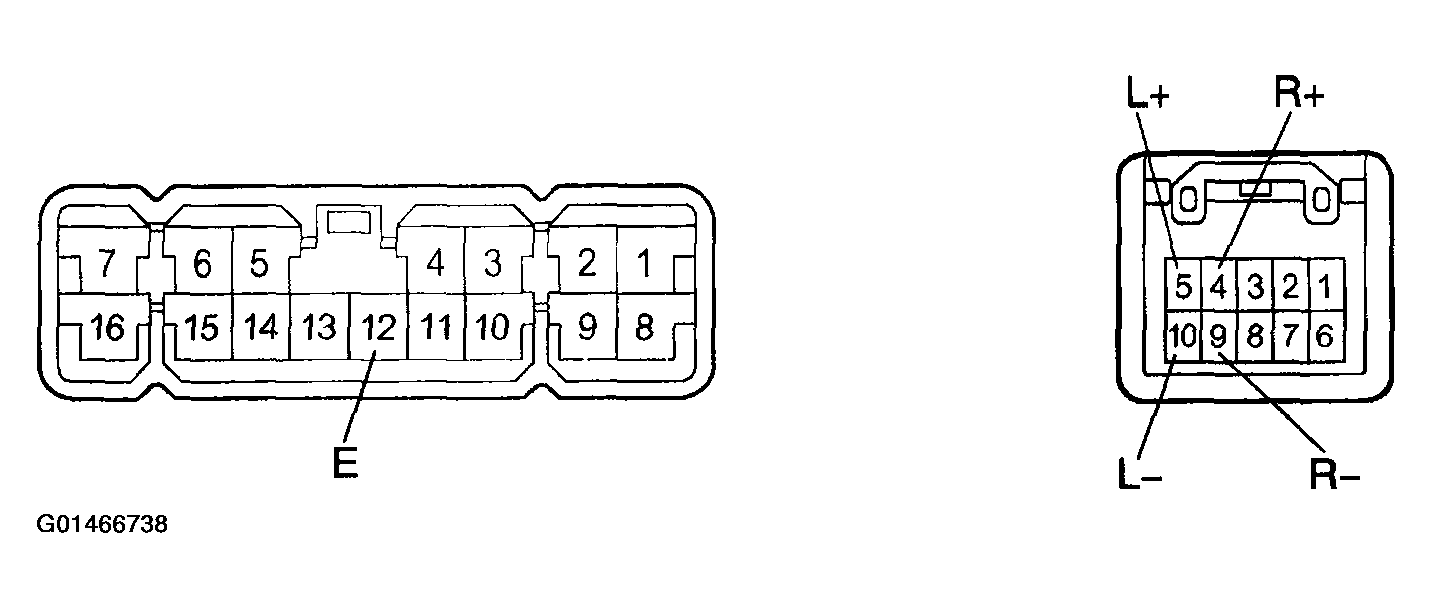

        Fig 11: Identifying Stereo Component Amplifier Assy (Input Signal) 6CD Type Terminals
        G01466738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. 1CD Type:

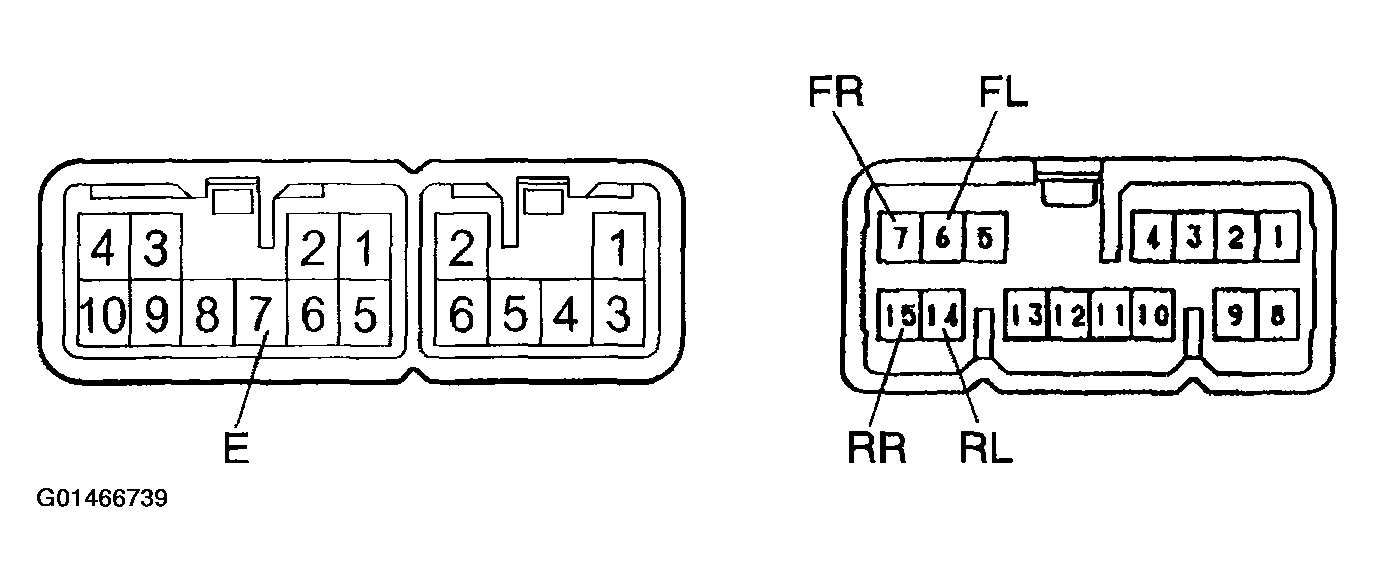

      Fig 12: Identifying Stereo Component Amplifier Assy (Input Signal) 1CD Type Terminals
      G01466739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  5. INSPECT STEREO COMPONENT AMPLIFIER ASSY (OUTPUT SIGNAL)
    1. Check that the voltage between terminals at each condition, as shown in Fig 13 .

      Standard:

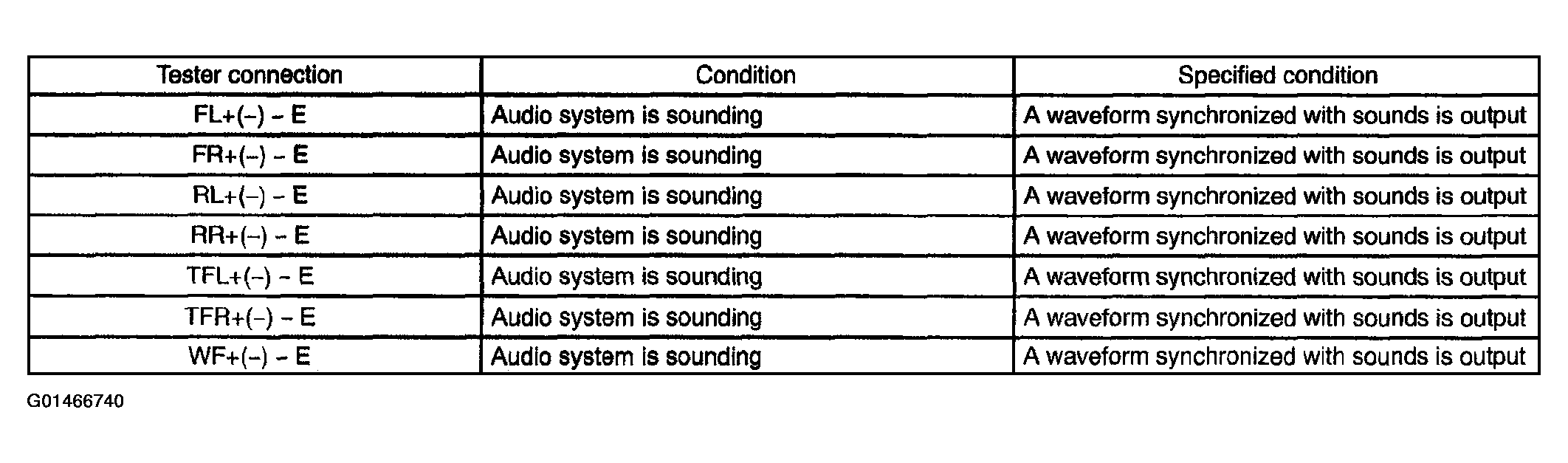

      Fig 13: Stereo Component Amplifier Assy (Output Signal) Specifications Chart
      G01466740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Mark Levinson type:

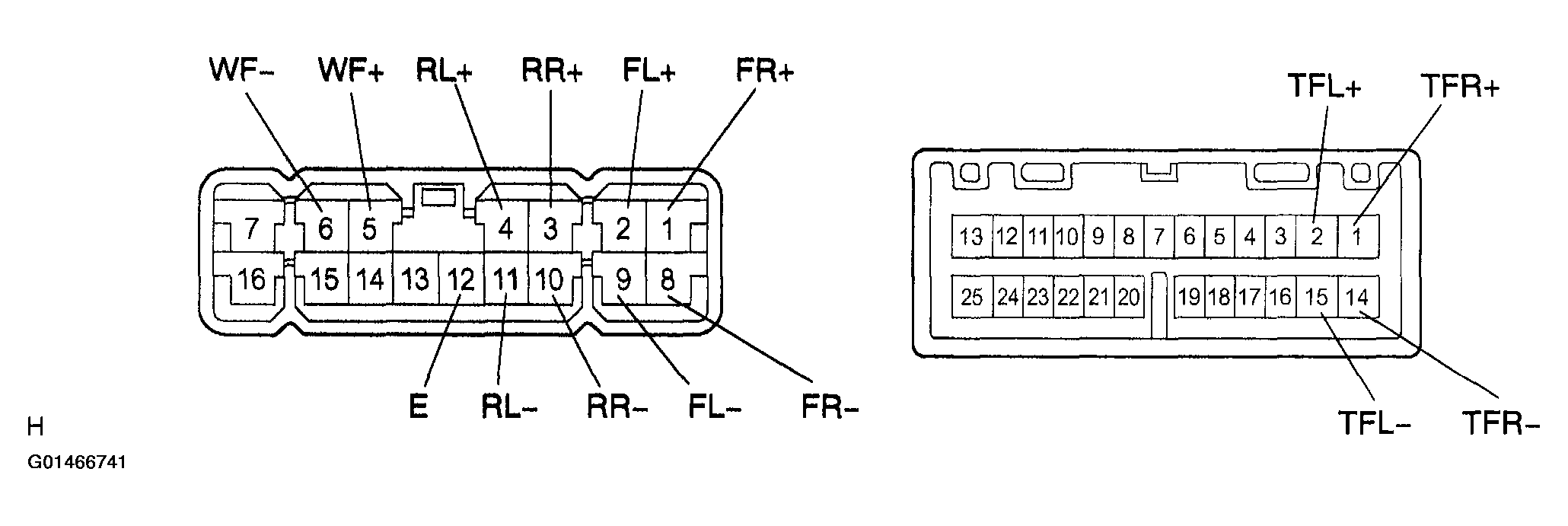

        Fig 14: Identifying Stereo Component Amplifier Assy (Output Signal) Mark Levinson Type Terminals
        G01466741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. 6CD Type:

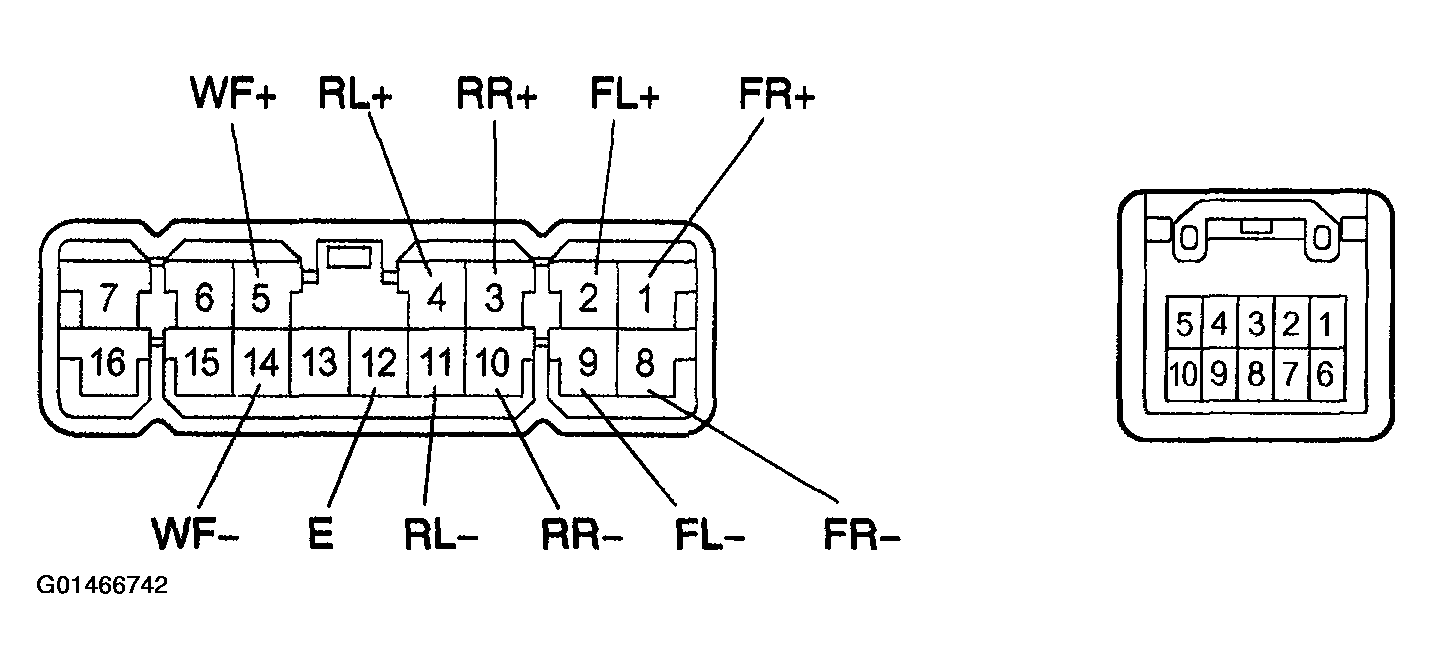

        Fig 15: Identifying Stereo Component Amplifier Assy (Output Signal) 6CD Type Terminals
        G01466742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. 1CD Type:

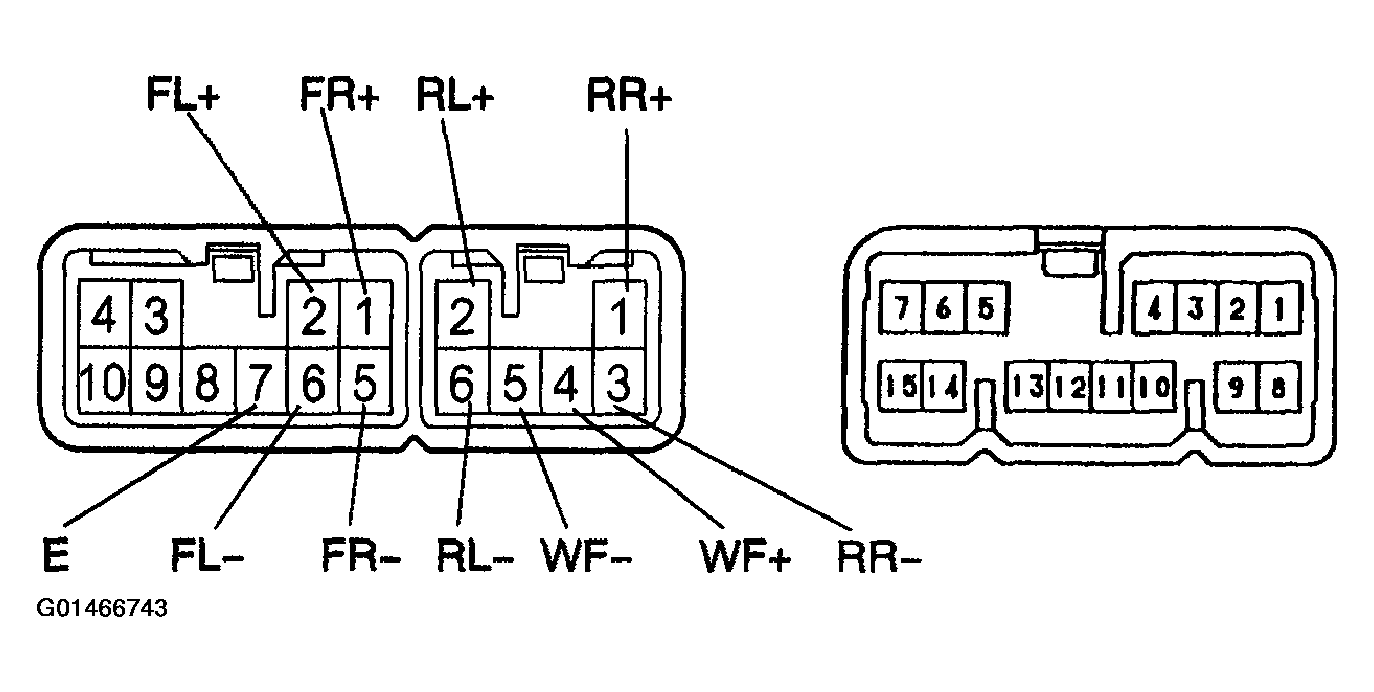

      Fig 16: Identifying Stereo Component Amplifier Assy (Output Signal) 1CD Type Terminals
      G01466743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: CHECK AND REPLACE STEREO COMPONENT AMPLIFIER ASSY

      OK: Go to Next Step

  6. CHECK SPEAKER(RESISTANCE)

    Check continuity.

    1. Check that the continuity exists between terminals of front No.1 speaker assy.

      Standard: 2-8Ω

      NG: REPLACE SPEAKER

      OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
