Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

WINDSHIELD WIPER RELAY ASSY

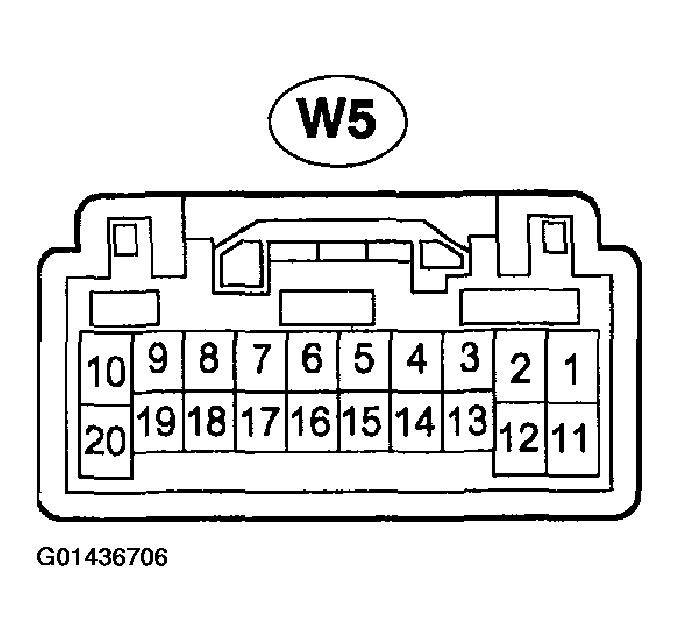

Fig 1: Identifying Windshield Wiper Relay Assy Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

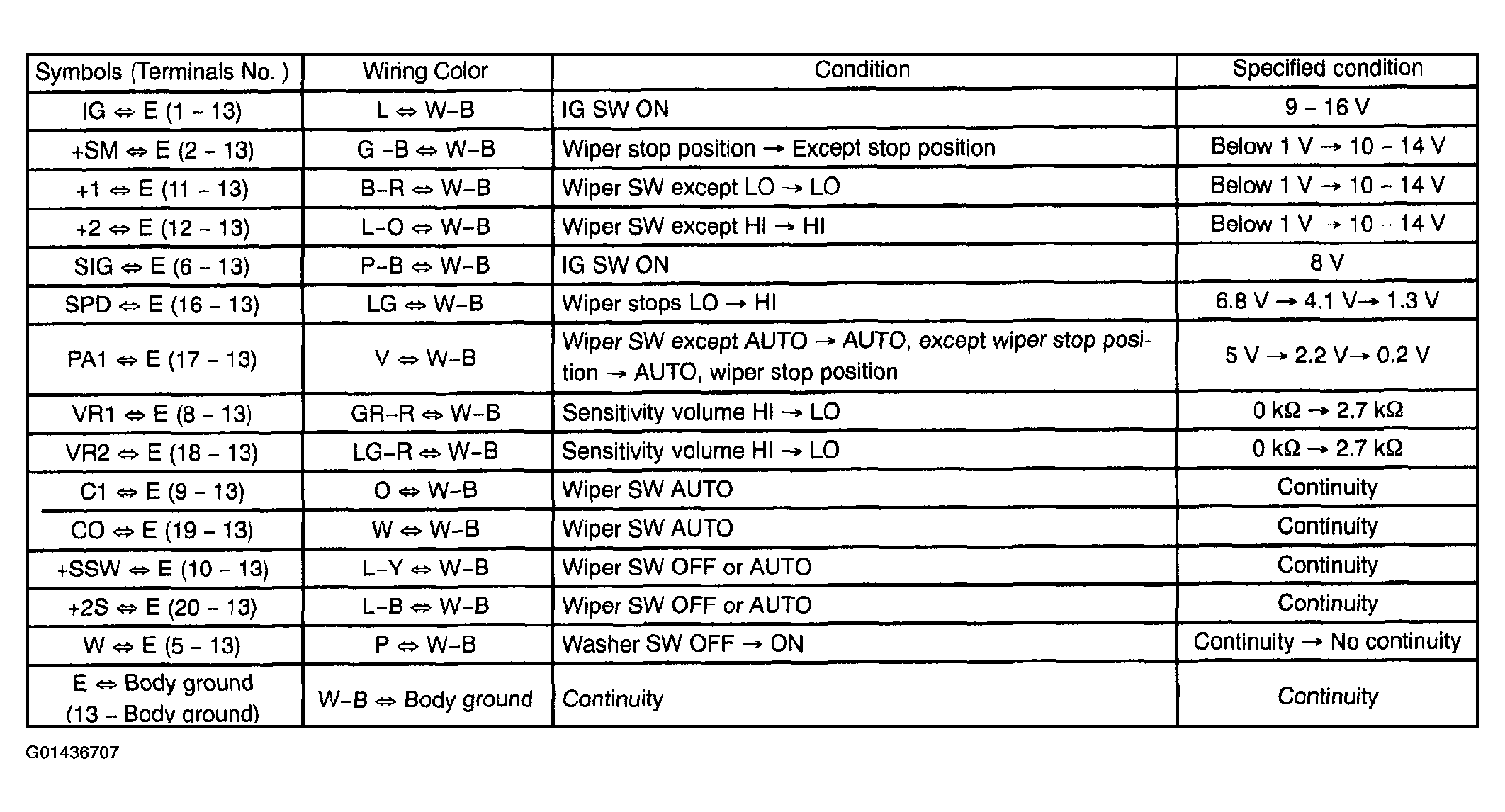

Fig 2: Windshield Wiper Relay Assy Terminal Voltage/Continuity Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RAIN SENSOR

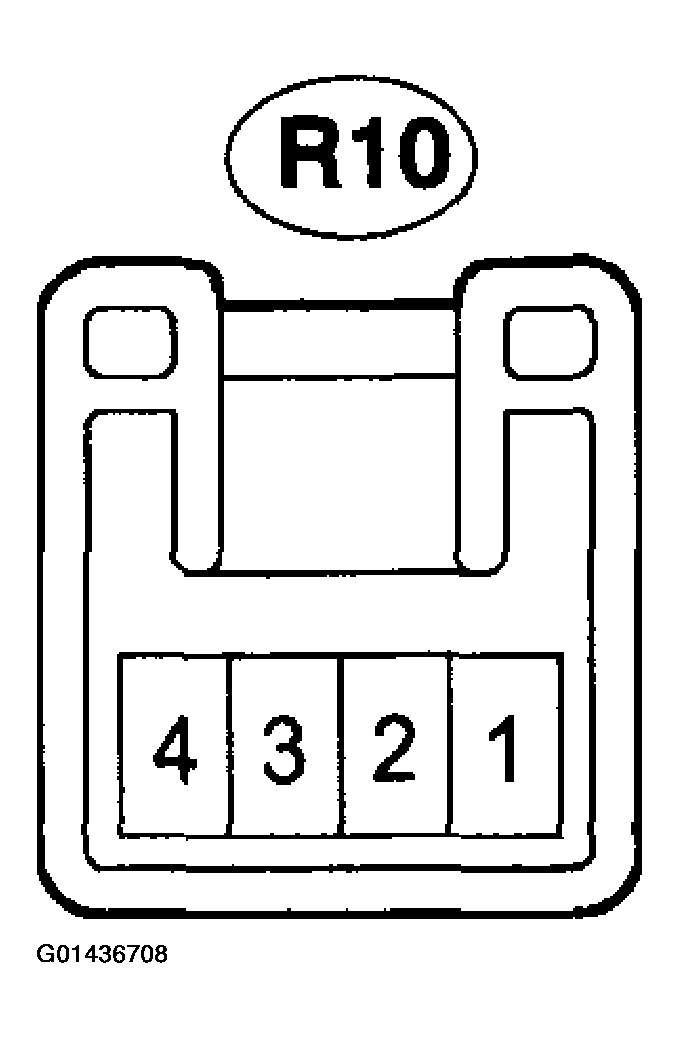

Fig 3: Identifying Rain Sensor Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

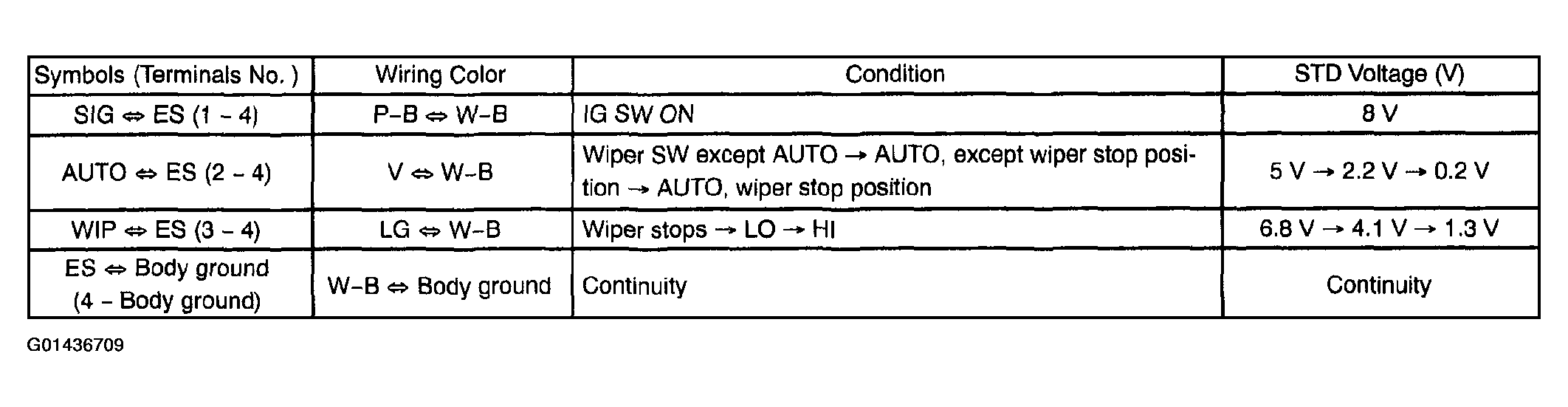

Fig 4: Rain Sensor Terminal Voltage/Continuity Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
