Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. WIPER AND WASHER SYSTEM

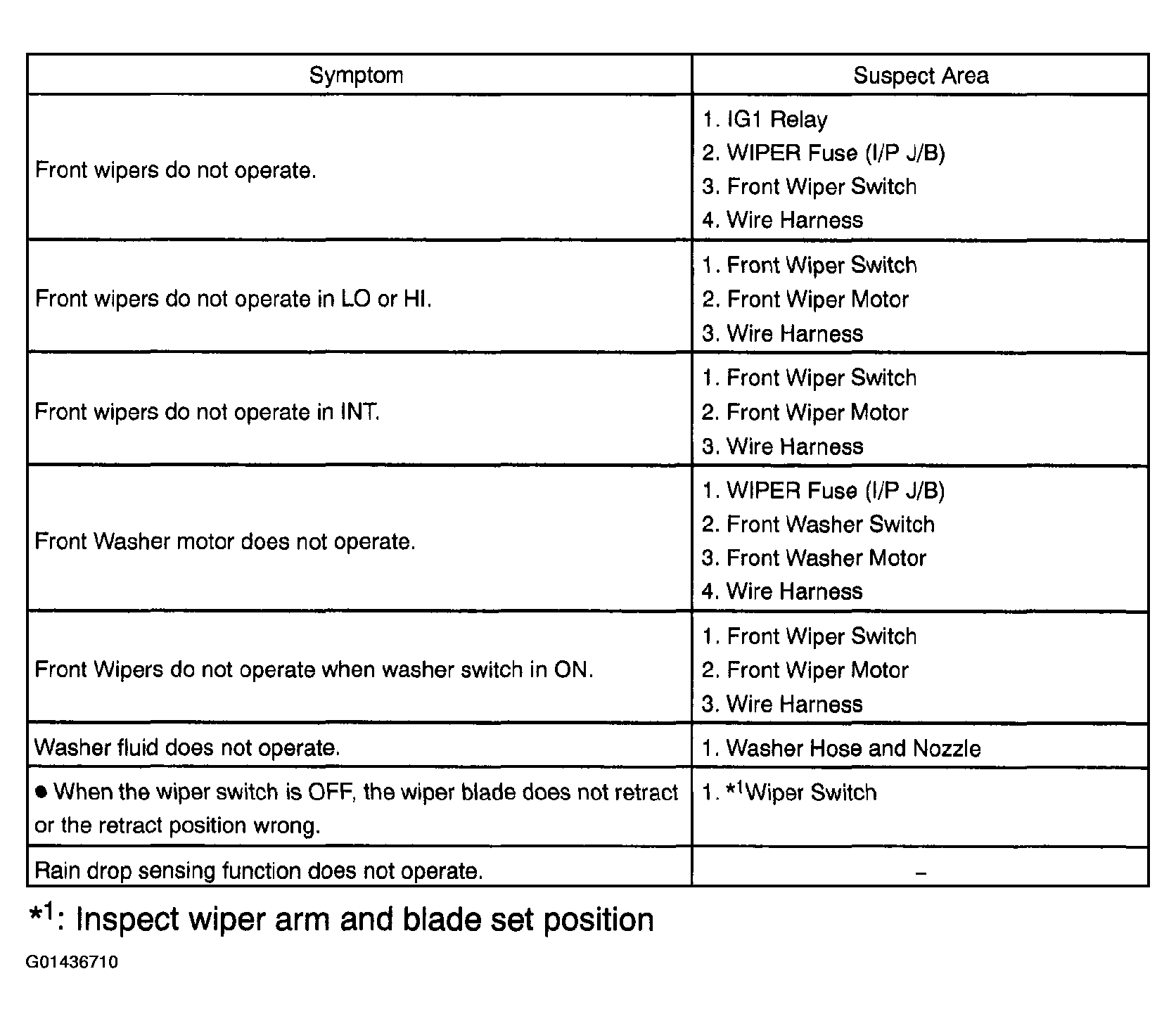

    Fig 1: Wiper And Washer System Symptom Table
    G01436710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
