Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Multiplex Network Body Computer

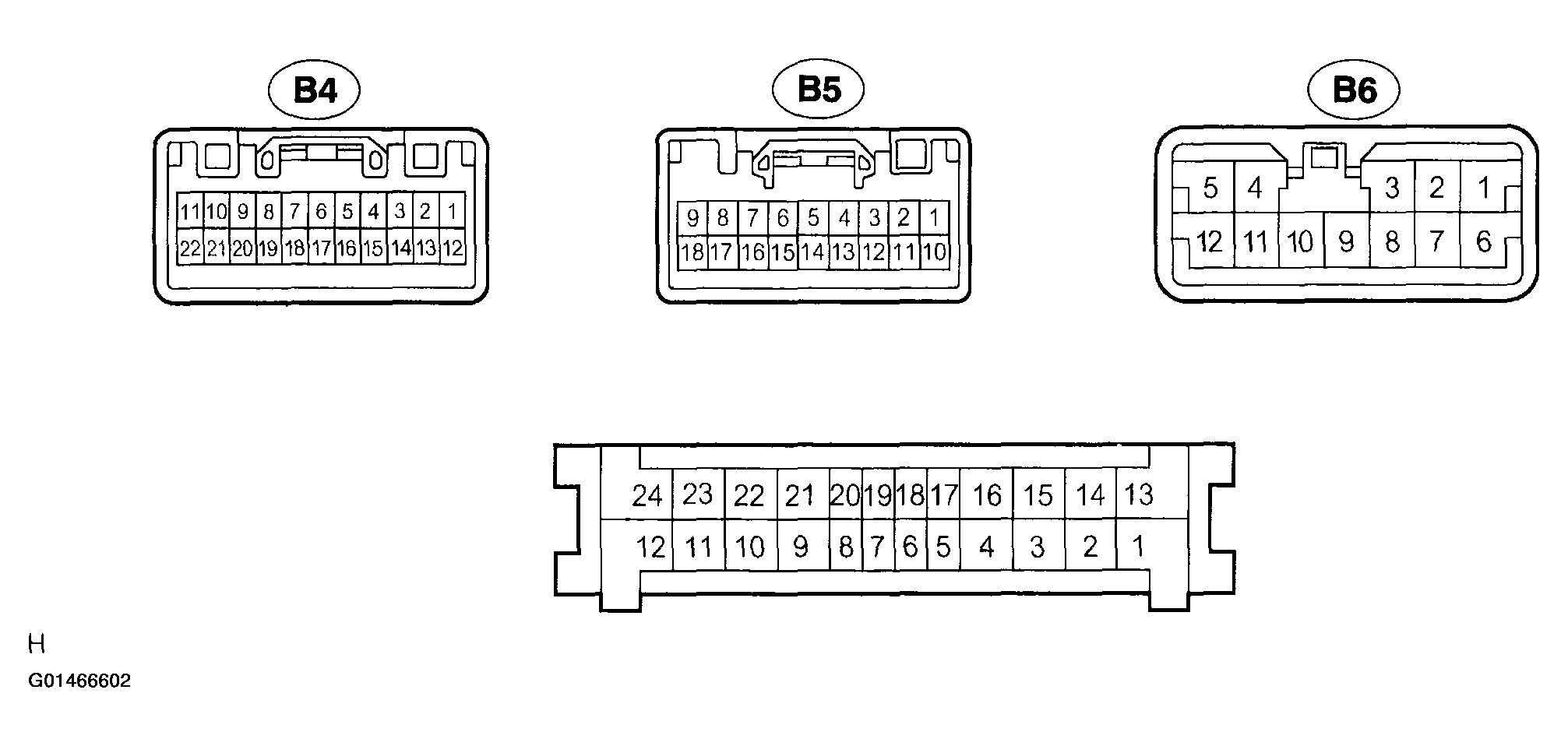

Fig 1: Identifying Multiplex Body Computer Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

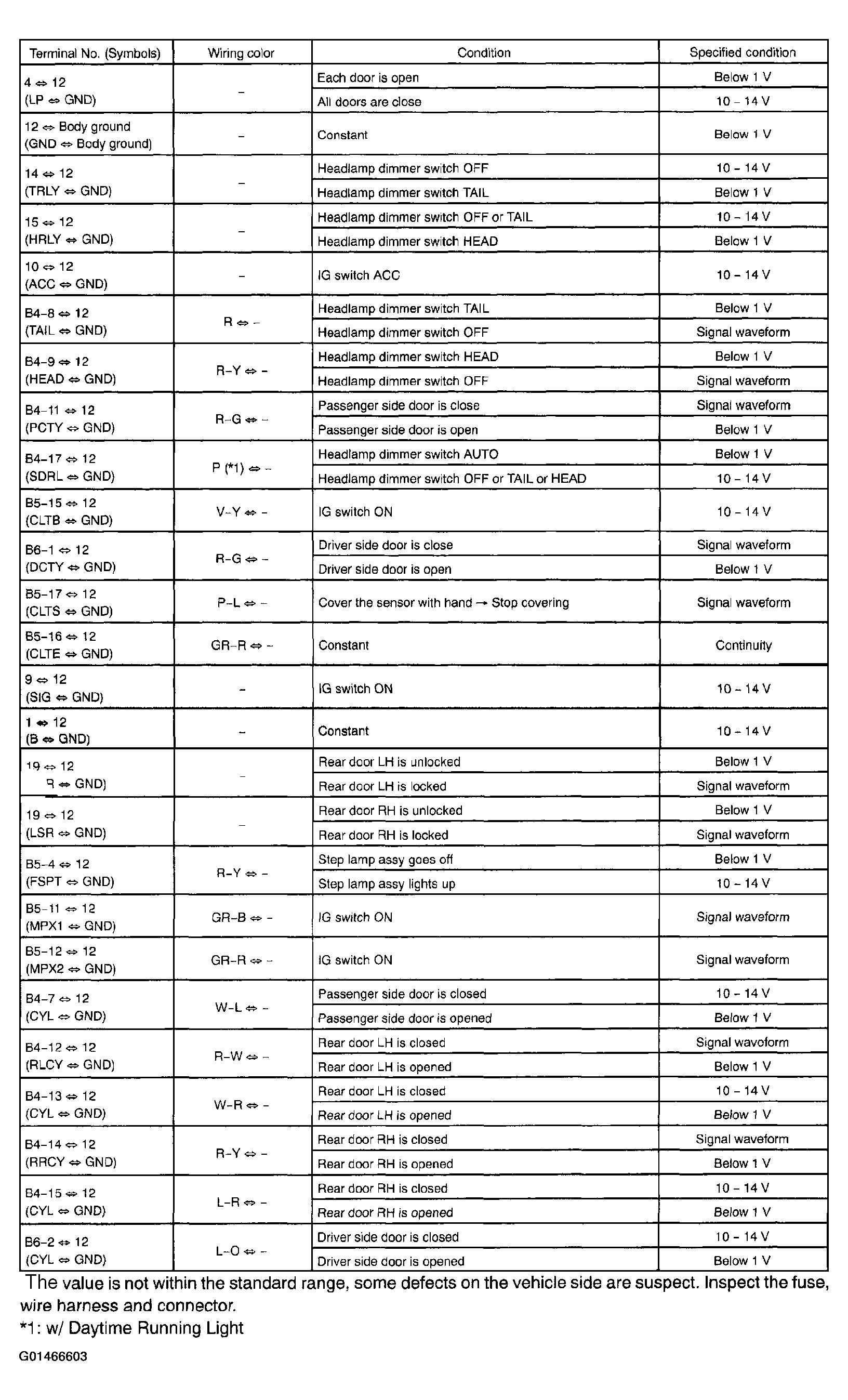

Fig 2: Multiplex Network Body Computer Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Headlight Beam Level Control ECU:

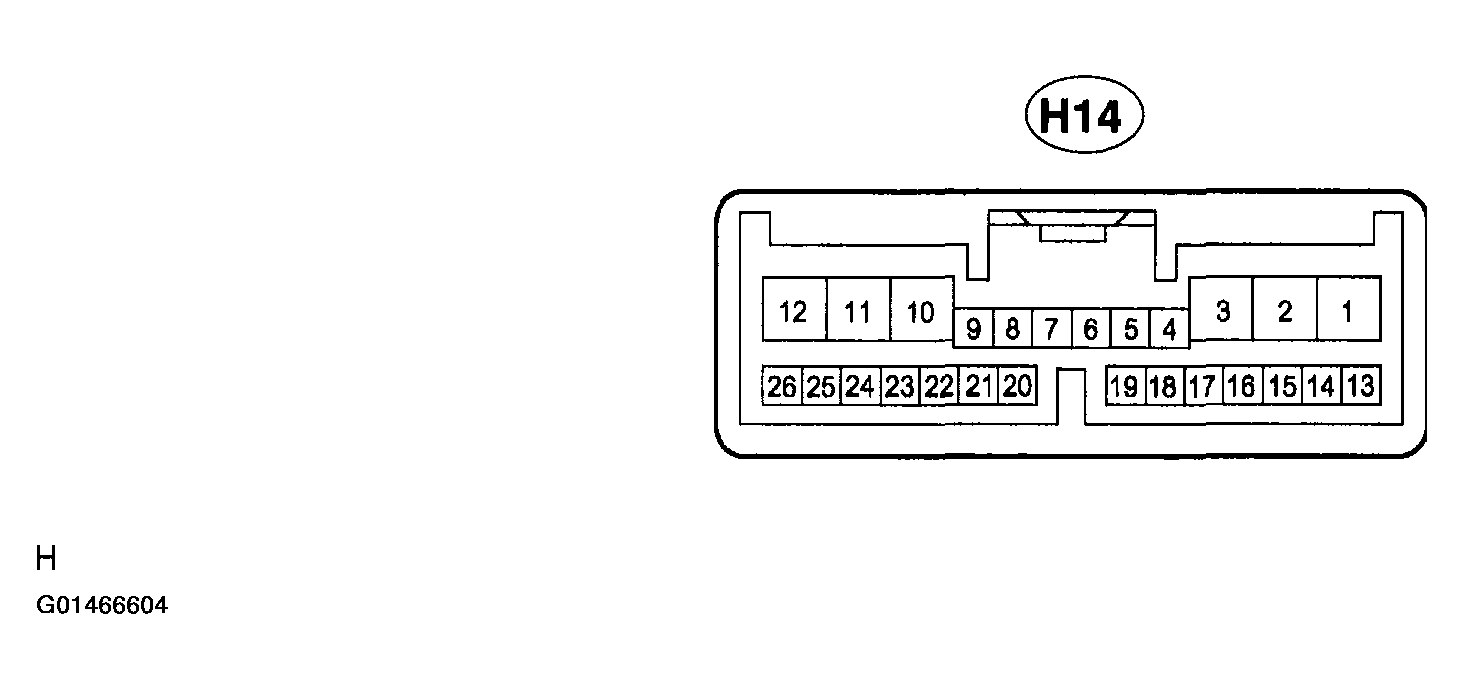

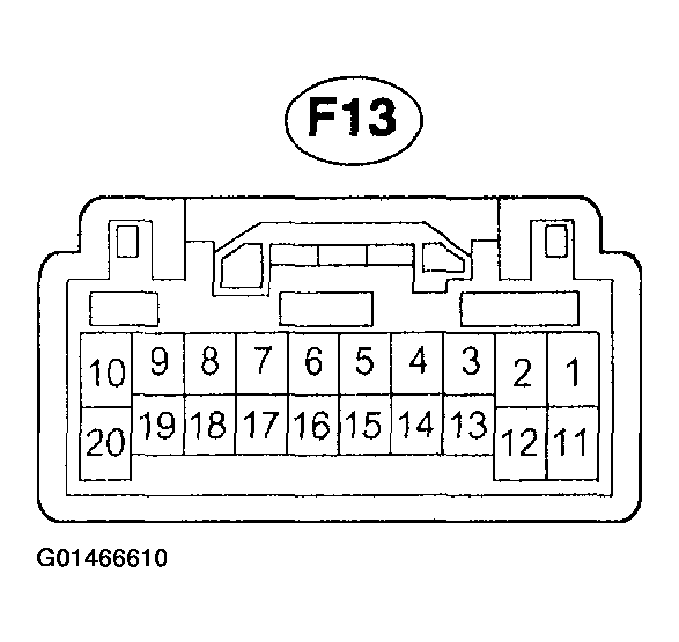

Fig 3: Identifying Headlight Beam Level Control ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

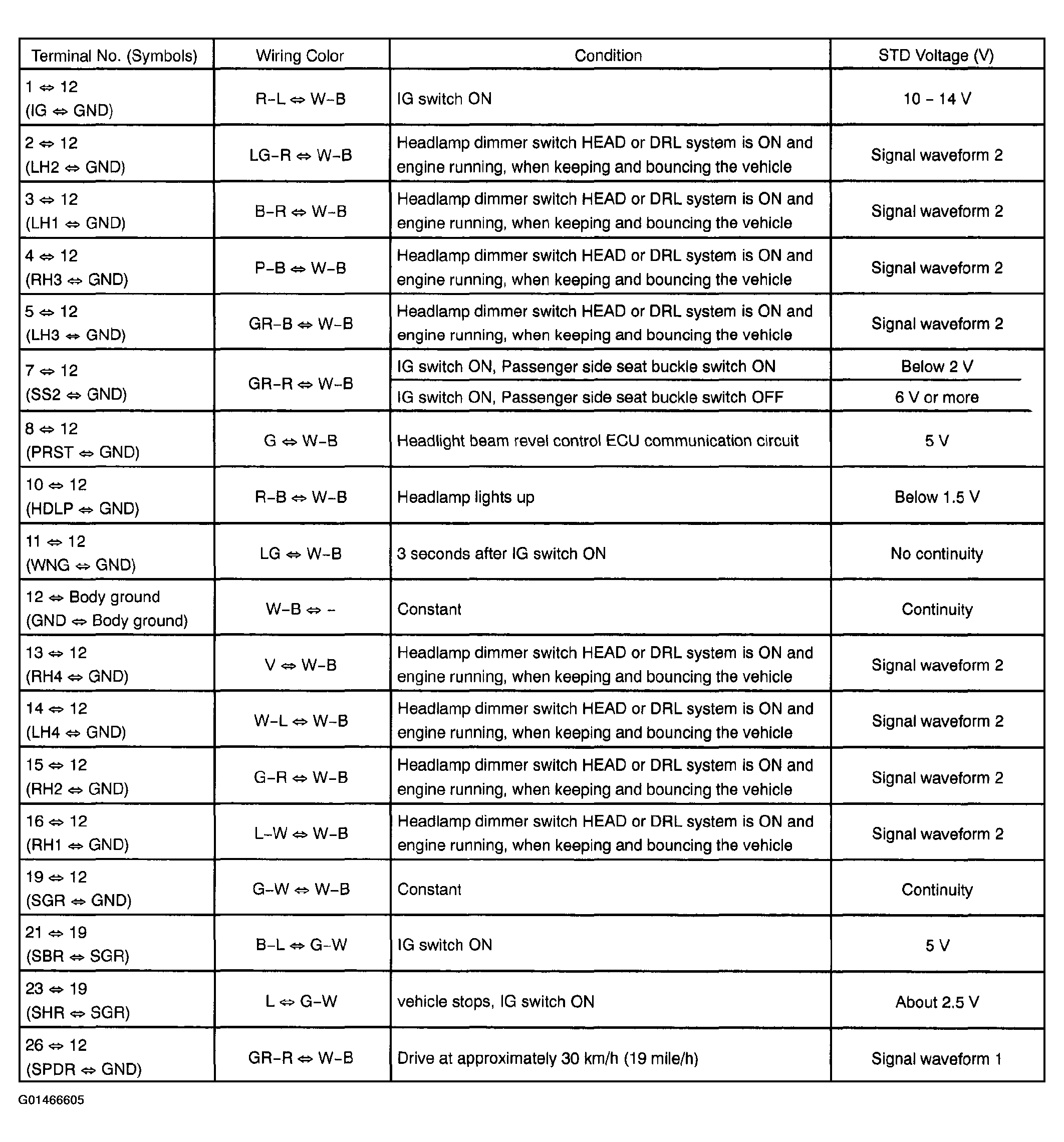

Fig 4: Headlight Beam Level Control ECU Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Signal waveform 1
  HINT:
  - Terminal: SPDR - GND
  - Gauge set: 5V / DIV. 2ms / DIV
  - Condition: Drive at about 30 km/h (19 mile/h)

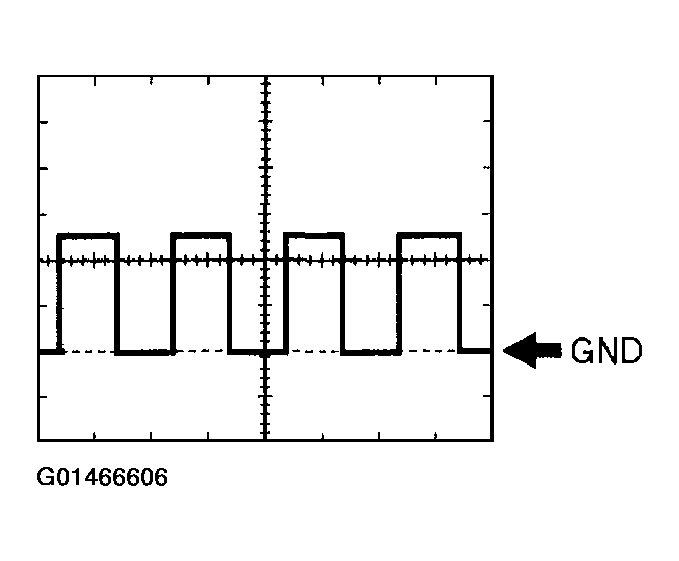

  Fig 5: Identifying Signal Waveform 1 (GND)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Signal waveform 2
  HINT:
  - Terminal: RH+. RHT. RH-. RHE - RHG
    LH+. LHT. LH-. LHE - LHG
  - Gauge set: 5V / DIV. 10ms / DIV
  - Condition: Light control switch HEAD or DRL system is ON and engine running, when keeping and bouncing the vehicle

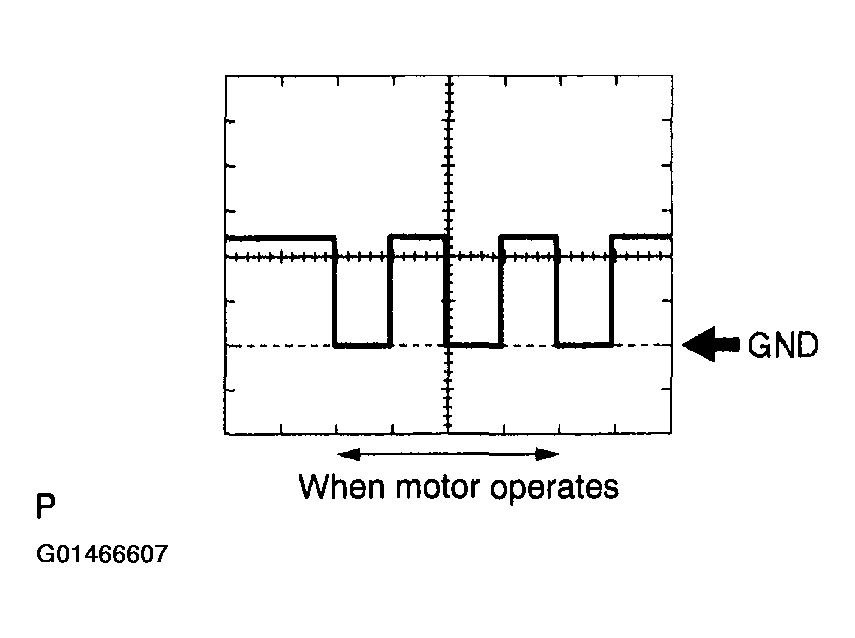

Fig 6: Identifying Signal Waveform 2 (When Motor Operates)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the value is not within the standard range, some defects on the vehicle side are suspect. Inspect the fuse, wire harness and connector.
Power Window Regulator Master Switch Assy

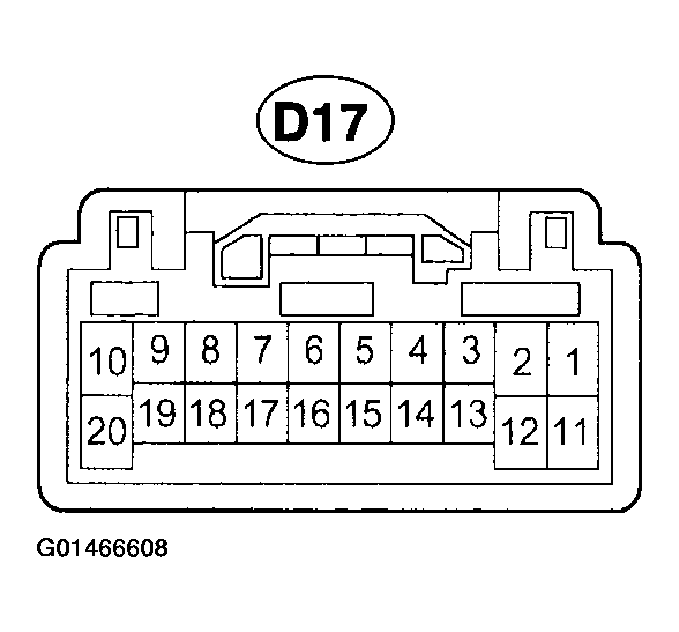

Fig 7: Identifying Power Window Regulator Master Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

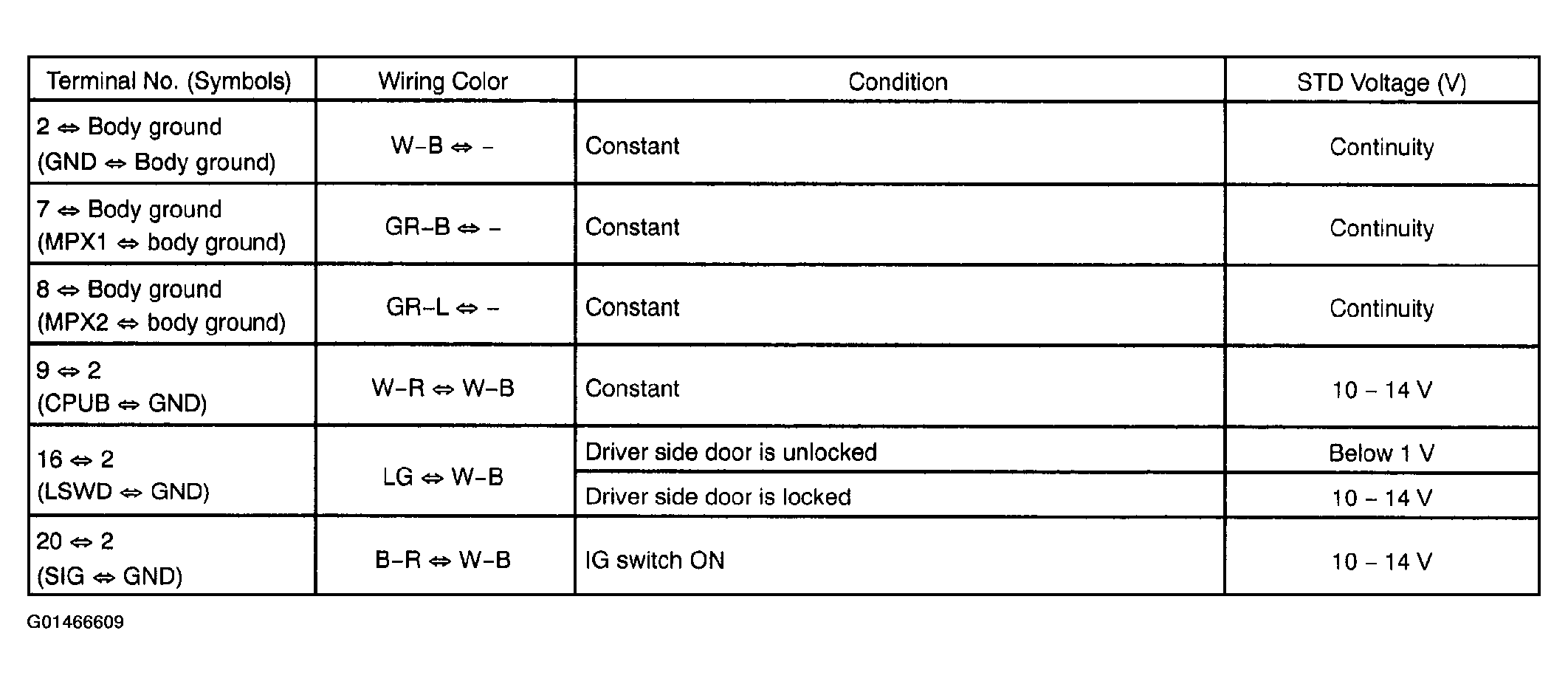

Fig 8: Power Window Regulator Master Switch Assy Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Power Window Regulator Switch Assy

Fig 9: Identifying Power Window Regulator Switch Terminals

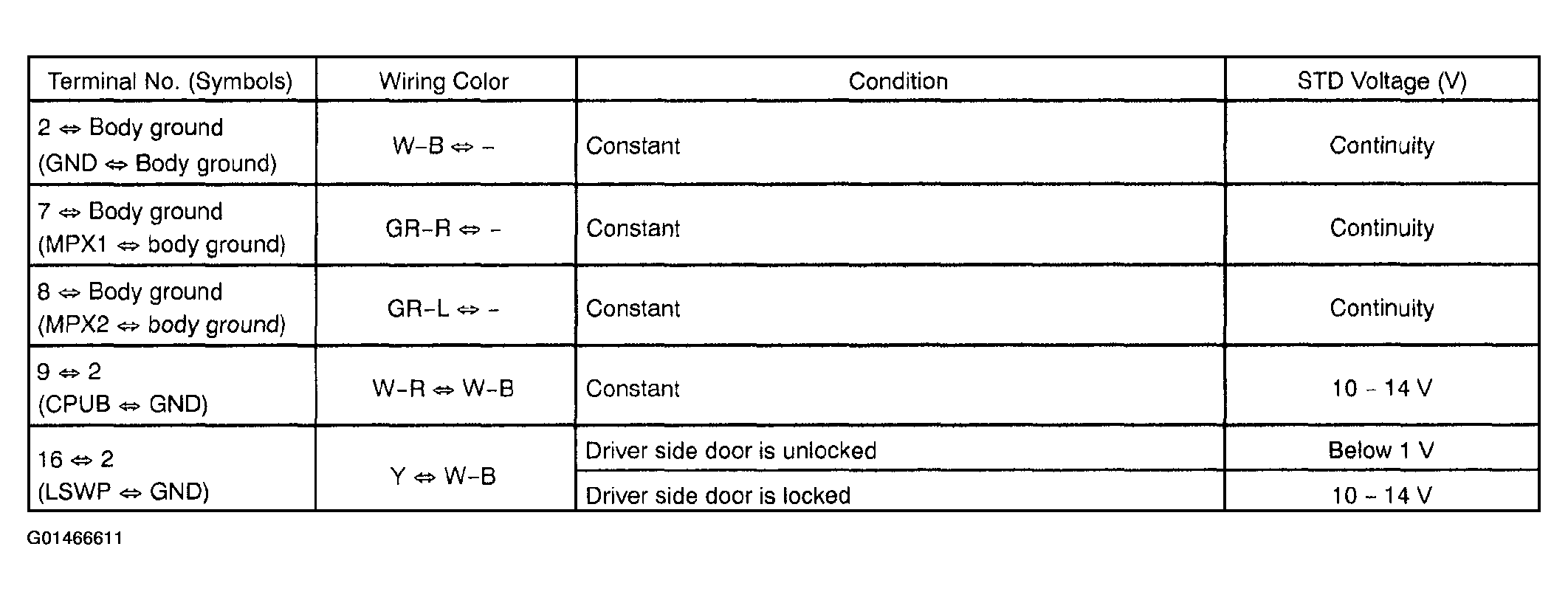

Fig 10: Power Window Regulator Switch Assy Specifications Chart
